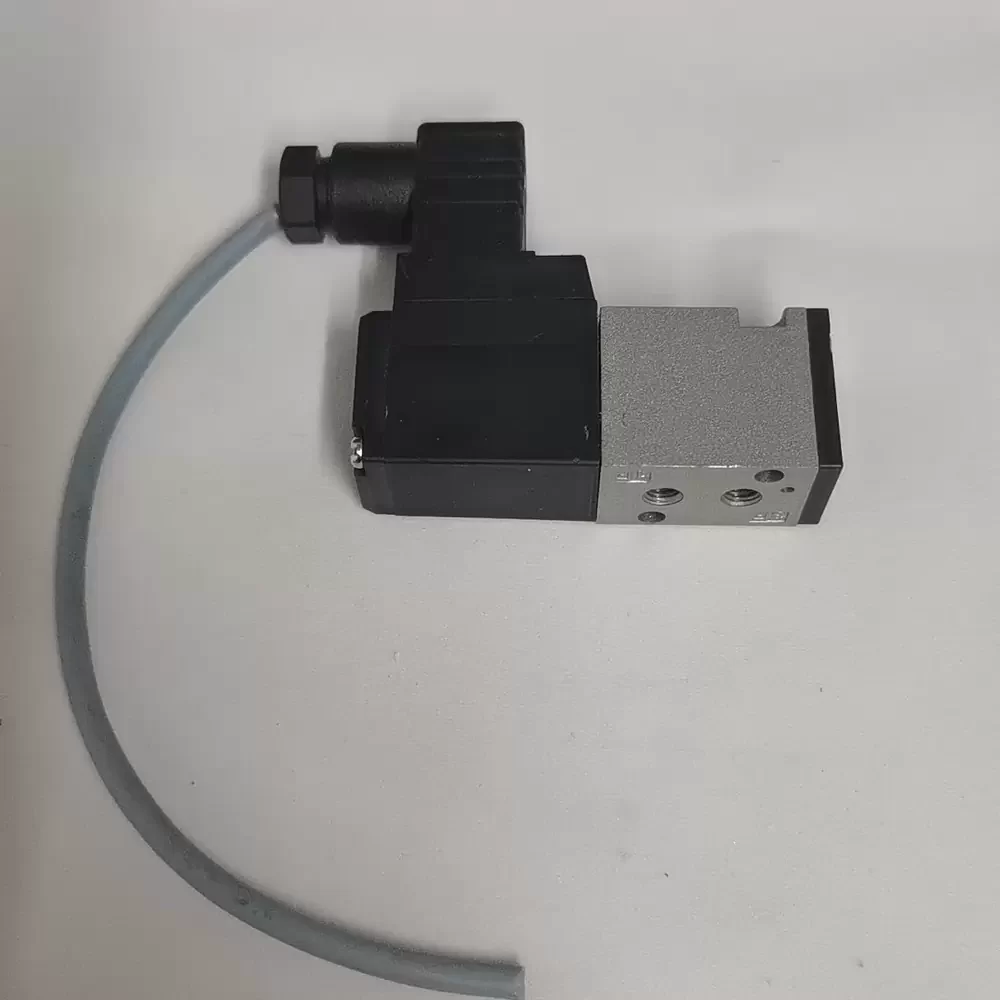

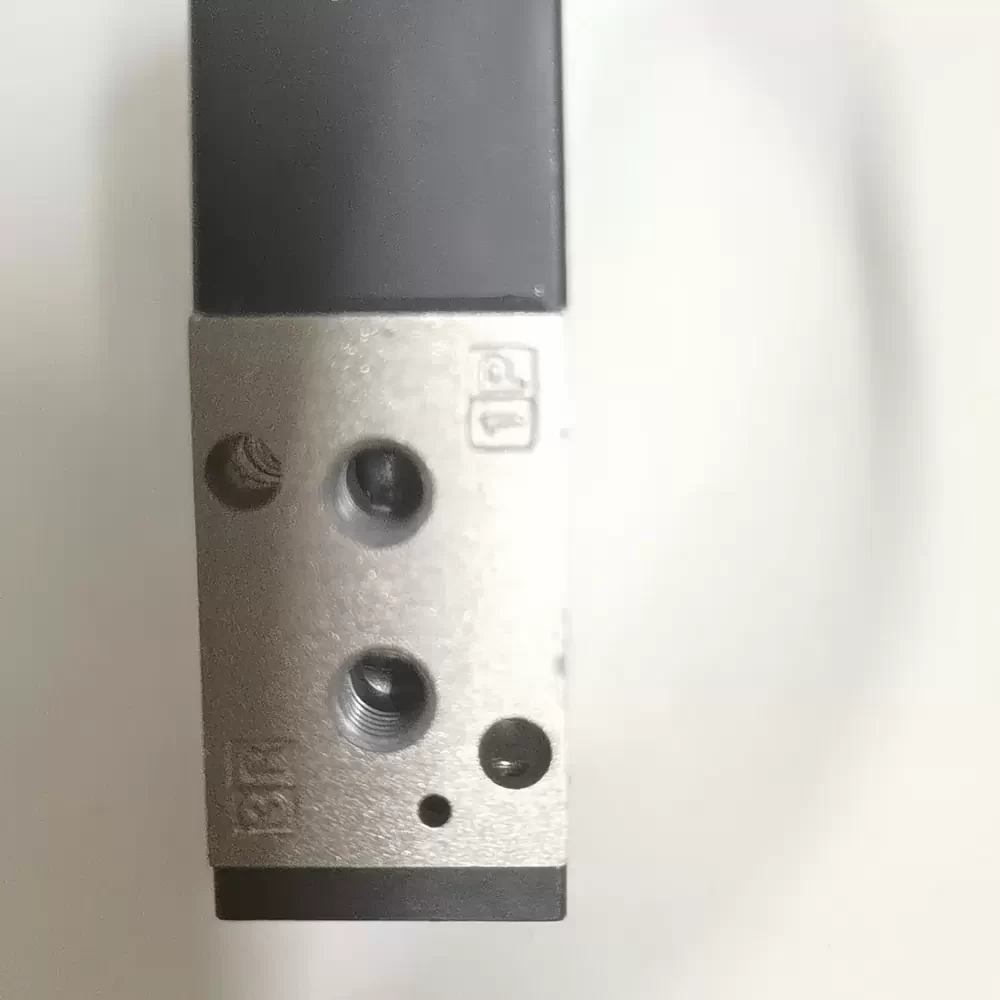

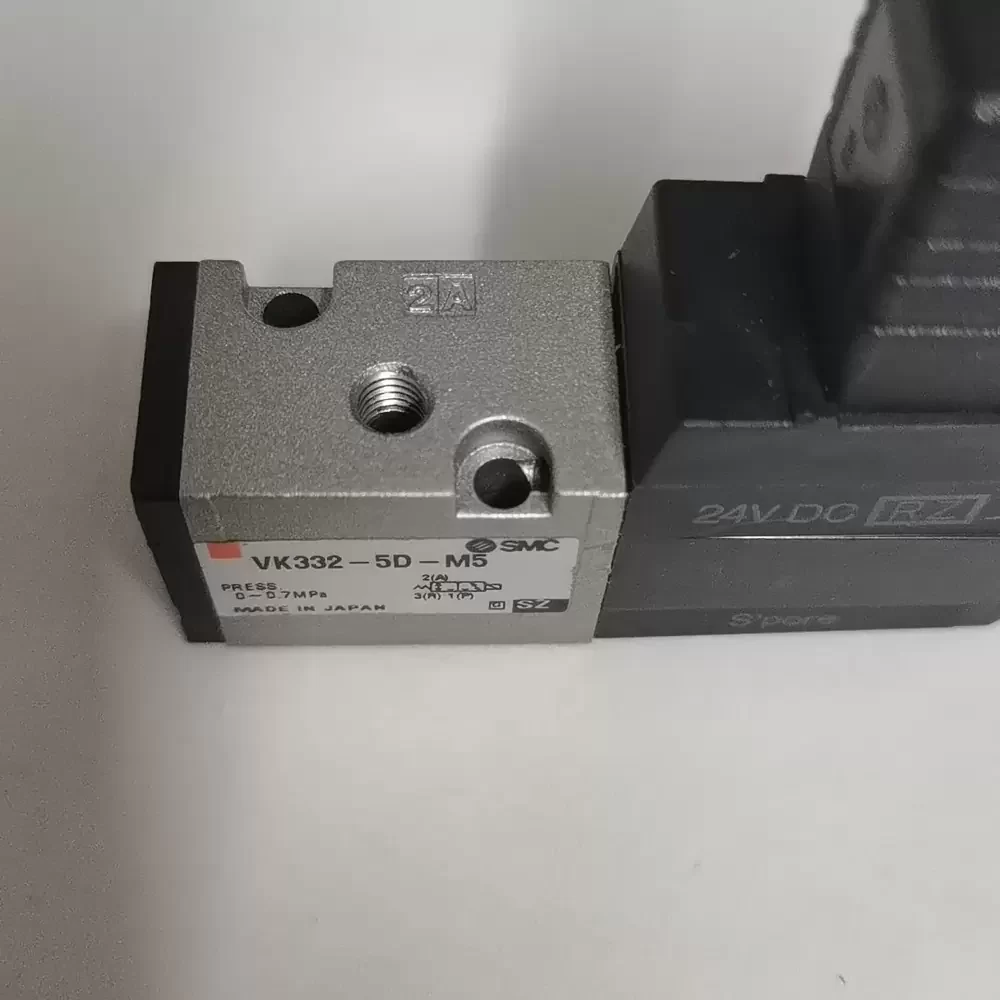

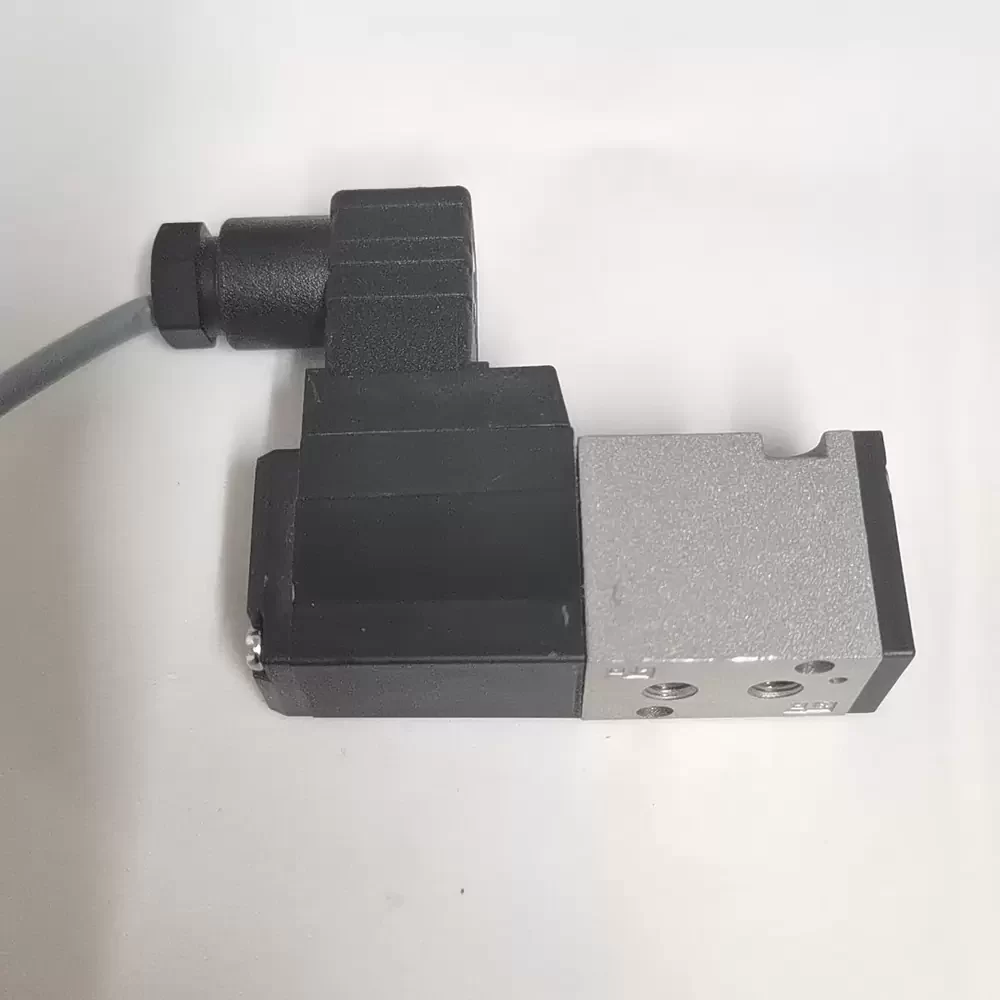

VK332-5D-M5 SMC 24VDC M5 Direct Poppet 3-Port Solenoid Valve

Description

SMC VK332-5D-M5 24 VDC 3-port direct operated poppet solenoid valve featuring an M5 x 0.8 port size and a 0 to 0.7 MPa operating pressure range. Constructed with copper-free internal components and a durable rubber seal, this compact 18 mm wide unit provides fluid control without requiring lubrication. The hardware utilizes a DIN terminal for secure electrical entry and delivers a rapid response time of 10 ms or less. Engineered for body-ported mounting, the valve supports both positive pressure and vacuum applications down to -101.2 kPa while maintaining a dustproof protective enclosure.

VK332-5D-M5 Specifications
Model Number: VK332-5D-M5
Brand: SMC
Series: VK300
Product Category: 3-Port Solenoid Valve
Actuation Type: Direct Operated Poppet
Seal Type: Rubber Seal
Fluid Compatibility: Air, Non-corrosive gases
Rated Voltage: 24 VDC
Electrical Entry: DIN Terminal
Port Size: M5 x 0.8
Operating Pressure Range: 0 to 0.7 MPa
Vacuum Rating: Up to -101.2 kPa
Response Time: 10 ms or less
Ambient & Fluid Temperature: -10 to 50 °C (No freezing)
Lubrication: Not required
Mounting Style: Body Ported
Protective Construction: Dustproof
Material Specification: Copper-free (fluid contact parts)
Valve Width: 18 mm
Valve Length: 68 mm

VK332-5D-M5 Applications
Primary applications include integration into automated assembly line pneumatic manifolds, robotic end-of-arm tooling control circuits, and precision packaging machinery. Deployed within semiconductor manufacturing equipment and CNC machine tool pneumatic panels where compact, copper-free directional air control is strictly required.
