W2E200-HK38-01 EBM 230VAC 225x225x80mm IP44 Axial Fan

Description

The EBM W2E200-HK38-01 is a robust AC Axial Fan designed for demanding industrial thermal management applications. Featuring an advanced external rotor motor integrated into a rugged die-cast aluminum housing, this unit ensures superior structural rigidity and vibration resistance. The all-metal impeller design optimizes aerodynamic efficiency, significantly reducing thermal impedance within high-density enclosures while maintaining operational stability under varying load conditions. Its durable construction meets IP44 standards, effectively protecting internal electromechanical components against solid particle ingress and splashing water, making it an ideal solution for harsh operating environments requiring reliable continuous duty cycles.

Model Number: W2E200-HK38-01
Brand: EBM (ebm-papst)
Product Type: AC Axial Fan
Rated Voltage: 230 VAC
Frequency: 50 / 60 Hz
Rated Current: 0.29 / 0.35 A
Power Input: 64 / 80 W
Power Output: 23 / 39 W
Rated Speed: 2550 / 2800 RPM
Max. Air Flow: 517.9 / 600.3 CFM (880 / 1020 m³/h)
Max. Static Pressure: 0.42 / 0.52 inH₂O (105 / 130 Pa)
Bearing Type: Ball Bearing
Dimensions: 225 x 225 x 80 mm

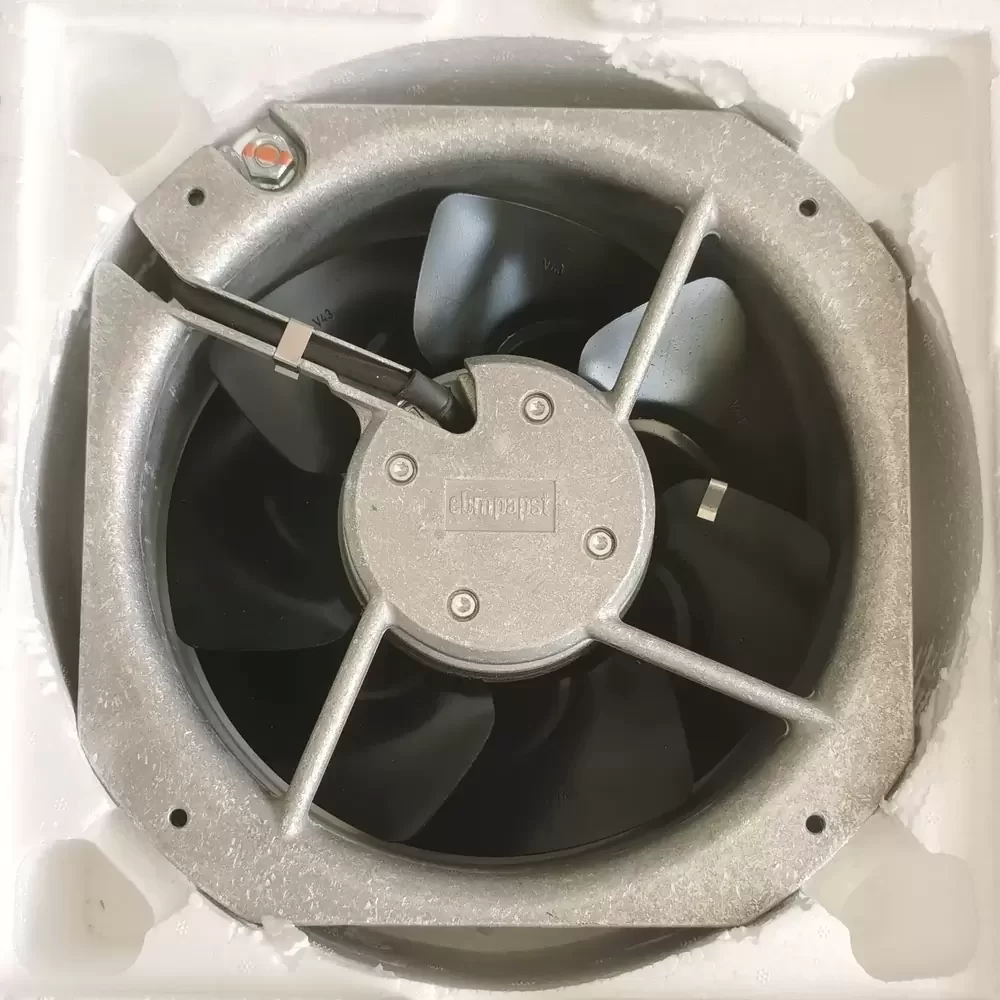

Housing Material: Die-Cast Aluminum

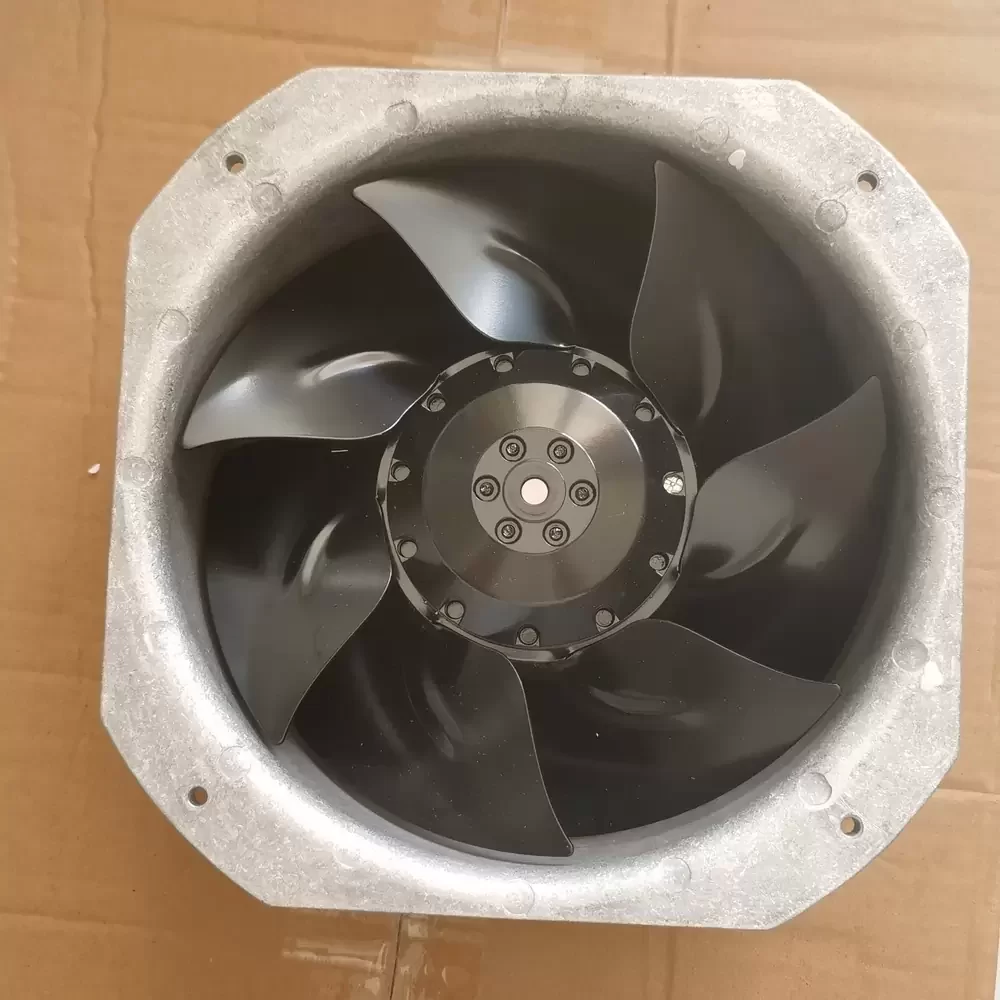

Impeller Material: Sheet Steel
Ingress Protection: IP44
Noise Level: 59 / 61 dB(A)
Operating Temperature: -25°C to +75°C
Weight: 2.1 kg
Motor Type: External Rotor AC
Phase: 1~
Mounting: 225mm Flange

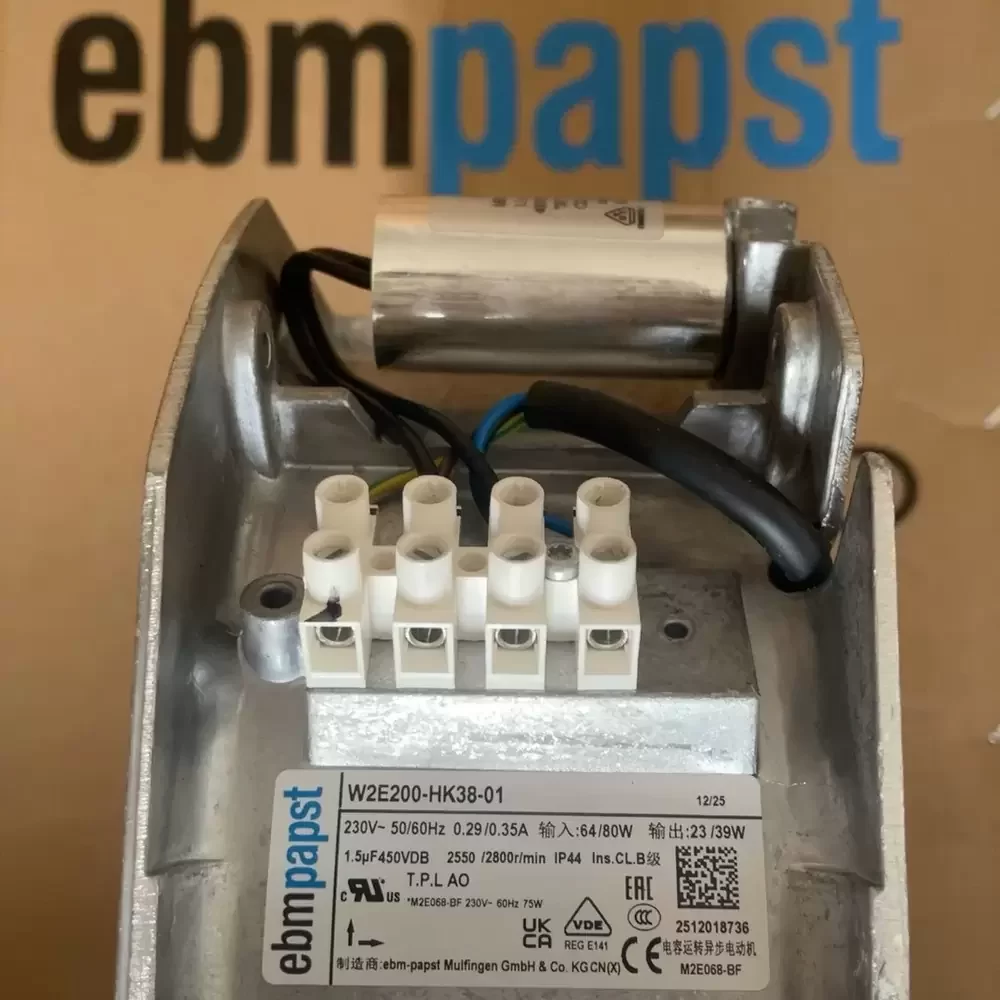

Capacitor: Integrated / External Required (depending on wiring)

This high-performance unit is engineered for critical cooling applications such as industrial control cabinets, server racks, and power converters where thermal reliability is paramount. The W2E200-HK38-01 provides consistent, high-volume airflow to dissipate heat from sensitive electronic components, ensuring system longevity and preventing thermal throttling. Additionally, the W2E200-HK38-01 is frequently utilized in ventilation systems for manufacturing machinery, welding equipment, and large-scale heat exchangers requiring a compact yet powerful air movement solution.
