Description

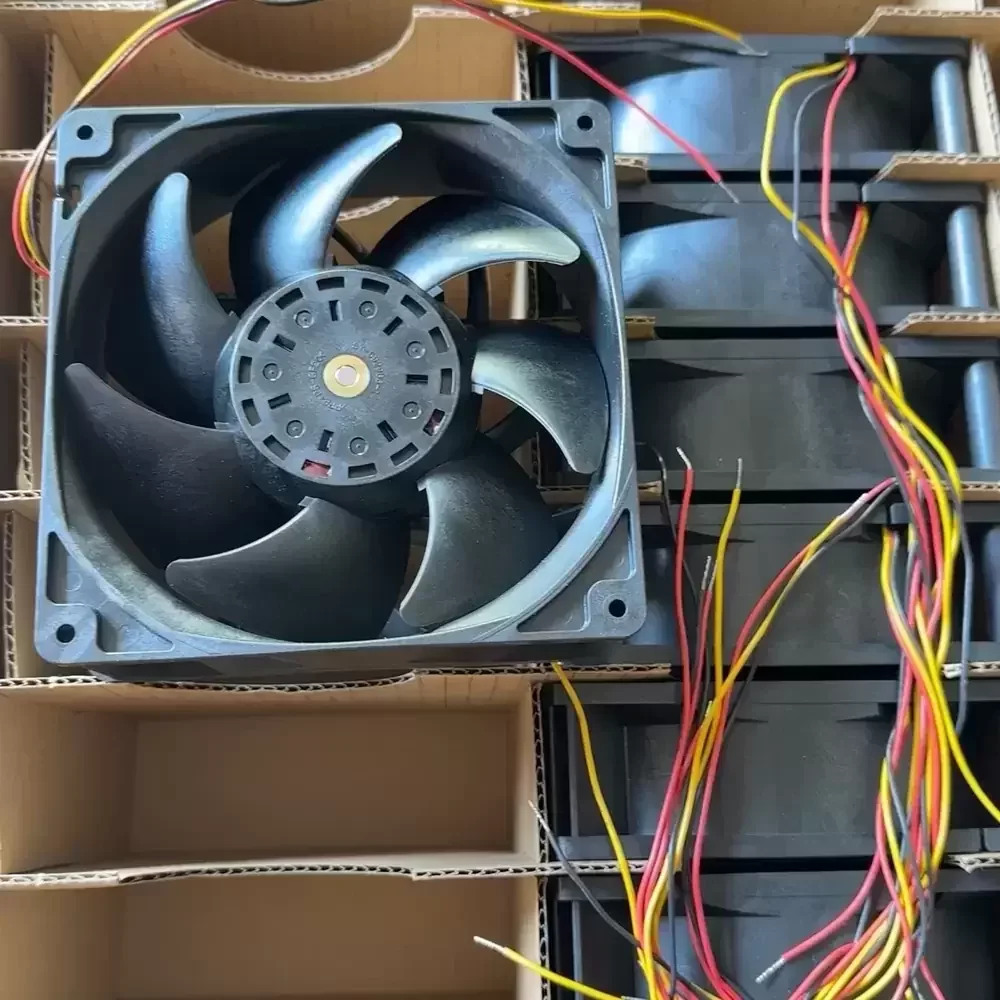

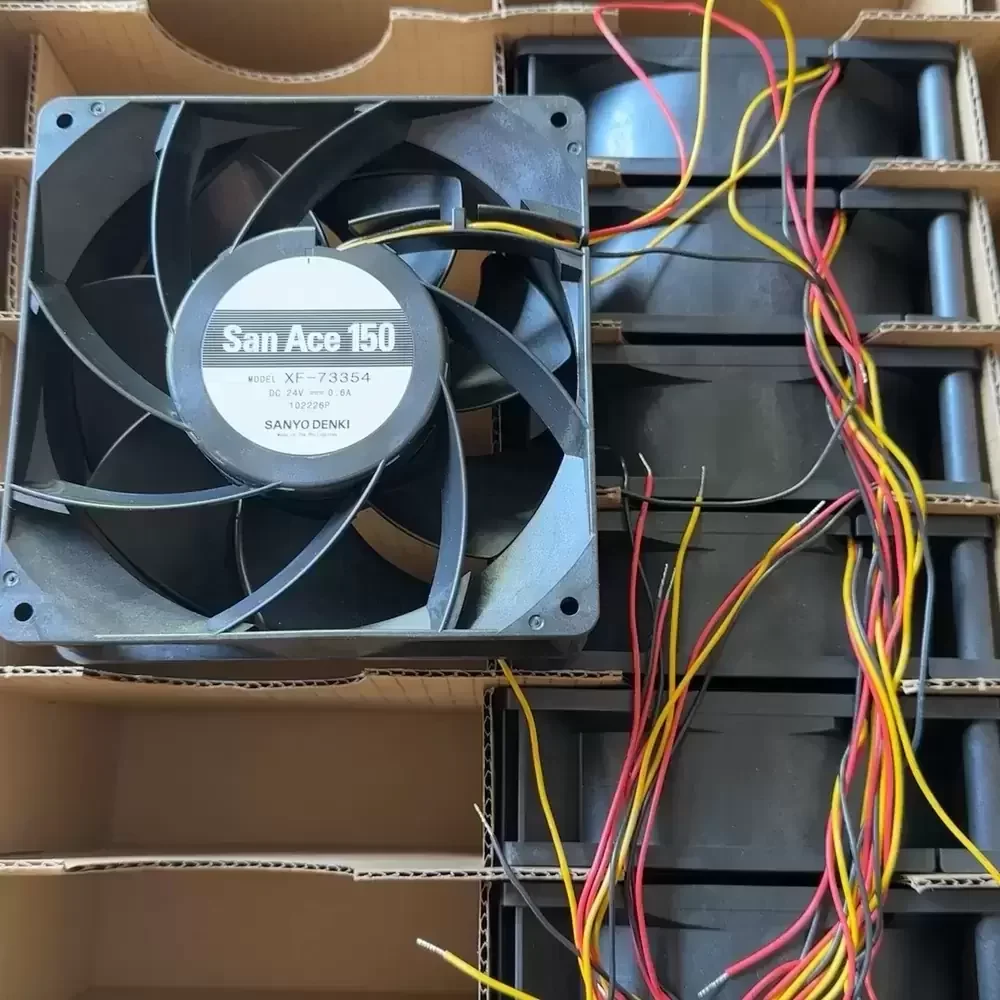

The Sanyo Denki XF-73354 is a robust San Ace 150 Axial Fan engineered for critical industrial thermal management. Featuring a precision-wound DC motor and a dual ball bearing architecture, this unit ensures minimal friction and extended operational longevity under continuous load. The 150mm chassis is designed with optimized strut geometry to reduce turbulence and enhance static pressure capabilities. Its aerodynamic impeller profile maximizes airflow delivery while maintaining structural rigidity, making it an ideal solution for high-impedance systems requiring reliable heat dissipation.
Model Number: XF-73354
Brand: Sanyo Denki
Product Type: Axial Fan
Series: San Ace 150
Rated Voltage: 24VDC
Operating Voltage Range: 14.0 – 27.6 VDC
Rated Current: 0.6 A
Input Power: 14.4 W
Rated Speed: 3200 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 230.0 CFM (390 m³/h / 6.51 m³/min)
Max. Static Pressure: 14.2 mmH₂O (139.2 Pa / 0.56 inH₂O)
Dimensions: 150mm x 150mm x 50mm
Frame Material: Aluminum Die-Cast
Impeller Material: Plastic (UL94V-1)
Noise Level: 53 dB(A)
Termination: Lead Wires
Operating Temperature: -10°C to +70°C
Storage Temperature: -30°C to +70°C
Life Expectancy: 40,000 Hours at 60°C
Motor Protection: Locked Rotor Protection; Reverse Polarity Protection
Mounting Orientation: Any
Designed for high-demand environments, the XF-73354 excels in cooling large-scale electronics and power supply units where consistent airflow is paramount. This model is frequently integrated into telecommunications cabinets, server rack enclosures, and industrial automation control panels to prevent thermal throttling. The XF-73354 provides the necessary static pressure to overcome resistance in densely populated chassis, ensuring sensitive components remain within safe operating temperature ranges during 24/7 operation.
Updated:
Additional information
| Shipping Weight | 1 kg |
|---|
