Description

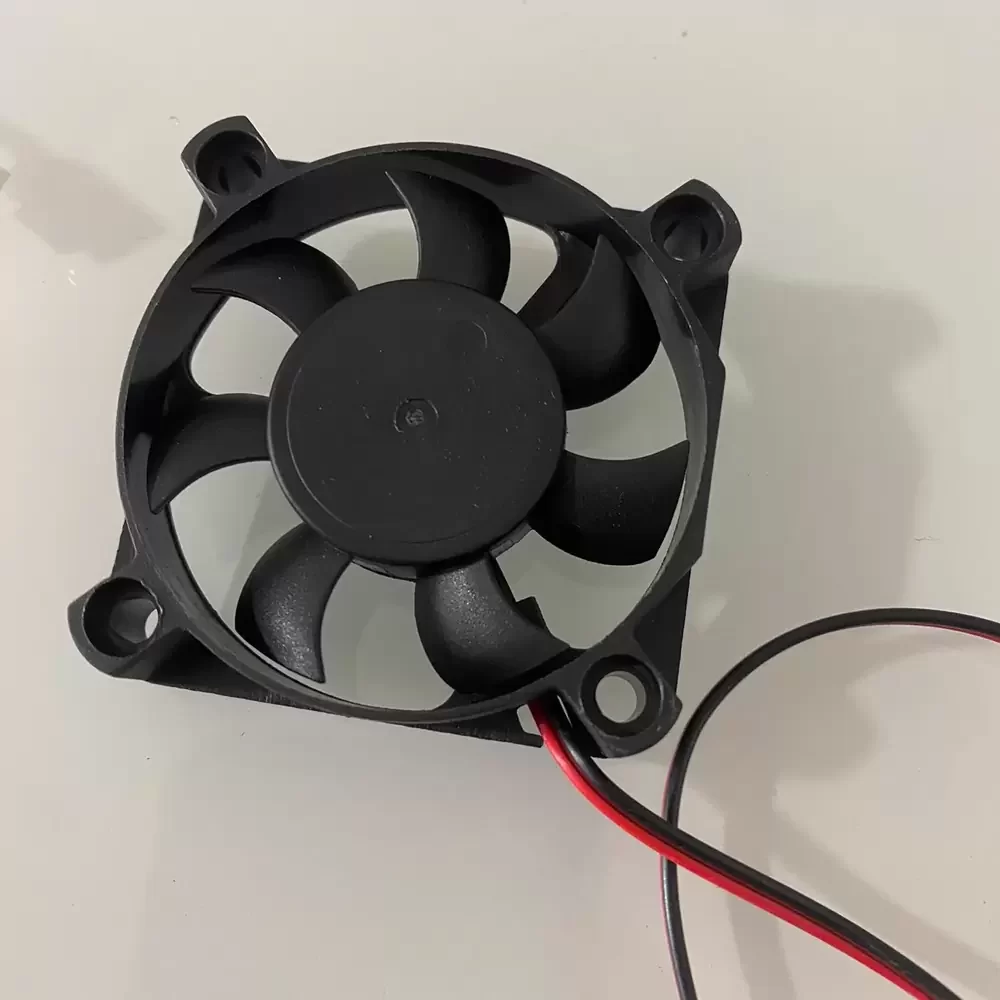

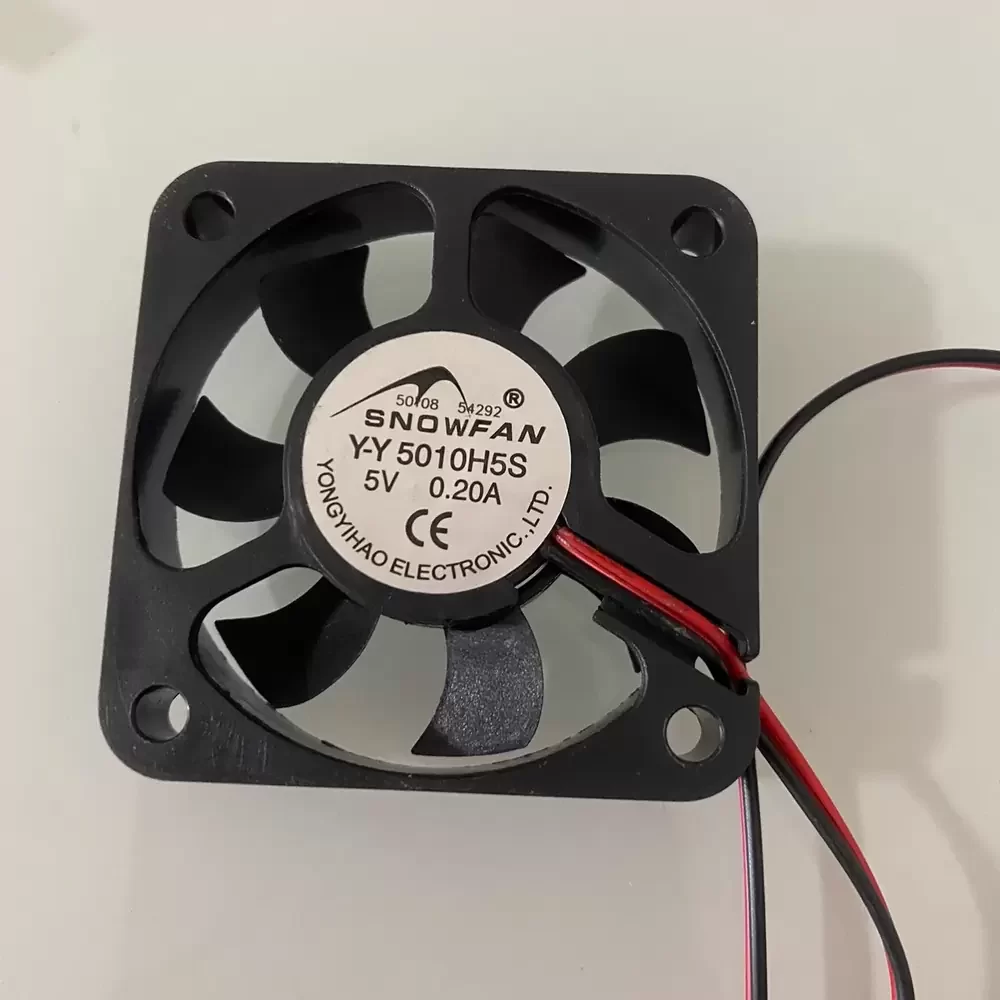

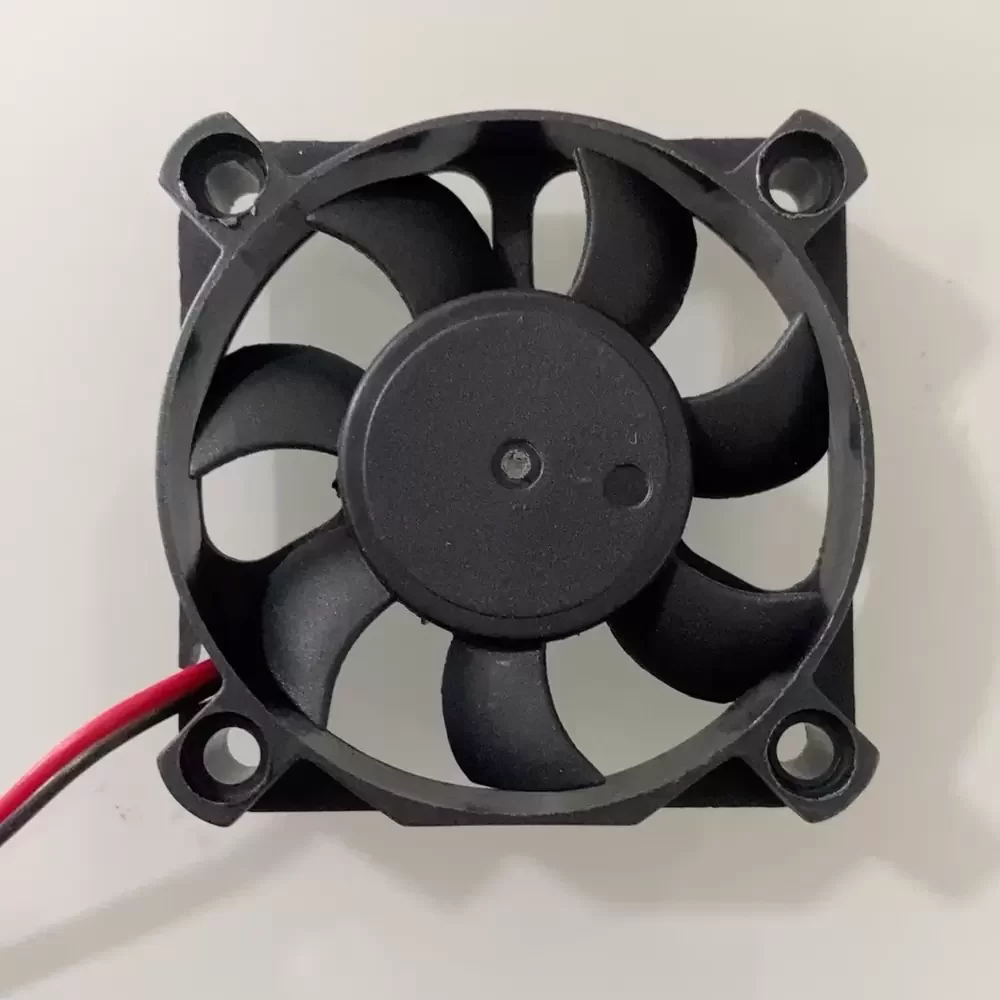

SNOWFAN YY5010H5S is a 5VDC 50x50x10mm Axial Fan optimized for compact thermal management in low-voltage electronic enclosures. This unit features a high-efficiency DC motor architecture paired with a precision sleeve bearing system designed to minimize thermal impedance in space-constrained environments. The aerodynamic impeller is engineered for structural rigidity, ensuring stable airflow delivery even under continuous operation. Operating at a rated current of 0.20A, this fan provides a balanced ratio of static pressure to noise, making it an ideal replacement fan for consumer electronics and small-scale industrial controllers requiring reliable heat dissipation.
Model Number: YY5010H5S
Brand: SNOWFAN
Product Type: Axial Fan
Rated Voltage: 5 VDC
Voltage Range: 4.5 – 5.5 VDC
Rated Current: 0.20 A
Power: 1.0 W
Rated Speed: 5000 RPM
Bearing Type: Sleeve Bearing
Max. Air Flow: 11.4 CFM
Max. Static Pressure: 3.2 mmH2O
Dimensions: 50 x 50 x 10 mm
Weight: 18 g
Life Expectancy: 30,000 Hours at 25 C
Housing Material: Thermoplastic PBT (UL94V-0)
Blade Material: Thermoplastic PBT (UL94V-0)

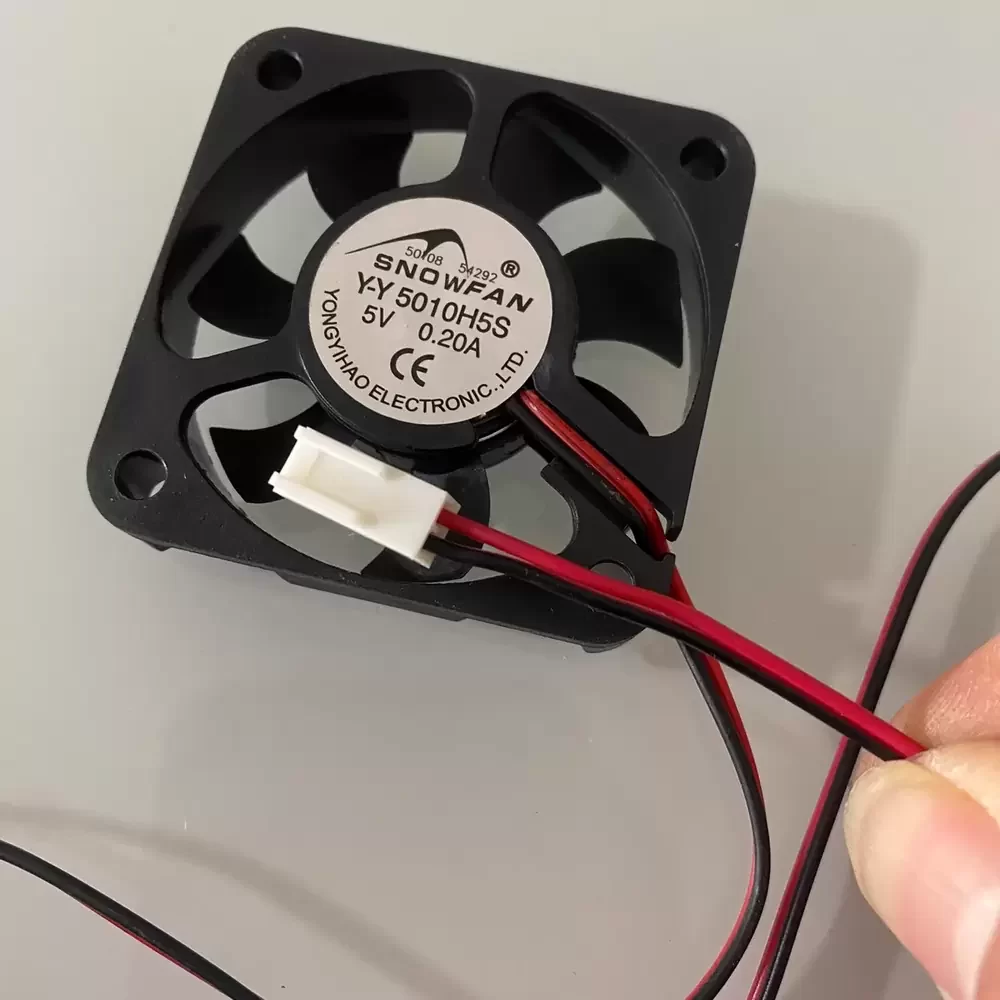

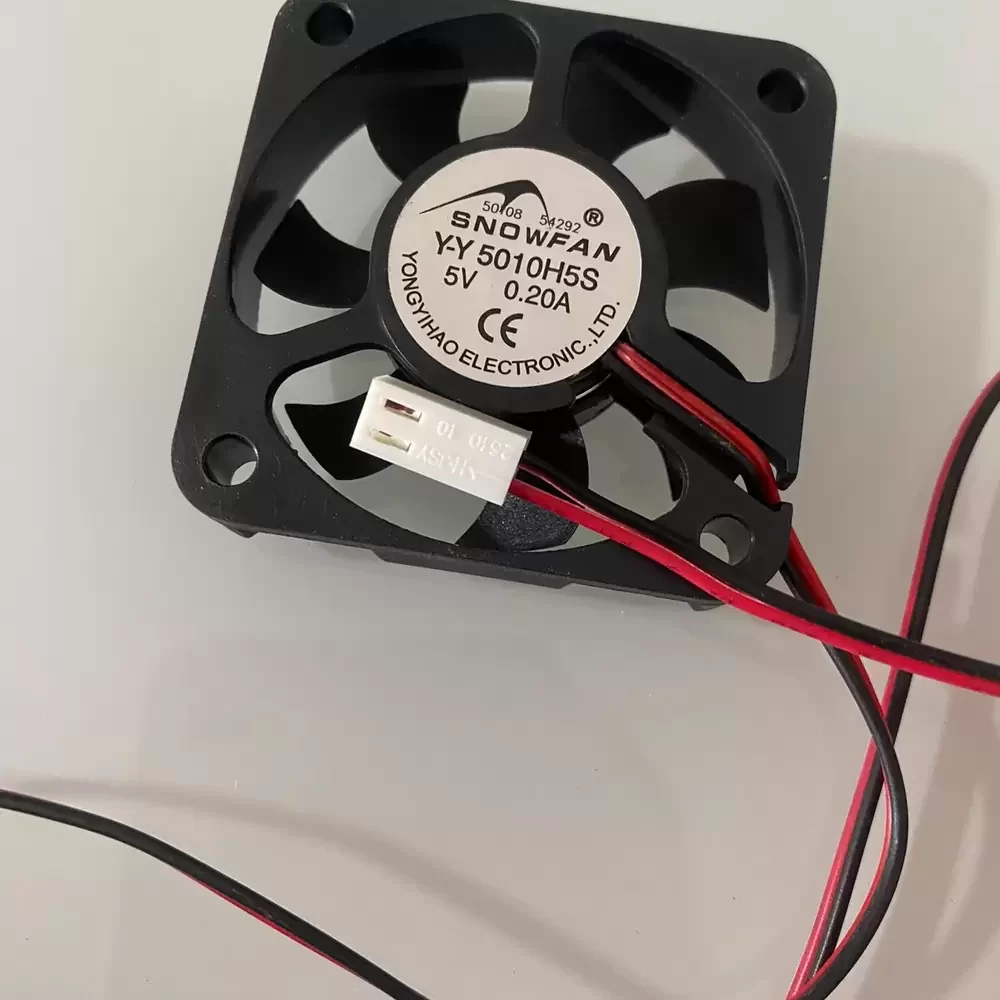

Termination: 2-Wire Lead Wires
Wire Length: 280 mm
Insulation Class: Class A
Operating Temperature: -10 to +70 C
Storage Temperature: -40 to +75 C
Protection Features: Impedance Protected
YY5010H5S Applications
1. Compact Network Hardware: The 10mm ultra-slim profile allows for integration into 1U network switches and routers where overcoming internal component impedance is critical for long-term stability.
2. Portable Medical Devices: Low-vibration sleeve bearing design provides quiet, consistent cooling for handheld diagnostic equipment requiring a 5VDC power rail.
3. Embedded Computing Cooling: Ideal as a replacement fan for SBC (Single Board Computer) enclosures and DIY electronics projects where precise 50mm mounting footprints are required.” required.
