Description

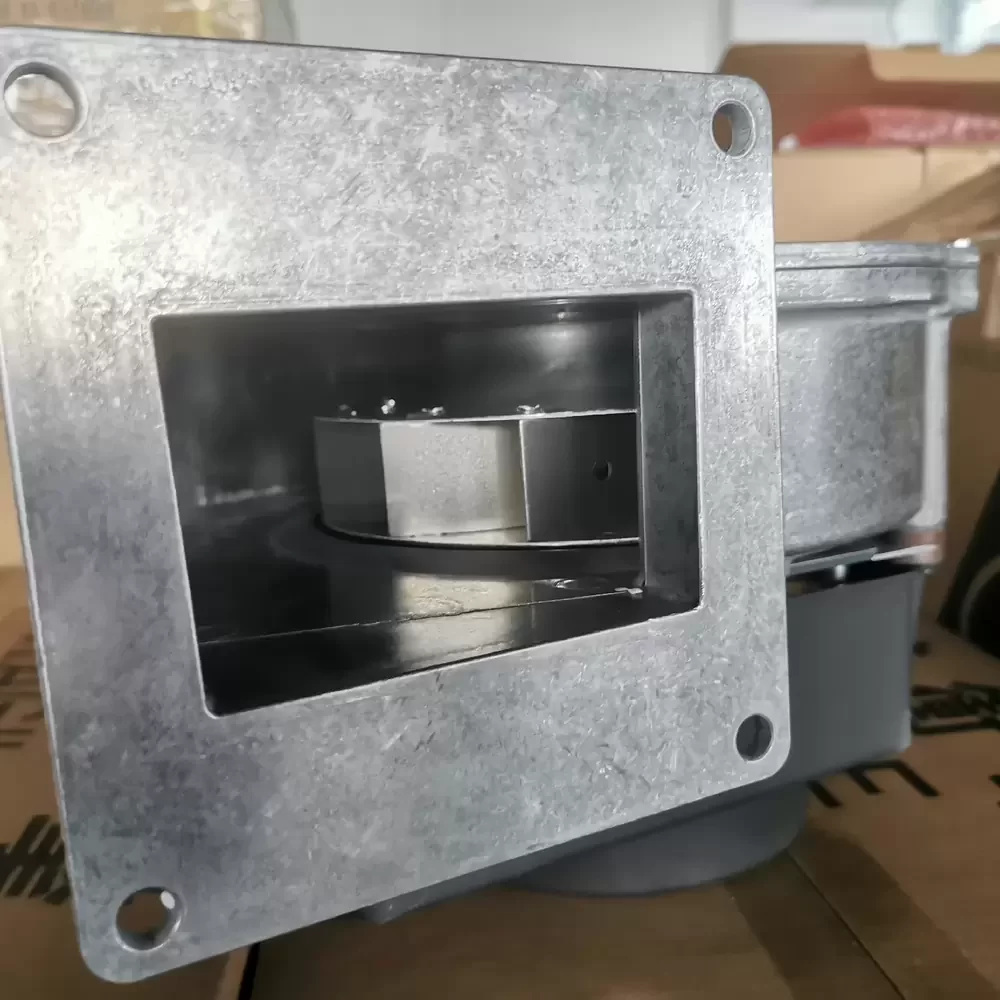

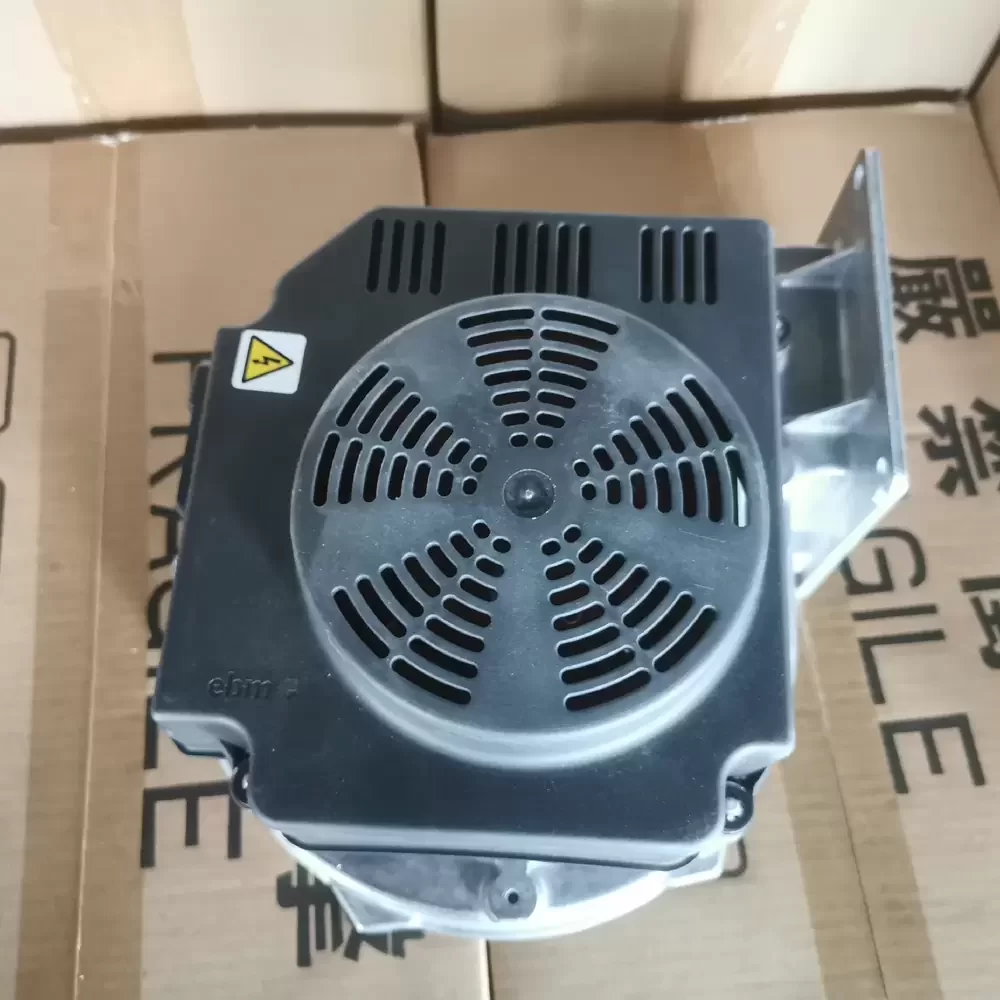

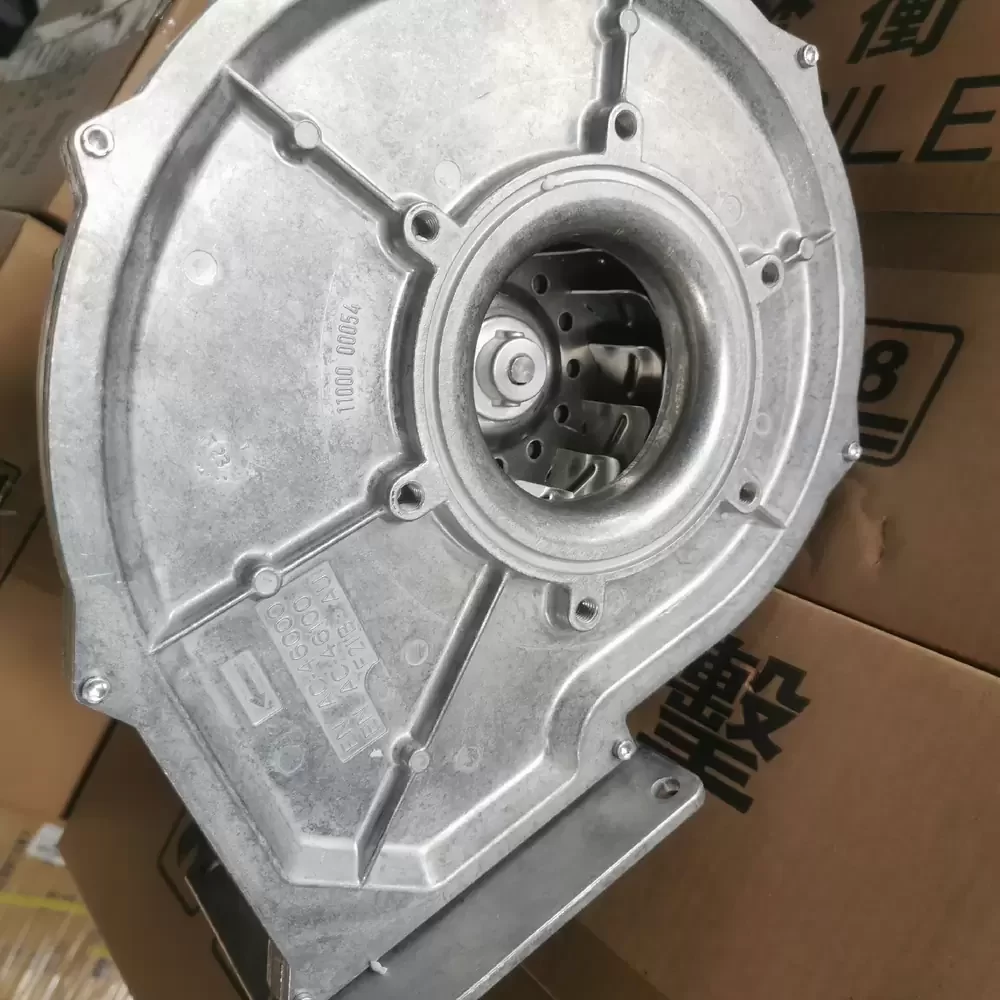

The ebm-papst G1G170-AB31-03 is a precision-engineered EC Centrifugal Blower designed for high-efficiency thermal applications and combustion systems. Utilizing the advanced M1G074-CF31-53 EC motor technology, this unit delivers exceptional aerodynamic performance with optimized static pressure capabilities. The construction features a robust die-cast aluminum housing ensuring structural rigidity under high thermal loads, while the maintenance-free ball bearing system guarantees longevity and reliability. Its electronic commutation ensures low energy consumption and precise modulation, making it ideal for systems requiring exact airflow management and low thermal impedance.
Model Number: G1G170-AB31-03
Brand: ebm-papst
Product Type: EC Centrifugal Gas Blower
Motor Type: M1G074-CF31-53 (EC Motor)
Rated Voltage: 24 VDC
Voltage Range: 16.0 – 28.0 VDC
Power Input: 45 W
Rated Current: 2.1 A
Rated Speed: 4700 RPM
Max. Air Flow: 108.3 CFM (184 m³/h)
Max. Static Pressure: 14.05 mmH₂O (138 Pa)
Dimensions: 170 mm (Impeller Diameter)
Bearing Type: Ball Bearing
Weight: 1.6 kg
Control Input: PWM / 0-10V Speed Control
Signal Output: Tachometer Output
Housing Material: Die-cast Aluminum
Impeller Material: Sheet Steel, Hot-dip Galvanized
Insulation Class: Class F
Ingress Protection: IP20
Operating Temperature: -25°C to +70°C
Mounting Orientation: Any
Life Expectancy: 40,000 Hours @ 40°C
Compliance: CE, UL, CSA
This high-performance blower is specifically engineered for premix gas condensing boilers and sophisticated combustion systems. The G1G170-AB31-03 ensures optimal air-gas mixture ratios essential for clean combustion in industrial heating units. Additionally, the G1G170-AB31-03 is utilized in fuel cell technology, medical ventilation equipment, and specialized thermal management setups where high static pressure and resistance to elevated temperatures are critical operational requirements.
