Description

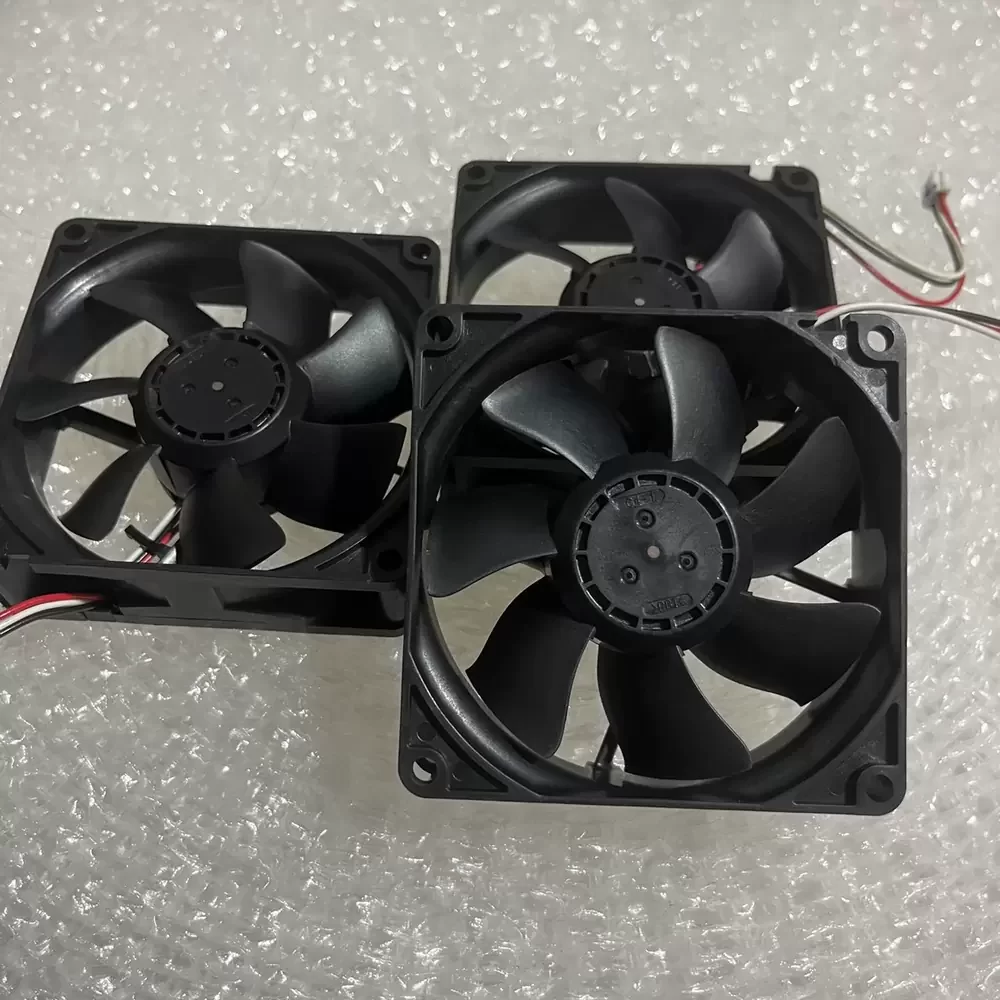

The NMB 08025SA-24R-AT-G00 is a precision-engineered axial fan designed for high-reliability thermal management in server and industrial environments. Utilizing NMB’s proprietary dual ball bearing architecture, this unit ensures minimal friction and extended operational lifespan under continuous load. The impeller features an advanced aerodynamic profile that optimizes the P-Q curve, delivering high static pressure relative to its footprint while maintaining structural rigidity. Its robust frame construction minimizes vibration-induced noise, making it an ideal solution for systems requiring low thermal impedance and consistent airflow performance. The unit is constructed with UL94V-0 rated materials, ensuring compliance with stringent industrial safety standards.
Model Number: 08025SA-24R-AT-G00
Brand: NMB (MinebeaMitsumi)
Product Type: DC Axial Fan
Rated Voltage: 24 VDC
Voltage Range: 14.0 – 27.6 VDC
Rated Current: 0.22 A
Power Consumption: 5.28 W
Rated Speed: 4250 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 53.0 CFM (90.0 m³/h / 1.50 m³/min)
Max. Static Pressure: 7.8 mmH₂O (76.5 Pa / 0.31 inH₂O)
Dimensions: 80 x 80 x 25 mm
Weight: 95 g
Life Expectancy: 100,000 Hours (25°C)
Noise Level: 44.0 dBA
Housing Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Termination: 3-Wire Lead
Ingress Protection: IP20
This cooling solution is specifically engineered for high-density computing environments, including rack-mount servers and telecommunications switching gear. The 08025SA-24R-AT-G00 excels in applications where sustained airflow is critical for dissipating heat from processors and power supply units. Additionally, the 08025SA-24R-AT-G00 is frequently utilized in industrial automation control panels and medical instrumentation, providing reliable thermal regulation to prevent component degradation in 24/7 operational cycles.
