Description

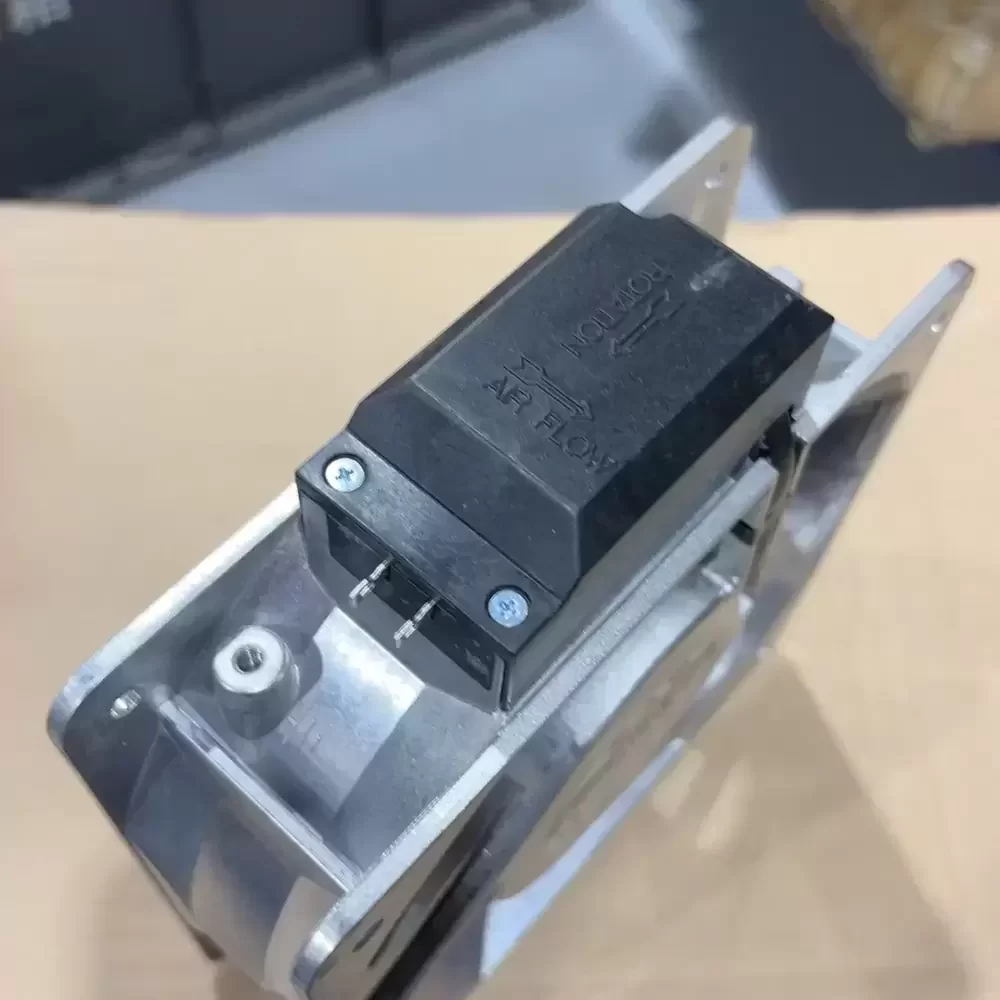

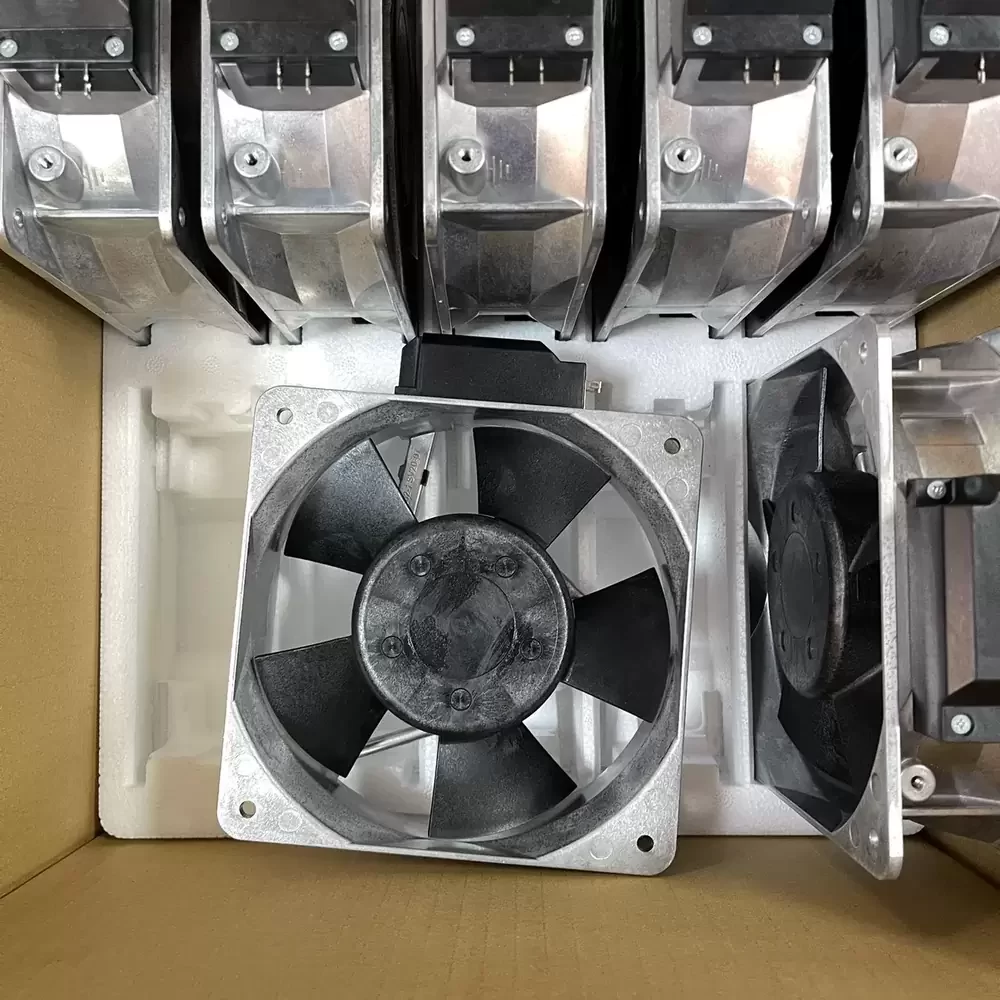

The Sanyo Denki 109-603 is a robust AC Axial Fan engineered for high-reliability industrial cooling applications. This unit features a precision-balanced impeller housed within a durable aluminum die-cast frame, ensuring structural rigidity and optimal thermal management under continuous operation. Utilizing Sanyo Denki’s advanced dual ball bearing architecture, the 109-603 delivers consistent aerodynamic performance while minimizing frictional losses and extending service life. The motor design is optimized for 230VAC operation, providing stable airflow with low thermal impedance, making it an ideal solution for environments requiring sustained high-pressure air movement and efficient heat dissipation.
Model Number: 109-603
Brand: Sanyo Denki
Series: San Ace 160
Product Type: AC Axial Fan
Rated Voltage: 230 VAC
Frequency: 50/60 Hz
Voltage Range: 207 – 253 VAC
Rated Current: 0.21 / 0.16 A
Power Input: 37.5 / 33 W
Rated Speed: 2700 / 3100 RPM
Max. Air Flow: 205 / 240 CFM (5.8 / 6.8 m³/min)
Max. Static Pressure: 13.0 / 17.0 mmH₂O (127.5 / 166.7 Pa)
Bearing Type: Dual Ball Bearing
Dimensions: 160x160x51 mm
Weight: 1100 g
Noise Level: 53 / 56 dB(A)
Frame Material: Aluminum Die-cast
Impeller Material: Plastic (UL94V-1)
Operating Temperature: -30°C to +60°C
Life Expectancy: 25,000 Hours (at 60°C)
Termination: Terminal Type
Motor Protection: Impedance Protection
Dielectric Strength: 1500 VAC for 1 minute
Origin: Japan
The 109-603 is specifically designed for demanding industrial environments where reliability is paramount. Common applications include cooling large-scale control cabinets, power supply units, and industrial automation machinery that generate significant thermal loads. The 109-603 is also frequently utilized in heat exchangers and ventilation systems within manufacturing facilities. Its robust aluminum construction allows the 109-603 to withstand harsh operating conditions, ensuring critical components in server racks and telecommunications equipment remain within safe operating temperature ranges.
