Description

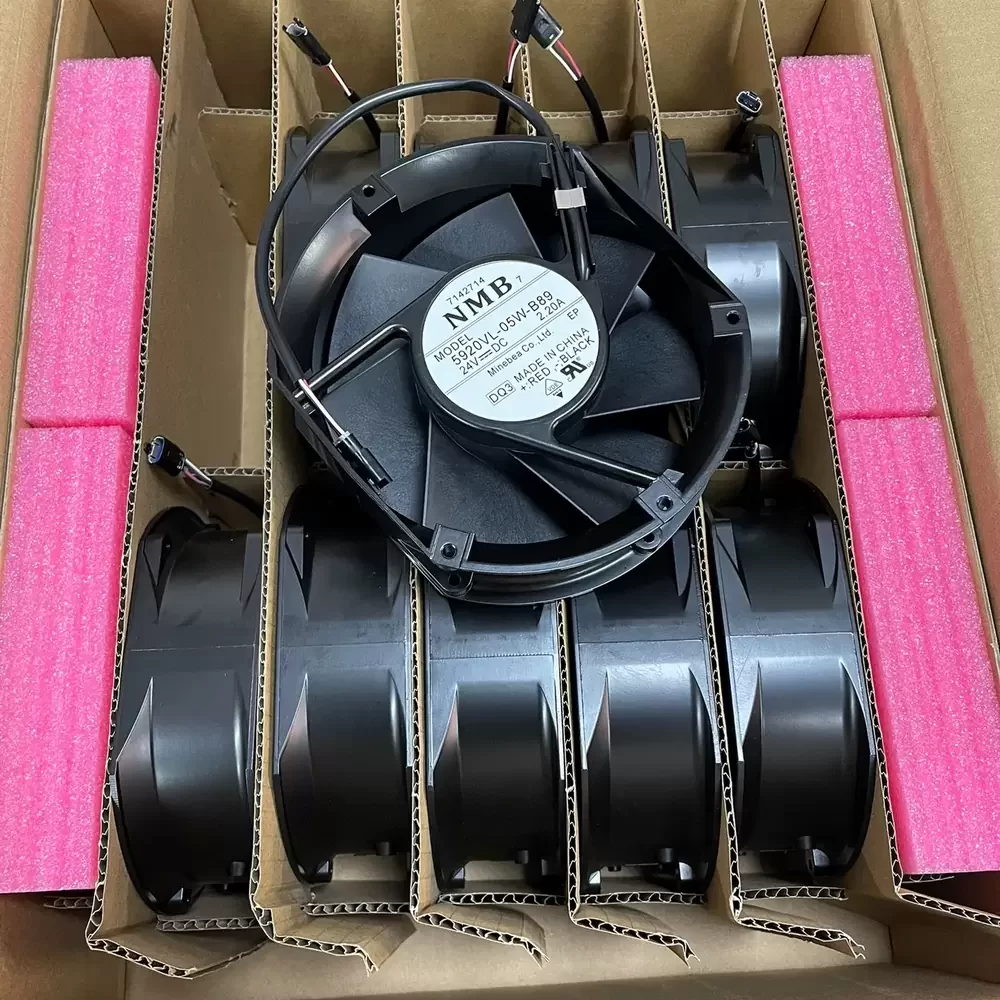

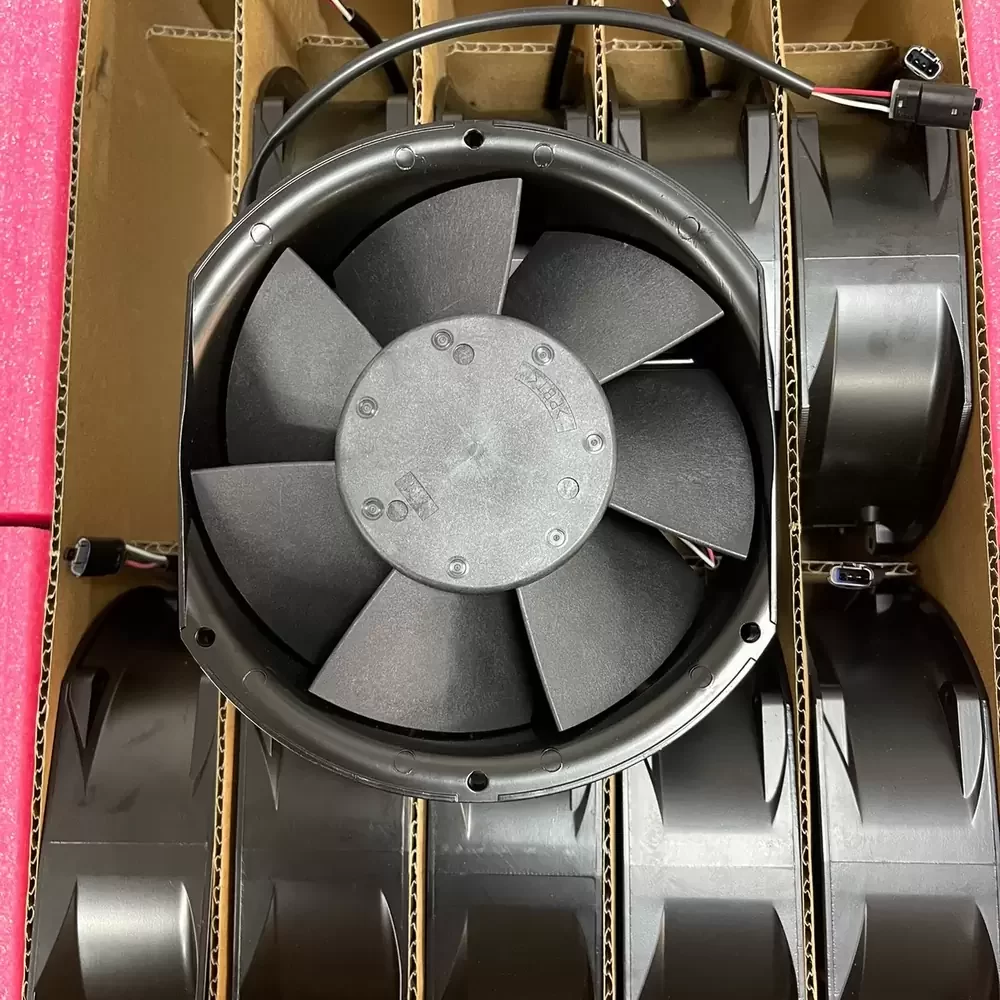

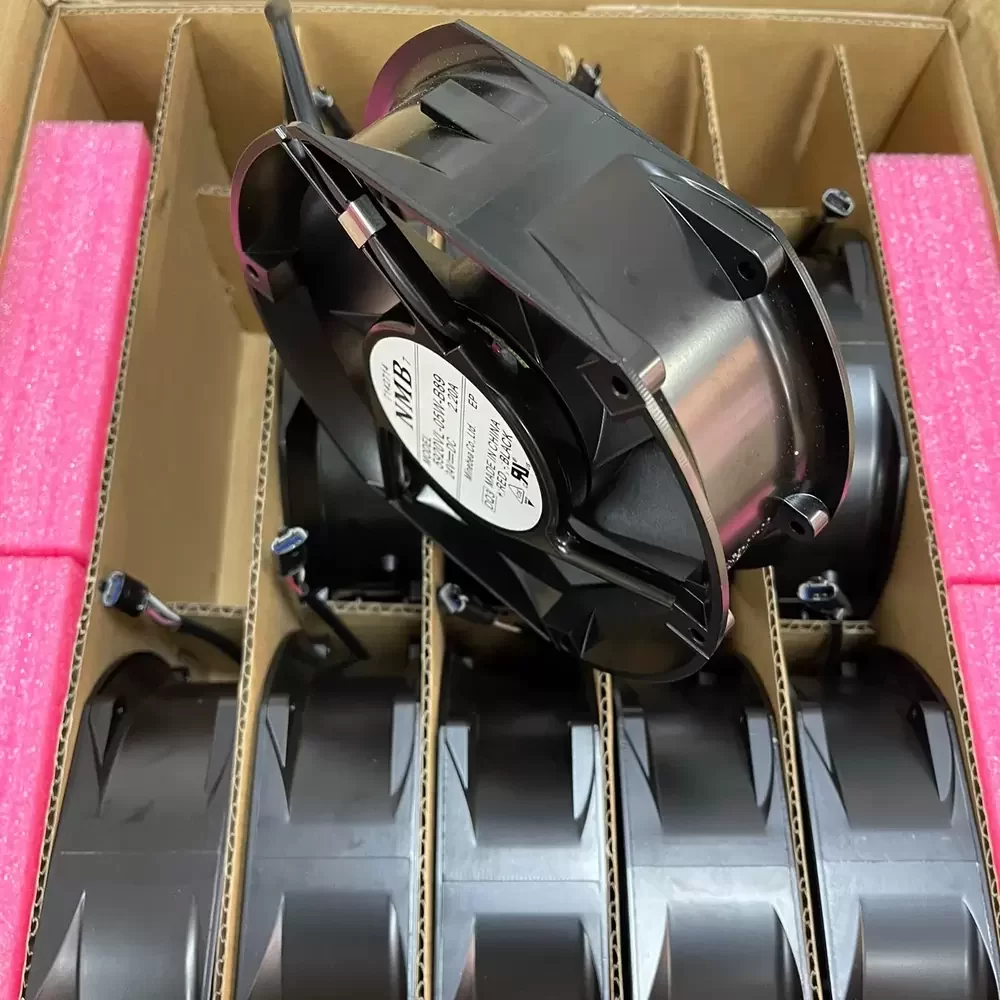

The NMB-MAT 5920VL-05W-B89-DQ3 is a high-performance DC Axial Fan engineered for critical thermal management in industrial and telecommunications environments. Operating at a rated voltage of 24VDC with a significant current draw of 2.20A, this unit delivers exceptional airflow throughput required for high-impedance systems. The fan features a robust aluminum die-cast housing and a precision-balanced thermoplastic impeller, supported by a durable dual ball bearing system that ensures structural rigidity and extended operational life under thermal stress. Designed with a 3-wire configuration for tachometer signal output, the 5920VL-05W-B89-DQ3 provides real-time speed monitoring, making it an ideal solution for mission-critical applications requiring fail-safe cooling reliability.
Model Number: 5920VL-05W-B89-DQ3
Brand: NMB-MAT (MinebeaMitsumi)
Product Type: DC Axial Fan
Rated Voltage: 24VDC
Voltage Range: 18.0 – 27.6 VDC
Rated Current: 2.20 A
Input Power: 52.8 W
Rated Speed: 4800 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 330.0 CFM (560.7 m³/h / 9.34 m³/min)
Max. Static Pressure: 28.5 mmH₂O (279.5 Pa / 1.12 inH₂O)
Dimensions: 172mm x 150mm x 50mm
Termination: 3-Wire Leads (Red +, Black -, White/Yellow Signal)
Housing Material: Aluminum Die-Cast
Impeller Material: Plastic (UL94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Noise Level: 68.0 dB(A)
Life Expectancy: 100,000 Hours @ 25°C
Weight: 830 g
Protection: Auto Restart / Polarity Protection
This heavy-duty cooling solution is specifically designed for deployment in high-density server racks, telecommunications base stations, and industrial automation cabinets where heat dissipation is paramount. The 5920VL-05W-B89-DQ3 excels in overcoming the high static pressure resistance found in tightly packed electronic enclosures, ensuring optimal airflow across sensitive components. Additionally, the 5920VL-05W-B89-DQ3 is frequently utilized in large-scale power inverters and CNC machinery, providing the consistent thermal regulation necessary to prevent system failure and maintain operational efficiency.
