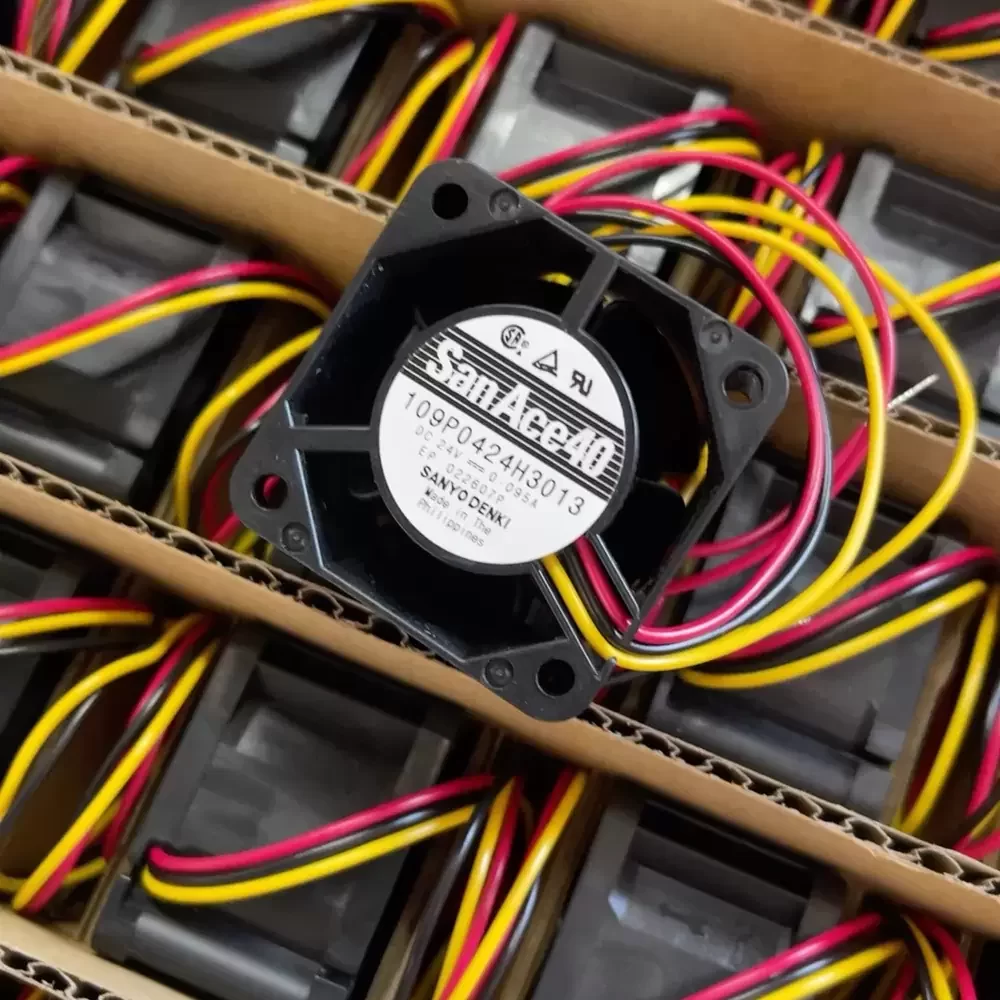

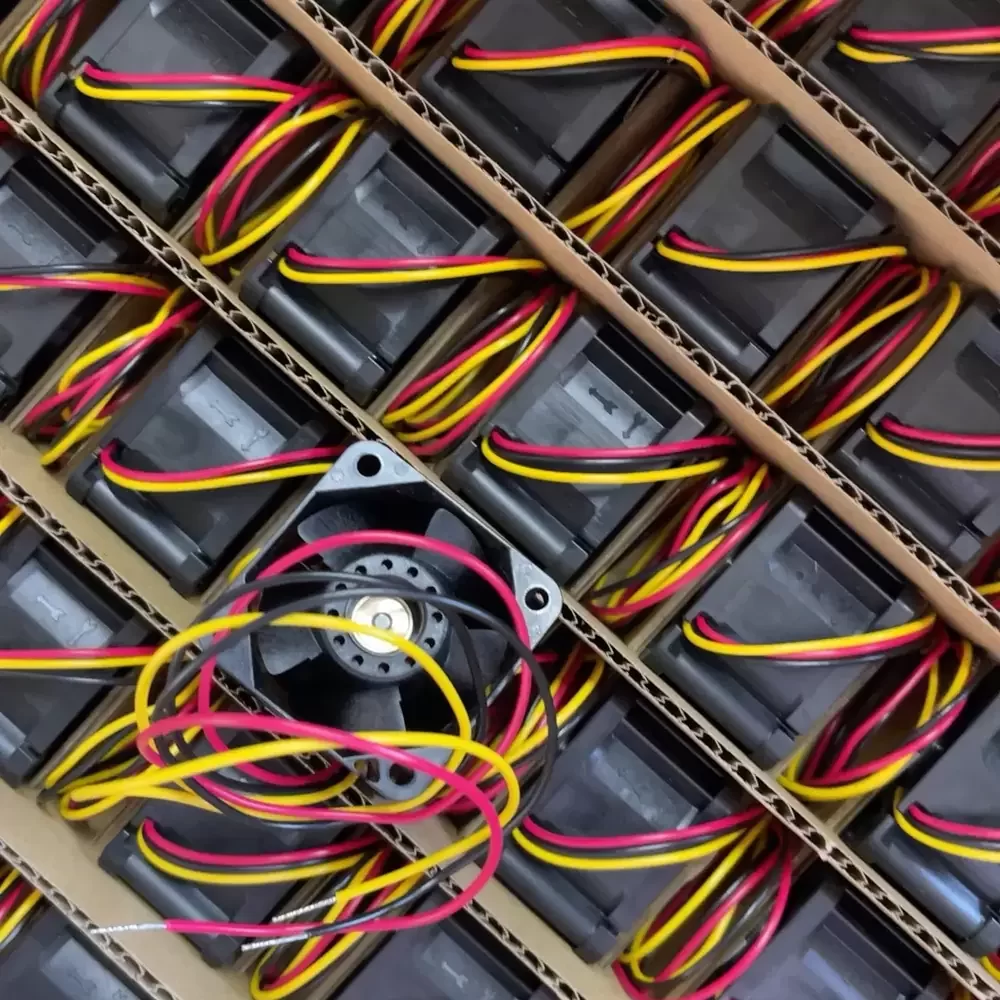

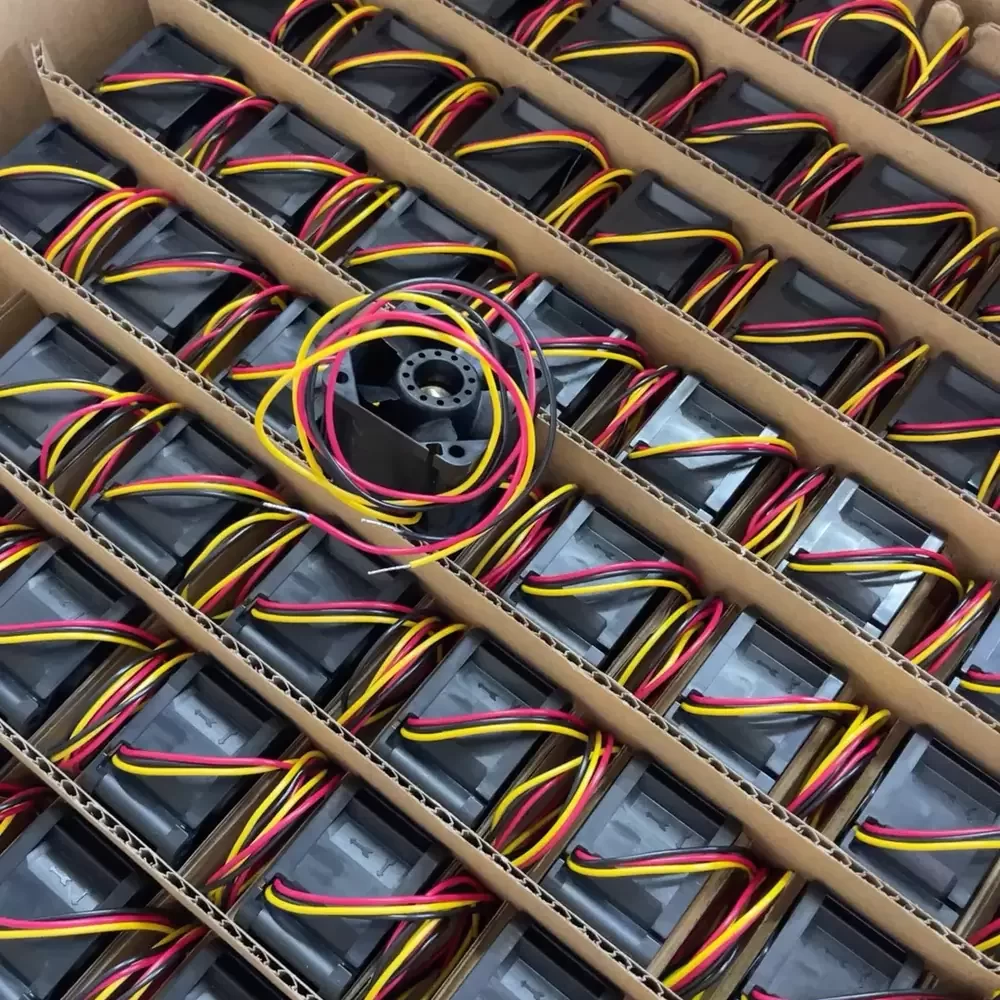

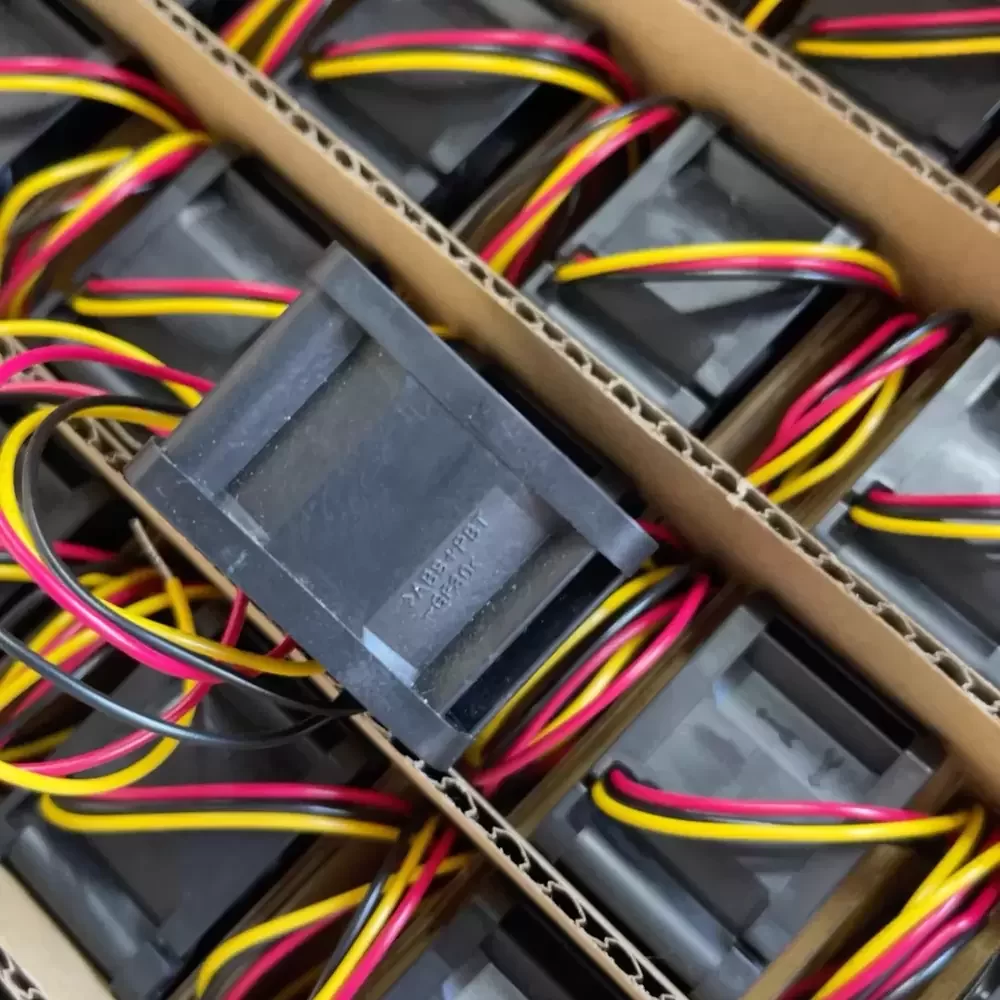

109P0424H3013 Sanyo Denki 24VDC 40x40x28mm Axial Fan

Description

Sanyo Denki 109P0424H3013 is a 40 x 40 x 28 mm axial cooling fan operating at a nominal 24 VDC with a rated current of 0.095 A and 2.28 W power consumption. The unit features a high-performance dual ball bearing system and a flame-retardant plastic frame and impeller rated to UL 94V-0 standards. It delivers a rotational speed of 8700 RPM, producing an airflow of 0.32 m3/min (11.3 CFM) and a maximum static pressure of 102.9 Pa. The electrical interface consists of a 3-wire lead system incorporating a tachometer pulse sensor (FG) for real-time speed monitoring.

109P0424H3013 Specifications
Model: 109P0424H3013
Brand: Sanyo Denki
Series: San Ace 40 (P)
Frame Size: 40 x 40 x 28 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 12 to 27.6 VDC
Rated Current: 0.095 A
Rated Input: 2.28 W
Rated Speed: 8700 RPM
Max Airflow: 0.32 m3/min (11.3 CFM)
Max Static Pressure: 102.9 Pa (0.414 inchH2O)
Noise Level: 37 dB(A)
Bearing Type: Dual Ball Bearing
Sensor Type: Pulse Sensor (FG)
Operating Temperature: -20 to +70 °C
Storage Temperature: -30 to +70 °C
Life Expectancy: 60,000 hours at 60 °C
Frame Material: Plastic (UL 94V-0)
Impeller Material: Plastic (UL 94V-0)
Mass: 55 g
Dielectric Strength: 50/60 Hz, 500 VAC, for 1 minute
Certifications: UL, CSA, EN, RoHS

109P0424H3013 Applications
Primary applications include integration into 1U/2U rackmount servers, telecommunications switching equipment, and industrial power supply units. Deployed within CNC controller cabinets, medical diagnostic imaging systems, and high-density network storage arrays requiring compact thermal management solutions.
