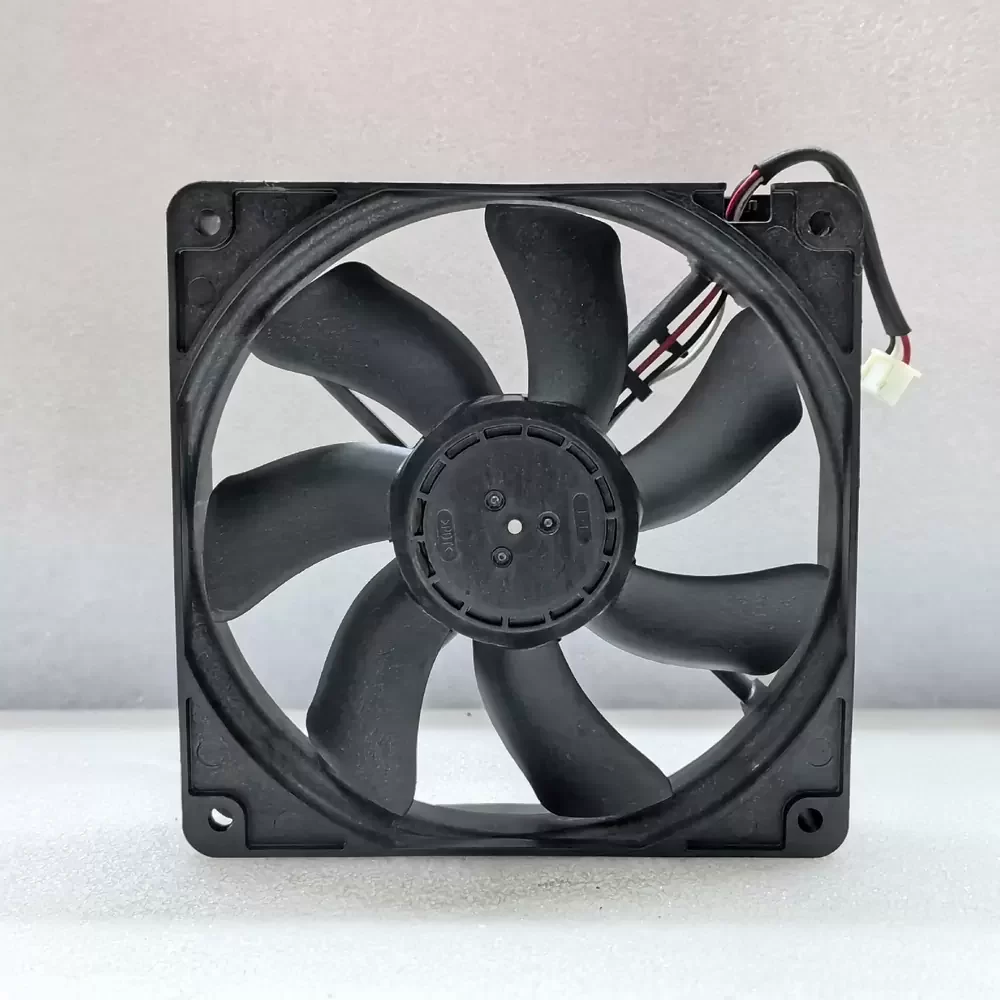

The NMB 4710SB-04W-B29-B51 is a DC Axial Fan engineered for high-reliability thermal management in demanding industrial environments. Utilizing advanced brushless DC motor technology and a precision dual ball bearing architecture, this unit ensures extended service life and minimal thermal impedance. Its aerodynamic impeller design is optimized for high structural rigidity, providing stable airflow under varying static pressure conditions. The 4710SB-04W-B29-B51 is specifically designed to mitigate heat accumulation in sensitive electronics, maintaining optimal operating temperatures for critical infrastructure components while offering superior resistance to mechanical stress and environmental factors.
Model Number: 4710SB-04W-B29-B51
Brand: NMB
Product Type: Axial Fan
Rated Voltage: 12VDC
Voltage Range: 10.2 – 13.8VDC
Rated Current: 0.14A
Power: 1.68W
Rated Speed: 1900RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 74.1CFM (126.0m³/h / 2.10m³/min)
Max. Static Pressure: 2.50mmH₂O (24.5Pa / 0.10inH₂O)
Dimensions: 120x120x25mm
Weight: 180g
Life Expectancy: 50,000 Hours
Noise Level: 30.0dB
Housing Material: Plastic (UL94V-0)
Blade Material: Plastic (UL94V-0)
Termination: 2 Lead Wires
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Protection: Locked Rotor Protection, Reverse Polarity Protection
Certifications: UL, CSA, VDE, CE
The 4710SB-04W-B29-B51 is primarily deployed in high-density power conversion systems such as industrial inverters and server rack cooling modules. Due to its robust construction, the 4710SB-04W-B29-B51 is also an ideal choice for telecommunications base stations and medical diagnostic equipment where consistent airflow is vital. Its compact 120mm form factor allows for seamless integration into network switches and automated control cabinets.
