Description

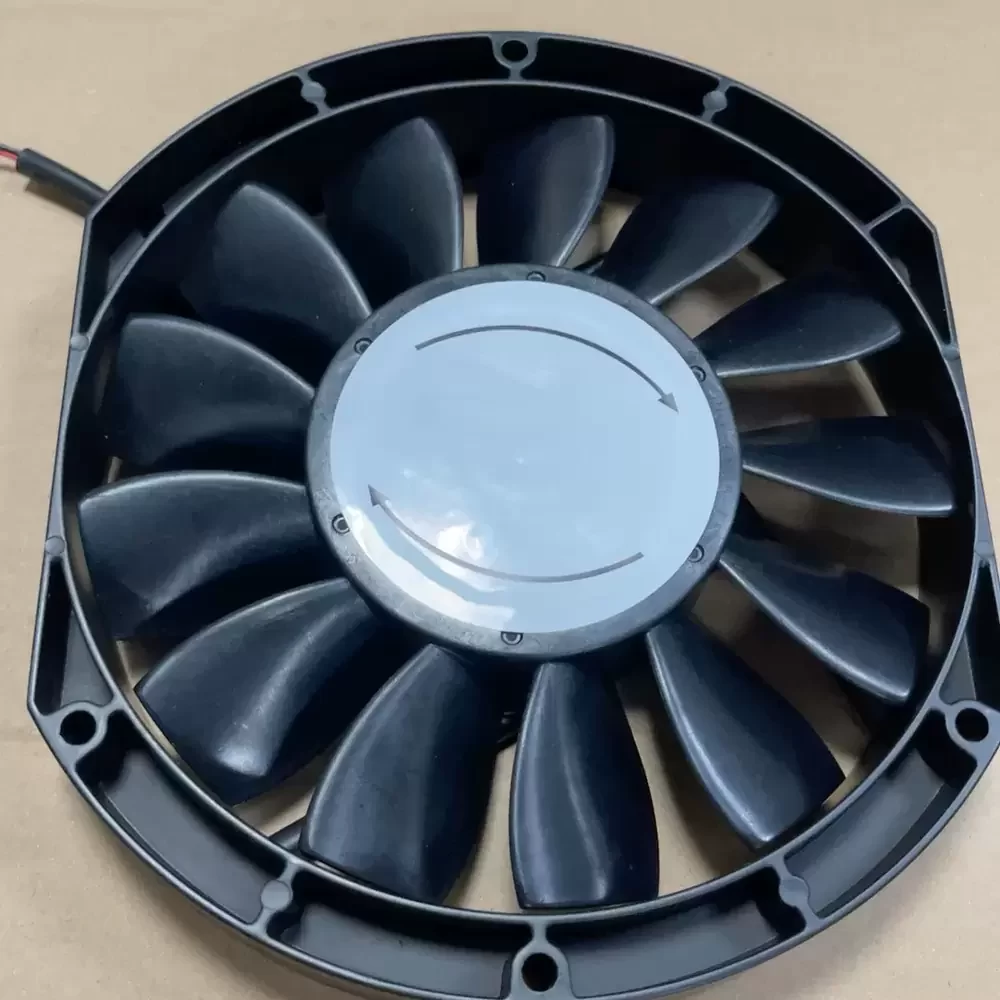

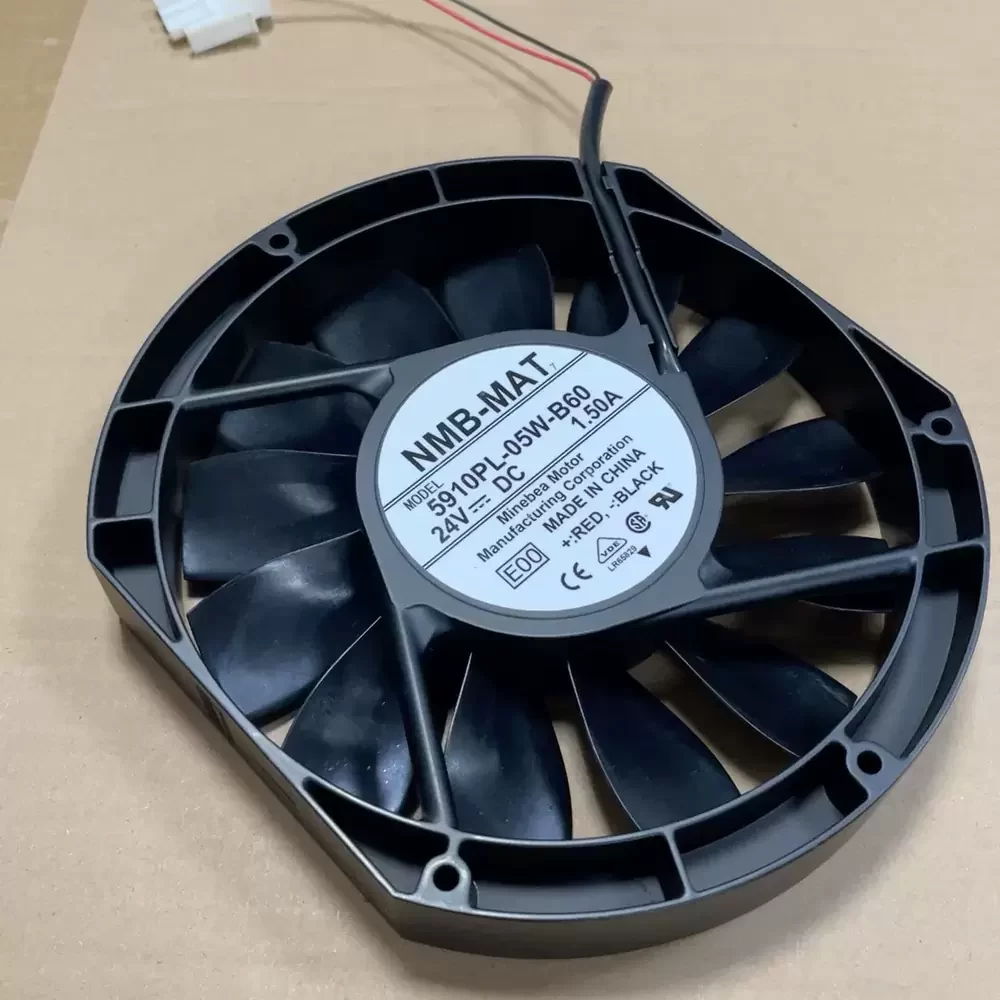

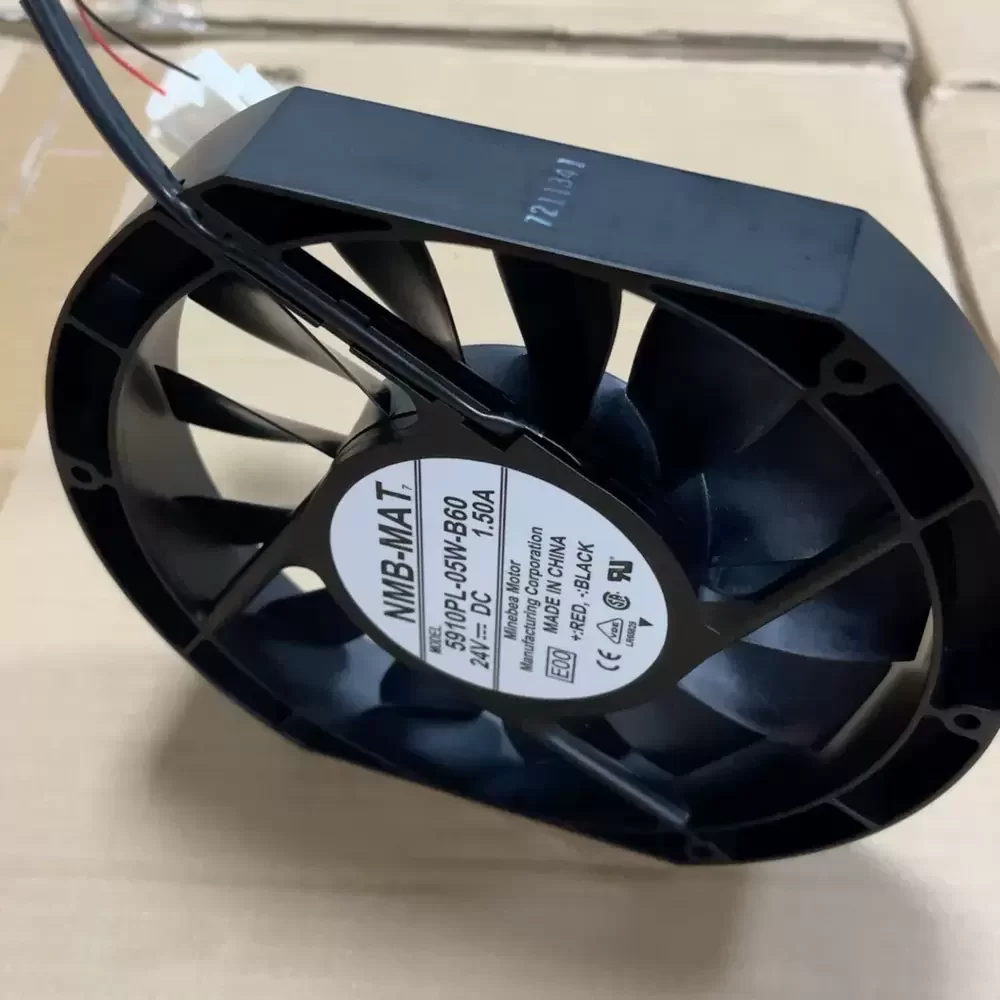

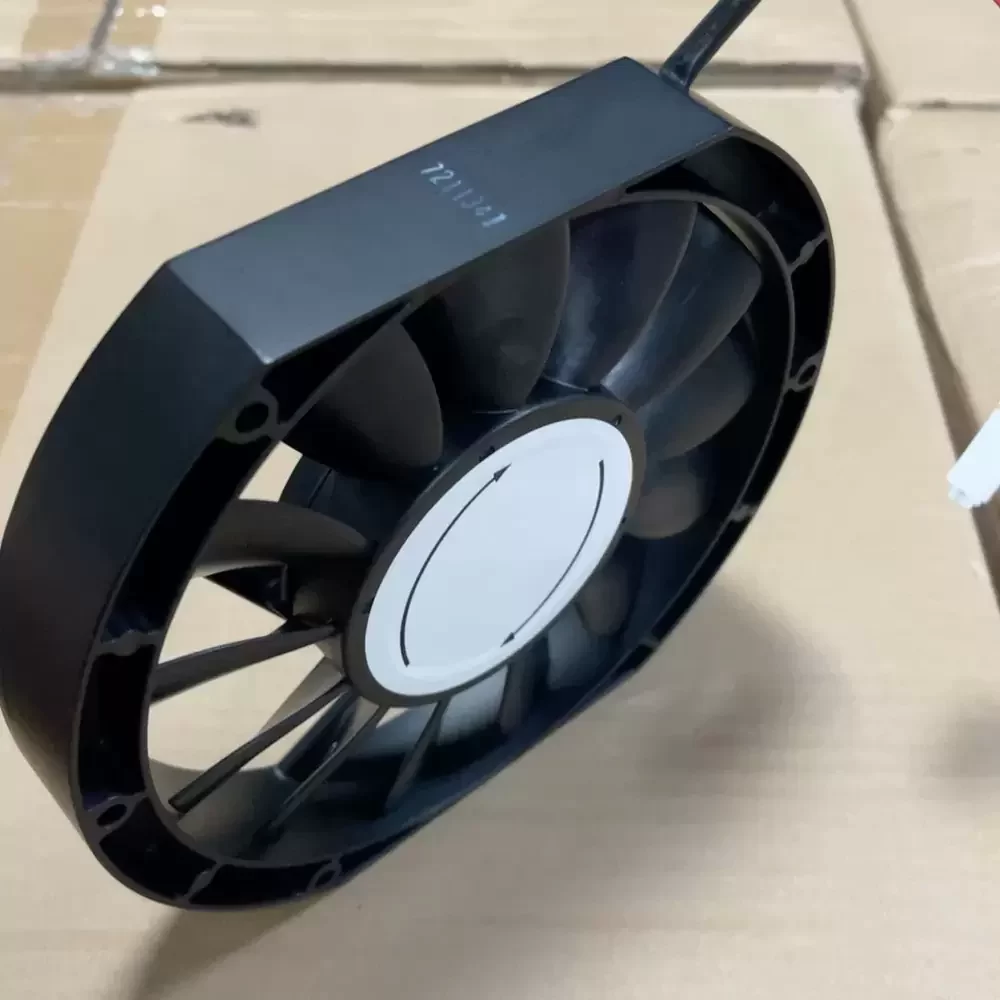

The NMB-MAT 5910PL-05W-B60-E00 is a high-capacity Axial Fan engineered for demanding thermal management applications requiring substantial airflow throughput. Utilizing advanced DC motor technology paired with a precision-machined Dual Ball Bearing architecture, this unit ensures minimal friction coefficients and extended operational longevity under continuous load. The aerodynamic impeller design is housed within a robust aluminum die-cast frame, providing superior structural rigidity and optimized thermal impedance. This configuration delivers exceptional static pressure capabilities, making it suitable for high-density electronic enclosures where heat dissipation is critical to system stability.
Model Number: 5910PL-05W-B60-E00
Brand: NMB-MAT (MinebeaMitsumi)
Product Type: DC Axial Fan
Rated Voltage: 24 VDC
Voltage Range: 12.0 – 27.6 VDC
Rated Current: 1.50 A
Input Power: 36.0 W
Rated Speed: 3850 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 270.0 CFM (7.64 m³/min)
Max. Static Pressure: 23.5 mmH₂O (230 Pa / 0.92 inH₂O)
Dimensions: 172mm x 150mm x 25.4mm
Weight: 570 g
Life Expectancy: 100,000 Hours (at 25°C)
Noise Level: 63.0 dB(A)
Housing Material: Aluminum Die-Cast
Impeller Material: Plastic (UL94V-0)
Termination: 2-Wire Lead
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Protection: Locked Rotor Protection, Polarity Protection
Insulation Resistance: 10M Ohm min. at 500VDC
Dielectric Strength: 700VAC for 1 sec
This high-performance cooling solution is specifically designed for industrial automation systems, telecommunications infrastructure, and large-scale server cabinets where reliable heat extraction is mandatory. The 5910PL-05W-B60-E00 excels in cooling variable frequency drives (VFDs), power supply units, and CNC machinery control panels. By integrating the 5910PL-05W-B60-E00 into network switches and medical instrumentation, operators ensure stable thermal envelopes, preventing component throttling and extending the service life of critical hardware assets.
