Description

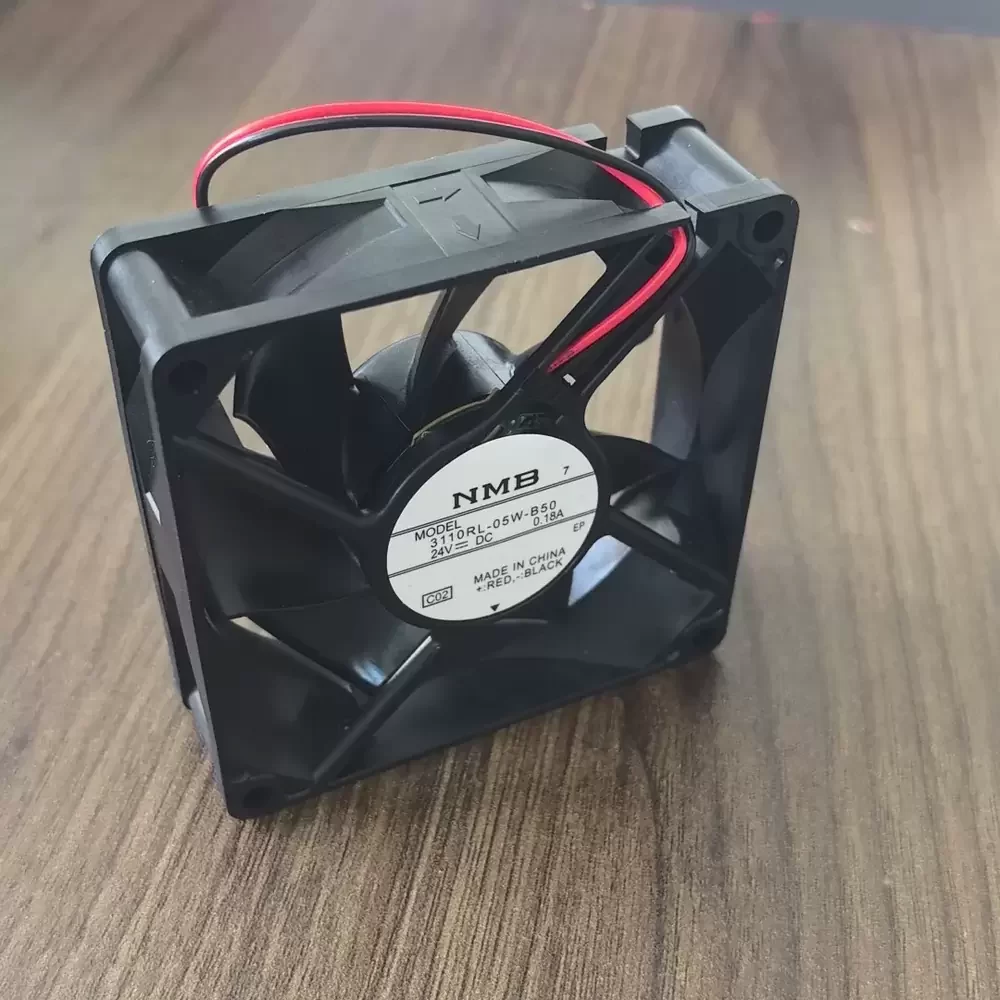

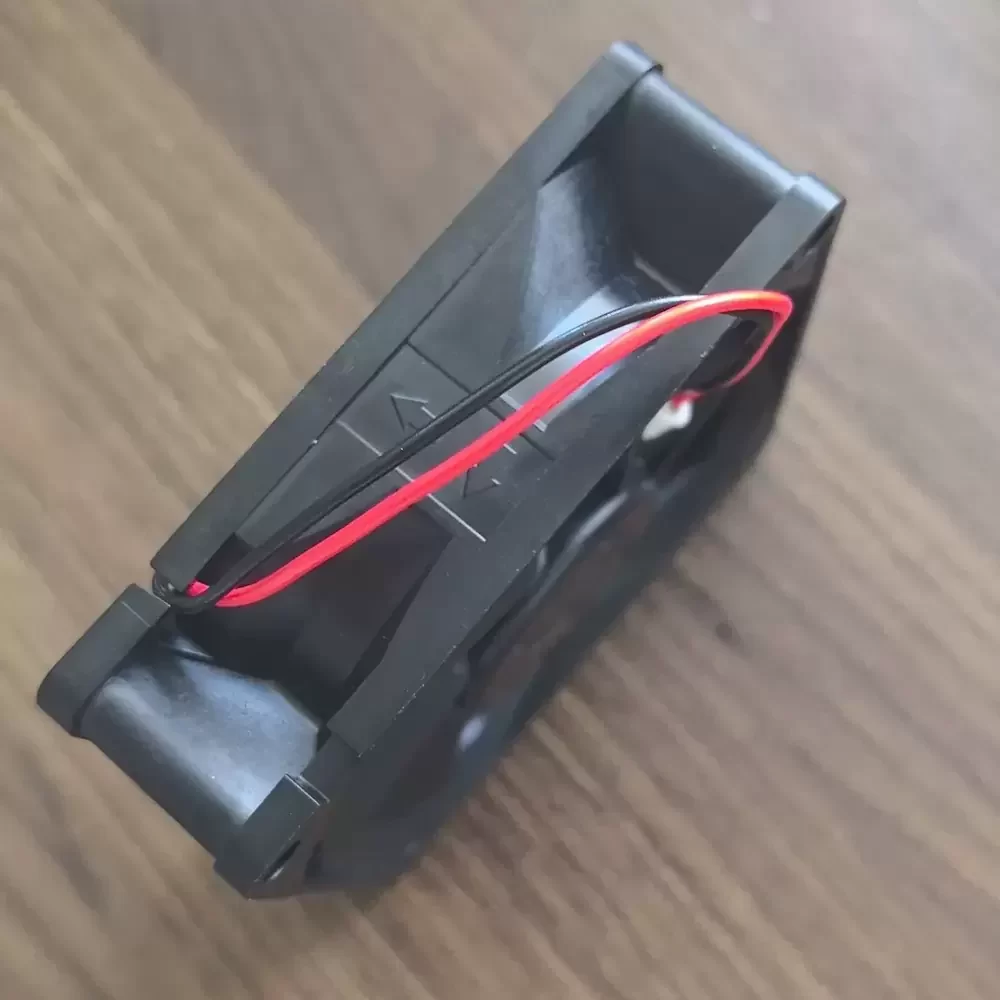

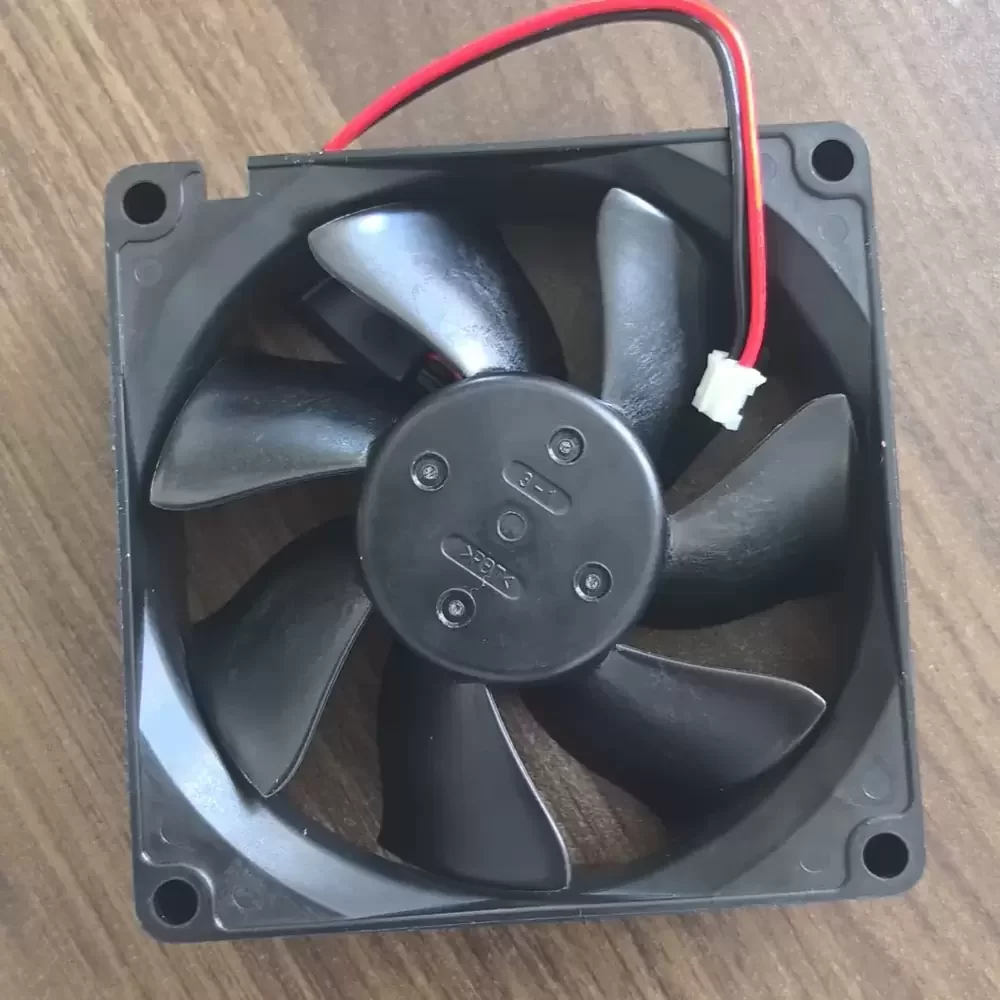

The NMB 3110RL-05W-B50-C02 is a precision-engineered DC Axial Fan designed for critical thermal management in industrial electronics. Manufactured by MinebeaMitsumi (NMB-MAT), this unit integrates a robust dual ball bearing architecture that significantly reduces frictional coefficients and enhances rotational stability over extended operational lifecycles. The aerodynamic impeller design optimizes airflow dynamics to lower thermal impedance within high-density enclosures. Constructed with a reinforced UL94V-0 plastic frame, the fan ensures structural rigidity while maintaining a lightweight profile. Its 24VDC drive system delivers consistent torque, making it an ideal solution for applications requiring reliable forced convection cooling.
Model Number: 3110RL-05W-B50-C02
Brand: NMB (NMB-MAT)
Product Type: DC Axial Fan
Rated Voltage: 24 VDC
Voltage Range: 14.0 – 27.6 VDC
Rated Current: 0.18 A
Power Input: 4.32 W
Rated Speed: 3250 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 38.8 CFM (66.0 m³/h / 1.10 m³/min)
Max. Static Pressure: 3.8 mmH₂O (37.2 Pa / 0.15 inH₂O)
Dimensions: 80 x 80 x 25 mm
Weight: 95 g
Life Expectancy: 100,000 Hours at 25°C
Noise Level: 34.0 dB(A)
Housing Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)
Termination: 2-Wire Leads
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Ingress Protection: IP20
Insulation Resistance: 10M Ohm at 500VDC
Dielectric Strength: 700VAC for 1 Second
Motor Protection: Locked Rotor Protection, Polarity Protection
The 3110RL-05W-B50-C02 is engineered for deployment in demanding industrial environments, specifically serving as an OEM replacement for variable frequency drive (VFD) inverters and power supply units. Its compact 80mm form factor allows for seamless integration into server racks, telecommunications cabinets, and CNC control panels where space is constrained. The 3110RL-05W-B50-C02 provides sustained airflow to dissipate heat from sensitive semiconductors, ensuring system reliability in automation equipment and medical instrumentation.
