Description

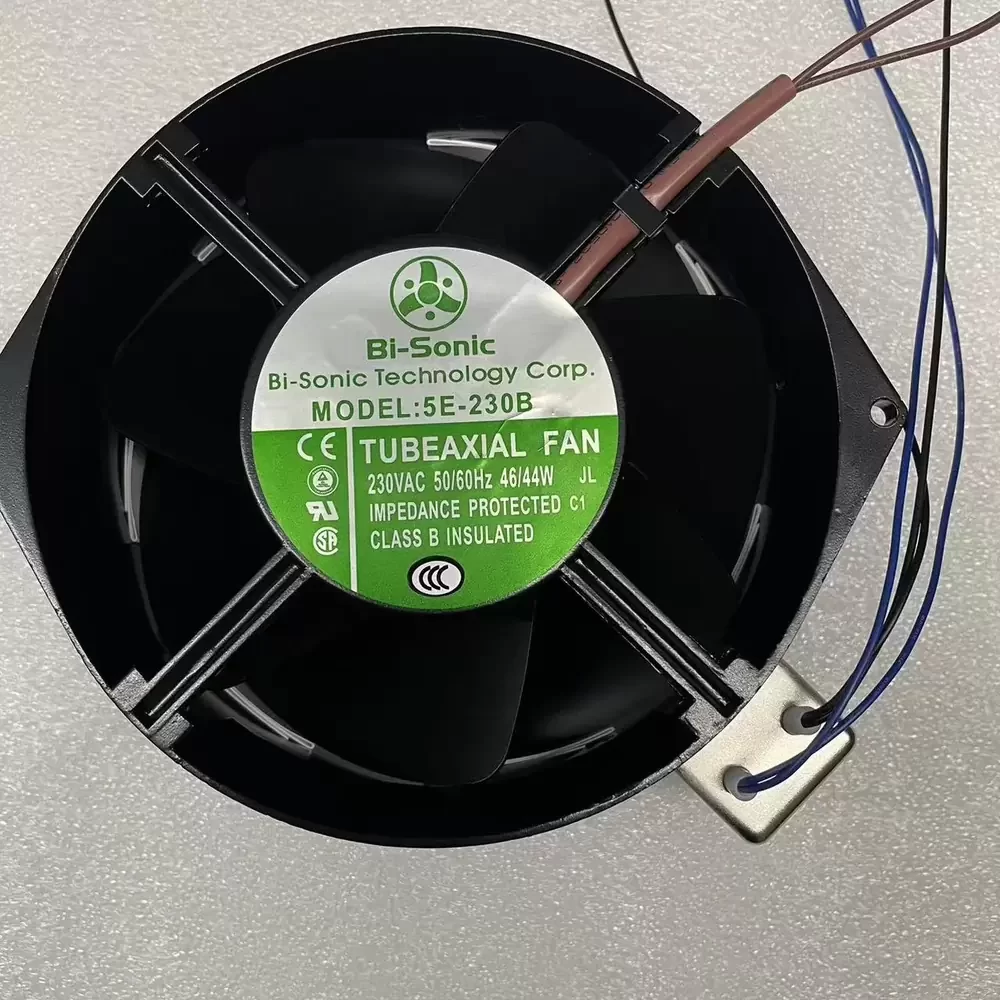

The Bi-Sonic 5E-230B-RD is a robust AC Axial Fan engineered for high-demand industrial cooling applications requiring consistent thermal dissipation. This unit features a precision Ball Bearing system housed within a durable Aluminum Die-Cast frame, ensuring structural rigidity and minimized vibration during operation. Designed with an advanced aerodynamic impeller, it optimizes airflow efficiency while maintaining a balanced thermal impedance profile. The integration of a Rotation Detector (RD) sensor provides critical operational feedback, enhancing system reliability by signaling fan status. Its construction adheres to strict industrial standards, making it suitable for continuous duty cycles in challenging environments where component longevity is critical.
Model Number: 5E-230B-RD
Brand: Bi-Sonic
Product Type: AC Axial Fan
Rated Voltage: 230 VAC
Frequency: 50 / 60 Hz
Voltage Range: 200 – 240 VAC
Rated Current: 0.25 / 0.21 A
Power Input: 35 / 32 W
Rated Speed: 2700 / 3100 RPM
Bearing Type: Ball Bearing
Max. Air Flow: 210 / 235 CFM (356 / 399 m³/h)
Max. Static Pressure: 0.55 / 0.68 inH₂O (137 / 169 Pa)
Dimensions: 172mm x 150mm x 38mm
Weight: 840 g
Noise Level: 50 / 55 dBA
Housing Material: Aluminum Die-Cast
Impeller Material: Thermoplastic PBT (UL94V-0)
Motor Type: Capacitor-Run Induction Motor
Termination: Lead Wires
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +80°C
Sensor Type: RD (Rotation Detector / Alarm Signal)
Insulation Resistance: 100M Ohm at 500VDC
Dielectric Strength: 1500VAC for 1 Minute
Life Expectancy: 50,000 Hours at 25°C
The 5E-230B-RD is extensively utilized in industrial automation and power distribution sectors where reliable thermal management is paramount. Common deployment scenarios include server rack cooling, CNC machinery control cabinets, and heavy-duty telecommunications infrastructure. The 5E-230B-RD excels in maintaining optimal operating temperatures for sensitive electronic components, preventing thermal throttling in medical instrumentation and power inverters. Its rugged design also suits ventilation systems in manufacturing facilities requiring consistent air exchange and status monitoring.
