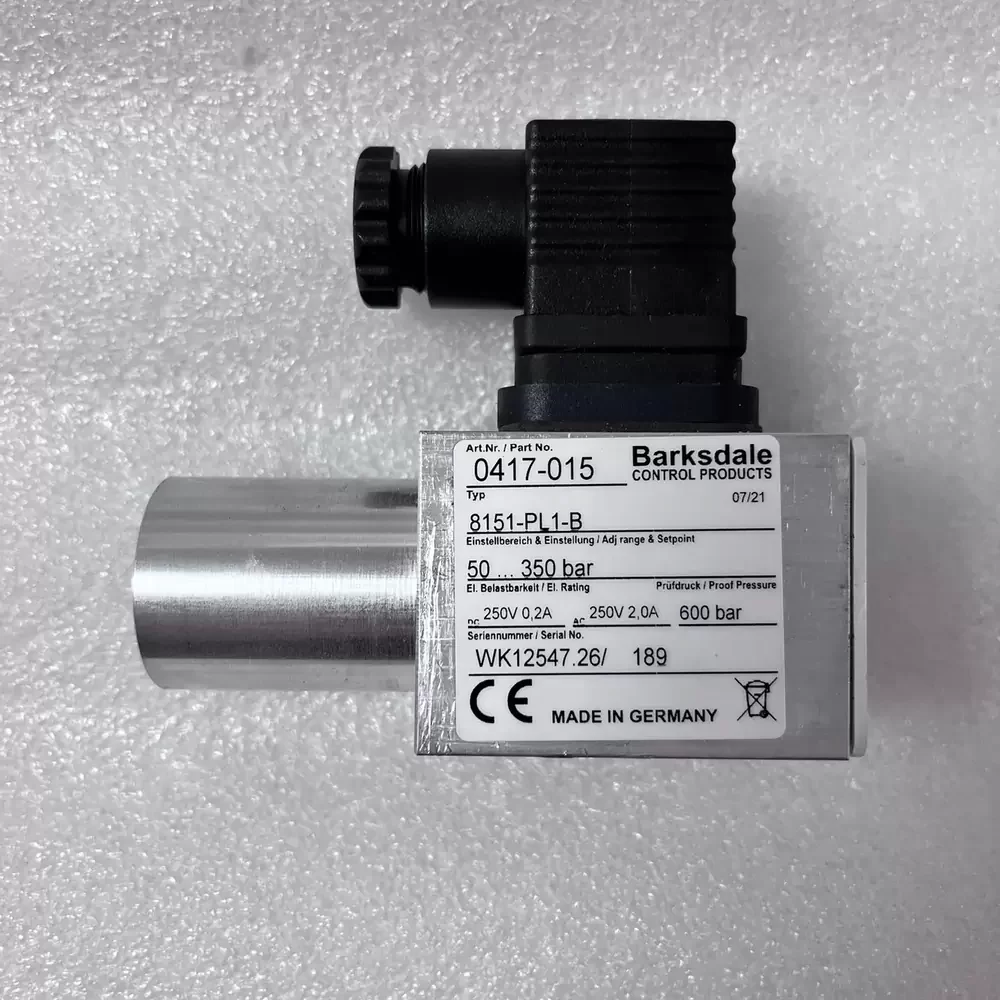

8151-PL1-B Barksdale 350bar 250VAC/DC Piston Pressure Switch

Description

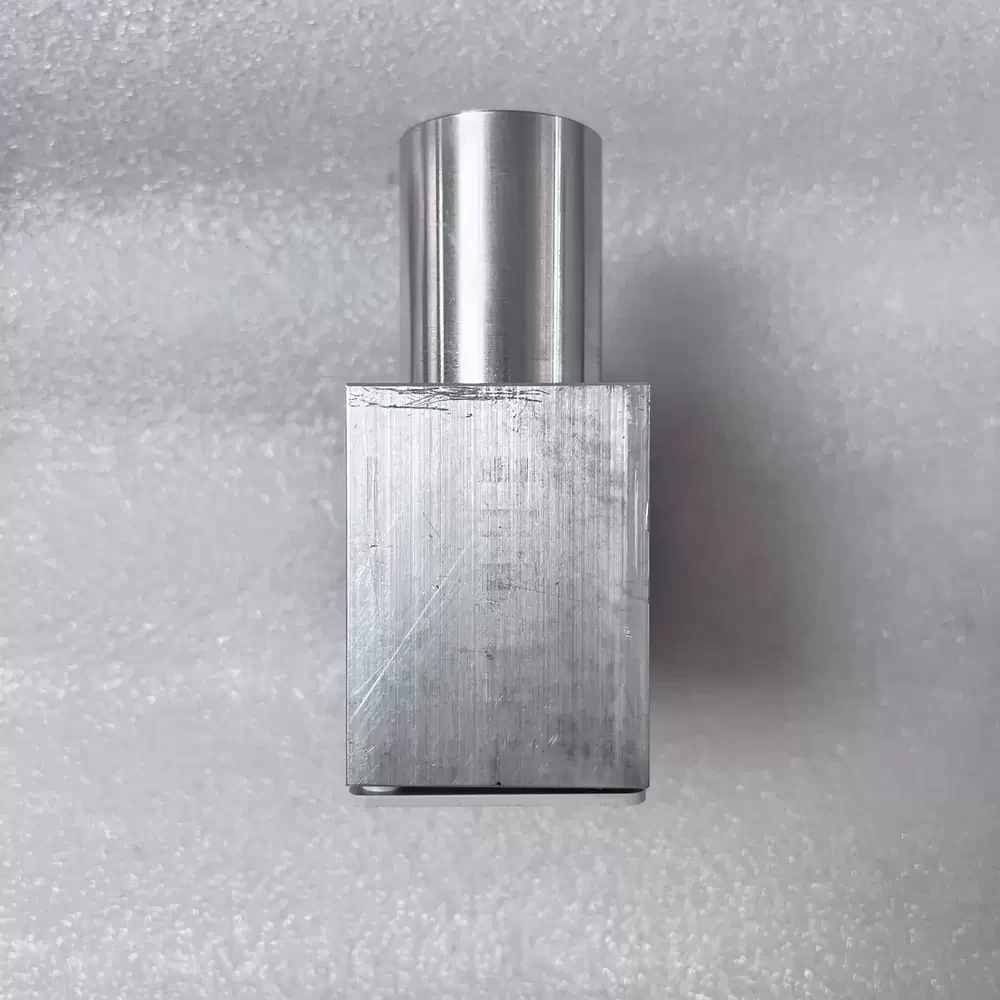

The Barksdale 8151-PL1-B is a high-performance Series 8000 piston-actuated pressure switch engineered for demanding hydraulic systems requiring precise setpoint control between 50bar and 350bar. This compact unit features a robust aluminium diecast housing and a chemically nickel-plated steel piston, ensuring long-term durability under high-cycle conditions. It is rated for a maximum system pressure of 600bar and utilizes SPDT silver microswitch contacts for reliable electrical switching up to 250V. The integrated NBR seals and PTFE-bronze piston sealing provide excellent chemical compatibility and low friction, while the IP65-rated DIN EN 175301-803A cube plug ensures secure electrical termination in industrial environments.

8151-PL1-B Specifications
Model Number: 8151-PL1-B

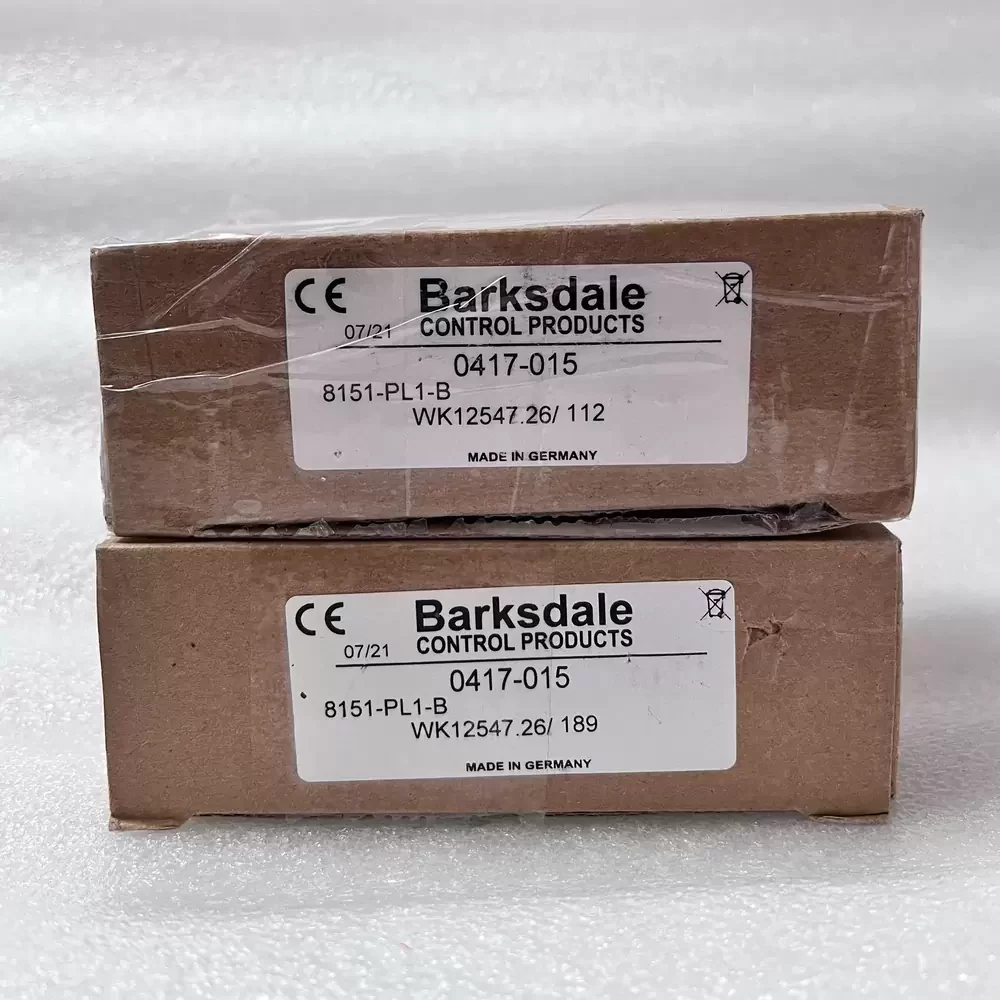

Part Number: 0417-015
Brand: Barksdale
Product Category: Compact Piston Pressure Switch
Pressure Range: 50 to 350 bar (750 to 5,000 psi)
Proof Pressure: 600 bar (8,700 psi)
Electrical Rating AC: 250V / 2.0A
Electrical Rating DC: 250V / 0.2A
Contact Type: SPDT (Single Pole Double Throw)
Contact Material: Fine Silver
Electrical Connection: Cube Plug DIN EN 175301-803A (Type PL1)

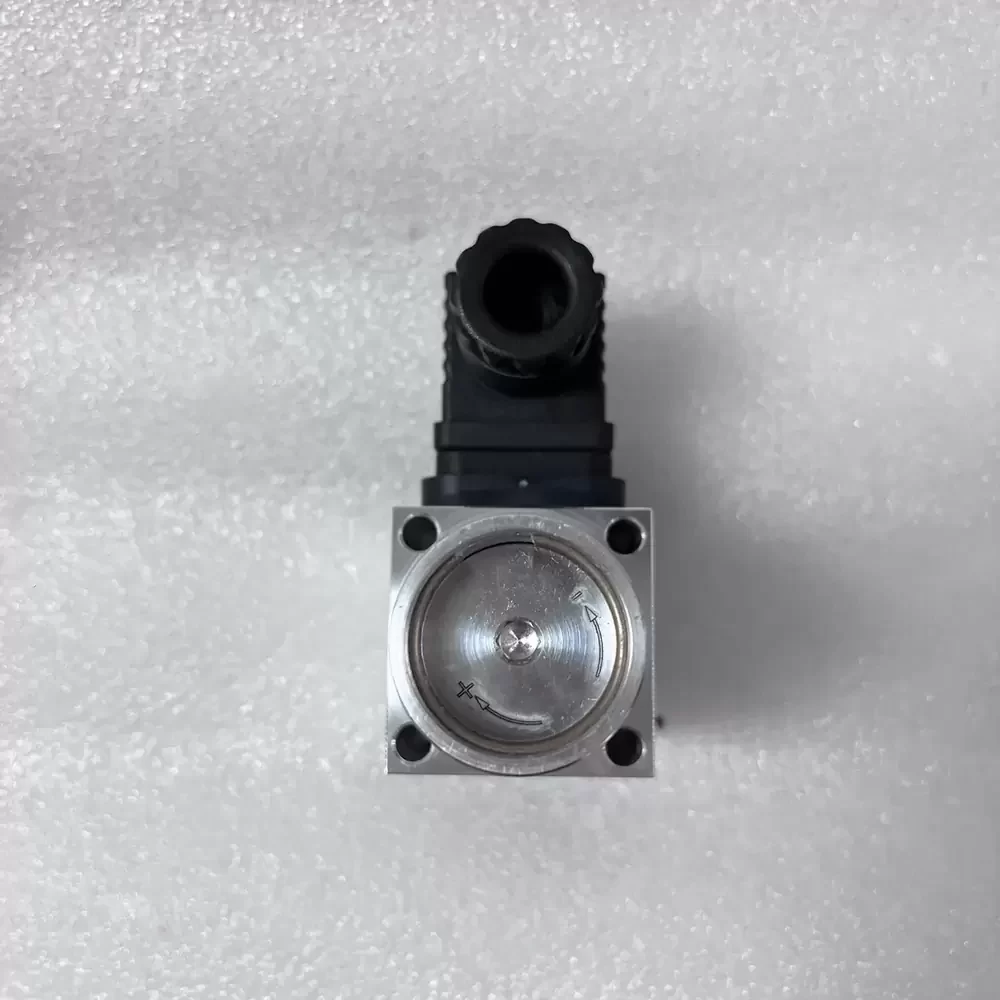

Process Connection: CETOP Flange (40 x 40 mm)
Housing Material: Aluminium Diecast 230
Sealing Material: NBR (Nitrile Rubber) and PTFE with Bronze
Piston Material: Steel (Chemically Nickel-Plated and Heat Treated)
Repeatability: ±1% (Typical for Piston Type)
Switching Rate: Max. 60 cycles/min
Operating Temperature: -40°C to +80°C
Protection Class: IP65
Weight: Approx. 0.327 kg
Dimensions: 82 x 40 x 91 mm
Approvals: GL, ATEX (Optional), cULus

8151-PL1-B Applications
High-pressure hydraulic power units, industrial plastic injection molding machinery, mobile hydraulic systems, and heavy-duty machine tool lubrication monitoring.” monitoring.
