Description

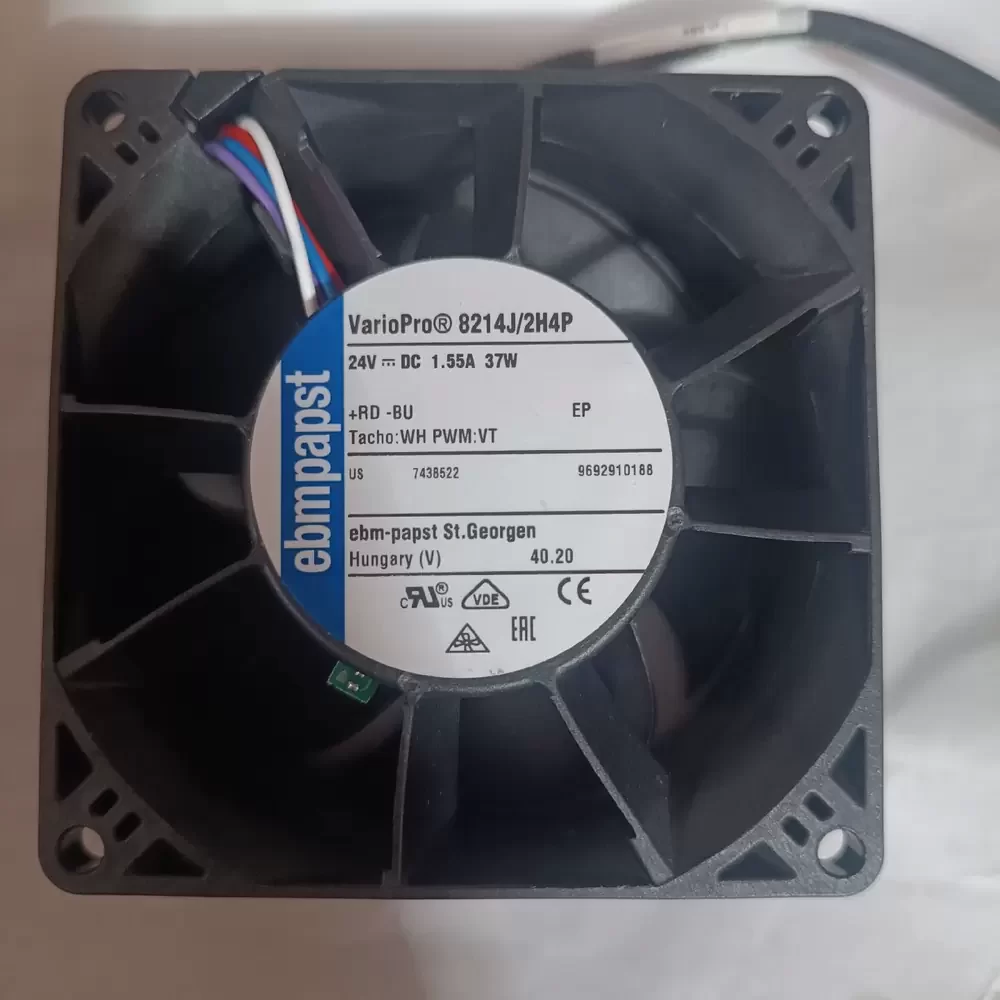

The ebm-papst 8214J/2H4P is a high-performance DC Axial Fan engineered for demanding thermal management applications requiring exceptional airflow density. Utilizing an advanced electronically commutated (EC) external rotor motor, this unit delivers superior efficiency and reduced thermal impedance compared to standard DC variants. The aerodynamic profile features a glass-fiber reinforced PBT impeller designed to minimize turbulence while maximizing static pressure capabilities. Housed within a rigid PBT frame, the system relies on precision ball bearings to ensure long-term reliability and structural stability under high-speed operation. This 80mm compact fan is optimized for environments necessitating rapid heat dissipation and continuous duty cycles.
Model Number: 8214J/2H4P
Brand: ebm-papst
Product Type: DC Axial Fan
Rated Voltage: 24 VDC
Voltage Range: 12.0 – 27.6 VDC
Rated Current: 1.55 A
Power Consumption: 37.0 W
Rated Speed: 14000 RPM
Max. Air Flow: 132.4 CFM (225 m³/h / 3.75 m³/min)
Max. Static Pressure: 36.71 mmH₂O (360 Pa / 1.45 inH₂O)
Noise Level: 71 dB(A)
Bearing Type: Ball Bearing
Dimensions: 80 x 80 x 38 mm
Weight: 0.200 kg
Housing Material: PBT Plastic (Glass-fiber reinforced)
Impeller Material: PA Plastic (Glass-fiber reinforced)
Direction of Rotation: Counter-clockwise (viewed toward rotor)
Direction of Airflow: Air exhaust over struts
Service Life L10 at 40°C: 55000 h
Service Life L10 at max temp: 27500 h
Operating Temperature: -20 to +70 °C
Storage Temperature: -40 to +80 °C
Speed Control: PWM (Pulse Width Modulation)
Signal Output: Speed Signal (Tachometer)
Motor Protection: Reverse Polarity, Locked Rotor Protection
Termination: 4-Wire Leads (AWG 24, TR 64)
Approvals: VDE, CSA, UL, CE
The 8214J/2H4P is specifically engineered for high-density electronic cooling solutions where space is constrained but thermal loads are extreme. Common deployment environments include compact server racks, telecommunications base stations, and high-frequency drive cooling systems. The robust design of the 8214J/2H4P also makes it suitable for industrial automation equipment, such as CNC machinery and medical diagnostic devices like MRI component cooling, ensuring critical components remain within safe operating temperature ranges during peak processing loads.
