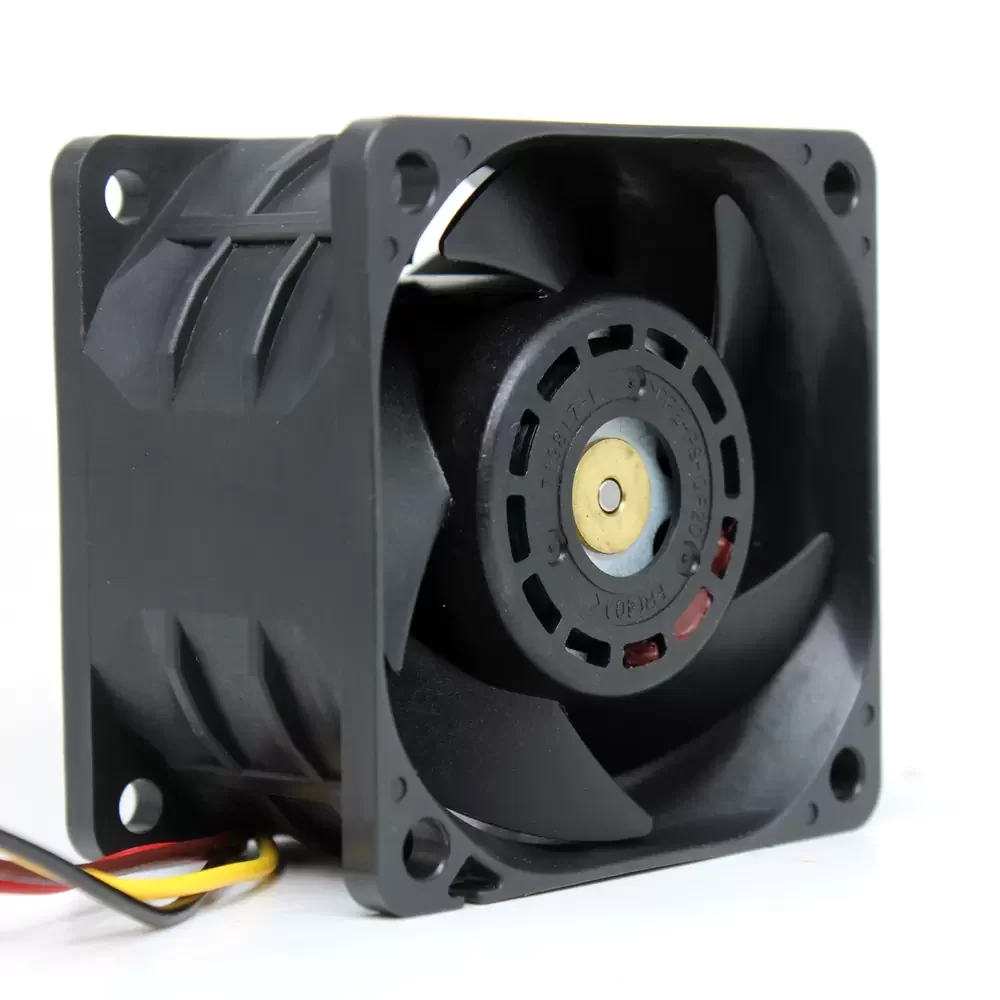

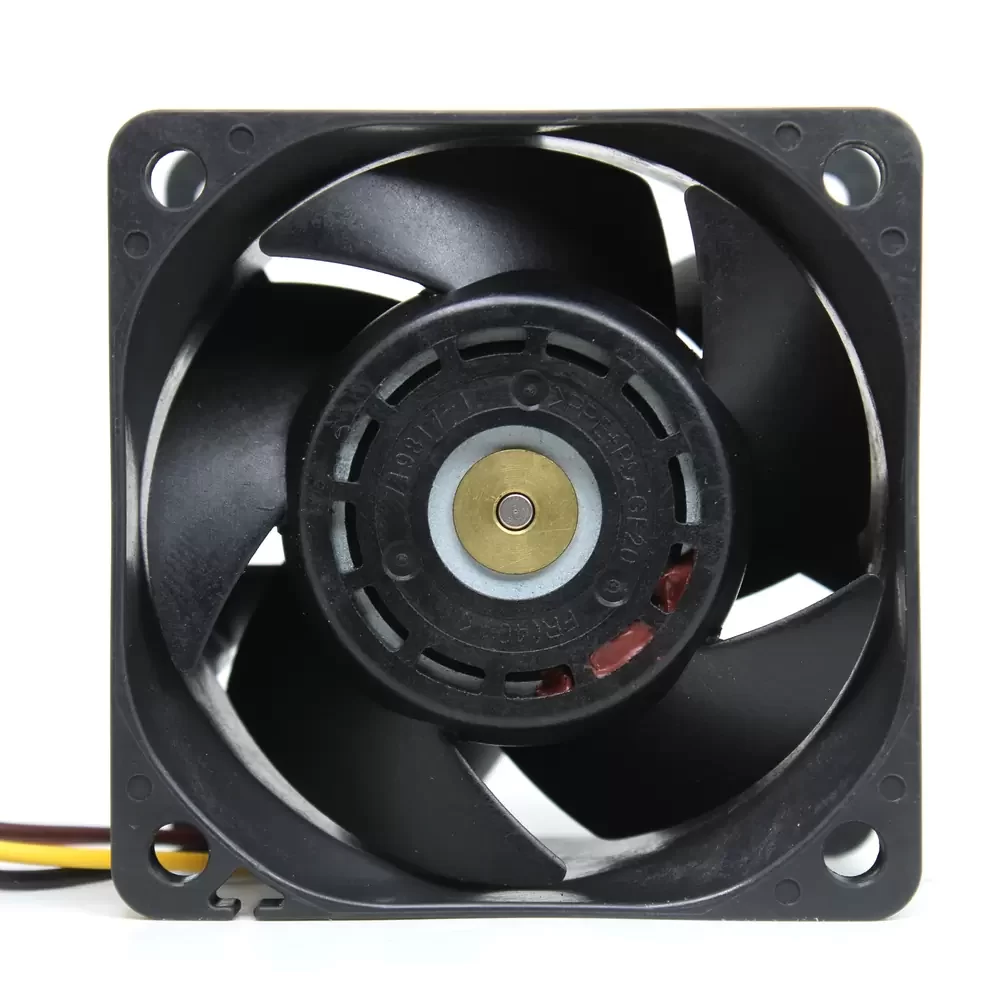

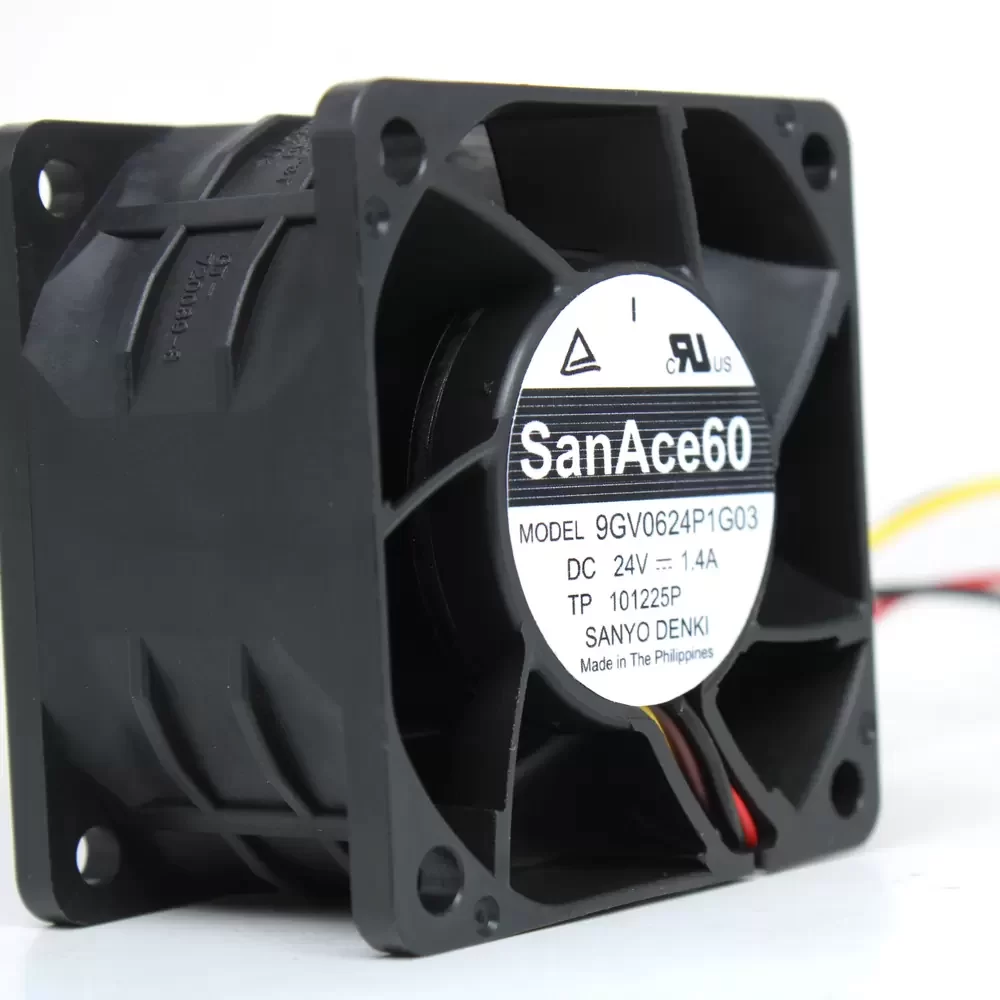

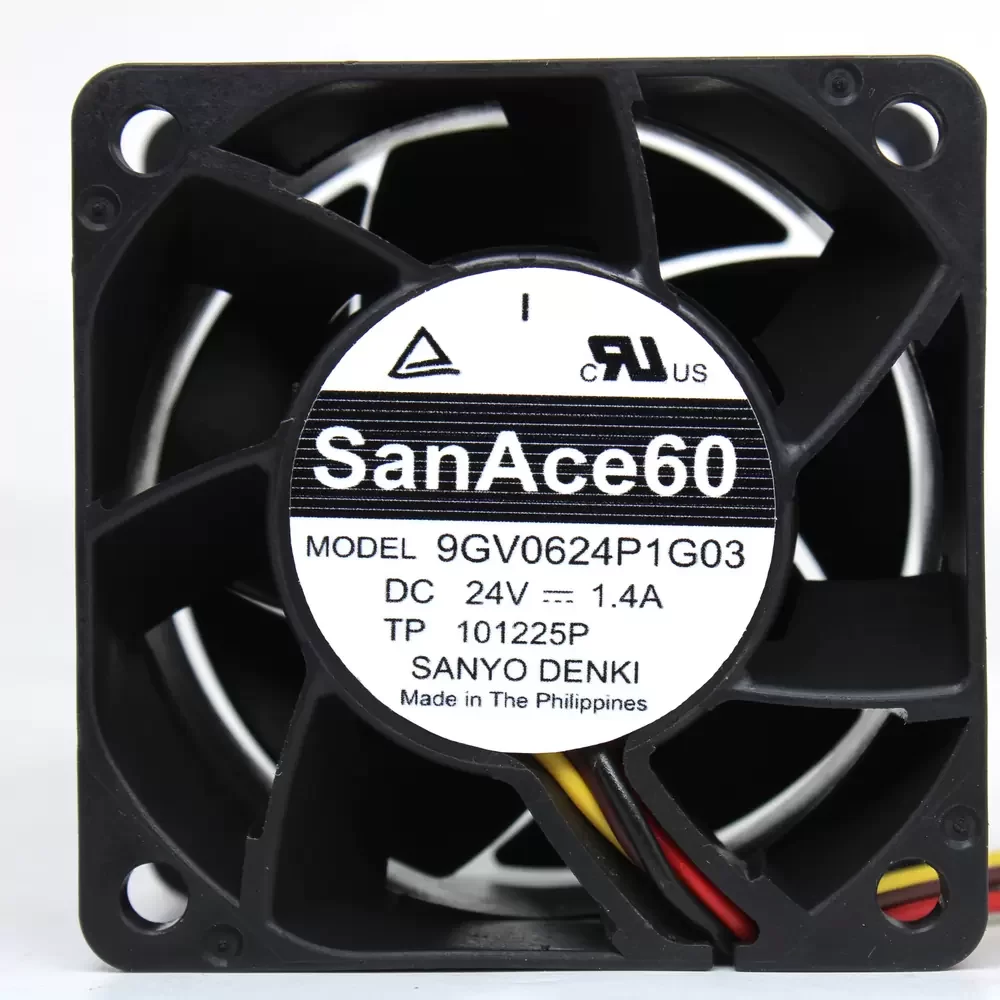

9GV0624P1G03 Sanyo Denki 24VDC 1.4A 60x60x38mm Axial Fan

Description

Sanyo Denki 9GV0624P1G03 is a 60 x 60 x 38 mm high-performance axial fan operating at 24 VDC with a 1.4 A rated current and 33.6 W power consumption. The unit features a plastic frame and impeller rated UL 94V-0, utilizing a dual ball bearing system for extended operational life. It delivers a maximum airflow of 2.37 m3/min (84 CFM) and a peak static pressure of 751 Pa. The electrical interface consists of a 4-wire lead wire system supporting PWM speed control and a pulse sensor for precise rotational monitoring.

9GV0624P1G03 Specifications
Model Number: 9GV0624P1G03
Brand: Sanyo Denki
Series: San Ace 60 9GV type
Dimensions: 60 x 60 x 38 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 20.4 to 27.6 VDC
Rated Current: 1.4 A
Rated Input: 33.6 W
Rated Speed: 16000 RPM
Max Airflow: 2.37 m3/min (84 CFM)
Max Static Pressure: 751 Pa (3.02 inchH2O)
Noise Level: 66 dB(A)
Operating Temperature: -20 to +70 °C
Storage Temperature: -30 to +70 °C
Life Expectancy: 40000 hours at 60 °C
Bearing Type: Dual Ball Bearing
Frame Material: Plastic (UL 94V-0)
Impeller Material: Plastic (UL 94V-0)
Interface: 4-wire
Control Type: PWM Control
Sensor Type: Pulse Sensor
Mass: 170 g
Approvals: UL, CSA, EN, RoHS

9GV0624P1G03 Applications
Primary applications include integration into high-density frequency inverters, server rack cooling systems, and telecommunications power supplies. Deployed within industrial motor drives and automated control cabinets requiring high static pressure for heat dissipation in restricted airflow environments.
