Description

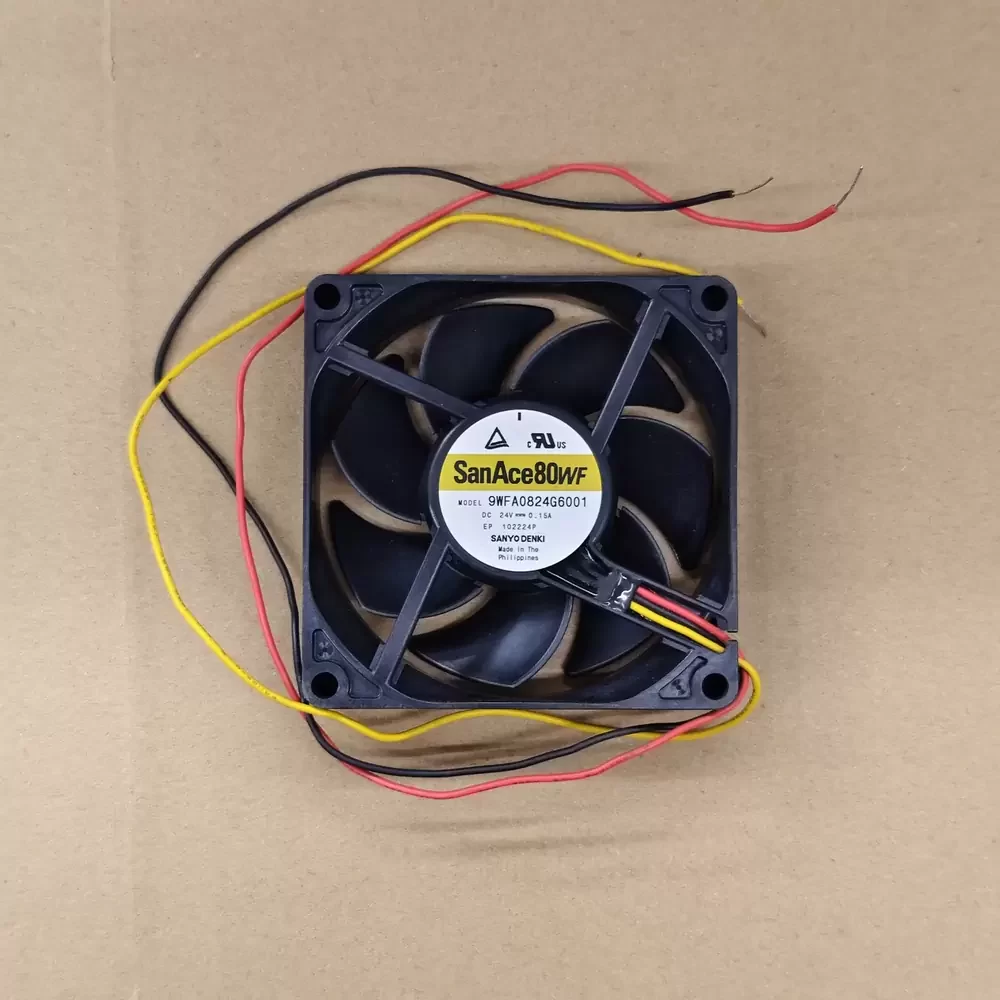

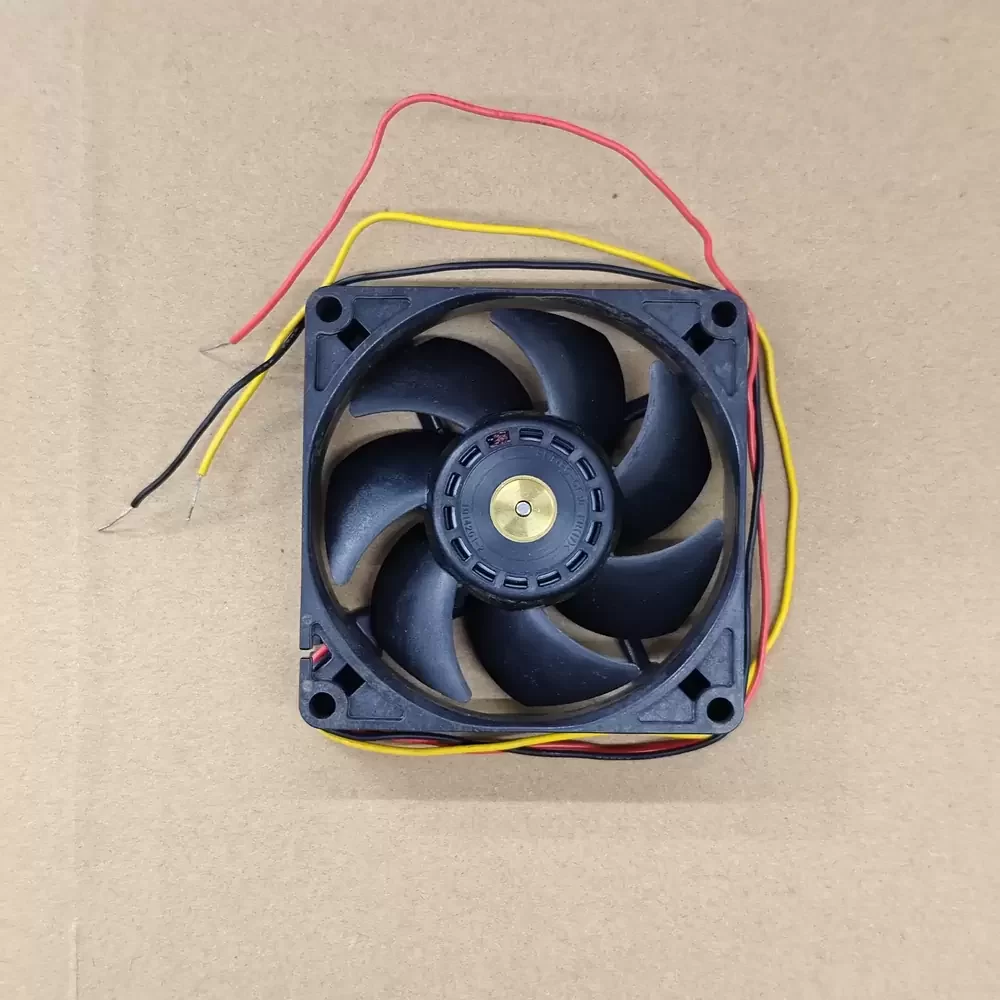

Sanyo Denki 9WFA0824G6001 is a 24VDC 80x80x20mm Axial Fan optimized for high-reliability thermal management in environments prone to moisture and dust ingress. This San Ace 80WF series component features a precision-engineered dual ball bearing architecture and a brushless DC motor designed to minimize thermal impedance while maintaining structural rigidity under continuous operation. The aerodynamic impeller design is balanced to deliver a potent 42.4 CFM of airflow at a rated speed of 4500 RPM, drawing only 0.15A. Its IP68-rated construction ensures complete protection against water submersion and particulate matter, making it a critical solution for maintaining optimal operating temperatures in high-density industrial enclosures.
Model Number: 9WFA0824G6001
Brand: Sanyo Denki
Product Type: Axial Fan
Rated Voltage: 24 VDC
Voltage Range: 14.0 – 27.6 VDC
Rated Current: 0.15 A
Power: 3.6 W
Rated Speed: 4500 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 42.4 CFM (1.20 m³/min)
Max. Static Pressure: 6.99 mmH₂O (68.6 Pa)
Dimensions: 80 x 80 x 20 mm
Weight: 110 g
Life Expectancy: 60,000 Hours at 60°C
Noise Level: 40 dB(A)
Ingress Protection: IP68 (Waterproof/Dustproof)
Speed Control: Tachometer (Pulse Sensor)
Termination: 3-Lead Wires
Frame Material: Aluminum
Impeller Material: Plastic (UL94V-0)
Operating Temperature: -20 to +70 °C
Protection Features: Locked Rotor Burnout Protection, Reverse Polarity Protection
9WFA0824G6001 Applications
1. Outdoor Telecom Inverters: The IP68 rating and 24VDC architecture make this an ideal replacement fan for cooling power conversion modules in ruggedized cellular base stations.
2. Industrial VFD Control Cabinets: High static pressure capability allows for efficient heat dissipation through dense filter media in variable frequency drive enclosures.
3. Marine Electronics: The aluminum frame and sealed motor provide the necessary corrosion resistance for cooling navigation and sonar processing units in maritime environments.
