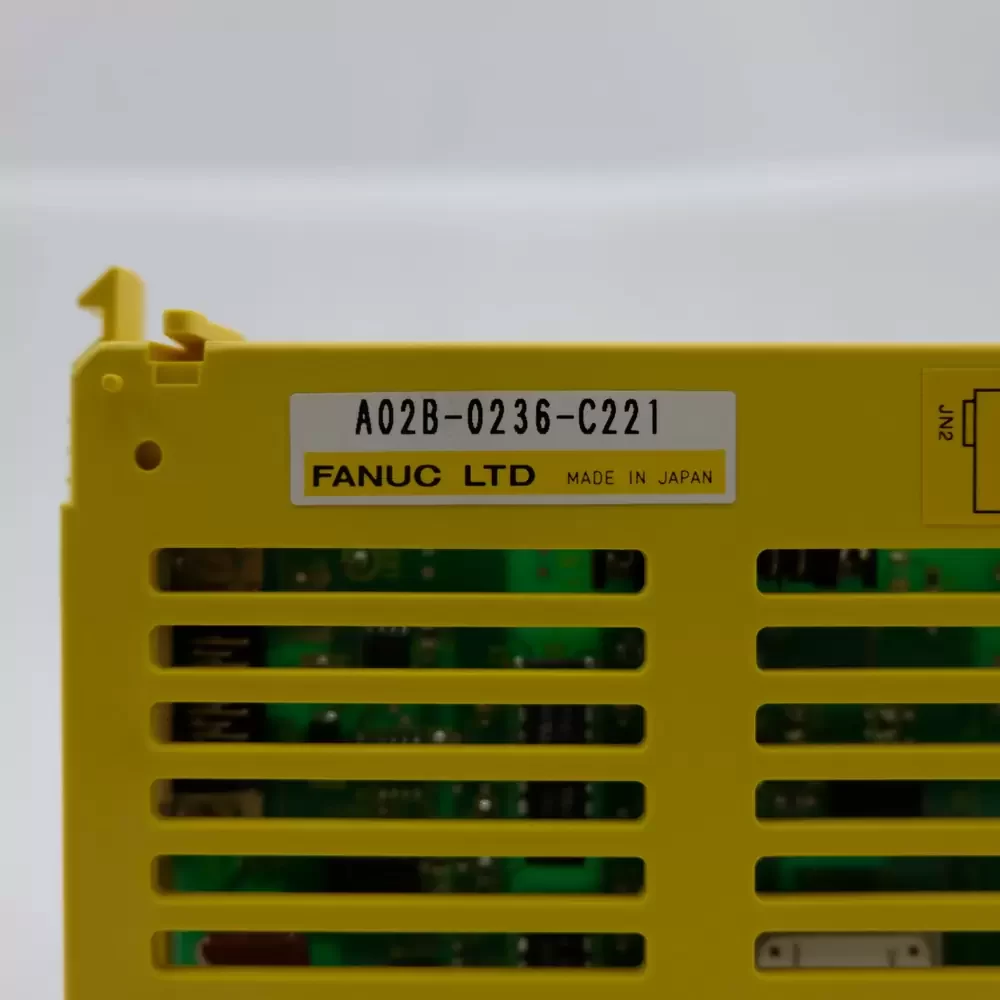

A02B-0236-C221 Fanuc 24VDC Profibus-DP Adapter Interface Module

Description

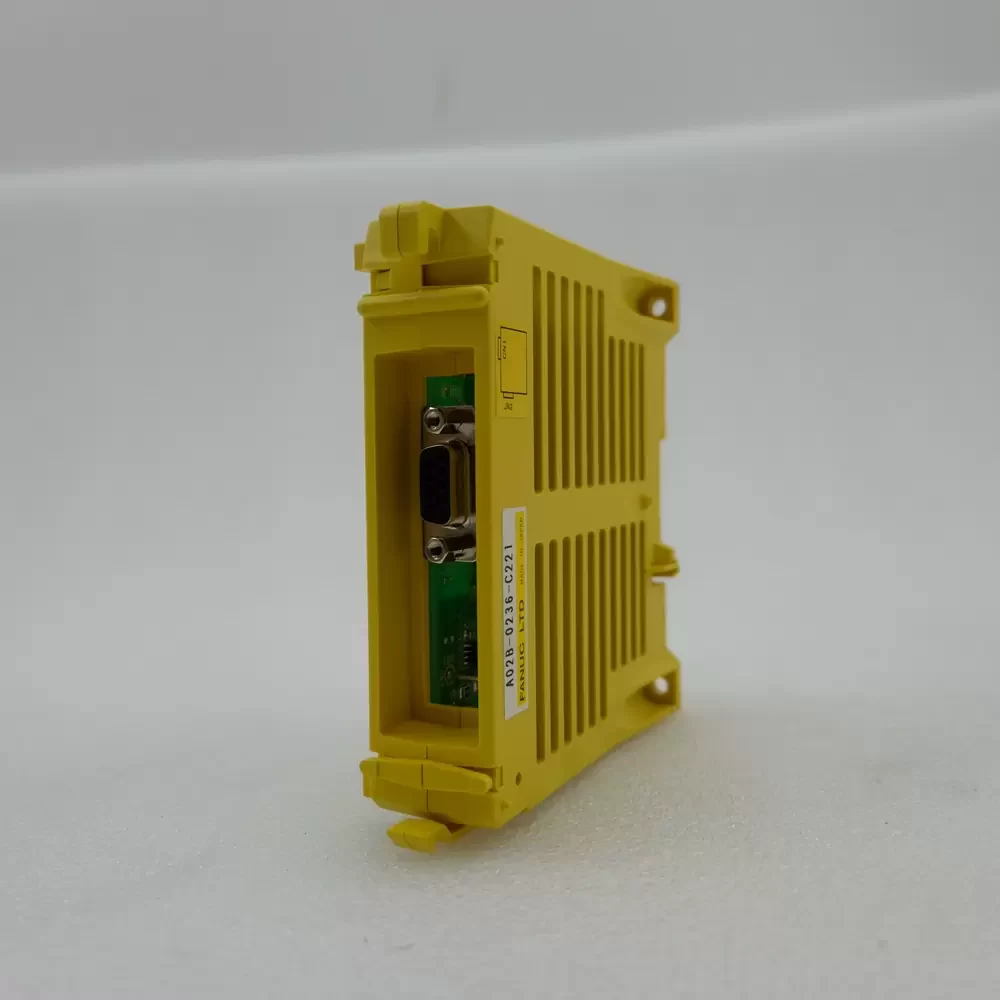

Fanuc A02B-0236-C221 140 mm x 130 mm x 45 mm, 24 VDC, Profibus-DP adapter unit is a specialized communication interface. The module facilitates high-speed data exchange between Fanuc CNC controllers and external Profibus-DP networks. It features a compact polycarbonate housing with integrated DIN rail mounting clips and a standard 9-pin D-sub connector for network connection. Internal circuitry is powered by a 24 VDC source and includes diagnostic LEDs for network status and power monitoring.

A02B-0236-C221 Specifications
Model Number: A02B-0236-C221
Brand: Fanuc
Category: Profibus Adapter Unit
Input Voltage: 24 VDC
Protocol: Profibus-DP
Interface: 9-pin D-sub (Female)
Data Rate: 9.6 kbps to 12 Mbps
Power Consumption: 5 W
Dimensions: 140 mm x 130 mm x 45 mm
Weight: 0.15 kg
Mounting: DIN rail or screw mount
Operating Temperature: 0 to 55 °C
Storage Temperature: -20 to 80 °C
Humidity: 10 to 90 % RH
Protection Rating: IP 20
Status Indicators: Power LED, Network Status LED
Certification: CE, UL

A02B-0236-C221 Applications
Primary applications include integration into Fanuc Series 16i, 18i, and 21i CNC systems for fieldbus networking. Deployed within automated production lines and multi-machine cells to enable communication between the CNC unit and Profibus-compatible peripherals such as remote I/O stations, sensors, and motor drives.
