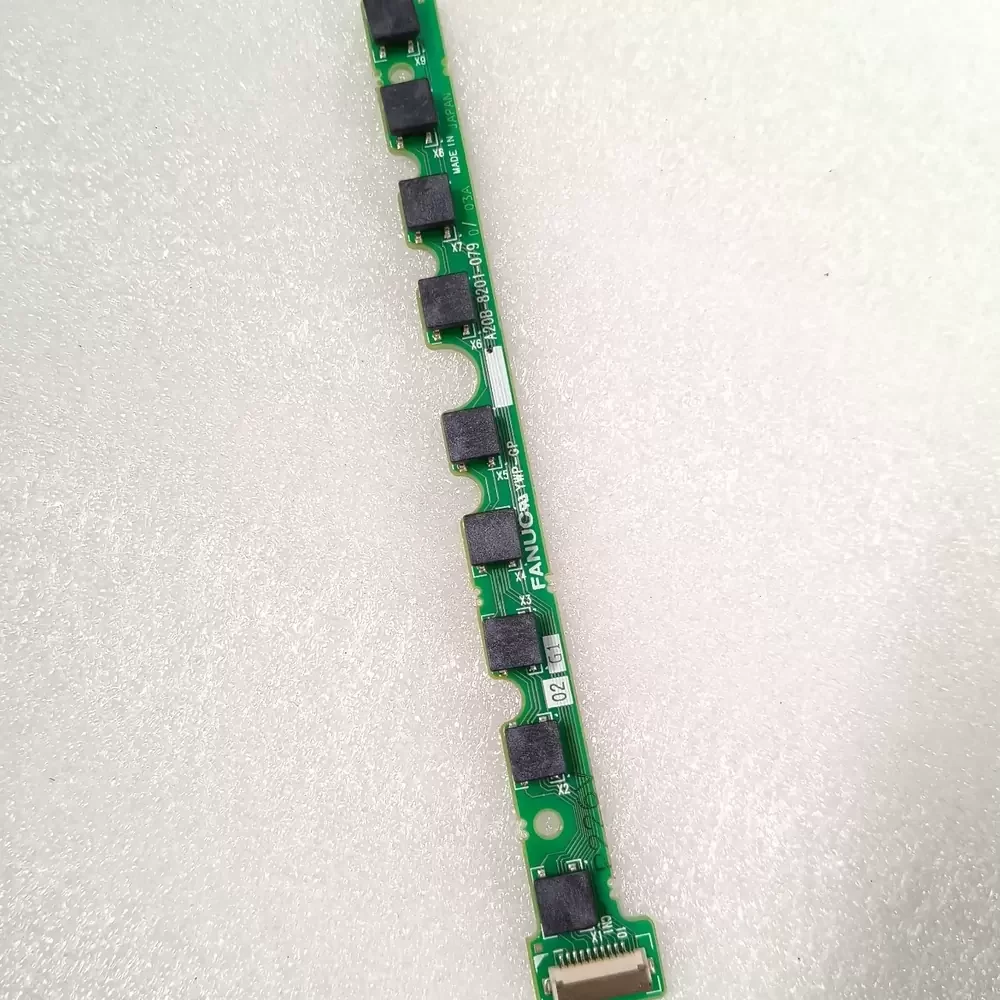

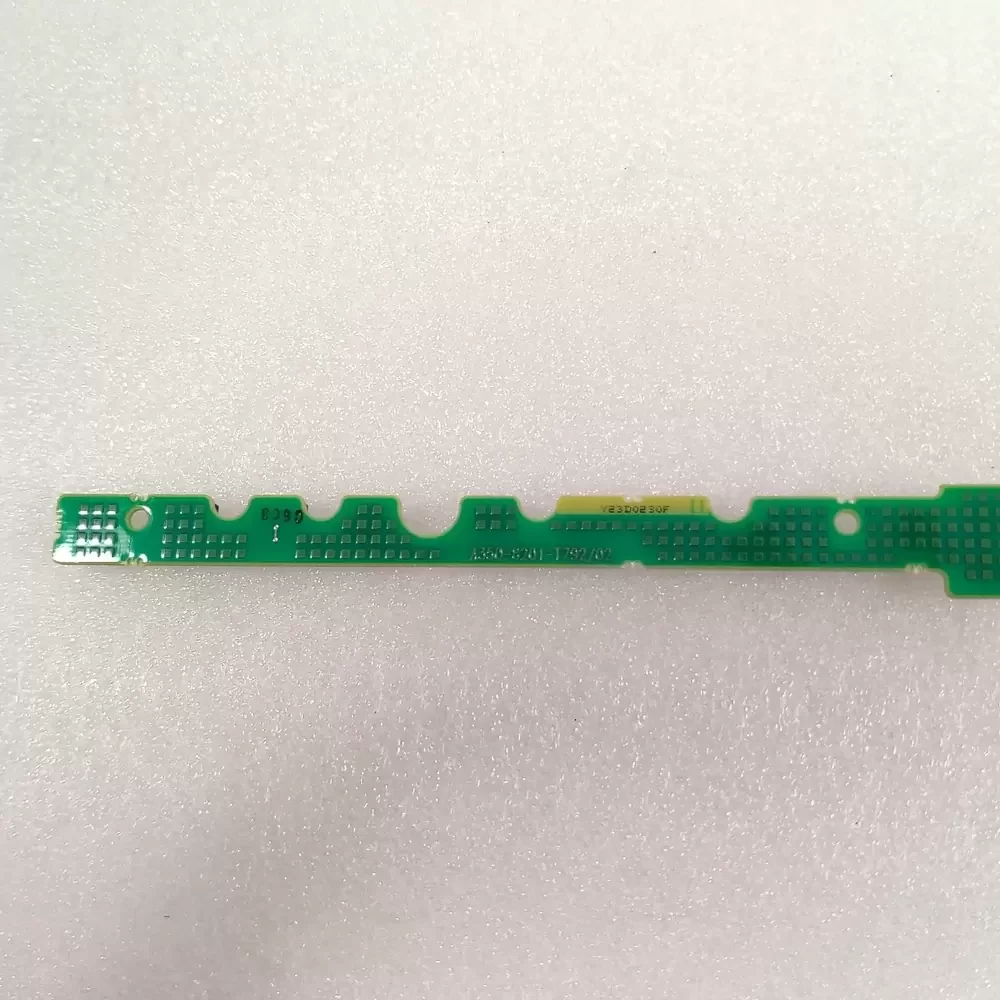

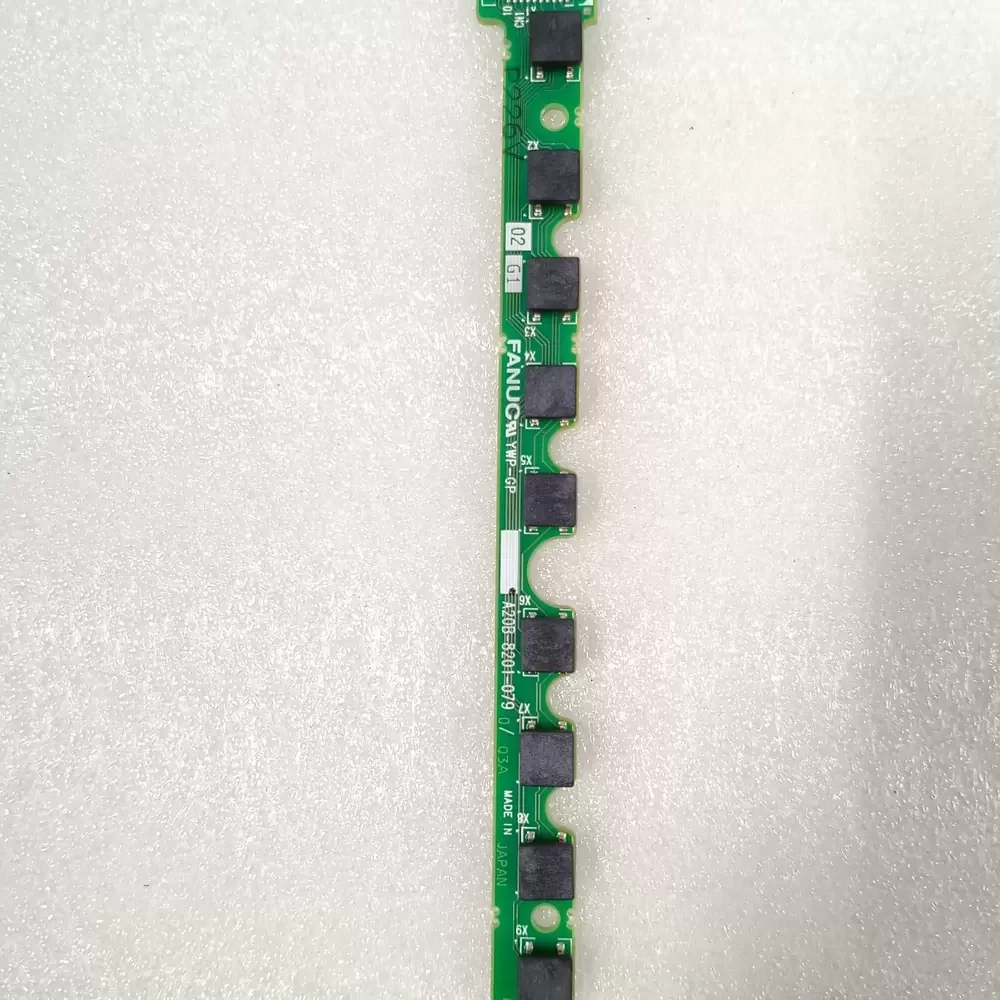

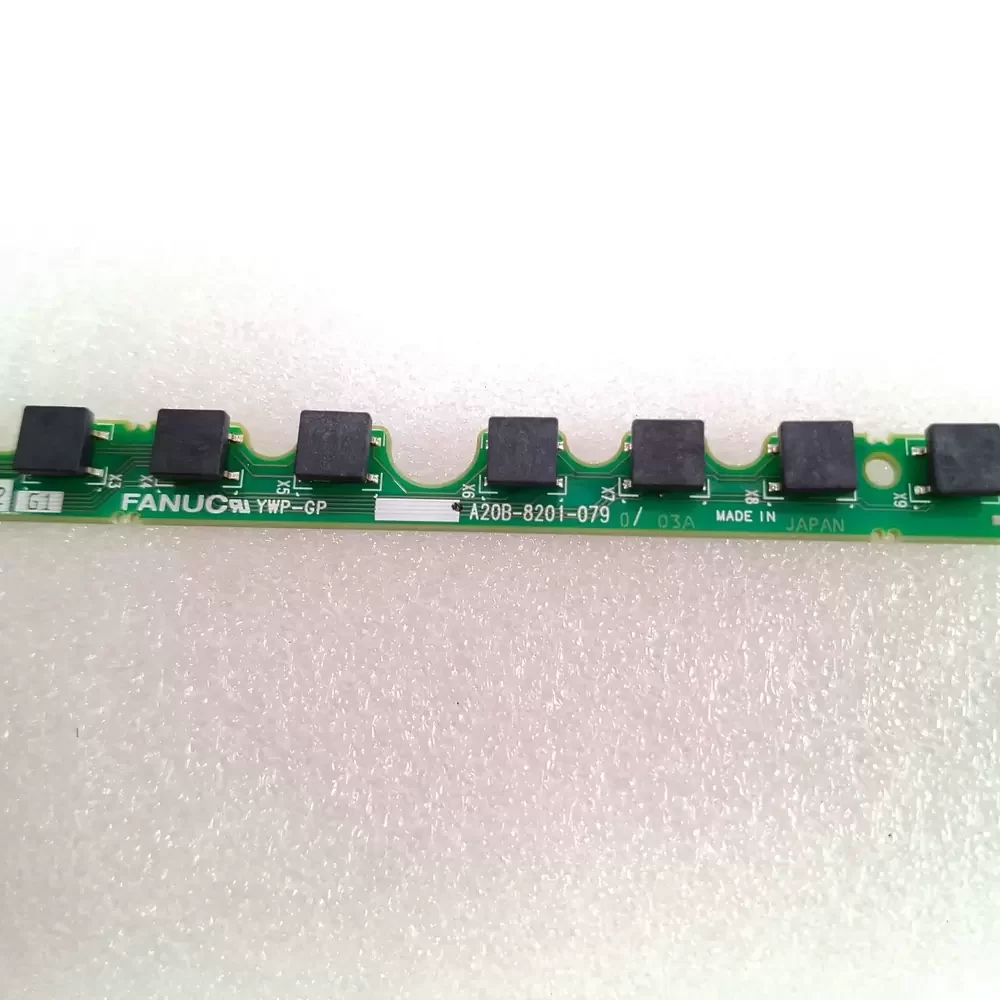

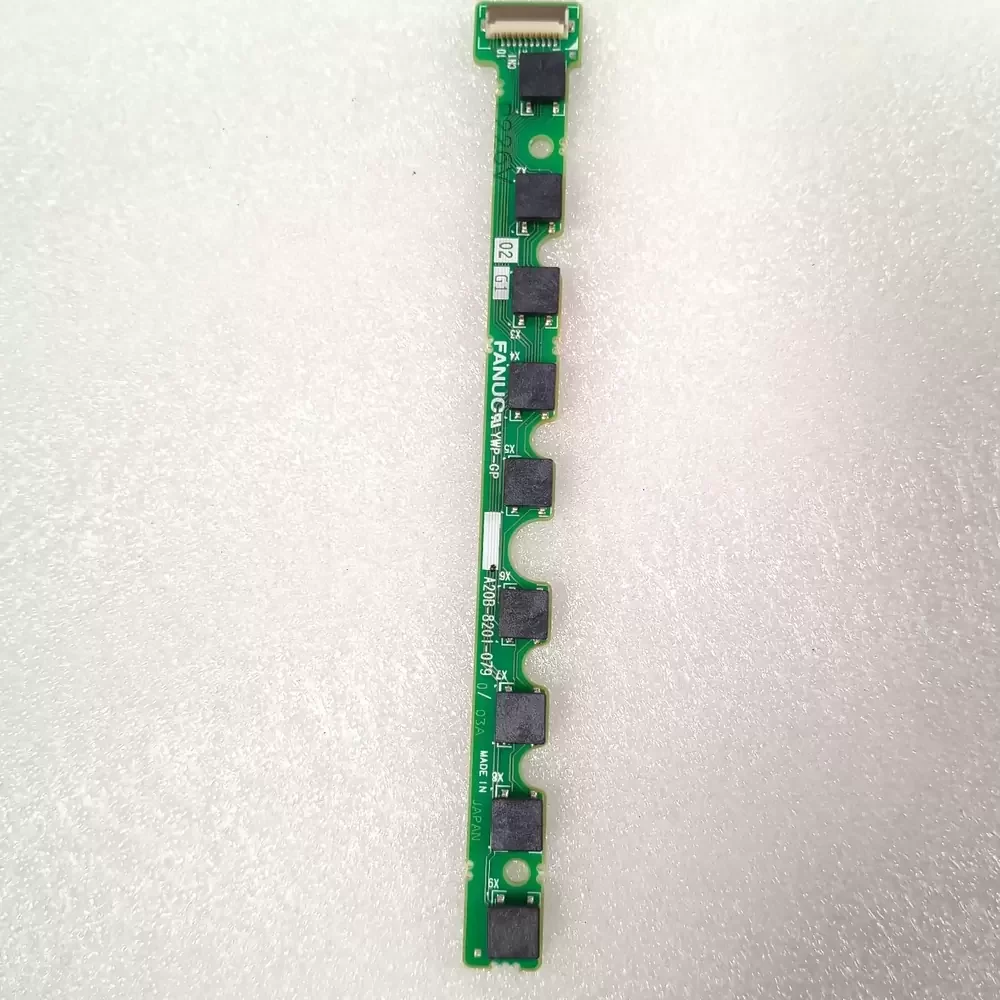

A20B-8201-0790 FANUC 35VDC 9-Key IP65 Membrane Keypad

Description

FANUC A20B-8201-0790 features a 15 cm physical length, 35 VDC nominal voltage, and an array of 9 keys with tactile feedback. The structural assembly utilizes a rigid PCB circuit type overlaid with durable polycarbonate and PVC materials to ensure mechanical resilience. Interface connectivity is established via an FRC connector, while the unit operates without backlighting. The hardware is rated for a 100 mA switch capacity and maintains an IP65 protection level, supporting stable operation within a 0 to 50 °C temperature range.

A20B-8201-0790 Specifications
Model Number: A20B-8201-0790
Brand: FANUC
Category: Membrane Keypad
Number of Keys: 9
Tactile Feel: Tactile
Circuit Type: Rigid PCB
Maximum Voltage: 35 VDC
Switch Rating: 100 mA
Overlay Material: Polycarbonate and PVC
Protection Level: IP65
Connector Type: FRC
Operating Temperature: 0 to 50 °C
Backlighting: None
Physical Length: 15 cm
Display: No Display

A20B-8201-0790 Applications
Primary applications include integration into FANUC MF/TF Plus series host controllers and Robodrill CNC machining centers. Deployed within industrial automation control panels, this membrane keypad facilitates direct human-machine interface programming and operational command execution.
