Description

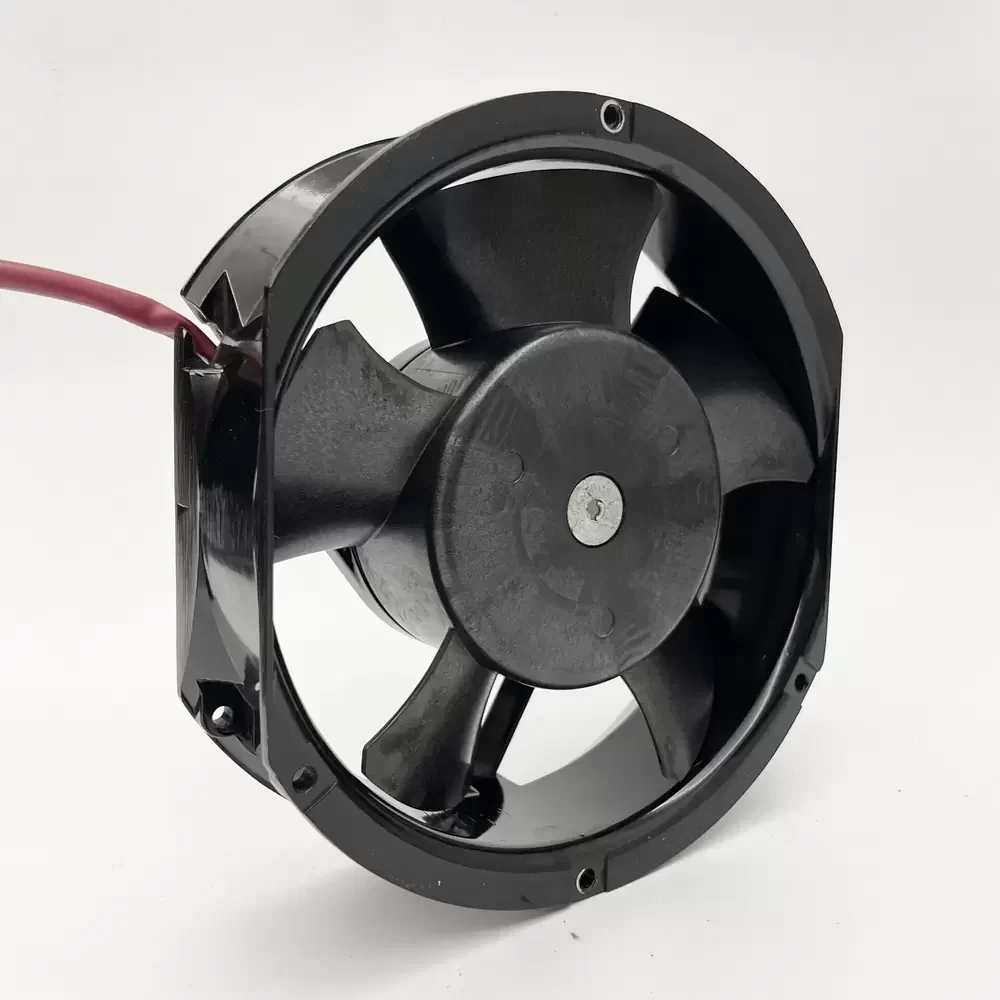

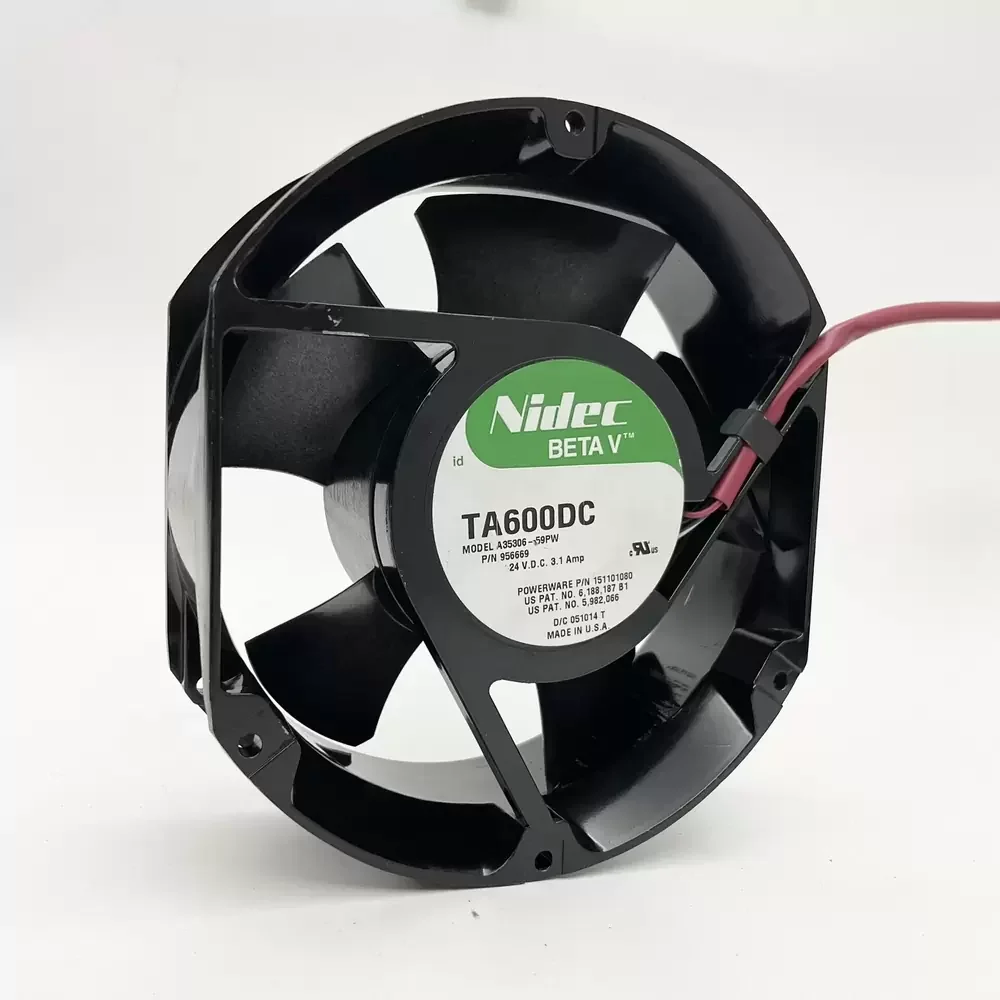

The Nidec A35306-59PW is a high-performance DC axial fan belonging to the robust TA600DC series, engineered for critical thermal management in industrial environments. This unit operates at a rated voltage of 24VDC with a substantial current draw of 3.1A, delivering exceptional airflow capabilities required for high-density electronics. Constructed with a durable die-cast aluminum housing and reinforced thermoplastic impeller, the fan ensures structural rigidity and long-term reliability under thermal stress. Its dual ball bearing architecture minimizes friction and heat generation, significantly extending the operational lifespan. Designed with advanced aerodynamics, the A35306-59PW optimizes static pressure and airflow efficiency, making it an ideal solution for reducing thermal impedance in power inverters and uninterruptible power supplies.
Model Number: A35306-59PW
Brand: Nidec (Nidec Servo)
Series: TA600DC
Product Type: DC Axial Fan
Rated Voltage: 24 VDC
Voltage Range: 18.0 – 27.6 VDC
Rated Current: 3.1 A
Power Consumption: 74.4 W
Rated Speed: 4200 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 335.0 CFM (569.1 m³/h / 9.48 m³/min)
Max. Static Pressure: 26.5 mmH₂O (260 Pa / 1.04 inH₂O)
Dimensions: 172mm x 150mm x 51mm
Weight: 850 g
Life Expectancy: 70,000 Hours at 40°C
Frame Material: Die-Cast Aluminum
Impeller Material: Thermoplastic PBT (UL94V-0)
Ingress Protection: IP20
Noise Level: 63.0 dB(A)
Termination: Lead Wires (Red +, Black -)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Mounting Orientation: Any
Motor Protection: Locked Rotor Protection, Reverse Polarity Protection
Certifications: UL, CSA, TUV, CE
The A35306-59PW is specifically engineered for high-demand industrial cooling applications where consistent airflow is paramount. It is frequently deployed within heavy-duty power electronics, serving as a critical component for Yaskawa frequency inverters and large-scale UPS power supply units. The A35306-59PW effectively dissipates heat from sensitive internal components in server cabinets, telecommunications racks, and CNC machinery control panels, ensuring system stability during continuous operation.
