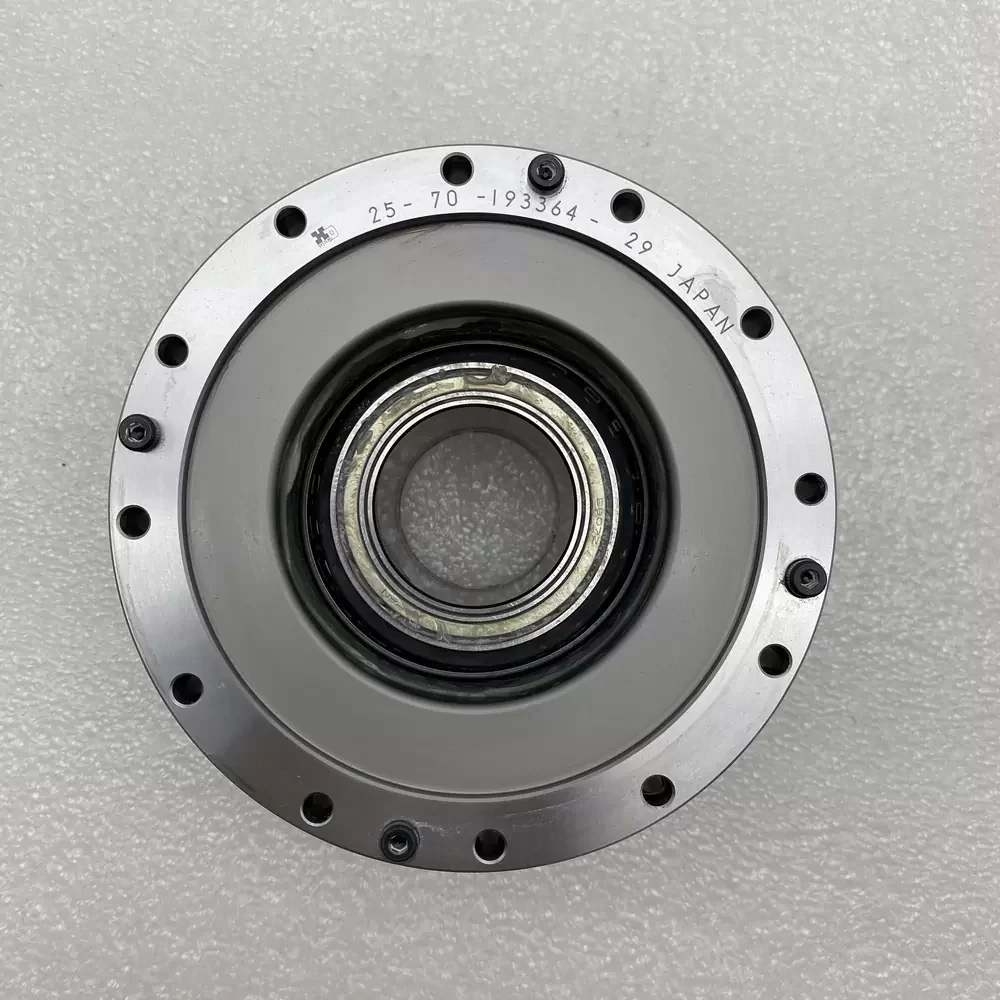

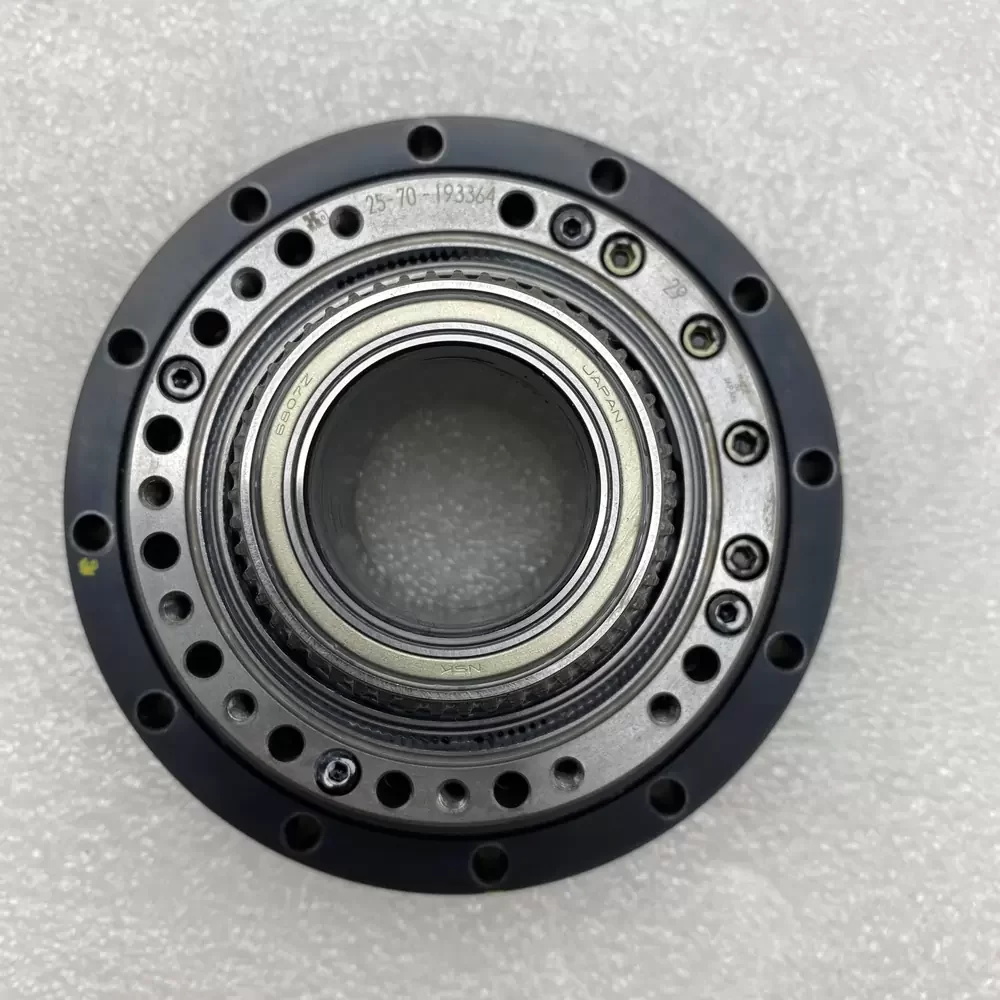

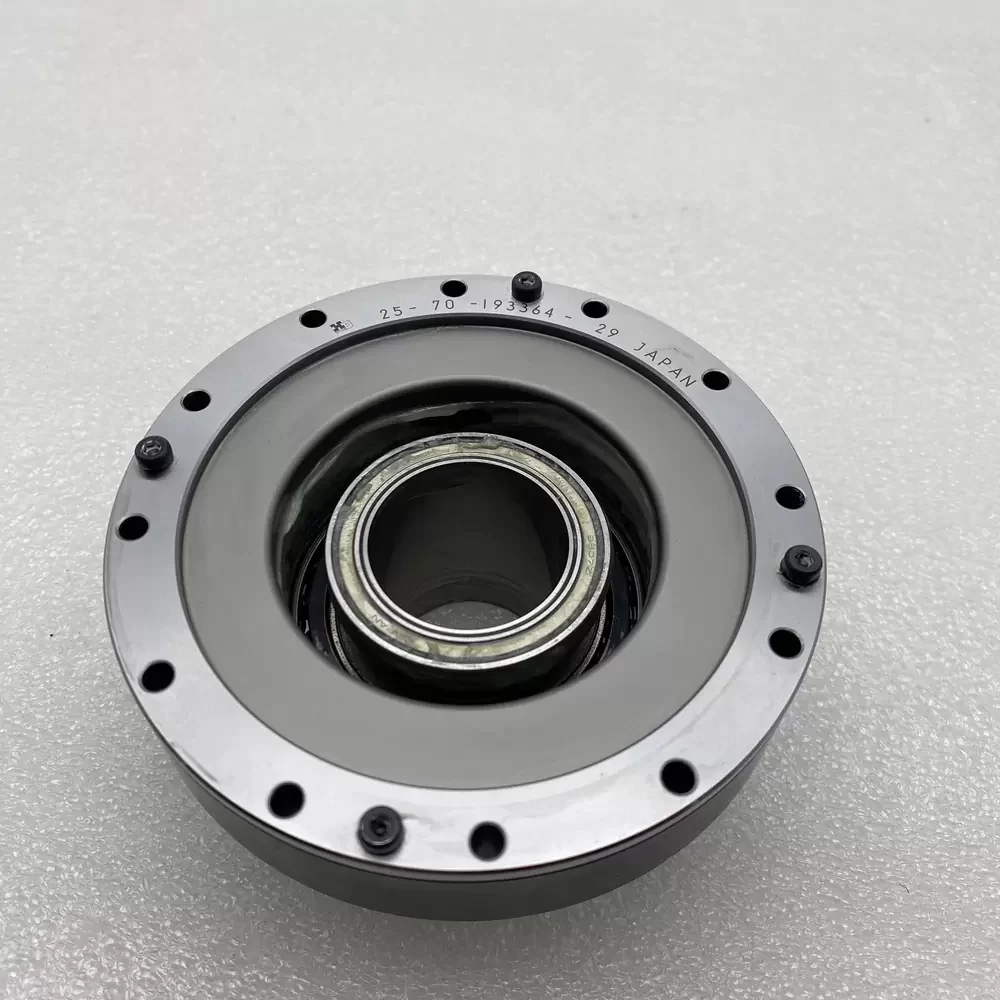

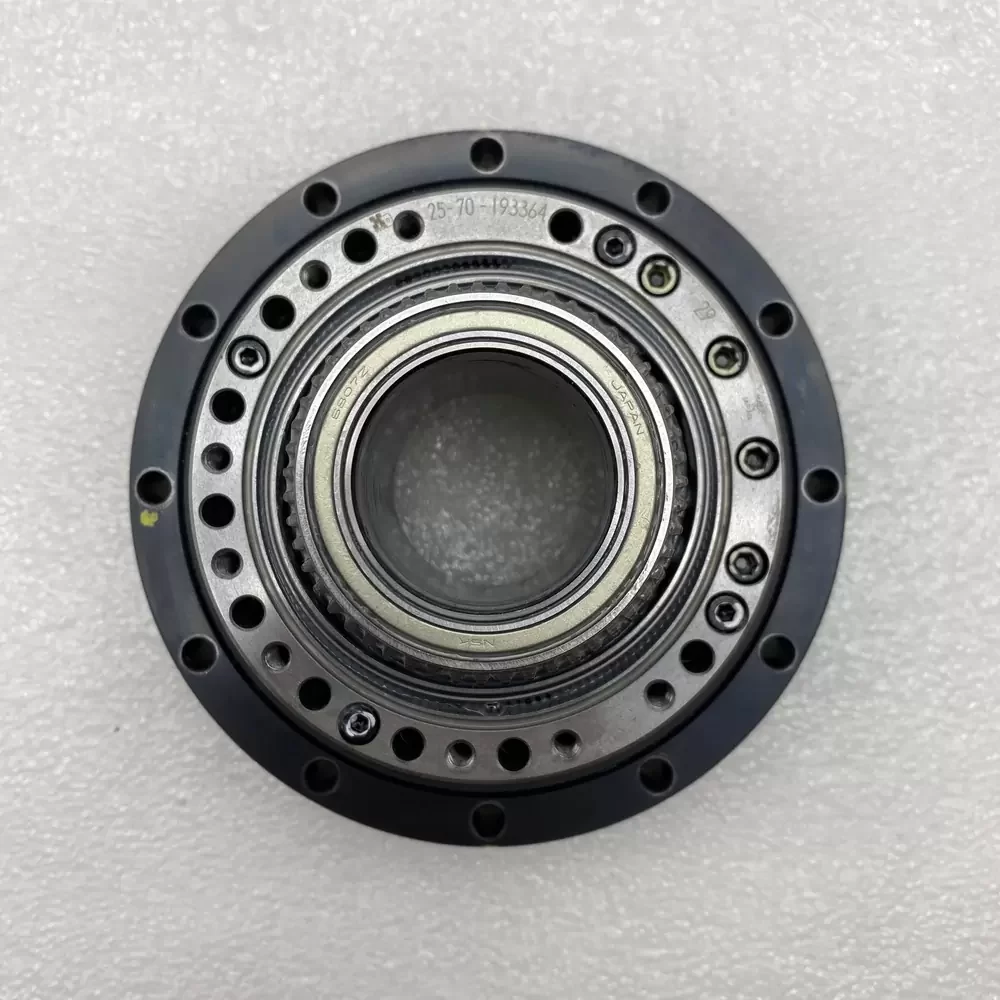

A97L-0218-0951#70 Fanuc LR Mate 200iD J1 Axis Reducer

Description

The A97L-0218-0951#70 is a high-precision RV (Rotary Vector) reducer engineered specifically for the J1 (base) axis of the Fanuc LR Mate 200iD industrial robot series. This critical mechanical component facilitates high-torque transmission and precise angular positioning, supporting the robot’s 7kg payload capacity and 0.01mm repeatability. Designed for high-speed duty cycles, the reducer maintains structural rigidity and minimizes backlash to ensure vibration-free motion during rapid 360°/s J1 axis rotations. Its robust construction is compatible with IP67 and IP69K environmental standards, allowing for reliable operation in harsh industrial environments involving dust, oil mist, and high-pressure washdown procedures.

A97L-0218-0951#70 Specifications
Model Number: A97L-0218-0951#70
Brand: Fanuc
Product Category: Robot Axis Reducer / Gearbox
Compatible Robot Series: LR Mate 200iD (Standard, 4S, 7C, 7H, 7L, 7LC)
Robot Axis Application: J1 (Axis 1 / Base Axis)
Reducer Type: RV (Rotary Vector) Reducer
Payload Support: Up to 7kg
Repeatability Support: 0.01mm to 0.018mm
Maximum Axis Speed: 360°/s (J1 Axis)
Motion Range: 340° / 360° (Model dependent)
Environmental Protection: IP67 (Standard), IP69K (Optional)
Operating Temperature: 0 to 45°C
Installation Method: Floor, Ceiling, Wall, or Angle Mounting
Material: High-grade hardened steel alloy
Country of Origin: Japan

A97L-0218-0951#70 Applications
Primary motion control for J1 axis rotation in compact 6-axis robotic arms utilized for high-speed pick and place, machine tool loading/unloading, and precision assembly. Mandatory mechanical transmission for LR Mate 200iD units operating in narrow-space electronics manufacturing and food-grade washdown environments.
