Description

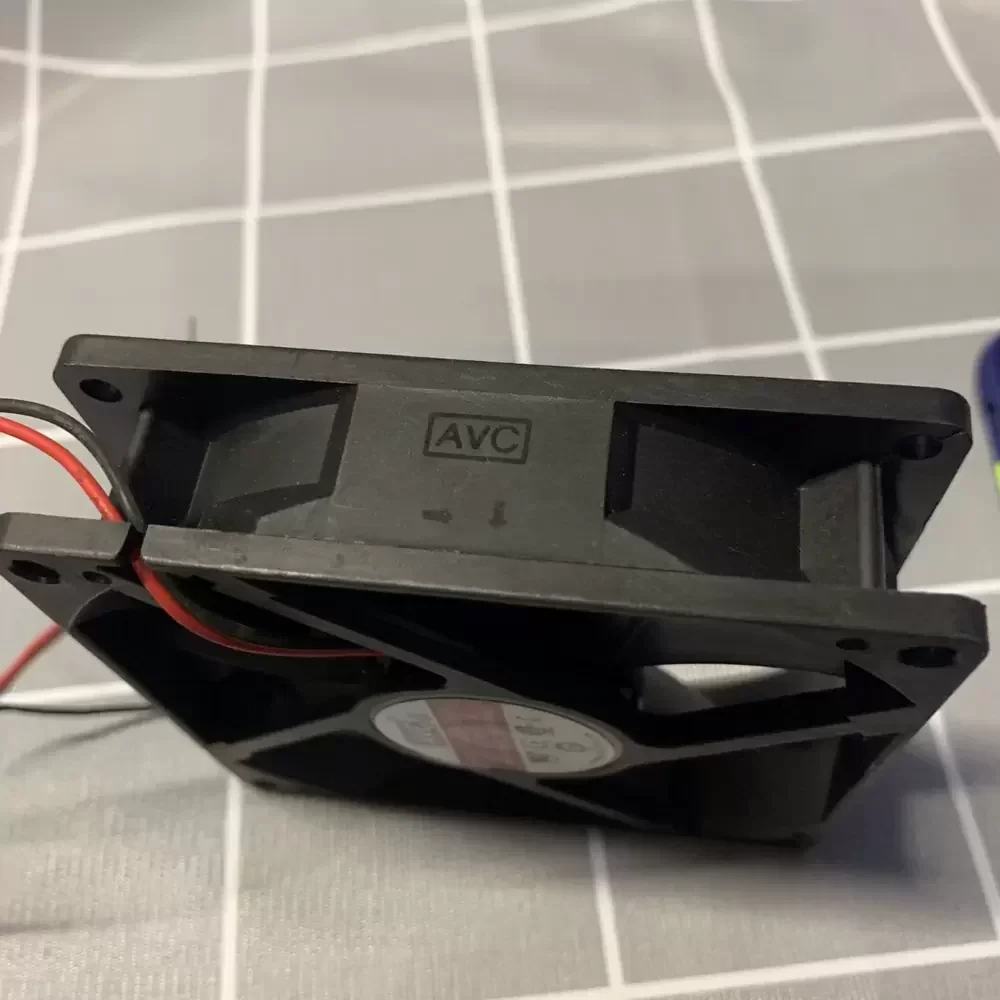

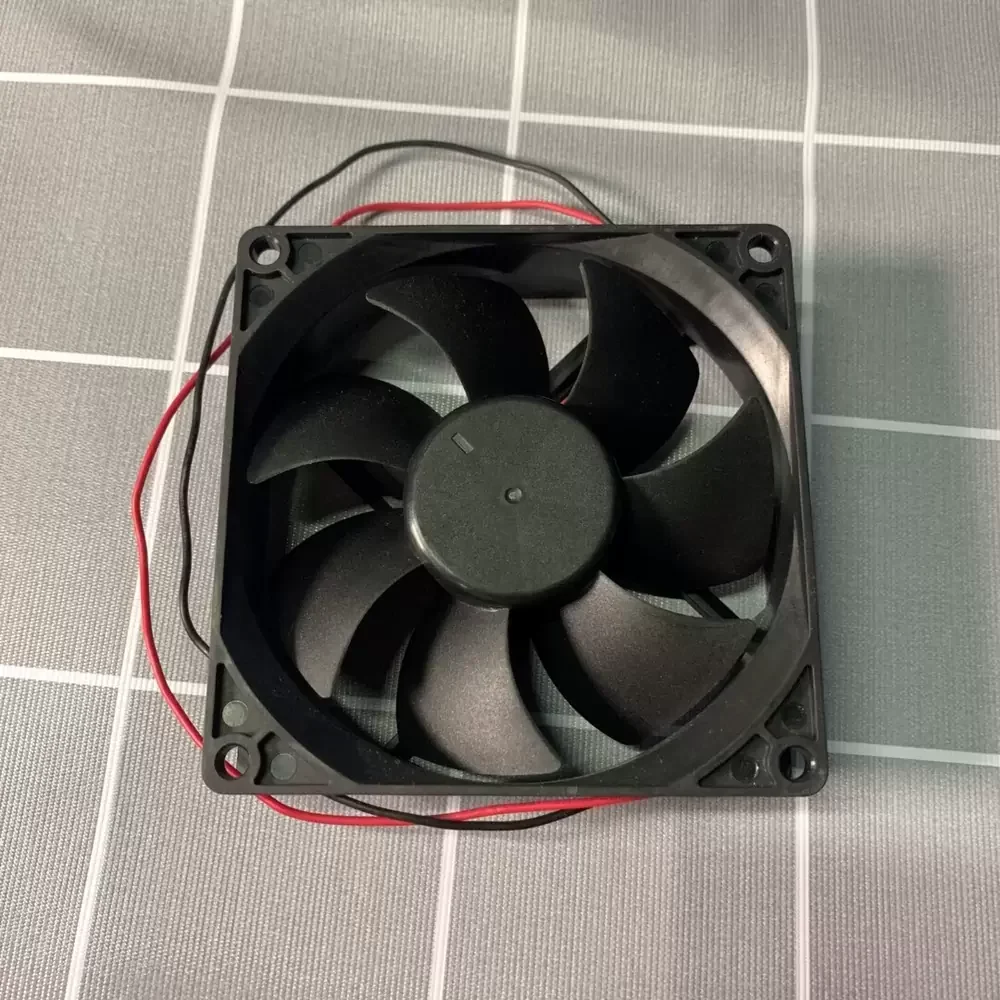

The AVC DS09225R12LC019 is a precision-engineered DC axial fan designed for optimal thermal management in electronic enclosures. Utilizing advanced hydraulic bearing technology, this unit minimizes friction and acoustic resonance while maintaining superior structural rigidity under continuous operation. The 92mm frame is constructed from durable thermoplastic, ensuring resistance to environmental stress and reducing overall thermal impedance within the system. With a low-speed profile indicated by its specific winding configuration, it balances airflow efficiency with quiet operation, making it an ideal solution for noise-sensitive industrial applications requiring reliable heat dissipation.
Model Number: DS09225R12LC019
Brand: AVC (Asia Vital Components)
Product Type: DC Axial Fan
Rated Voltage: 12 VDC
Voltage Range: 7.0 – 13.8 VDC
Rated Current: 0.13 A
Input Power: 1.56 W
Rated Speed: 2200 RPM
Bearing Type: Hydraulic Bearing
Max. Air Flow: 38.5 CFM (65.4 m³/h)
Max. Static Pressure: 2.1 mmH₂O (20.6 Pa)
Dimensions: 92 x 92 x 25 mm
Weight: 95 g
Life Expectancy: 50,000 Hours at 40°C
Noise Level: 26.0 dB(A)
Termination: 2-Wire Lead
Housing Material: Thermoplastic PBT (UL94V-0)
Blade Material: Thermoplastic PBT (UL94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Ingress Protection: IP40
Insulation Resistance: >10M Ohm at 500VDC
Dielectric Strength: 500VAC for 1 Minute
Safety Certifications: UL, CE, TUV, RoHS
Designed for versatility, the DS09225R12LC019 is frequently integrated into compact server racks and telecommunications equipment where space and noise levels are critical constraints. The DS09225R12LC019 provides consistent airflow to cool power supplies, medical instrumentation, and desktop computing chassis, ensuring component longevity by preventing thermal throttling in restricted airflow environments.
