Description

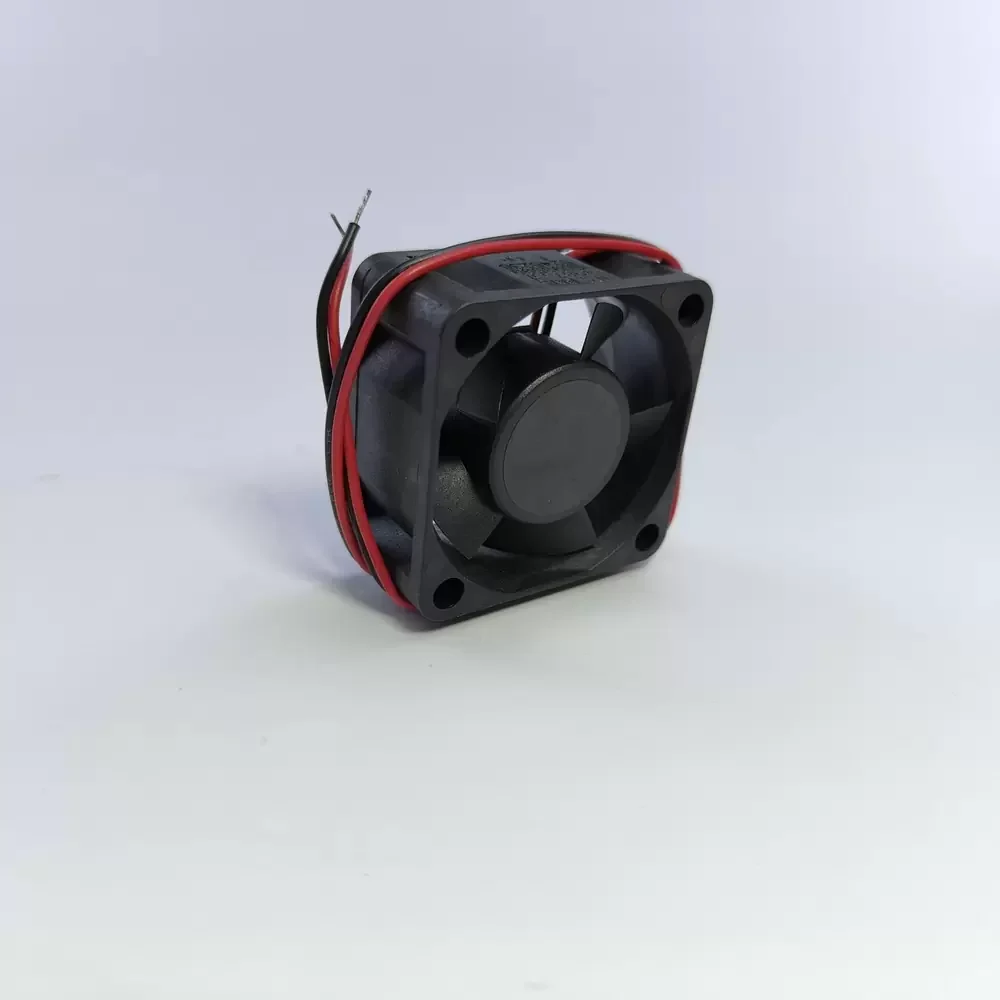

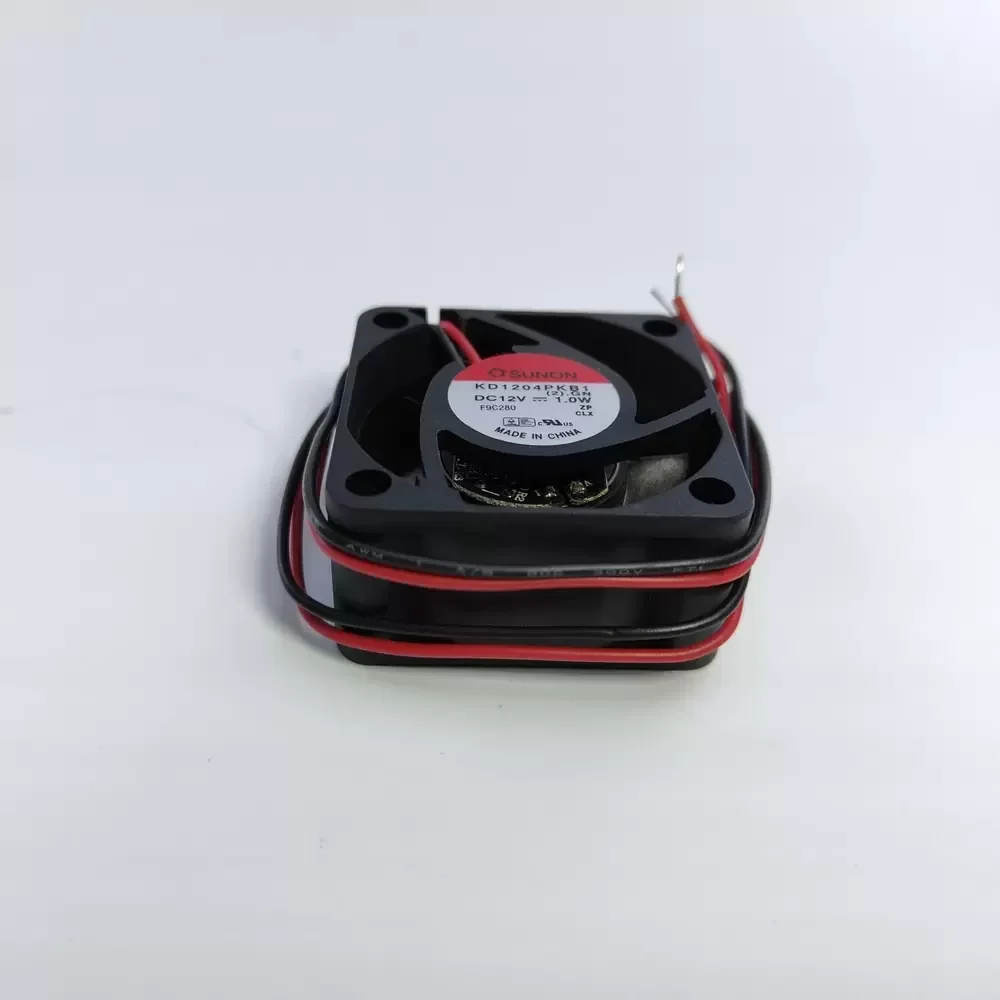

The SUNON KD1204PKB1.(2).GN is a high-efficiency Axial Fan designed for precision thermal management in compact industrial and electronic applications. Engineered with SUNON’s advanced DC brushless motor technology, this unit ensures consistent airflow delivery while maintaining a compact footprint. The fan features a robust thermoplastic frame construction that provides structural rigidity and vibration dampening, essential for sensitive electronic environments. With a power rating of 1.0W, it offers an optimal balance between static pressure performance and energy consumption. The aerodynamic impeller design minimizes turbulence, resulting in a lower thermal impedance and enhanced cooling efficiency for continuous duty cycles.
Model Number: KD1204PKB1.(2).GN
Brand: SUNON
Product Type: DC Axial Fan
Rated Voltage: 12VDC
Voltage Range: 10.2 – 13.8 VDC
Power: 1.0W
Rated Current: 0.08 A
Rated Speed: 7200 RPM
Max. Air Flow: 8.9 CFM (15.1 m³/h)
Max. Static Pressure: 0.21 inH₂O (52.2 Pa)
Dimensions: 40 x 40 x 20 mm
Bearing Type: Ball Bearing
Noise Level: 25.5 dBA
Termination: 2-Wire (Lead Wire)
Dielectric Strength: 300V
Housing Material: Thermoplastic PBT (UL94V-0)
Blade Material: Thermoplastic PBT (UL94V-0)
Operating Temperature: -10°C to +70°C
Origin: China
Condition: New/Surplus
This cooling solution is specifically engineered for integration into high-density electronic enclosures, such as 1U server racks, network switches, and industrial automation control panels. The KD1204PKB1.(2).GN is ideal for maintaining optimal operating temperatures in medical instrumentation and telecommunications equipment where space is strictly limited. Additionally, the KD1204PKB1.(2).GN serves as a critical component in power supply units and CNC machinery, protecting sensitive circuitry from thermal degradation and ensuring long-term system reliability.
