Description

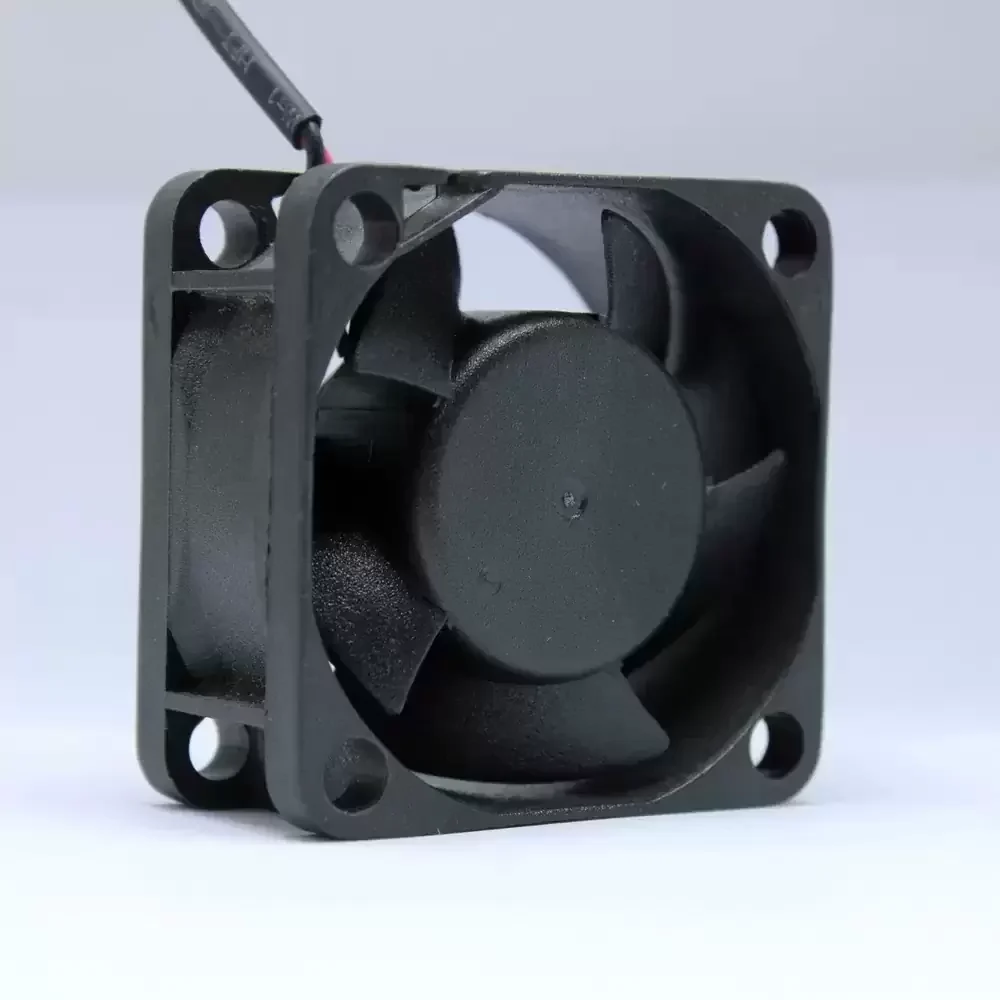

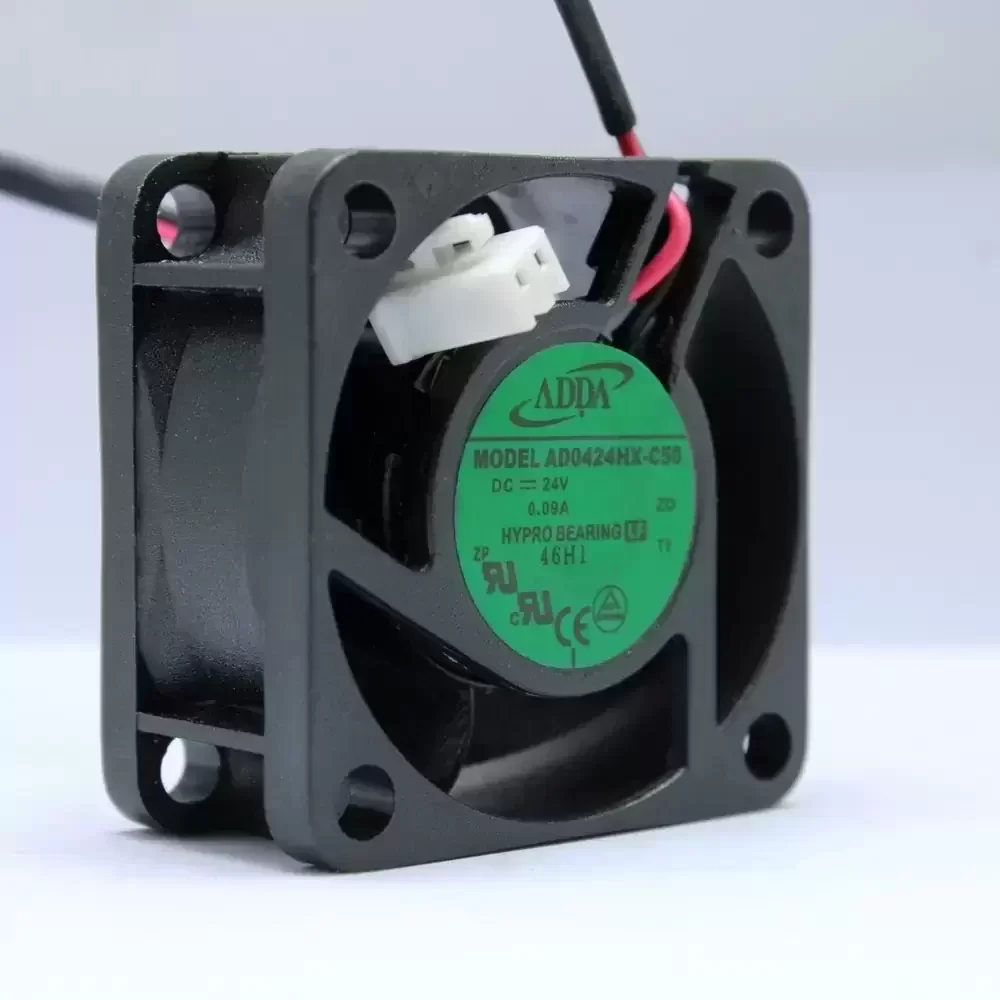

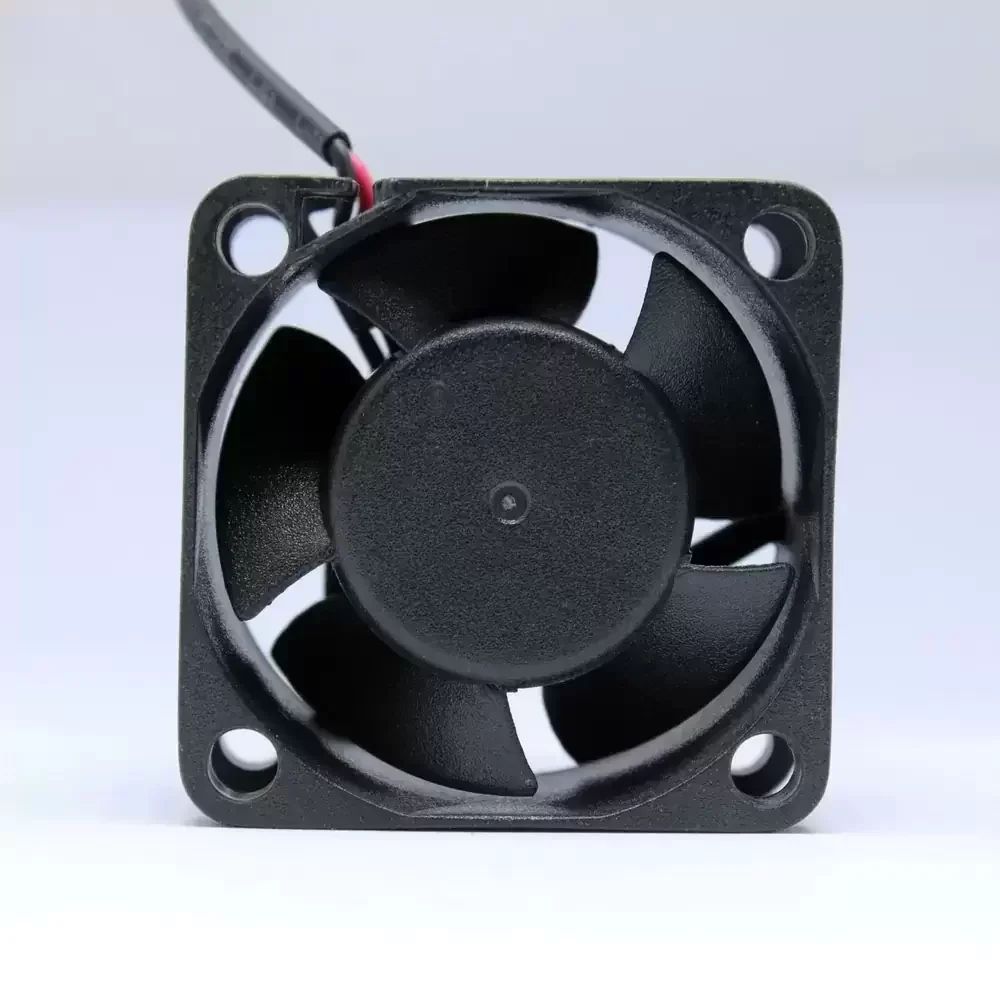

The ADDA AD0424HX-C50 is a precision-engineered DC Axial Fan designed for applications requiring reliable thermal management within a compact footprint. Utilizing ADDA’s proprietary Hypro bearing technology, this unit offers an optimized balance between operational longevity and acoustic performance, providing a robust alternative to standard sleeve bearings. The 24VDC motor assembly is housed within a reinforced thermoplastic frame, ensuring structural rigidity under thermal stress and vibration. Its aerodynamic impeller design maximizes airflow efficiency while minimizing turbulence, effectively reducing thermal impedance in high-density electronic enclosures. This component is specifically calibrated for consistent performance in industrial environments, delivering sustained cooling power with minimal power consumption.
Model Number: AD0424HX-C50
Brand: ADDA
Product Type: DC Axial Fan
Rated Voltage: 24VDC
Voltage Range: 21.6 – 26.4 VDC
Rated Current: 0.09 A
Input Power: 2.16 W
Rated Speed: 6800 RPM
Bearing Type: Hypro Bearing
Max. Air Flow: 7.8 CFM (13.25 m³/h)
Max. Static Pressure: 5.82 mmH₂O (57.07 Pa / 0.23 inH₂O)
Dimensions: 40 x 40 x 20 mm
Weight: 28.0 g
Life Expectancy: 40,000 Hours at 40°C
Noise Level: 29.0 dB(A)
Frame Material: PBT Thermoplastic (UL94V-0)
Impeller Material: PBT Thermoplastic (UL94V-0)
Termination: 2-Wire Leads (Red +, Black -)
Wire Gauge: 26 AWG
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Ingress Protection: IP20
Insulation Resistance: >10M Ohm at 500VDC
Dielectric Strength: 500VAC for 1 Minute
Safety Certifications: UL, CUL, TUV, CE
Protection: Impedance Protected, Reverse Polarity Protection
The AD0424HX-C50 is frequently integrated into compact industrial electronics where space is at a premium but heat dissipation cannot be compromised. Common deployment scenarios include 1U server rack power supplies, telecommunications switching equipment, and small-form-factor drive enclosures. The AD0424HX-C50 ensures critical components remain within safe operating temperature ranges, preventing thermal throttling in network routers and embedded control systems utilized in automation and medical instrumentation.
