Description

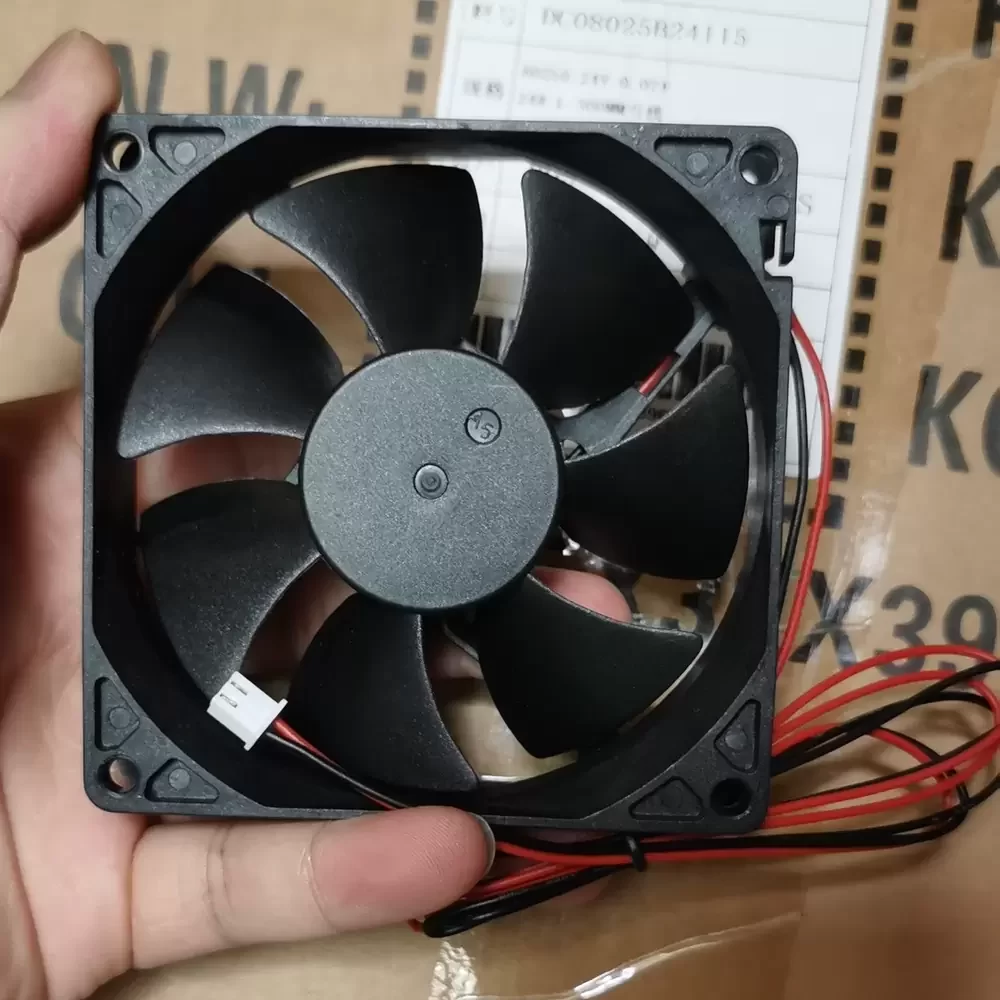

The ADDA AD0912MB-A70GL is a precision-engineered DC axial fan designed for critical thermal management in industrial and computing environments. Utilizing advanced brushless DC motor technology coupled with a durable dual ball bearing architecture, this unit ensures minimal frictional resistance and extended operational longevity. The aerodynamic impeller design optimizes airflow dynamics, reducing turbulence while maintaining high static pressure capabilities. Constructed with a robust thermoplastic frame, the fan offers superior structural rigidity and thermal impedance management, making it suitable for continuous duty cycles where reliability is paramount.
Model Number: AD0912MB-A70GL
Brand: ADDA
Product Type: DC Axial Fan
Rated Voltage: 12VDC
Voltage Range: 10.8 – 13.2 VDC
Rated Current: 0.17 A
Power: 2.04 W
Rated Speed: 2600 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 46.6 CFM (79.1 m³/h / 1.32 m³/min)
Max. Static Pressure: 3.30 mmH₂O (32.36 Pa / 0.13 inH₂O)
Dimensions: 92x92x25mm
Weight: 92 g
Life Expectancy: 70,000 Hours at 40°C
Noise Level: 33.5 dB(A)
Housing Material: PBT (UL94V-0)
Blade Material: PBT (UL94V-0)
Termination: Lead Wires
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Safety Certifications: UL, CUL, TUV, CE
Motor Protection: Impedance Protected, Reverse Polarity
This high-reliability cooling solution is engineered for diverse industrial applications requiring consistent thermal regulation. The AD0912MB-A70GL is frequently integrated into server chassis, telecommunications cabinets, and power supply units where space is constrained but airflow demand is moderate. Additionally, the AD0912MB-A70GL serves effectively in medical instrumentation and industrial automation control panels, ensuring sensitive electronic components operate within safe temperature ranges to prevent thermal throttling or component failure.
