Description

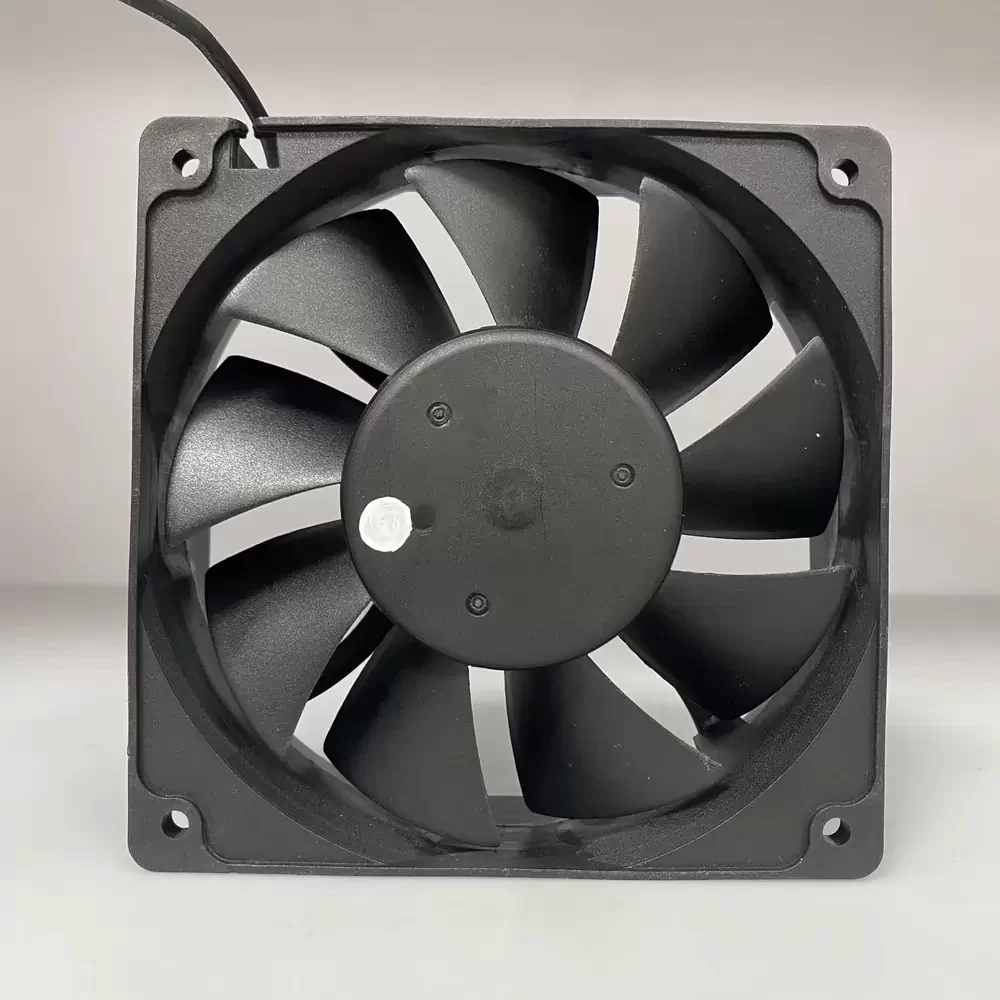

The ADDA AD1212DB-F9BGP is a high-efficiency DC axial fan designed for critical thermal management in industrial environments. Engineered with a robust Double Ball Bearing system, this unit ensures long-term reliability and reduced frictional wear under continuous operation. The aerodynamic impeller design optimizes airflow while maintaining structural rigidity, effectively lowering thermal impedance in high-density enclosures. Featuring a 4-wire interface, it supports precise speed control and monitoring, making it ideal for dynamic cooling requirements in variable frequency drives and automation systems.

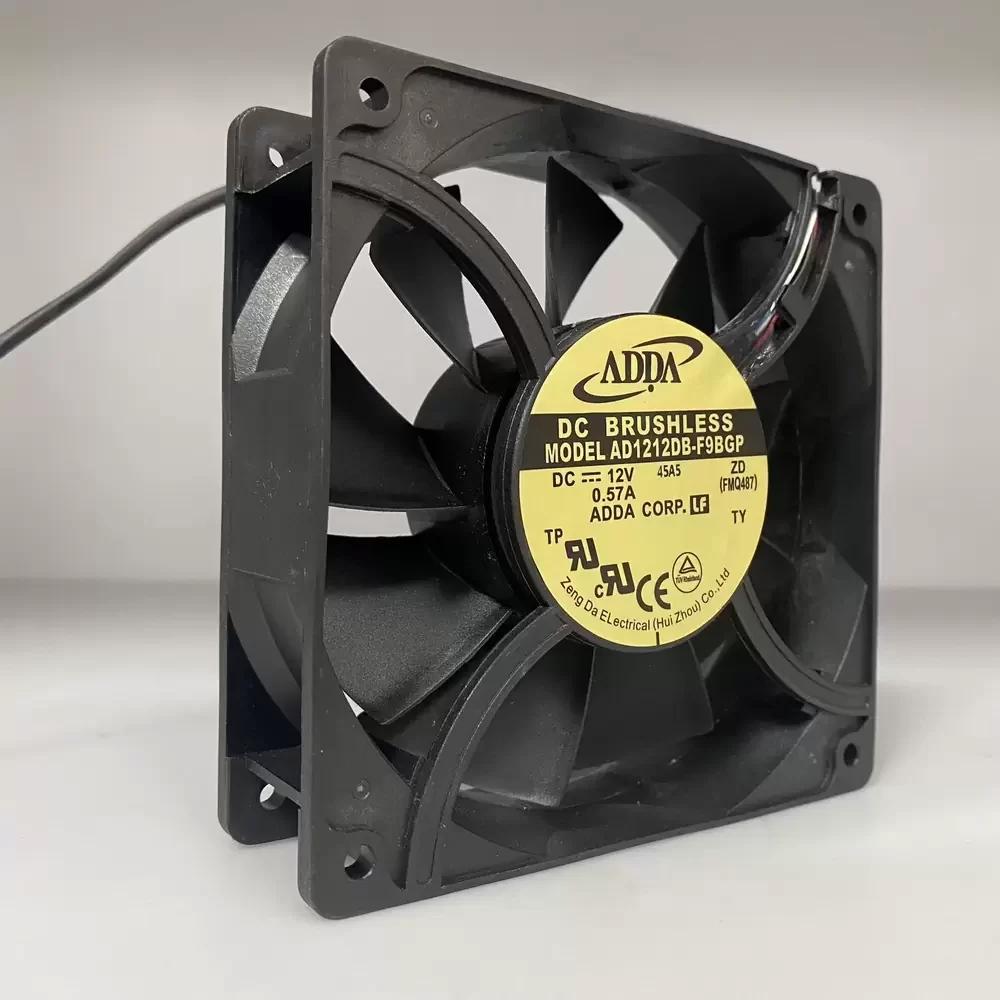

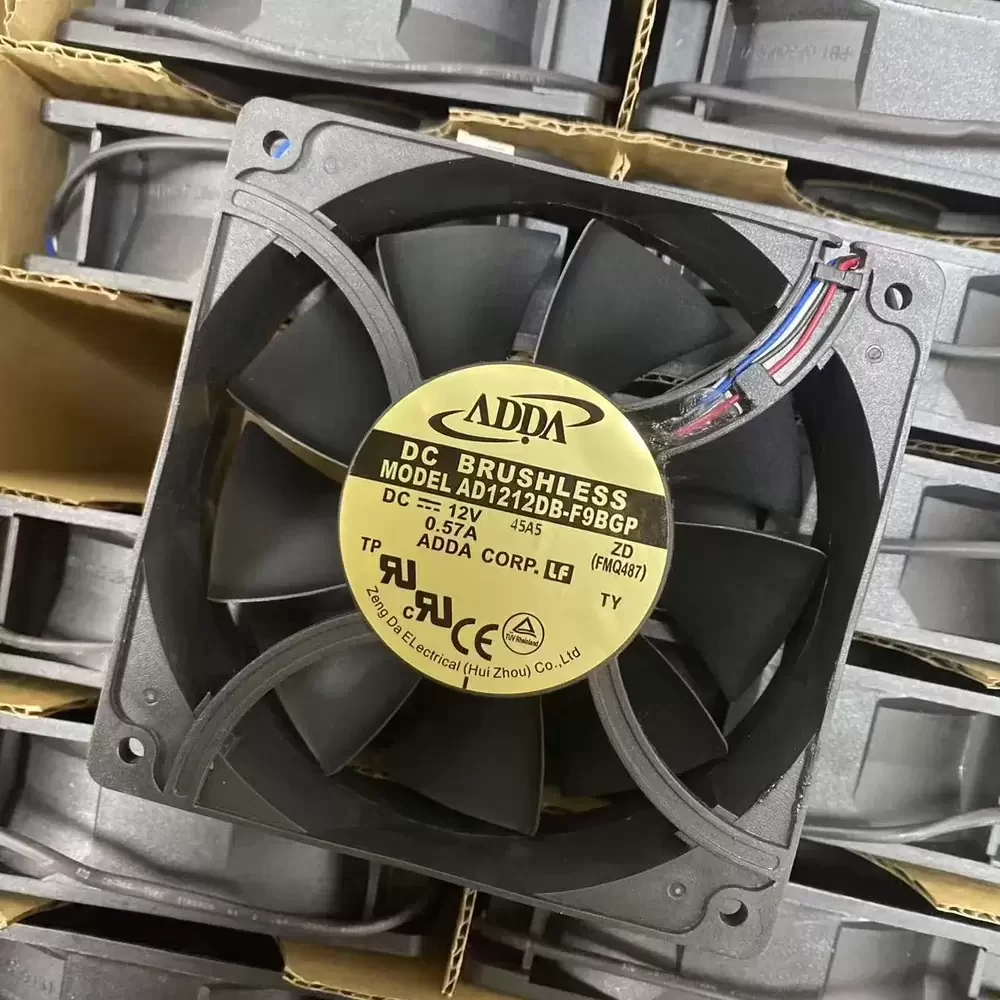

Model Number: AD1212DB-F9BGP
Brand: ADDA
Product Type: DC Axial Fan
Rated Voltage: 12VDC
Voltage Range: 7.0 – 13.8 VDC
Rated Current: 0.57 A
Power: 6.84 W
Rated Speed: 3000 RPM
Bearing Type: Double Ball Bearing
Max. Air Flow: 105.0 CFM (178.4 m³/h / 2.97 m³/min)
Max. Static Pressure: 8.1 mmH₂O (79.4 Pa / 0.32 inH₂O)

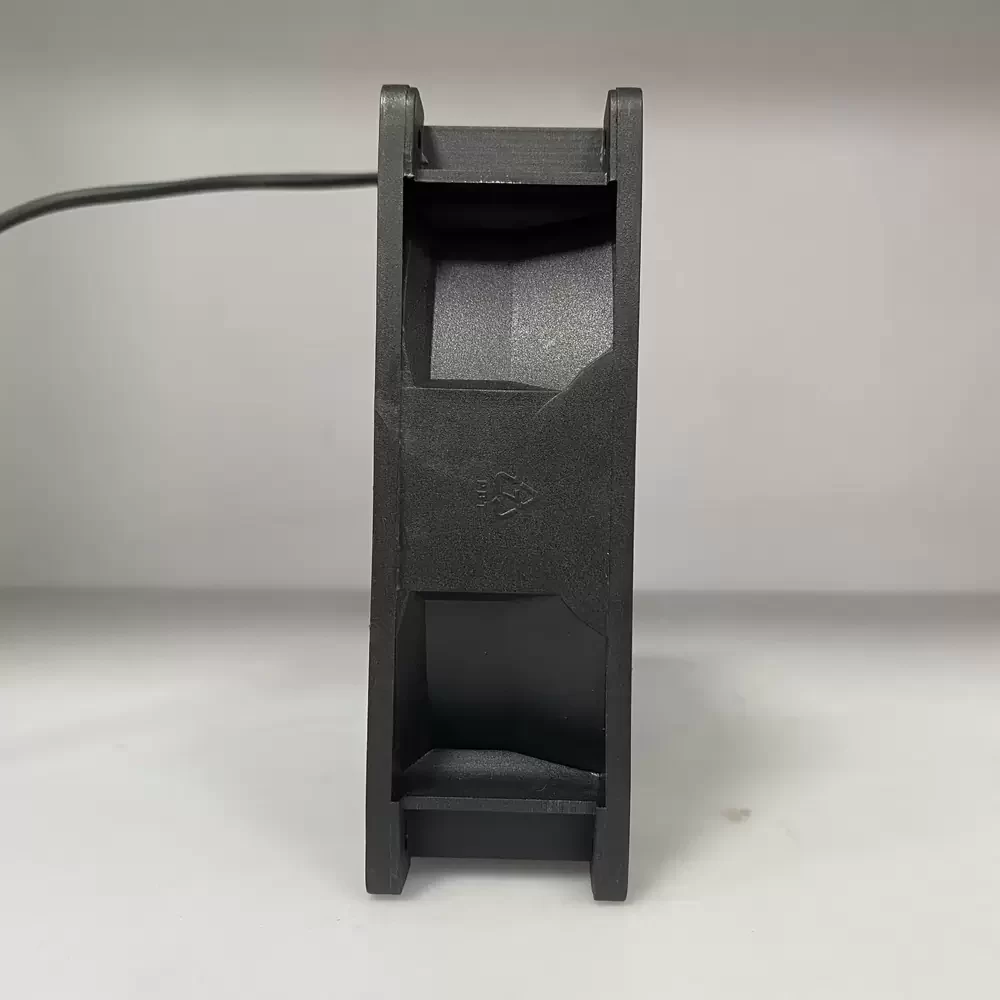

Dimensions: 120 x 120 x 38 mm

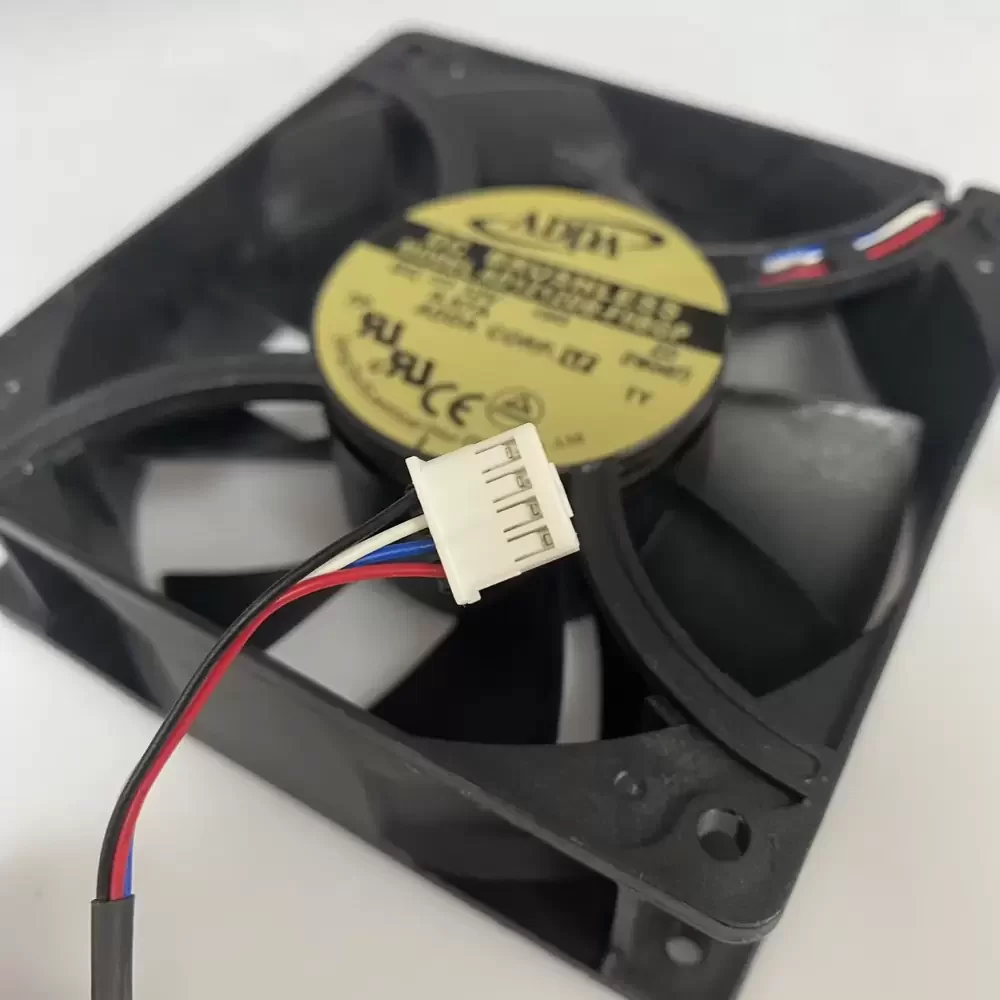

Termination: 4-Wire (Lead Wires)
Housing Material: PBT Plastic (UL94V-0)
Blade Material: PBT Plastic (UL94V-0)
Operating Temperature: -10°C to +70°C
Life Expectancy: 70,000 Hours @ 40°C
Ingress Protection: IP20
Condition: New, Original
The AD1212DB-F9BGP is specifically engineered for demanding industrial applications, including variable frequency drives (VFDs) and heavy-duty industrial control equipment. Its high static pressure capabilities make it suitable for forcing air through dense component arrays found in server racks and telecommunication cabinets. Additionally, the AD1212DB-F9BGP is utilized in power supply units and automation machinery where consistent thermal dissipation is critical to prevent system failure and extend component lifespan.
