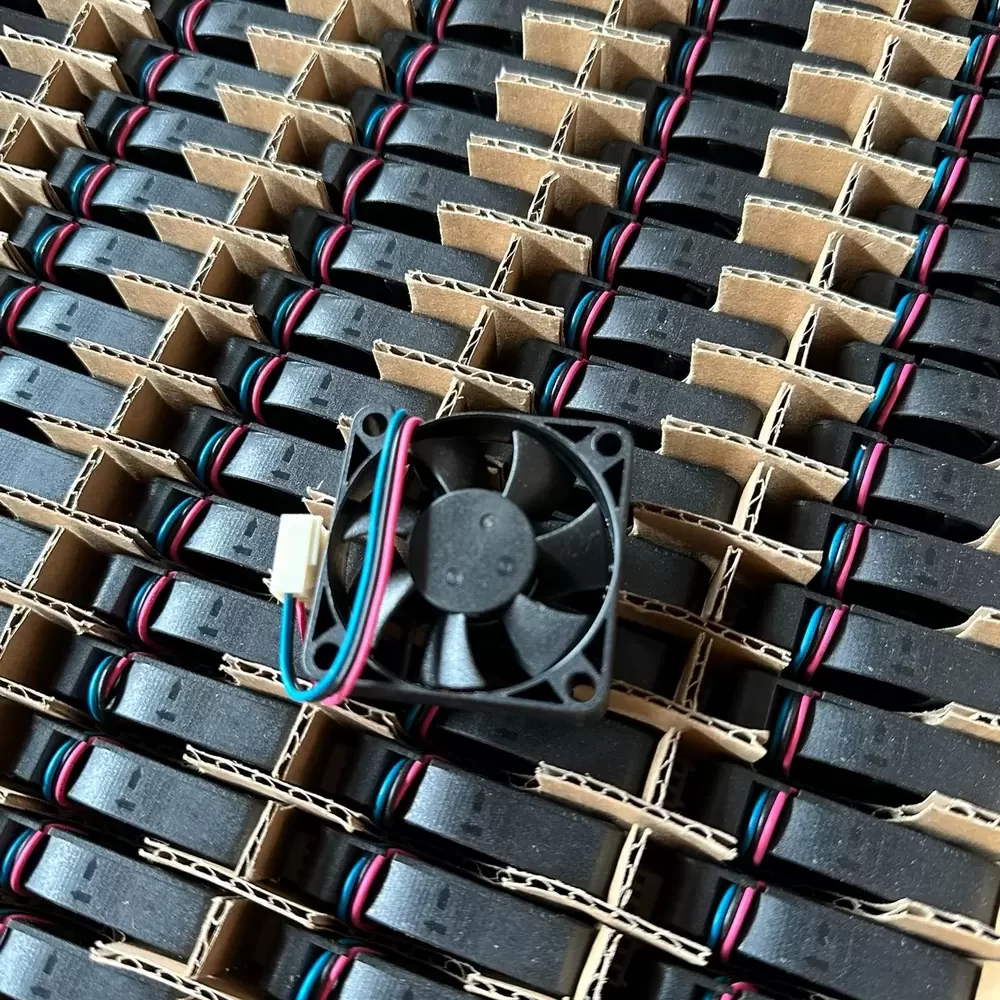

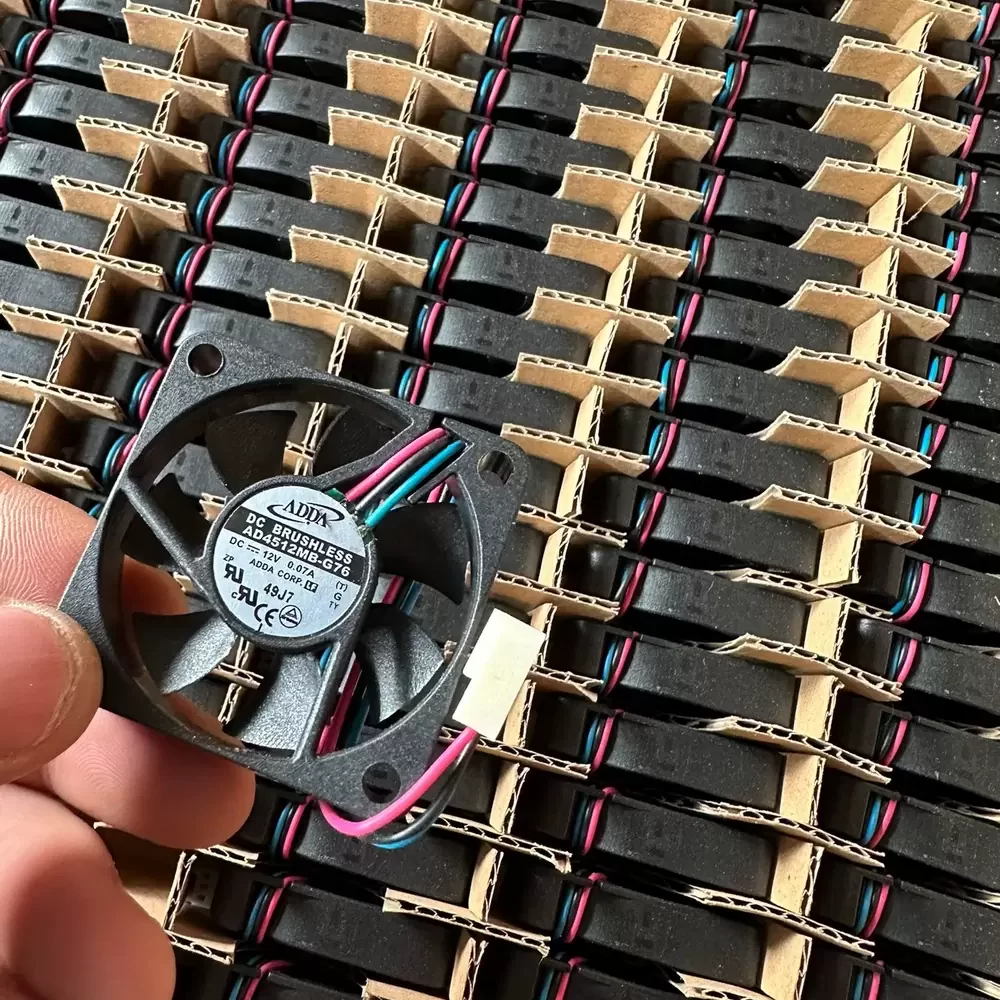

AD4512MB-G76 ADDA 12V 45x45x10mm DC Axial Fan

Description

ADDA AD4512MB-G76 is a 45 x 45 x 10 mm axial cooling fan operating at 12 VDC with a nominal current of 0.07 A and a power consumption of 0.84 W. The unit features a dual ball bearing system and a frame and impeller constructed from UL 94V-0 rated thermoplastic PBT. It delivers a maximum airflow of 7.5 CFM and a static pressure of 0.120 In H2O at a rotational speed of 5000 RPM. The electrical interface consists of three 26 AWG lead wires, and the internal motor includes impedance protection and polarity protection mechanisms.

AD4512MB-G76 Specifications
Model: AD4512MB-G76
Brand: ADDA
Category: DC Axial Fan
Dimensions: 45 x 45 x 10 mm
Rated Voltage: 12 VDC
Operating Voltage: 10.8 to 13.2 VDC
Rated Current: 0.07 A
Power Consumption: 0.84 W
Rated Speed: 5000 RPM
Maximum Airflow: 7.5 CFM
Maximum Static Pressure: 0.120 In H2O
Noise Level: 28.0 dB-A
Bearing Type: Dual Ball Bearing
Frame Material: PBT Plastic (UL 94V-0)
Impeller Material: PBT Plastic (UL 94V-0)
Termination: 3-Wire (Lead Wire)
Wire Gauge: 26 AWG
Weight: 15 g
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +70 °C
Life Expectancy: 70,000 hours at 40 °C
Safety Approvals: UL, CUL, TUV, CE

AD4512MB-G76 Applications
Primary applications include integration into compact network switches, DVR security systems, and medical diagnostic equipment requiring localized thermal management. Deployed within industrial power supply units, small-form-factor PC enclosures, and telecommunication signal boosters for continuous heat dissipation.
