AFB0512HB-F00 Delta 12VDC 1.2W 50x50x15mm Axial Fan

Description

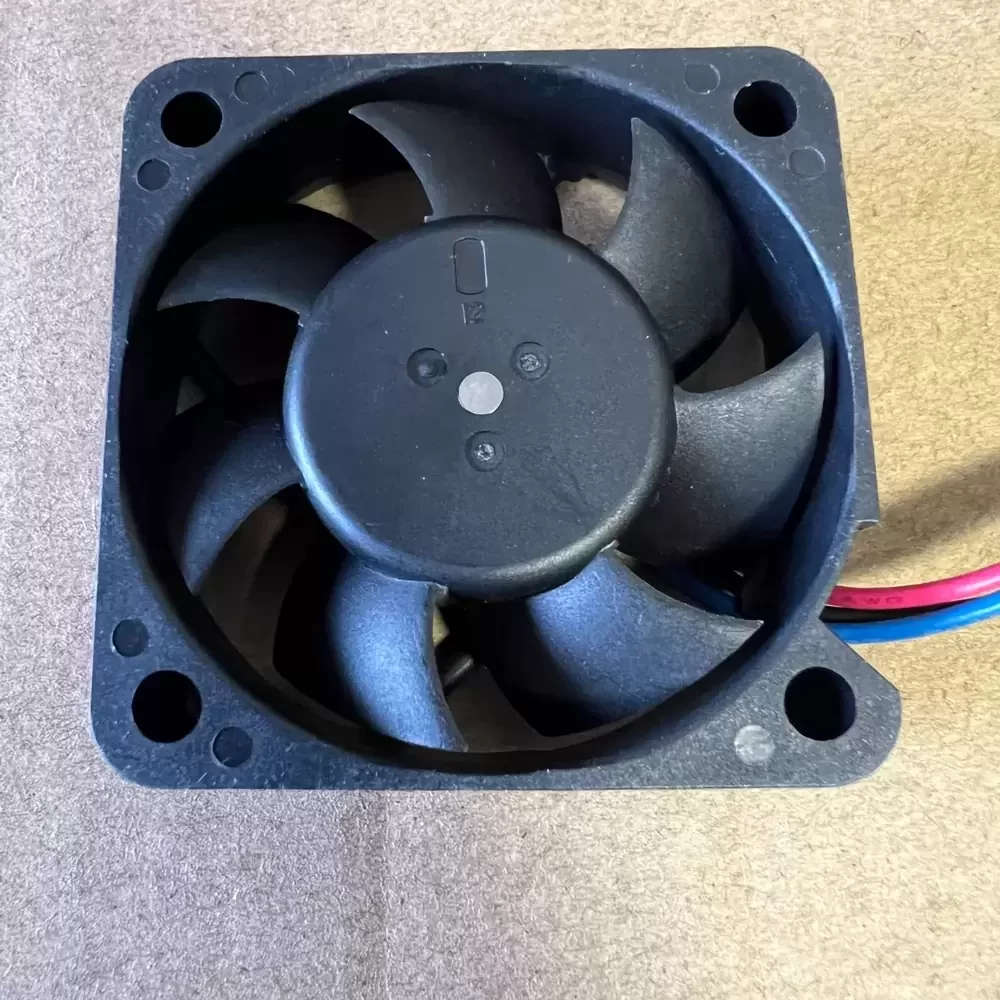

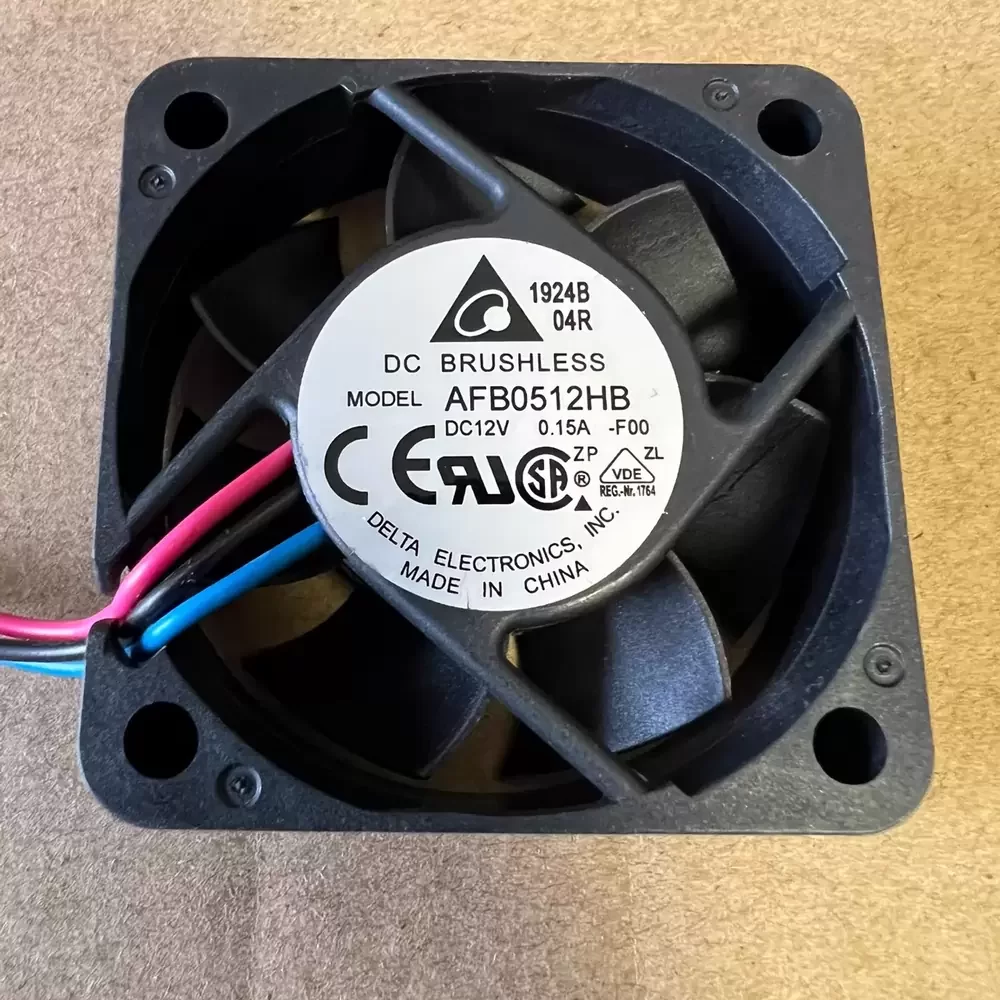

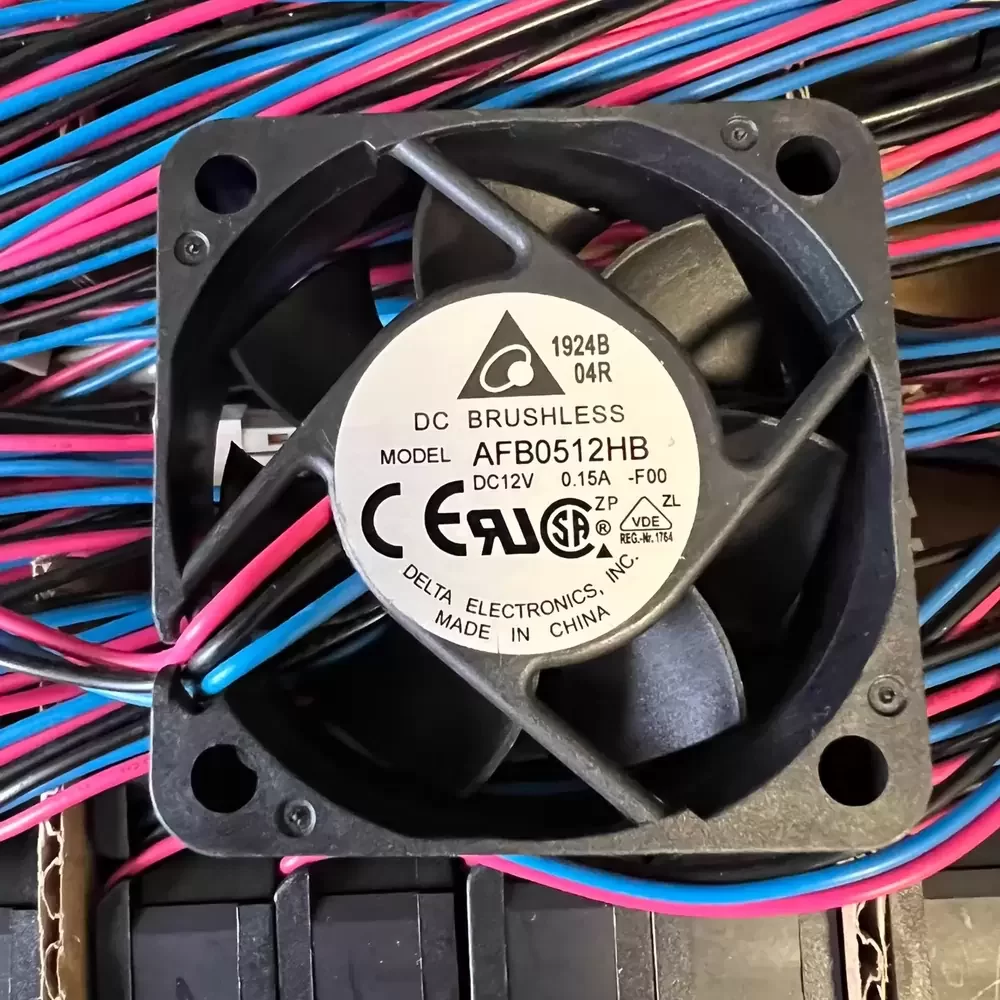

Delta AFB0512HB-F00 50 x 50 x 15 mm 12 VDC 1.2 W axial cooling fan provides 12.71 CFM airflow at 4800 RPM. The unit features a dual ball bearing system and a plastic impeller and frame rated to UL 94V-0 flammability standards. It utilizes a 3-wire interface including a Frequency Generator (FG) signal for speed monitoring. The internal brushless DC motor is protected by impedance and polarity protection mechanisms. Airflow is directed over the struts with clockwise rotation viewed from the impeller side.

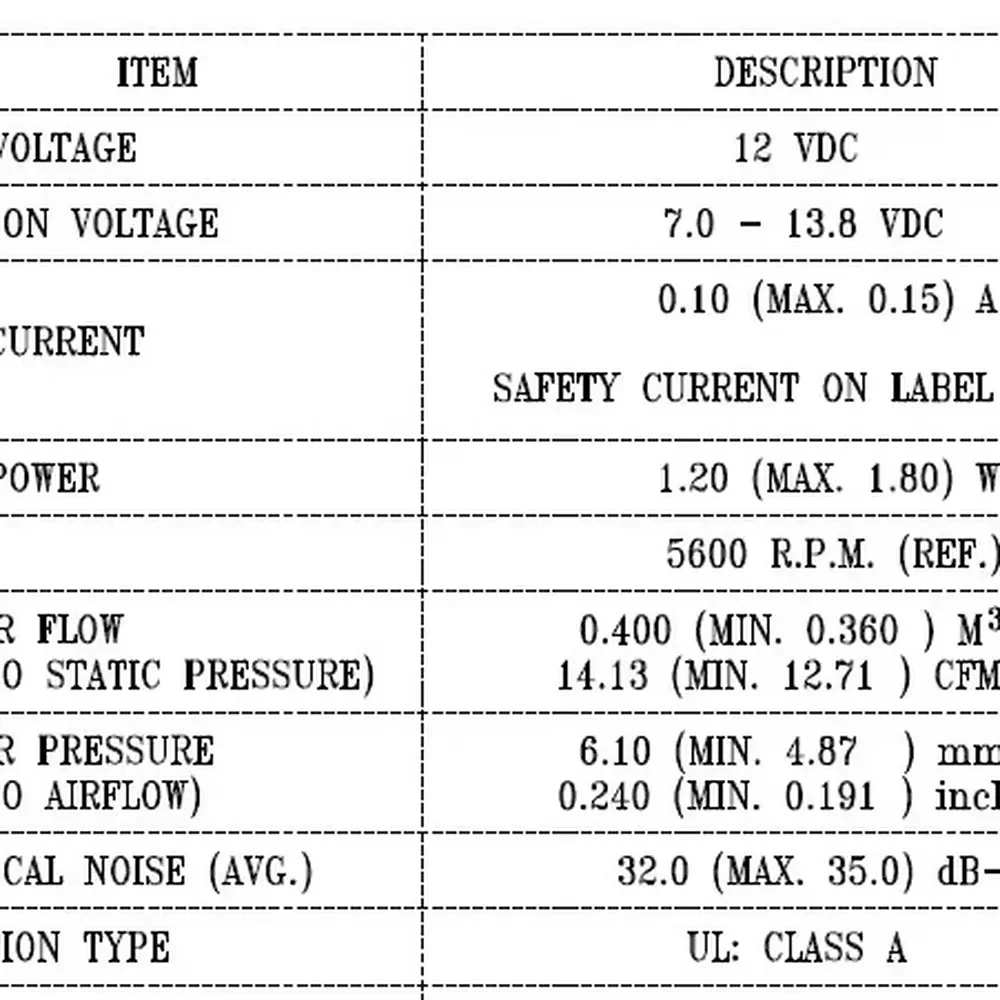

AFB0512HB-F00 Specifications
Model: AFB0512HB-F00
Brand: Delta Electronics
Category: DC Axial Fan
Dimensions: 50 x 50 x 15 mm
Rated Voltage: 12 VDC
Operating Voltage Range: 7.0 to 13.8 VDC
Input Current: 0.10 A
Input Power: 1.20 W
Rated Speed: 4800 RPM
Maximum Air Flow: 0.360 m³/min (12.71 CFM)
Maximum Air Pressure: 4.10 mmH2O (0.161 inH2O)
Acoustic Noise: 32.0 dB-A
Bearing Type: Dual Ball Bearing

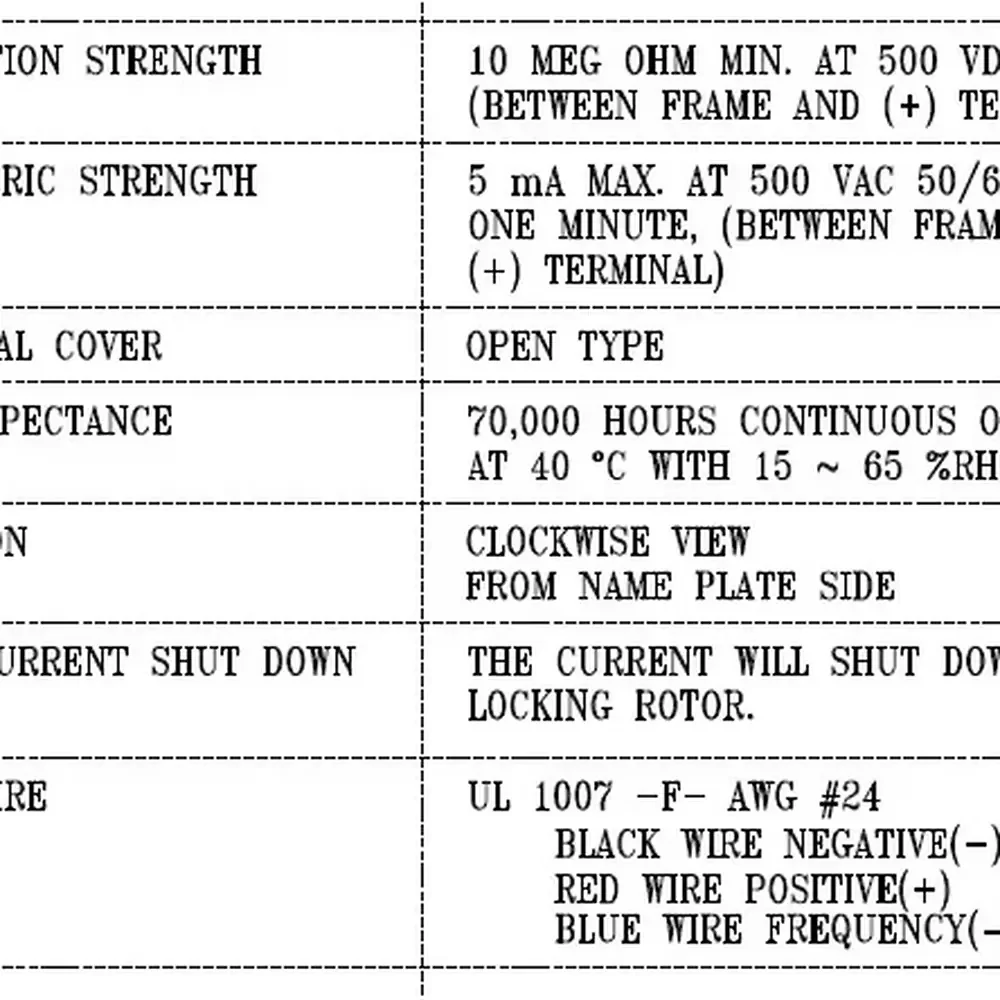

Lead Wire: UL 1007 AWG #24 (Red/Black/Blue)
Function: FG (Frequency Generator) Tachometer Output
Material Frame: Plastic (UL 94V-0)
Material Impeller: Plastic (UL 94V-0)
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +75 °C
Weight: 38 g
Protection: Polarity Protection, Impedance Protection
Certifications: UL, CSA, VDE, CE

AFB0512HB-F00 Applications
Primary applications include integration into network switches, telecommunications power supplies, and compact server rack enclosures. Deployed within medical diagnostic equipment, industrial automation controllers, and high-density LED driver thermal management systems.
