Description

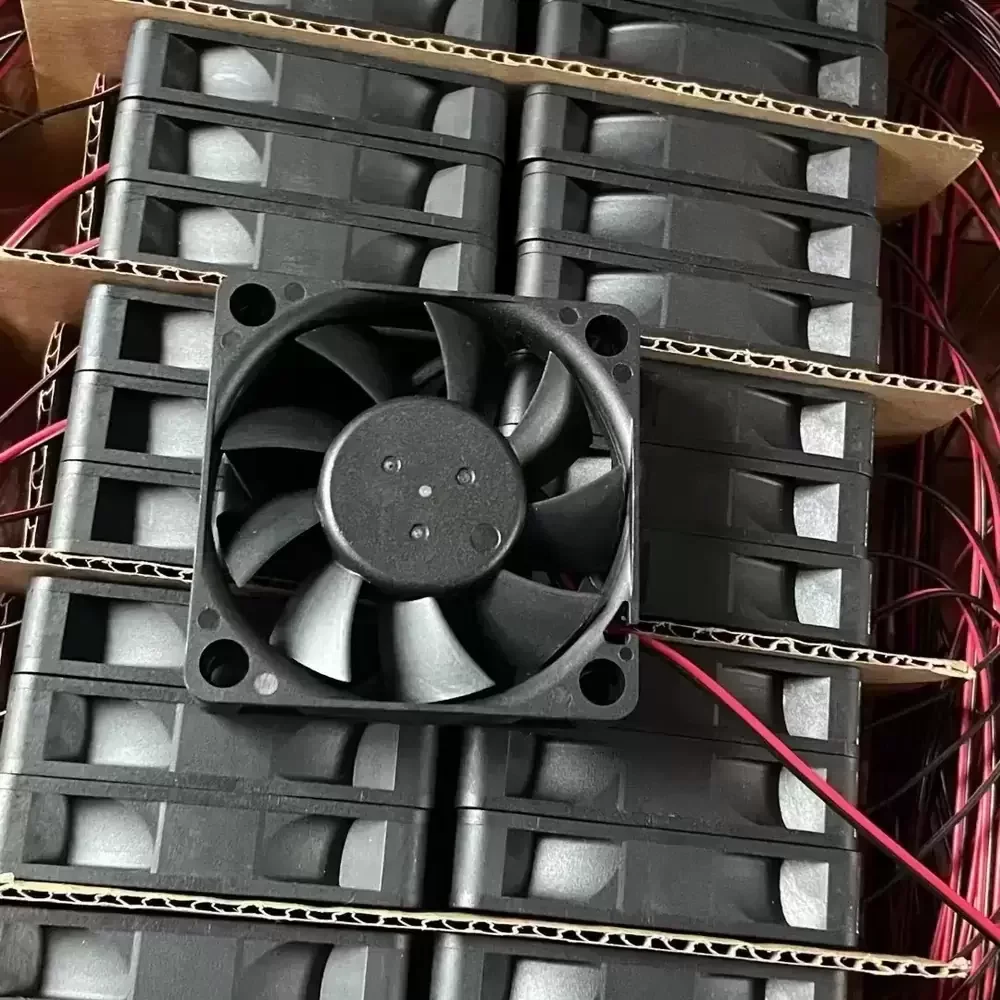

The Delta AFB0605LC is a precision-engineered DC Axial Fan designed for applications requiring reliable thermal management within a compact footprint. Utilizing advanced DC motor technology and a durable 2 Ball Bearing system, this unit ensures minimal friction and extended operational lifespan compared to sleeve bearing alternatives. The impeller features an optimized aerodynamic profile to maximize airflow efficiency while maintaining a low acoustic signature. Its robust thermoplastic housing provides structural rigidity, making it suitable for continuous operation in demanding industrial environments where thermal impedance must be minimized to protect sensitive electronic components.
Model Number: AFB0605LC
Brand: Delta Electronics
Product Type: DC Axial Fan
Rated Voltage: 5V DC
Voltage Range: 4.5 – 5.5 VDC
Rated Current: 0.18 A
Input Power: 0.90 W
Rated Speed: 3200 RPM
Bearing Type: 2 Ball Bearing
Max. Air Flow: 13.42 CFM (22.80 m³/h / 0.38 m³/min)
Max. Static Pressure: 2.65 mmH₂O (26.0 Pa / 0.10 inH₂O)
Dimensions: 60x60x15mm
Weight: 44.0 g
Noise Level: 25.0 dB-A
Life Expectancy: 70,000 Hours at 40°C
Housing Material: Plastic (UL 94V-0)
Impeller Material: Plastic (UL 94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +75°C
Termination: Lead Wires (UL 1007 AWG #24)
Ingress Protection: IP Rating Optional
Safety Certifications: UL, cUL, TUV, CE
Protection: Locked Rotor Protection, Polarity Protection
This cooling solution is widely utilized in compact electronic assemblies, including network switches, small form-factor power supplies, and embedded industrial controllers. The AFB0605LC excels in scenarios where space is constrained but consistent airflow is critical for heat dissipation. Additionally, the AFB0605LC is frequently integrated into medical instrumentation and telecommunications equipment, ensuring component stability by effectively venting waste heat in 24/7 operational cycles.
