AFB0612VHD-V86 Delta 12VDC 2.16W 60x60x20mm PWM Fan

Description

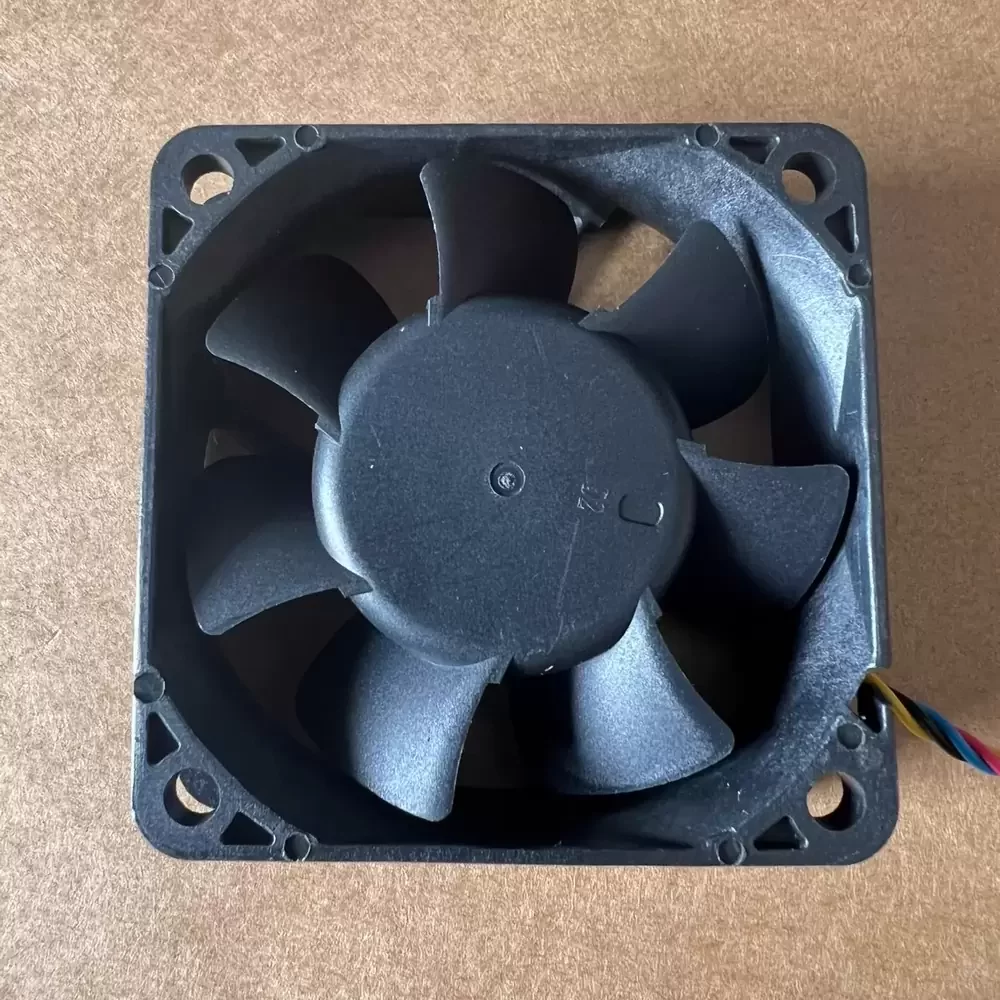

Delta AFB0612VHD-V86 is a 60 x 60 x 20 mm axial fan operating at 12 VDC with a 2.16 W power rating and 4800 RPM rotational speed. The unit features a dual ball bearing system and a 4-wire interface supporting PWM speed control. The frame and impeller are constructed from UL 94V-0 rated thermoplastic. It delivers 19.78 CFM airflow and 7.00 mmH2O static pressure while maintaining a noise level of 33.0 dBA.

AFB0612VHD-V86 Specifications
Model: AFB0612VHD-V86
Brand: Delta Electronics
Category: DC Axial Fan
Dimensions: 60 x 60 x 20 mm
Rated Voltage: 12 VDC
Operating Voltage Range: 7.0 to 13.8 VDC
Rated Current: 0.18 A
Maximum Safety Current: 0.27 A
Rated Power: 2.16 W
Rated Speed: 4800 RPM
Maximum Airflow: 19.78 CFM (0.560 m³/min)
Maximum Static Pressure: 7.00 mmH2O (0.275 inH2O)
Noise Level: 33.0 dBA
Bearing Type: Dual Ball Bearing
Interface: 4-wire (PWM Control)
Material: Plastic (UL 94V-0)
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +75 °C
Weight: 62 g

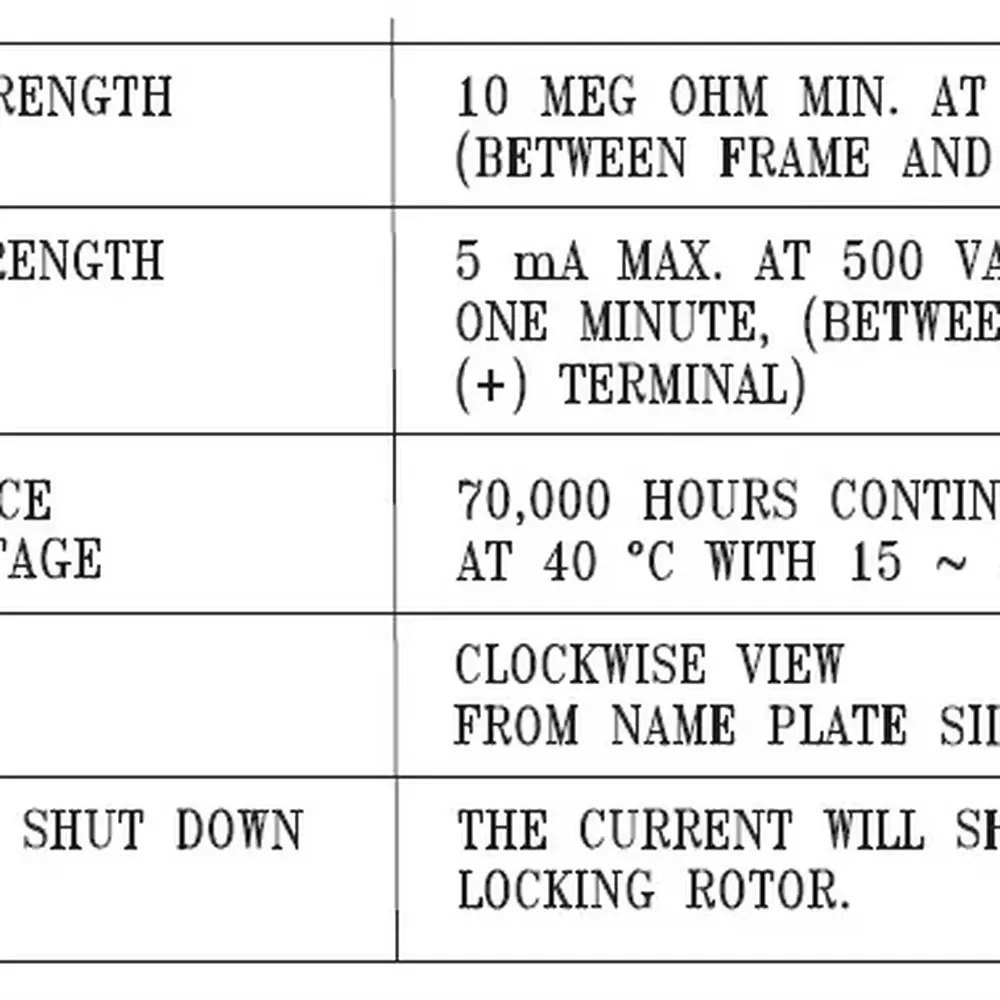

Life Expectancy: 70,000 hours at 40 °C

AFB0612VHD-V86 Applications
Primary applications include integration into server rack cooling modules, telecommunications switching equipment, and industrial power supply thermal management systems. Deployed within medical diagnostic imaging hardware and high-density network storage arrays for precise component temperature regulation.
