Description

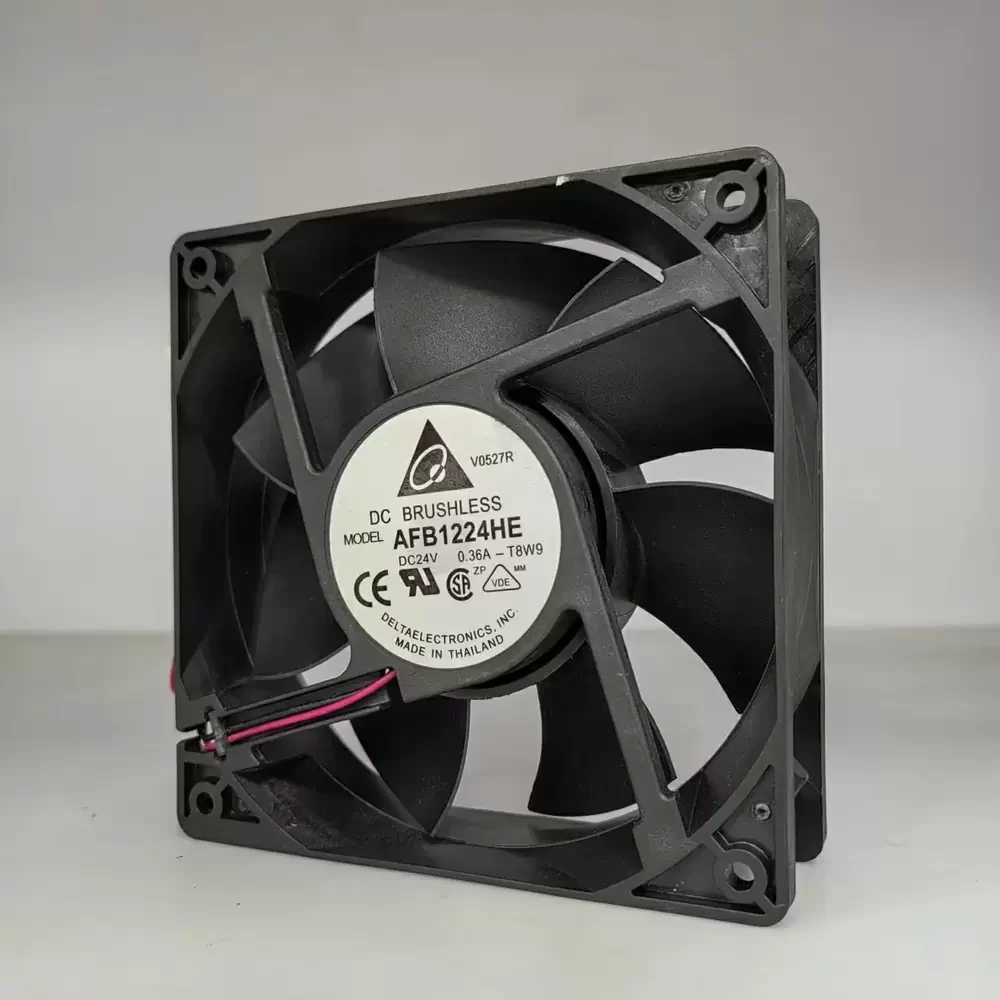

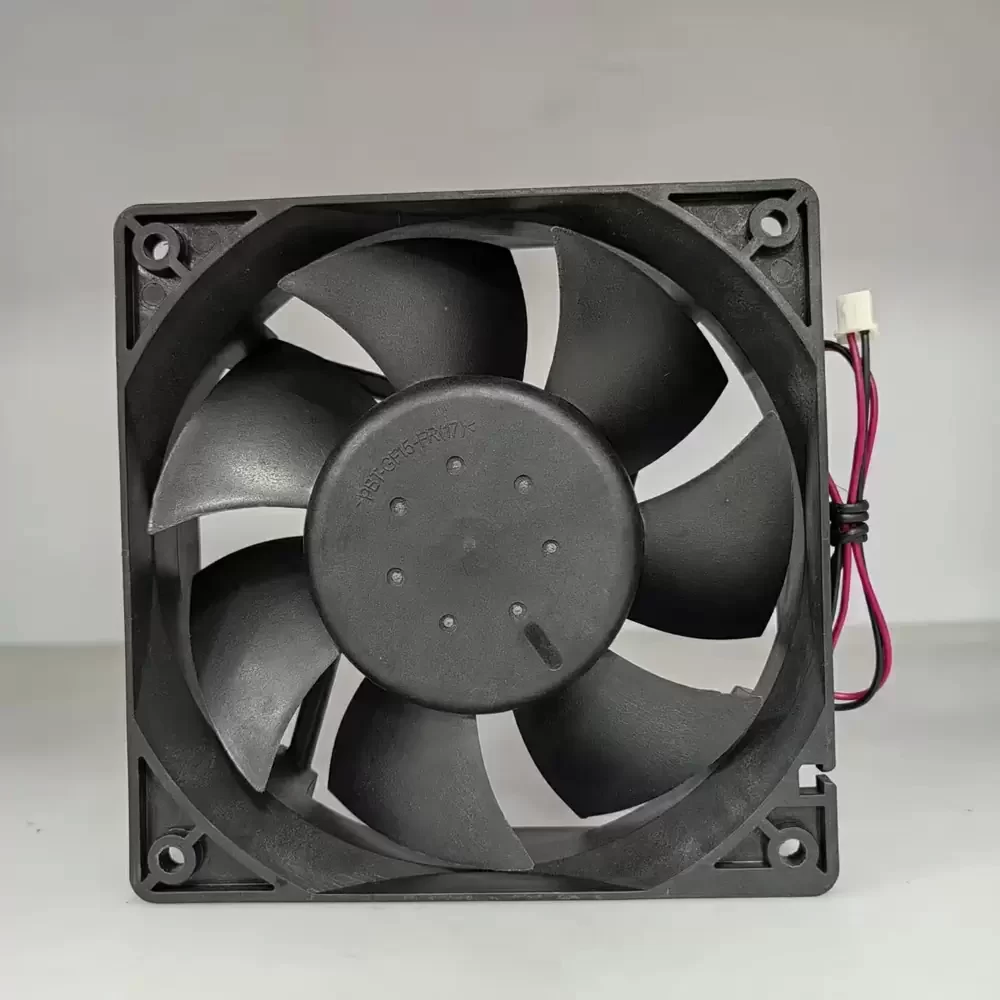

The Delta AFB1224HE-T8W9 is a robust Axial Fan engineered for demanding industrial thermal management. Utilizing an advanced DC motor drive and a precision Dual Ball Bearing architecture, this unit minimizes thermal impedance while ensuring exceptional structural rigidity and longevity. The aerodynamic impeller is balanced for high-speed operation, delivering consistent airflow performance essential for maintaining optimal operating temperatures in critical electronic systems.
Model Number: AFB1224HE-T8W9
Brand: Delta
Product Type: Axial Fan
Rated Voltage: 24VDC
Voltage Range: 14.0 – 27.6 VDC
Rated Current: 0.36 A
Power: 8.64 W
Rated Speed: 2542 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 105.9 CFM (180.0 m³/h / 3.00 m³/min)
Max. Static Pressure: 9.00 mmH₂O (88.26 Pa / 0.35 inH₂O)
Dimensions: 120 x 120 x 38 mm
Weight: 256 g
Life Expectancy: 70,000 Hours @ 40°C
Noise Level: 43.0 dBA
Housing Material: PBT Plastic (UL94V-0)
Impeller Material: PBT Plastic (UL94V-0)

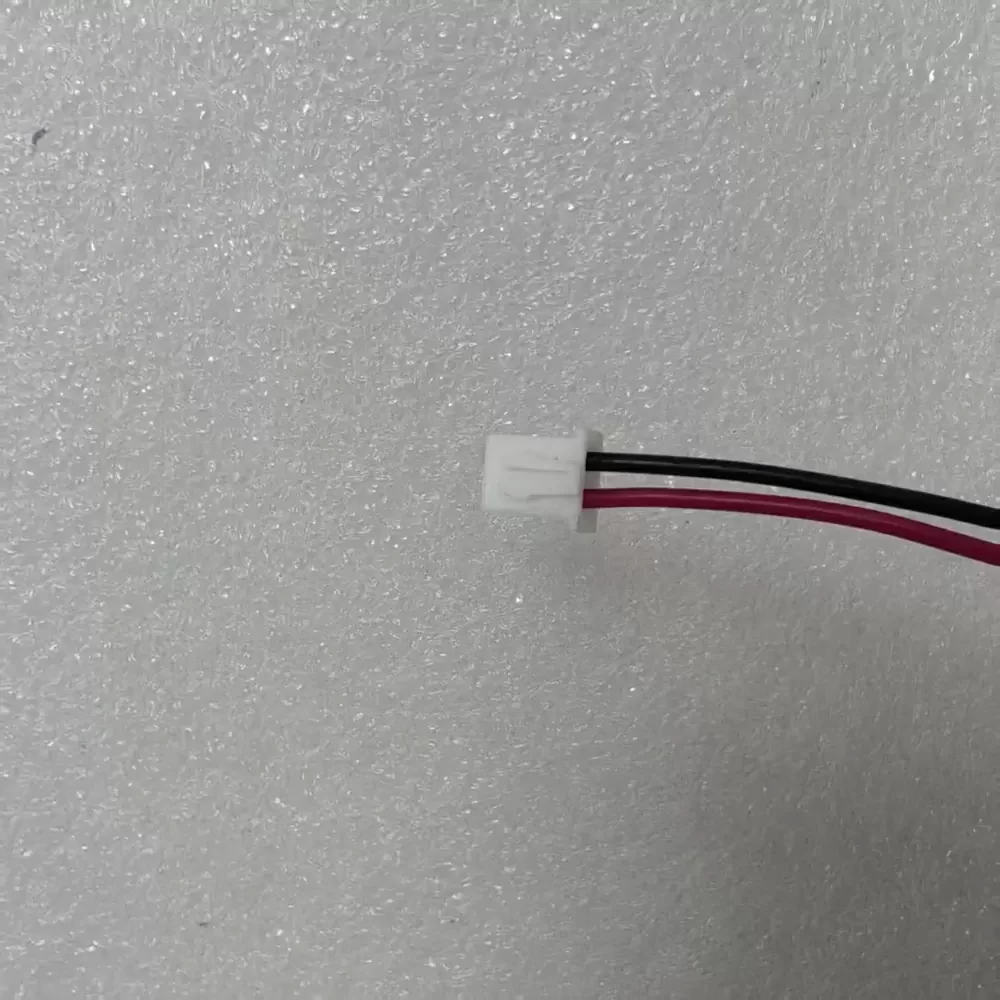

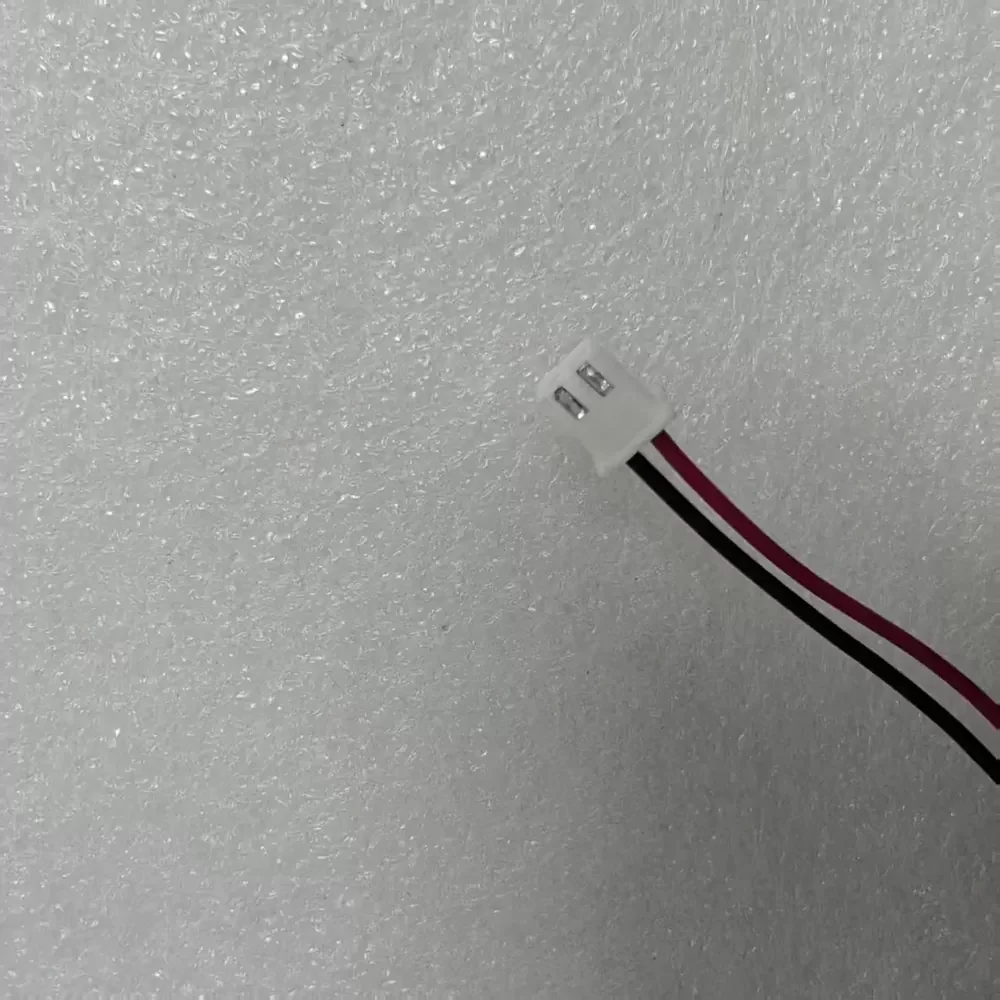

Termination: 2-Wire Lead (290 mm)
Operating Temperature: -10°C to +70°C
Safety Certifications: UL, CUL, TUV, CE
The AFB1224HE-T8W9 is engineered for deployment in mission-critical hardware such as enterprise Server Racks and telecommunications infrastructure where continuous airflow is mandatory. The high static pressure capabilities of the AFB1224HE-T8W9 make it particularly effective in restrictive environments like CNC control cabinets and medical power supply units, ensuring heat is efficiently evacuated from dense component layouts.
