Description

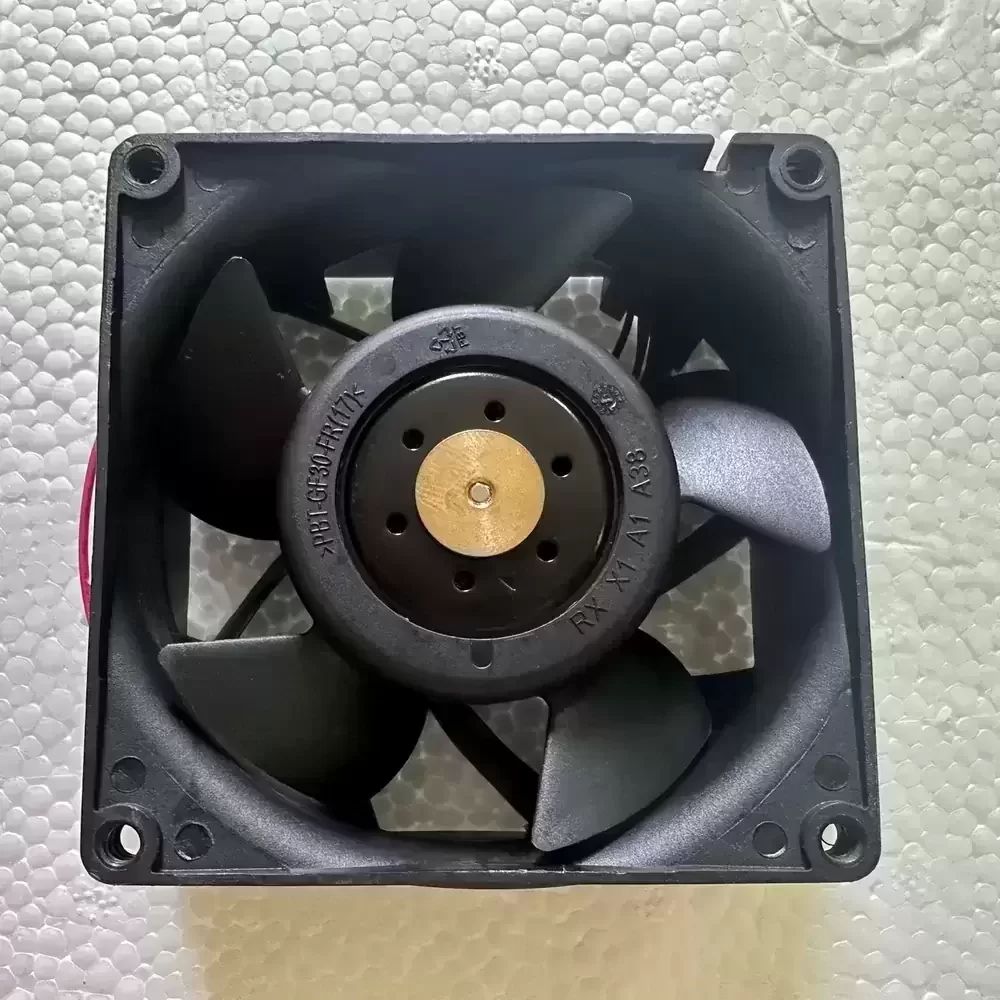

The AVC DBPB0938B8U-Y005 is a high-performance DC axial fan engineered for the rigorous thermal demands of enterprise server architecture and industrial automation systems. Featuring a precision-wound 48VDC motor and a durable ball bearing system, this unit ensures exceptional rotational stability and reduced thermal impedance during continuous operation. The aerodynamic impeller design is optimized to deliver high volumetric airflow while maintaining significant static pressure, making it suitable for overcoming the resistance of dense component layouts. Built with structural rigidity in mind, the DBPB0938B8U-Y005 provides a reliable cooling solution with integrated PWM control for dynamic speed modulation based on thermal load.
Model Number: DBPB0938B8U-Y005
Brand: AVC (Asia Vital Components)
Product Type: DC Axial Fan
Rated Voltage: 48 VDC
Rated Current: 1.44 A
Dimensions: 90 x 90 x 38 mm
Bearing Type: Dual Ball Bearing
Speed Control: PWM (Pulse Width Modulation)
Termination: 4-Wire Lead
Connector: 4-Pin Server Connector
Housing Material: Thermoplastic PBT (UL94V-0)
Blade Material: Thermoplastic PBT (UL94V-0)
Mounting Orientation: Flange Mount
Ingress Protection: Standard Industrial
Application: Server/Telecom
The DBPB0938B8U-Y005 is specifically designed for integration into high-density server racks, telecommunications base stations, and industrial power supply units where efficient heat evacuation is critical. Its high-pressure profile allows the DBPB0938B8U-Y005 to effectively push air through restrictive heatsinks and tightly packed chassis, ensuring component longevity in mission-critical infrastructure.
Updated:
Additional information
| Shipping Weight | 1 kg |
|---|
