Description

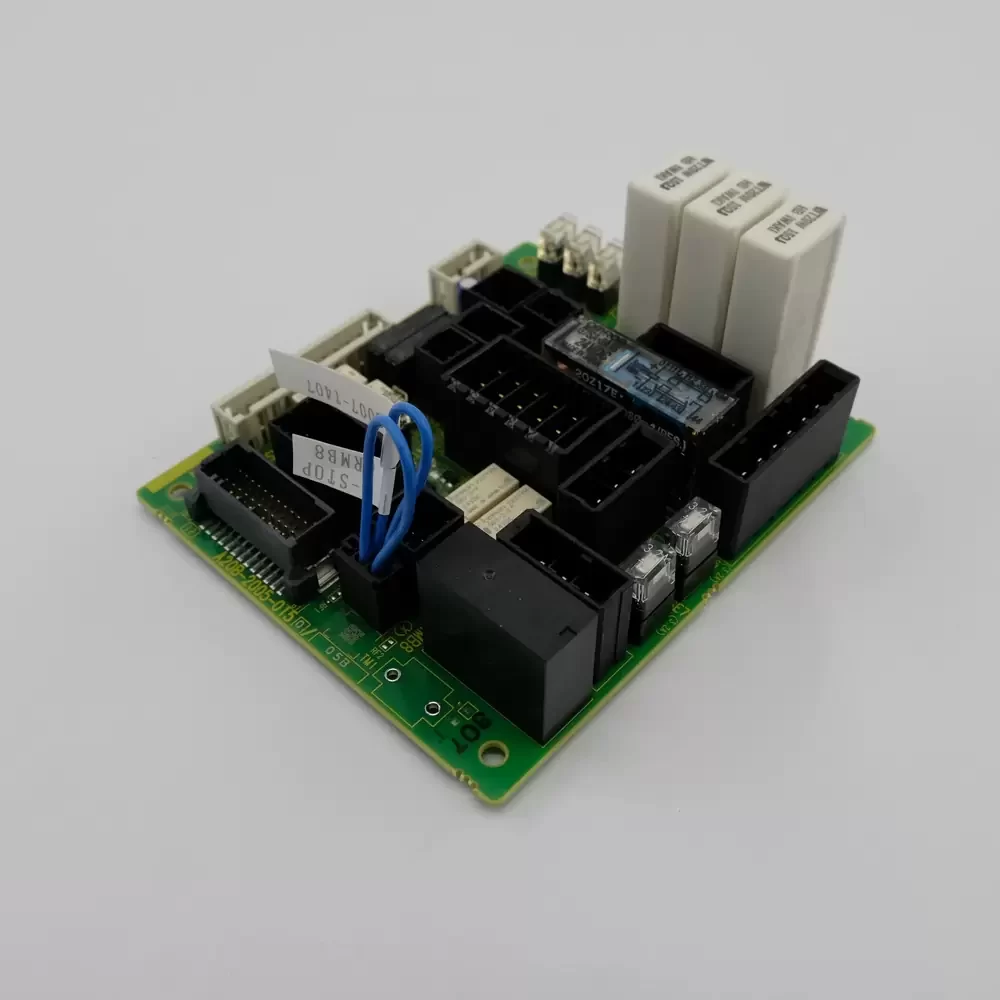

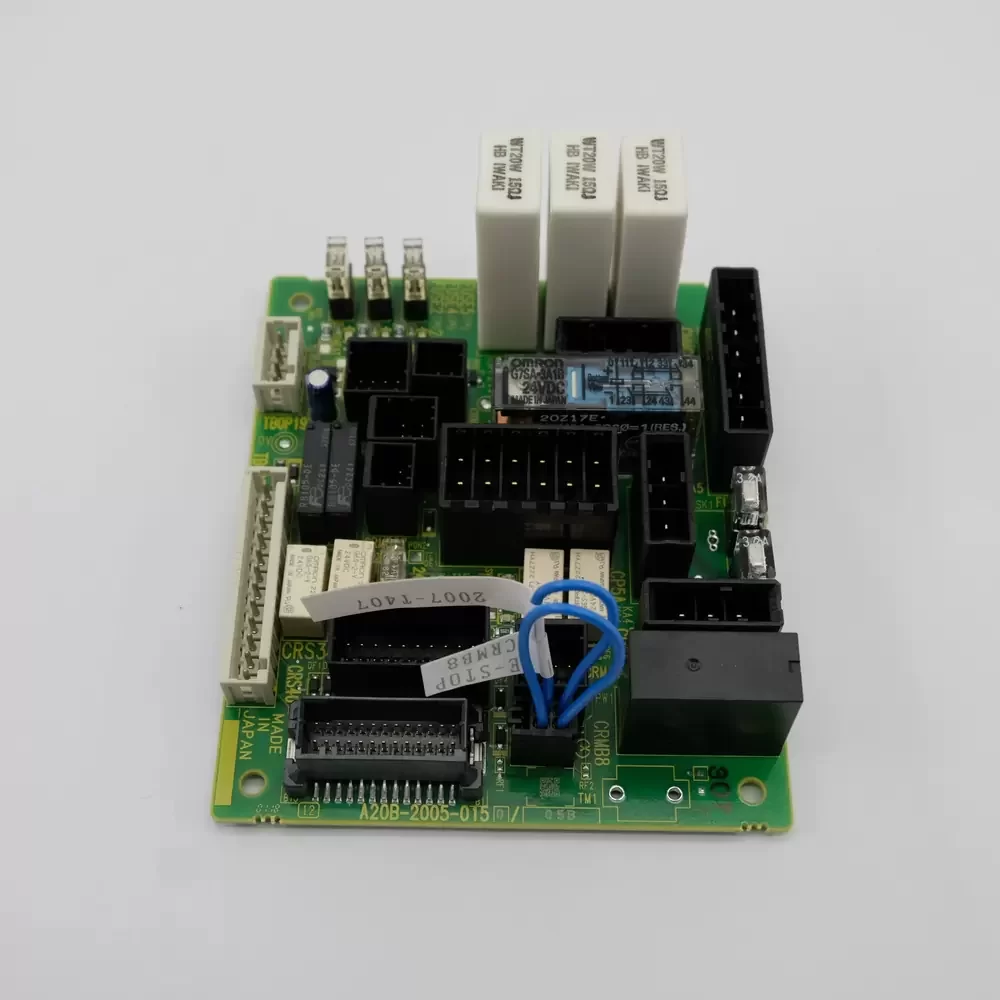

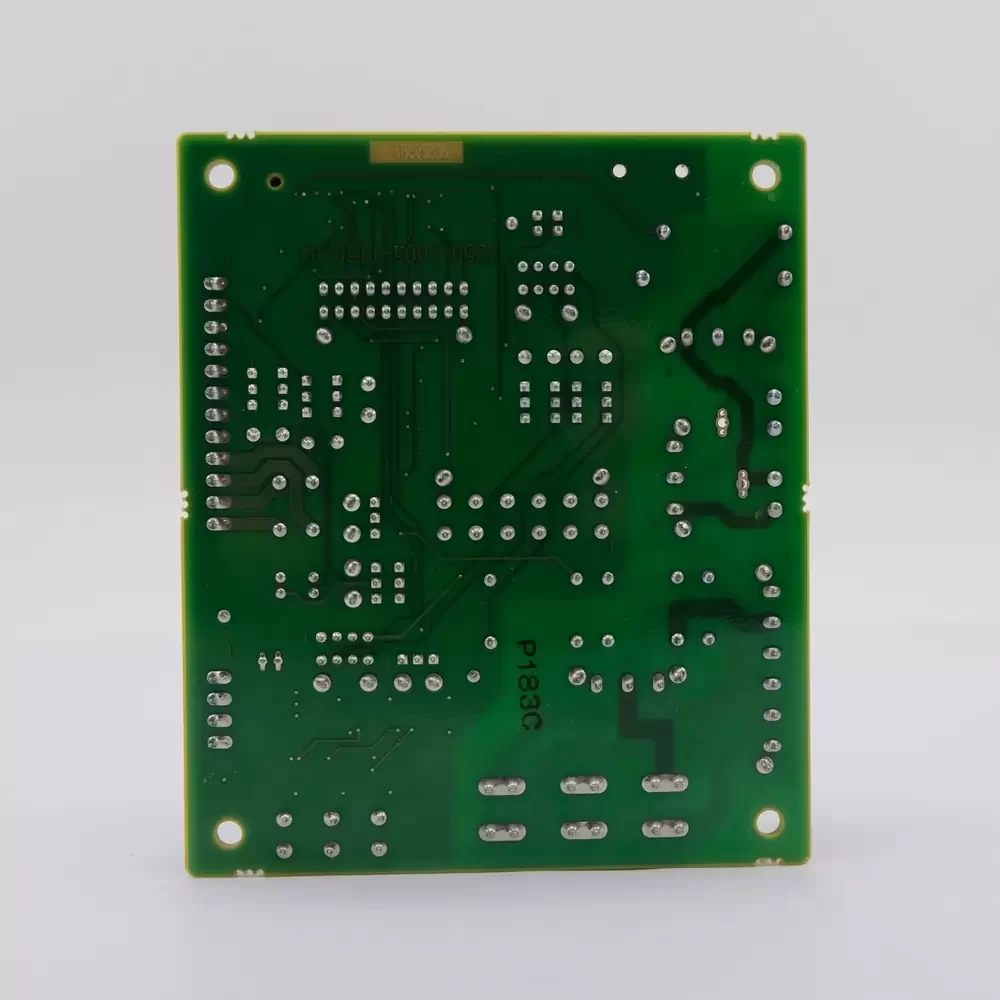

Fanuc A20B-2005-0150 150 mm x 150 mm 24 VDC 5 VDC Emergency Stop Board is a safety-critical control component featuring a high-density PCB architecture with integrated brake control mechanisms and dual 40-pin CRMA interface connectors. The unit incorporates dedicated test points for monitoring 24 VDC, 5 VDC, and 33 VDC power rails, ensuring precise voltage regulation for logic processing. The board is constructed with 94V-0 fire-retardant materials and utilizes a flange-mount configuration for secure installation within compact controller housings. It provides hardware-level signal processing for emergency stop circuits and peripheral device communication.
A20B-2005-0150 Specifications
Model: A20B-2005-0150
Brand: Fanuc
Product Category: Emergency Stop Board
Logic Voltage: 5 VDC
Supply Voltage: 24 VDC
Auxiliary Voltage: 33 VDC
Interface Type: CRMA15 / CRMA16 (40-pin)
Material Flammability: UL 94V-0
Mounting Type: Flange Mount / Mini Slot
Weight: 0.23 kg
Operating Temperature: 0 to 55 °C
Storage Temperature: -20 to 75 °C
Humidity: 10 to 90 % RH
Safety Mechanism: Integrated Brake (BRK) Control
Compatibility: Fanuc R-30iB Mate / R-30iB Mate Plus
Test Points: P24V, P5V, P33V, GND
A20B-2005-0150 Applications
Primary applications include integration into Fanuc R-30iB Mate and R-30iB Mate Plus robot controllers to manage emergency stop sequences and safety-interlock signals. Deployed within automated assembly lines, robotic welding cells, and material handling systems requiring hardware-level brake control and peripheral device interface management.
