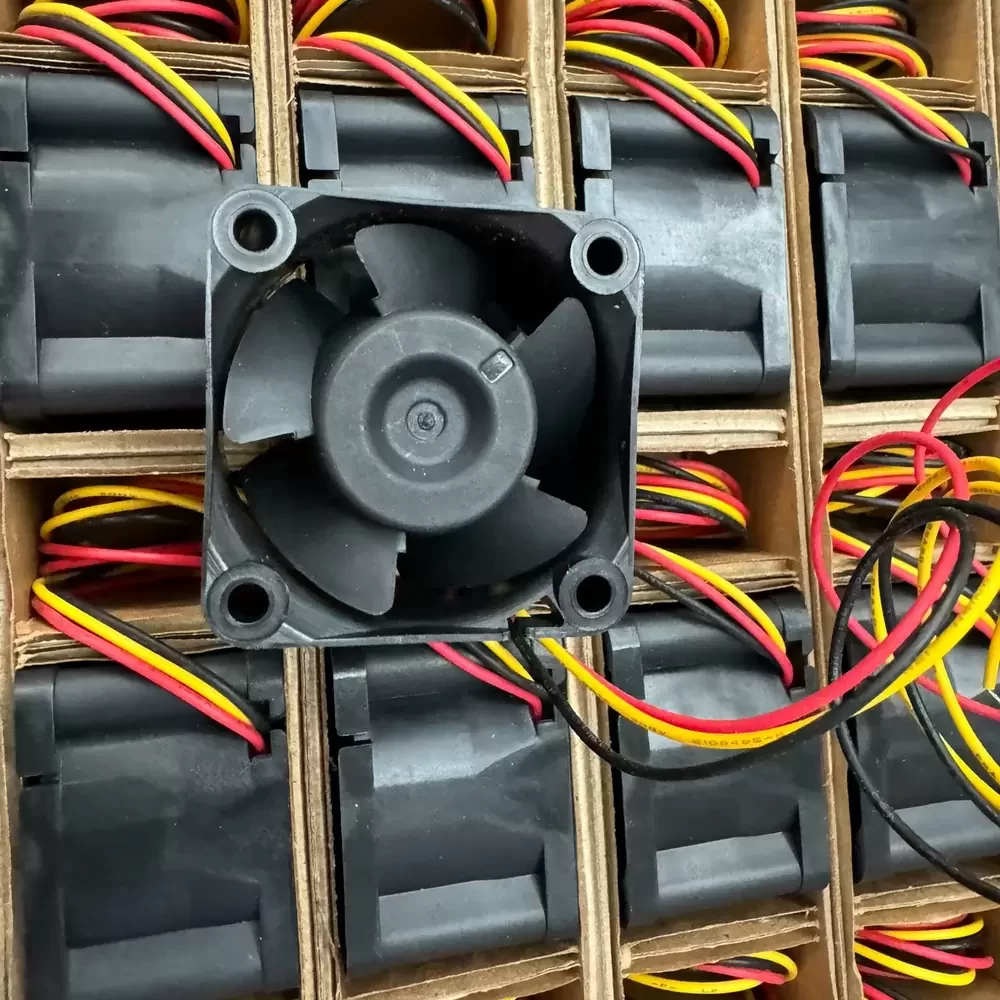

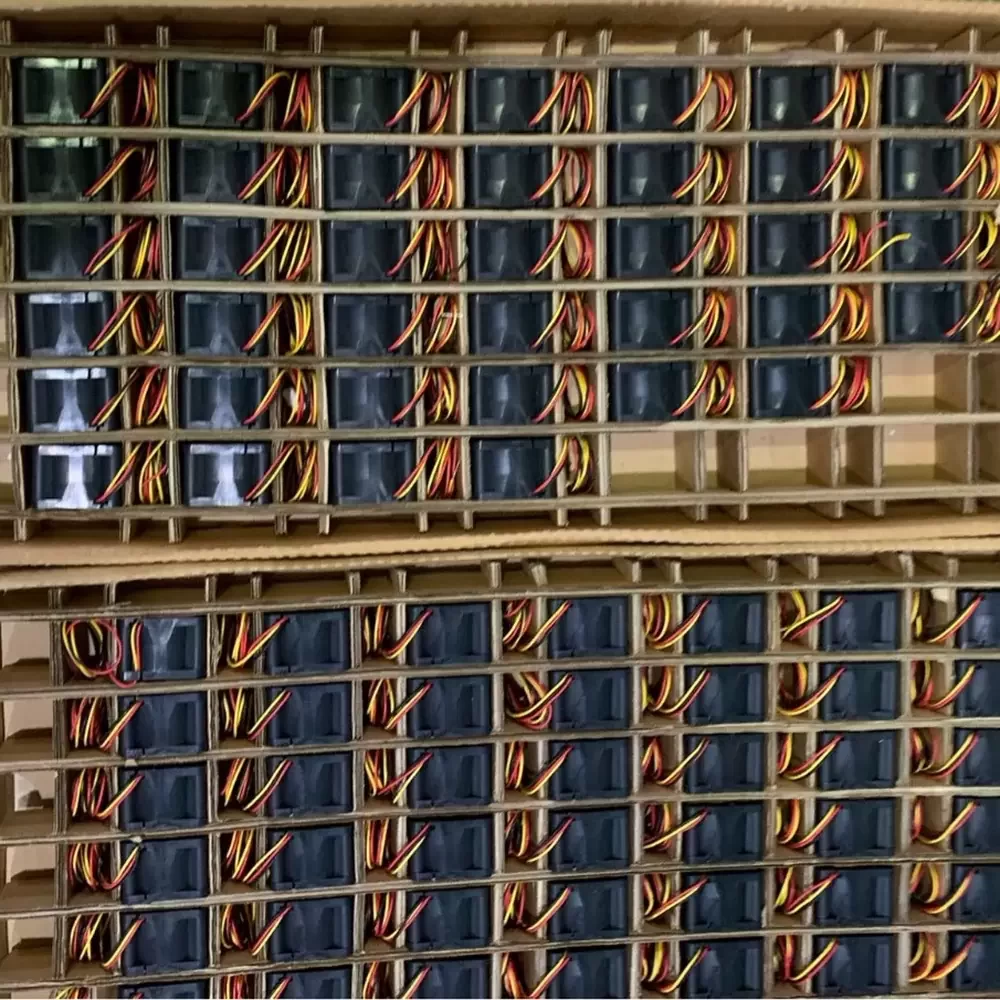

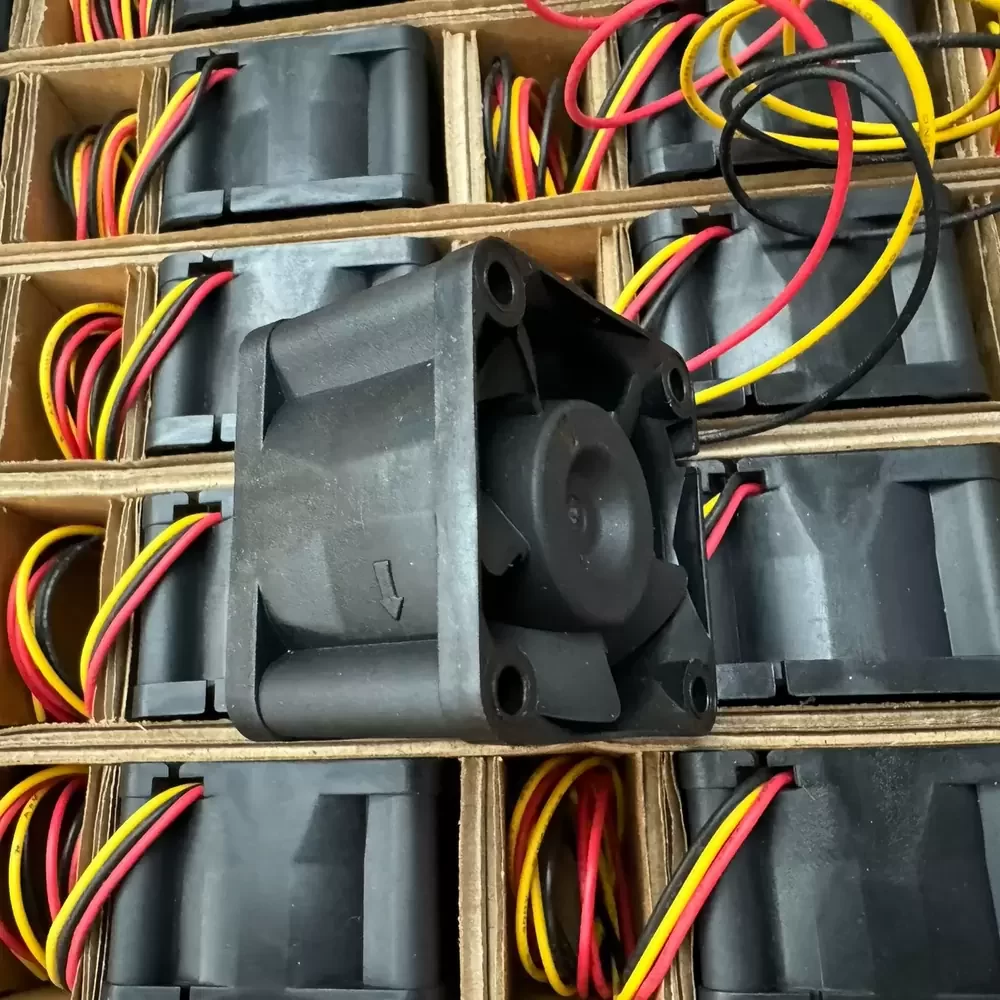

D04XL-12T2GA Nidec 12VDC 0.29A 40x40x28mm Axial Fan

Description

The Nidec D04XL-12T2GA is a Axial Fan engineered for demanding thermal management in compact electronic enclosures. Utilizing advanced DC brushless motor technology, this unit provides exceptional structural rigidity through its reinforced PBT housing. The dual ball bearing architecture ensures long-term reliability and low thermal impedance under continuous operation. Its aerodynamic impeller design is optimized for high static pressure, making it ideal for overcoming the resistance of dense heat sinks. The D04XL-12T2GA incorporates a three-wire configuration for precise speed monitoring, ensuring system stability in mission-critical environments where airflow consistency is paramount for component longevity.

Model Number: D04XL-12T2GA
Brand: Nidec
Product Type: Axial Fan
Rated Voltage: 12VDC
Voltage Range: 7.0 – 13.8 VDC
Rated Current: 0.29A
Power: 3.48W
Rated Speed: 9500 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 15.3 CFM (26.0 m³/h / 0.43 m³/min)
Max. Static Pressure: 14.5 mmH₂O (142.2 Pa / 0.57 inH₂O)
Dimensions: 40x40x28mm
Weight: 55g
Life Expectancy: 70,000 Hours at 40°C
Speed Control: Tachometer (FG Signal)
Ingress Protection: IP54
Insulation Class: Class A
Noise Level: 42.5 dB(A)
Housing Material: Plastic (UL94V-0)
Blade Material: Plastic (UL94V-0)
Termination: 3-Lead Wires
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +75°C
Mounting Orientation: Any
Protection Features: Locked Rotor Protection, Reverse Polarity Protection
Certifications: UL, TUV, CE, RoHS

The D04XL-12T2GA is specifically designed for high-density networking equipment including enterprise-grade switches, firewalls, and soft routers. Its compact 4028 form factor allows the D04XL-12T2GA to be integrated into 1U server chassis and telecommunications modules where space is limited but heat dissipation requirements are high. This fan is also suitable for industrial power supplies and medical diagnostic equipment requiring consistent cooling performance.
