Description

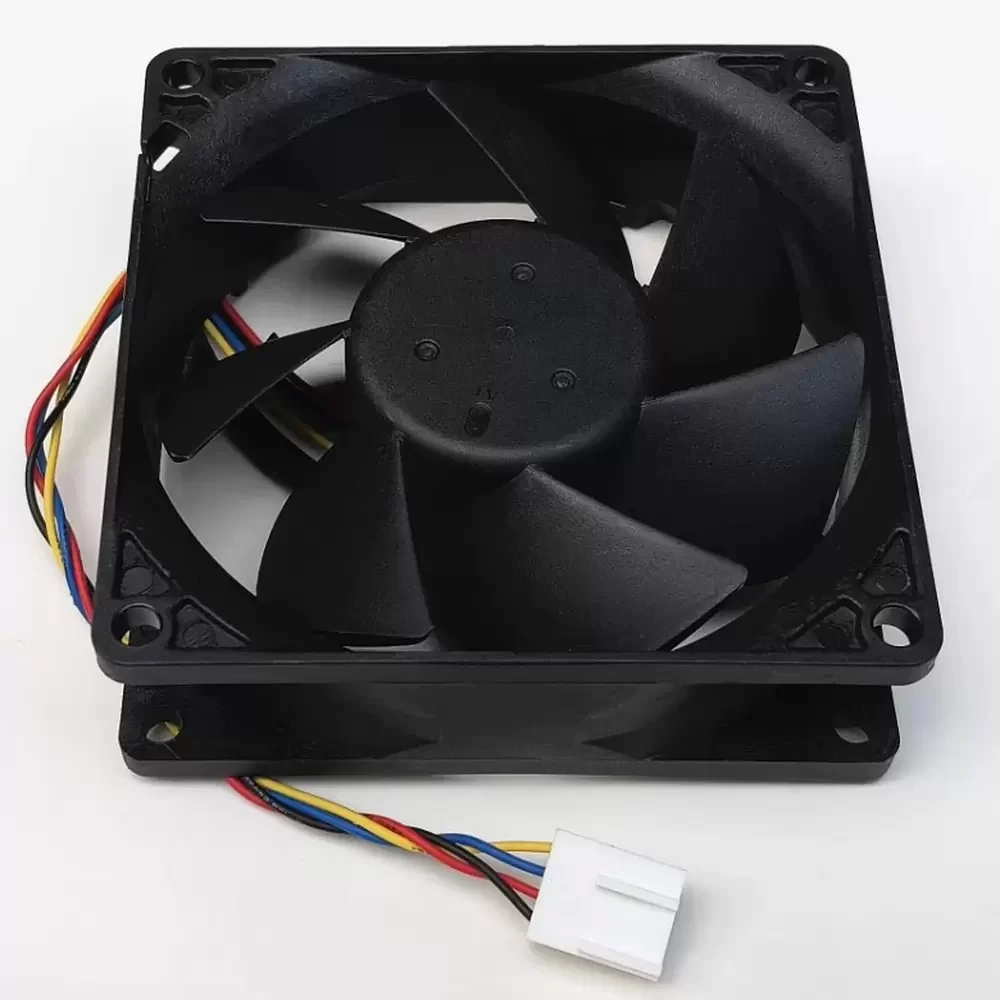

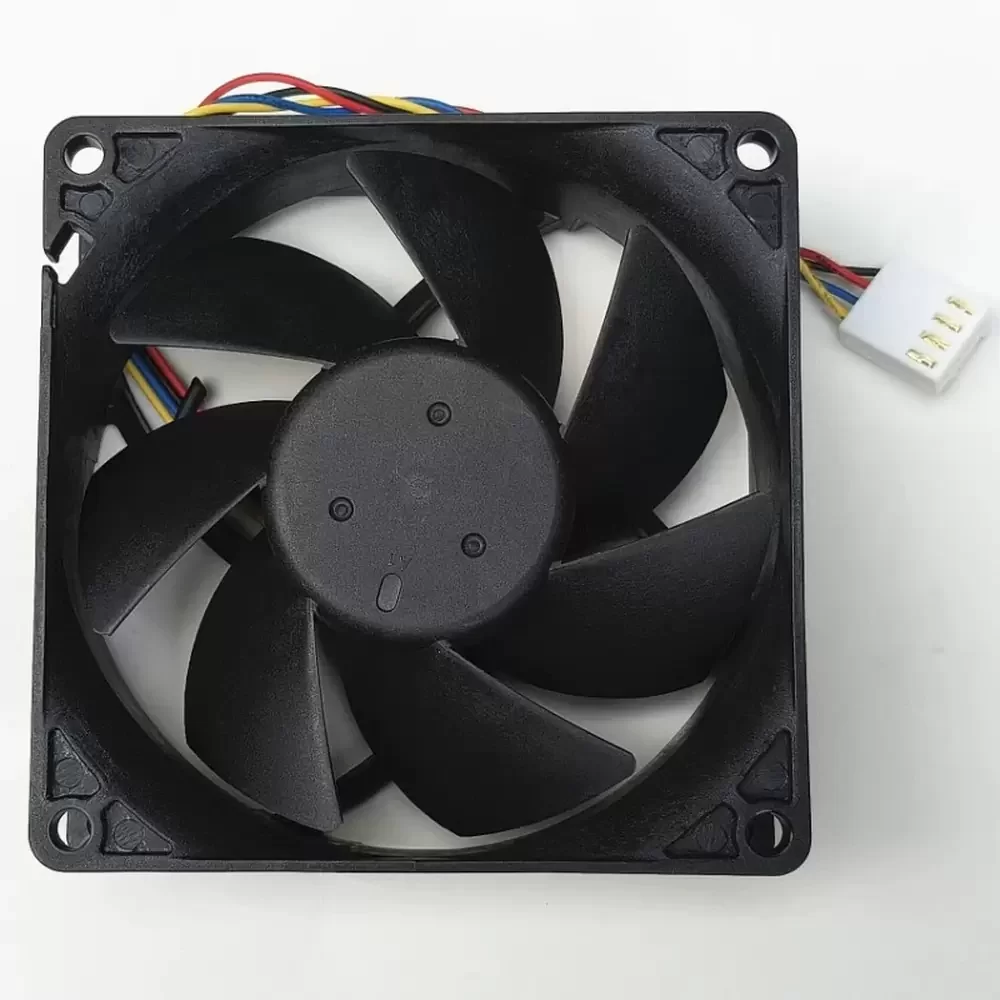

The Delta AUB0812M-FTV is a DC axial fan engineered for precision thermal management in noise-sensitive environments. Utilizing advanced motor technology and a sophisticated bearing architecture, this 80mm unit minimizes thermal impedance while maintaining structural rigidity under continuous operation. The aerodynamic blade design is optimized for efficient airflow delivery across a wide speed range. With its integrated PWM control, the AUB0812M-FTV offers dynamic cooling adjustments, ensuring optimal heat dissipation for critical electronic components. The inclusion of gold-plated terminals enhances electrical conductivity and long-term reliability in industrial and consumer applications.
Model Number: AUB0812M-FTV
Brand: Delta
Product Type: DC Axial Fan
Rated Voltage: 12VDC
Voltage Range: 7.0 – 13.8 VDC
Rated Current: 0.18A
Power: 2.16W
Rated Speed: 550 – 2600 RPM
Bearing Type: Superflo Bearing
Max. Air Flow: 32.50 CFM (55.21 m³/h / 0.92 m³/min)
Max. Static Pressure: 3.12 mmH2O (30.60 Pa / 0.12 inH2O)
Dimensions: 80x80x25mm
Weight: 80g
Life Expectancy: 60,000 Hours
Speed Control: PWM Control, Tachometer Output
Noise Level: 28.0 dB(A)
Housing Material: Plastic (UL94V-0)
Blade Material: Plastic (UL94V-0)
Termination: 4-Pin Connector (Gold-Plated Terminals)
Wire Length: 120mm
Operating Temperature: -10 to +60 Celsius
Protection: Locked Rotor Protection, Reverse Polarity Protection
The AUB0812M-FTV is ideally suited for integration into compact server chassis, desktop workstations, and medical diagnostic equipment where acoustic performance is paramount. Due to its precise PWM speed regulation, the AUB0812M-FTV provides reliable cooling for CPU heatsinks and power supply units. Its robust construction makes it a preferred choice for telecommunications hardware and industrial control panels requiring consistent airflow. The gold-plated terminals ensure the AUB0812M-FTV maintains signal integrity in high-vibration environments.
