Description

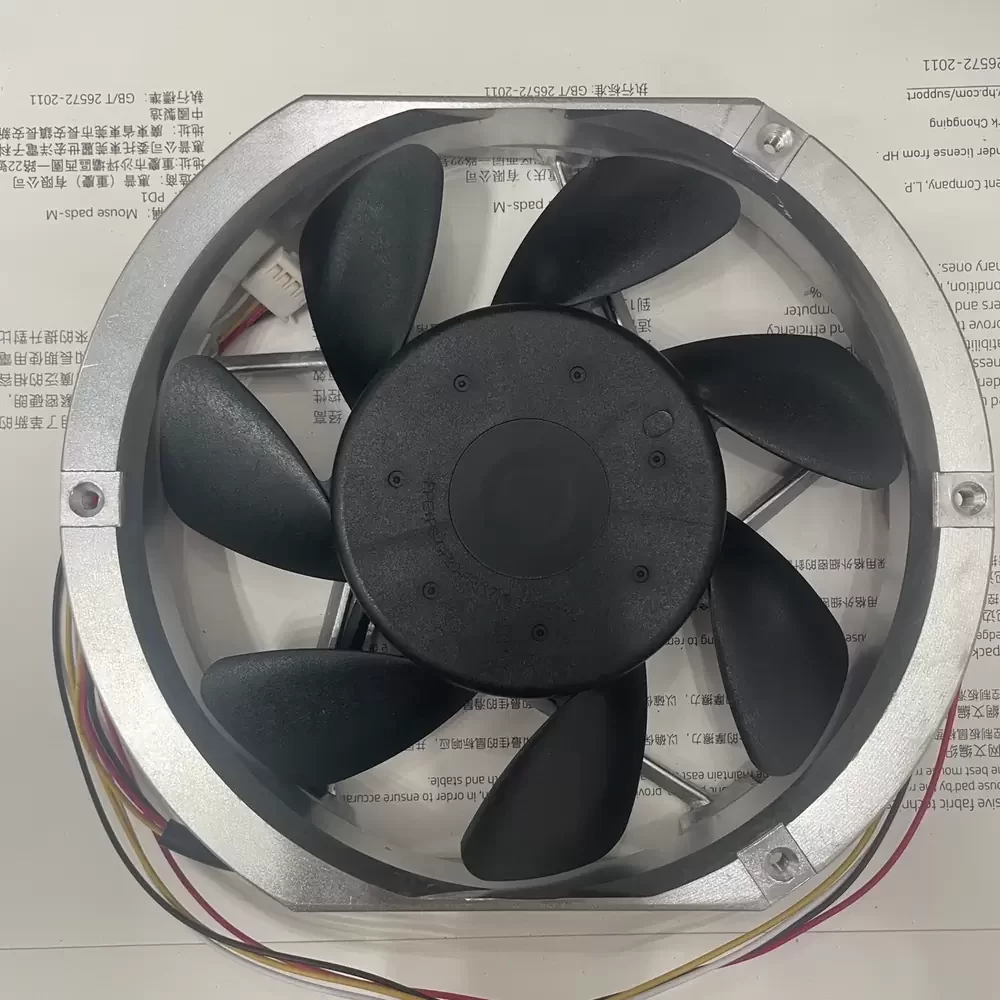

The Delta AFB1548EH-CA02 is a robust DC axial fan engineered for demanding industrial thermal management applications. Utilizing advanced DC motor technology and a precision dual ball bearing architecture, this unit ensures exceptional structural rigidity and longevity under continuous high-load operation. The 172x150x51mm aluminum die-cast housing provides superior thermal impedance characteristics and durability against environmental stressors. Designed with optimized impeller aerodynamics, the AFB1548EH-CA02 delivers high static pressure and airflow capabilities, making it ideal for high-density electronic enclosures. Its 4-wire configuration supports precise speed control, enhancing energy efficiency while maintaining critical system stability in harsh operational environments.
Model Number: AFB1548EH-CA02
Brand: Delta Electronics
Product Type: DC Axial Fan
Rated Voltage: 48 VDC
Voltage Range: 28.0 – 56.0 VDC
Rated Current: 2.00 A
Power: 96.00 W
Rated Speed: 4800 RPM
Max. Air Flow: 325.5 CFM (553.0 m³/h / 9.21 m³/min)
Max. Static Pressure: 28.5 mmH₂O (279.5 Pa / 1.12 inH₂O)
Dimensions: 172 x 150 x 51 mm
Frame Style: Oval (Side Cut)
Weight: 800 g
Bearing Type: Dual Ball Bearing
Housing Material: Aluminum Die-Cast
Impeller Material: Plastic UL94V-0
Termination: 4-Wire (Lead Wires)
Speed Control: PWM / Tachometer Output
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +75 °C
Life Expectancy: 70,000 Hours @ 40°C
Origin: Thailand
The AFB1548EH-CA02 is specifically calibrated for high-impedance applications requiring substantial airflow and pressure to overcome system resistance. Common deployments include industrial control chassis, telecommunications server racks, and high-power supply units where thermal dissipation is critical. The AFB1548EH-CA02 excels in CNC machinery and medical instrumentation cooling, ensuring reliable performance in 24/7 operational cycles.
