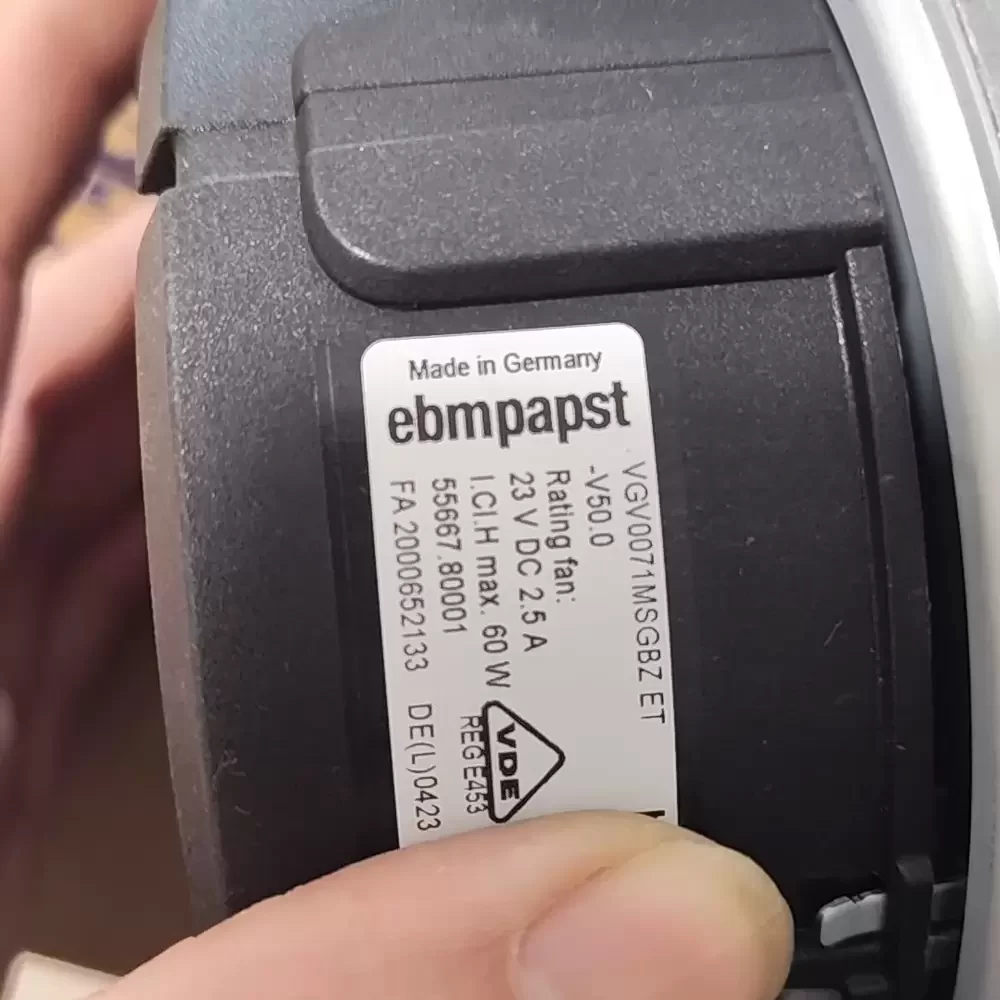

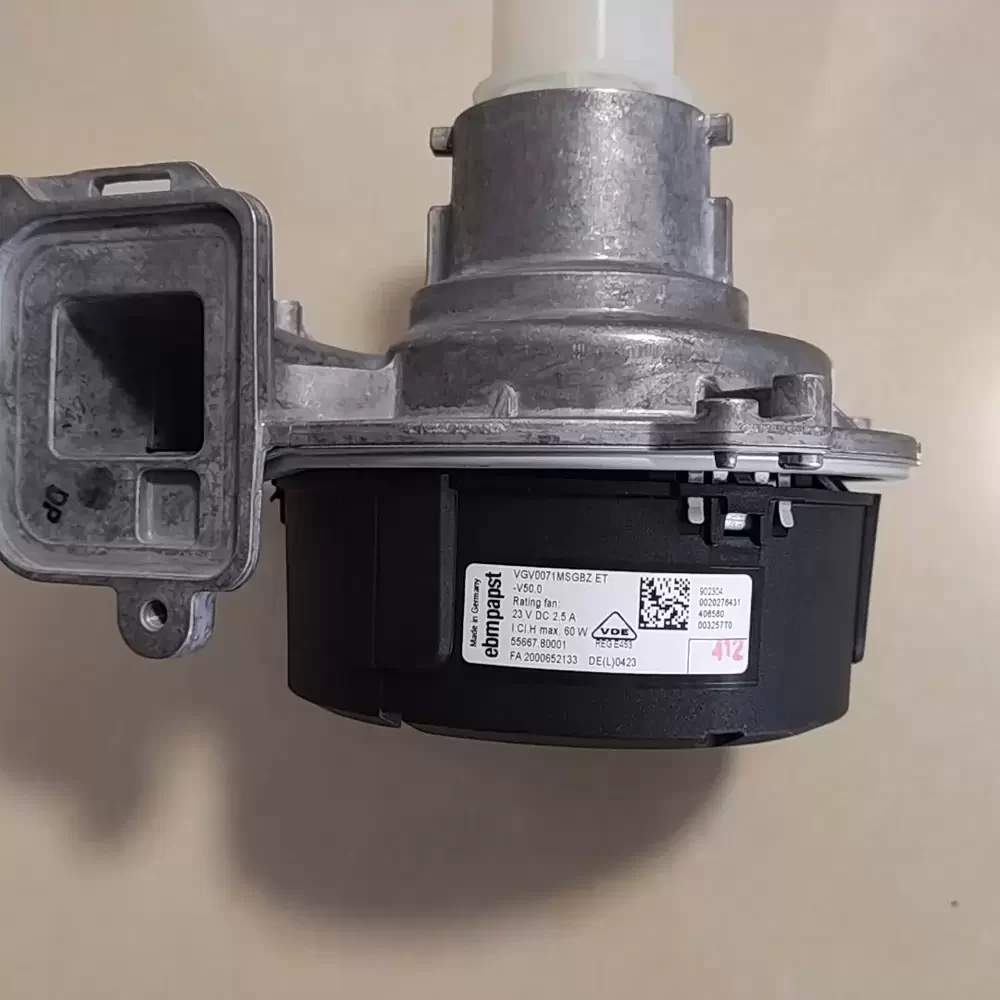

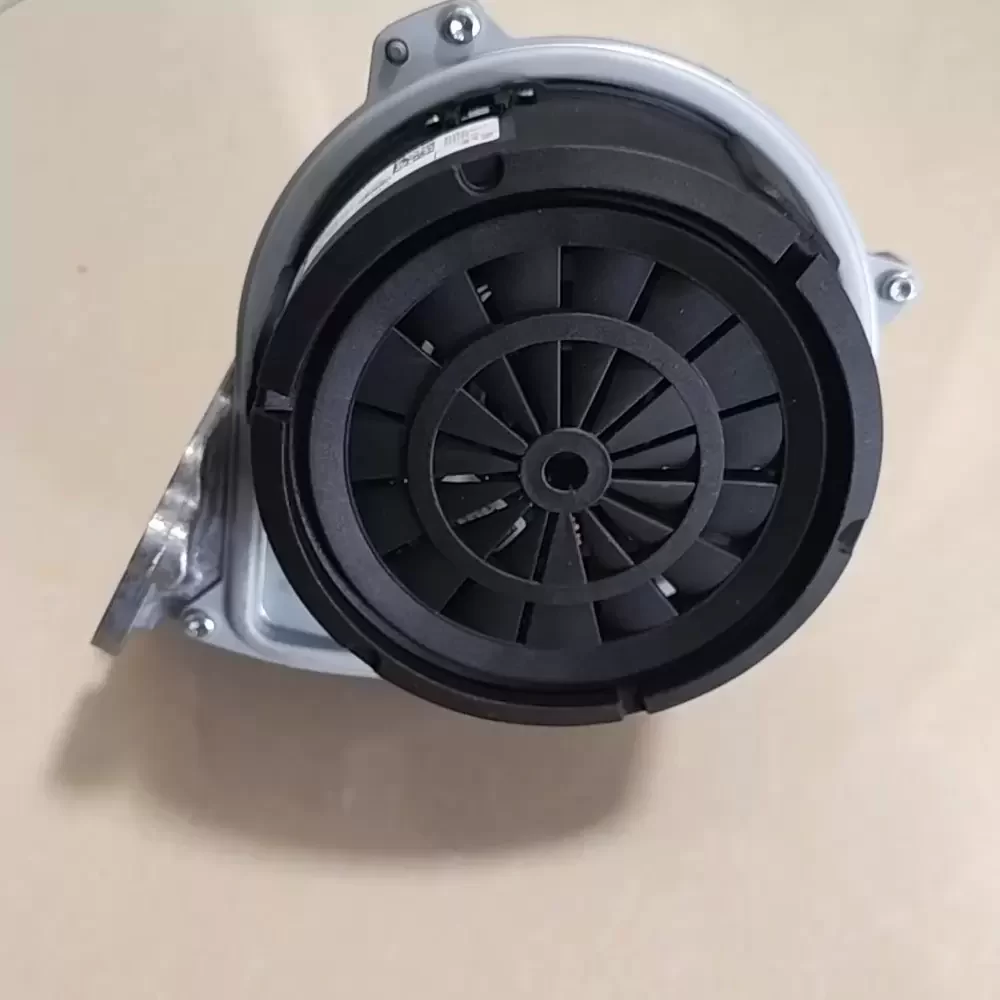

VGW0071MSG8ZET ebmpapst 23VDC 60W 2.5A Centrifugal Blower

Description

ebmpapst VGW0071MSG8ZET 120 mm 23 VDC 60 W Centrifugal Blower. The unit features a brushless DC motor with dual ball bearings and a die-cast aluminum housing. It incorporates a glass-fiber reinforced plastic impeller and a 4-wire interface for PWM speed control and tachometer output.

VGW0071MSG8ZET Specifications
Model: VGW0071MSG8ZET
Brand: ebm-papst
Category: Centrifugal Blower
Nominal Voltage: 23 VDC
Voltage Range: 16 to 30 VDC
Nominal Current: 2.5 A
Power Consumption: 60 W
Nominal Speed: 3200 RPM
Air Flow: 150 m³/h
Bearing Type: Dual Ball Bearing
Housing Material: Die-cast Aluminum
Impeller Material: Glass-fiber reinforced plastic
Control Input: PWM
Output Signal: Tachometer
Ingress Protection: IP 20
Operating Temperature: -20 to +70 °C
Weight: 0.85 kg
Dimensions: 120 x 120 x 40 mm
Origin: Germany

VGW0071MSG8ZET Applications
Primary applications include integration into medical diagnostic equipment, server rack thermal management systems, and high-density power supply cooling modules. Deployed within telecommunications base stations and industrial automation control cabinets requiring precise airflow regulation via PWM feedback loops.
