Description

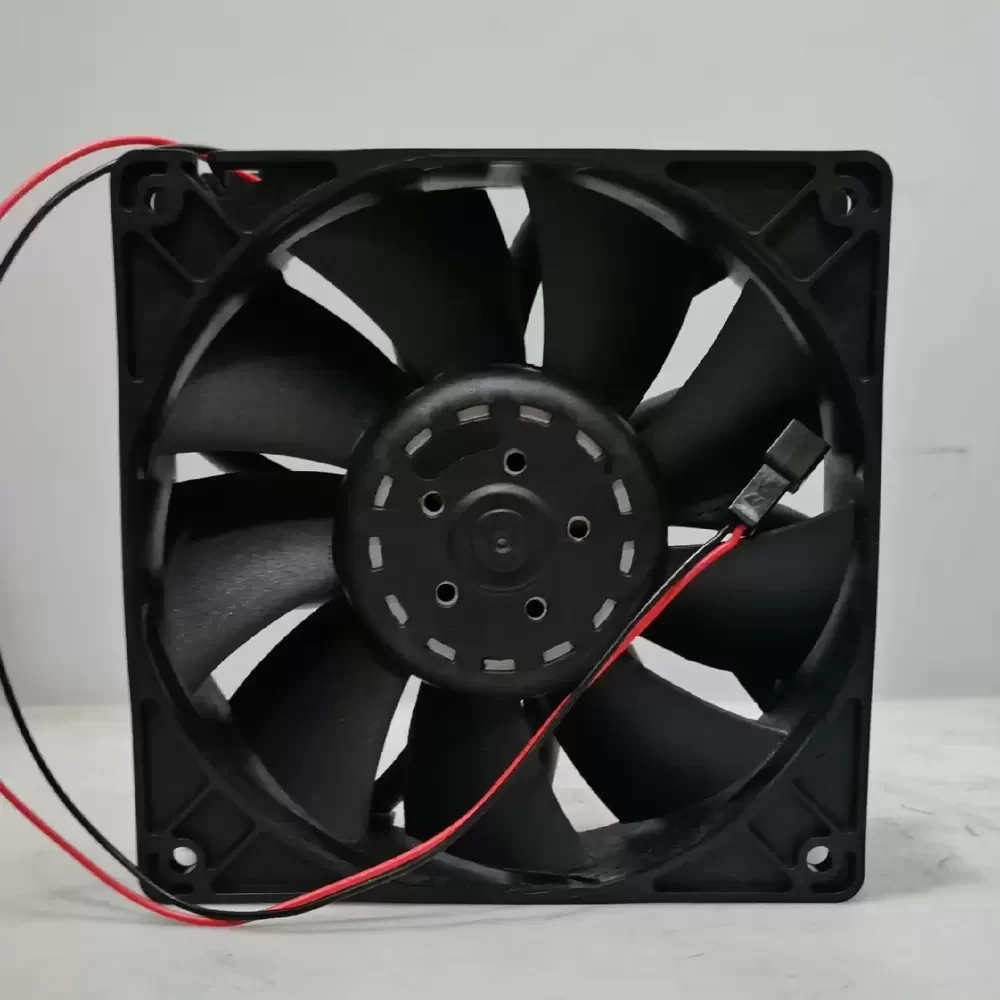

The ADDA AS12024HB389100 is a high-performance DC Axial Fan engineered for critical thermal management in demanding industrial environments. Featuring a robust brushless DC motor and a precision Ball Bearing system, this unit is designed to sustain high rotational speeds and deliver exceptional airflow against significant static pressure. The 9-blade impeller geometry is optimized to minimize turbulence while maximizing air throughput, effectively lowering thermal impedance in high-density enclosures. Constructed with durable thermoplastic materials, the AS12024HB389100 ensures structural rigidity and long-term reliability under continuous heavy-duty operation, making it an ideal solution for applications requiring rapid heat dissipation and consistent performance.
Model Number: AS12024HB389100
Brand: ADDA
Product Type: DC Axial Fan
Rated Voltage: 24VDC
Voltage Range: 14.0 – 27.6 VDC
Rated Current: 2.10 A
Power Input: 50.4 W
Rated Speed: 4800 RPM
Bearing Type: Ball Bearing
Max. Air Flow: 210.0 CFM (356.8 m³/h / 5.94 m³/min)
Max. Static Pressure: 22.5 mmH₂O (220.6 Pa / 0.88 inH₂O)
Dimensions: 120 x 120 x 38 mm
Weight: 380 g
Noise Level: 62.0 dB(A)
Impeller Material: PBT (UL94V-0)
Housing Material: PBT (UL94V-0)
Termination: 2-Wire Leads
Operating Temperature: -10°C to +70°C
Life Expectancy: 70,000 Hours at 40°C
Ingress Protection: IP20
Safety Certifications: UL, CUL, TUV, CE
The AS12024HB389100 is specifically calibrated for high-impedance applications such as variable frequency drive (VFD) inverters and industrial automation control panels. Its high-static pressure capabilities make the AS12024HB389100 suitable for forced-air cooling in dense server racks, telecommunications equipment, and power supply units where maintaining optimal component temperatures is critical for system stability and longevity.
