Description

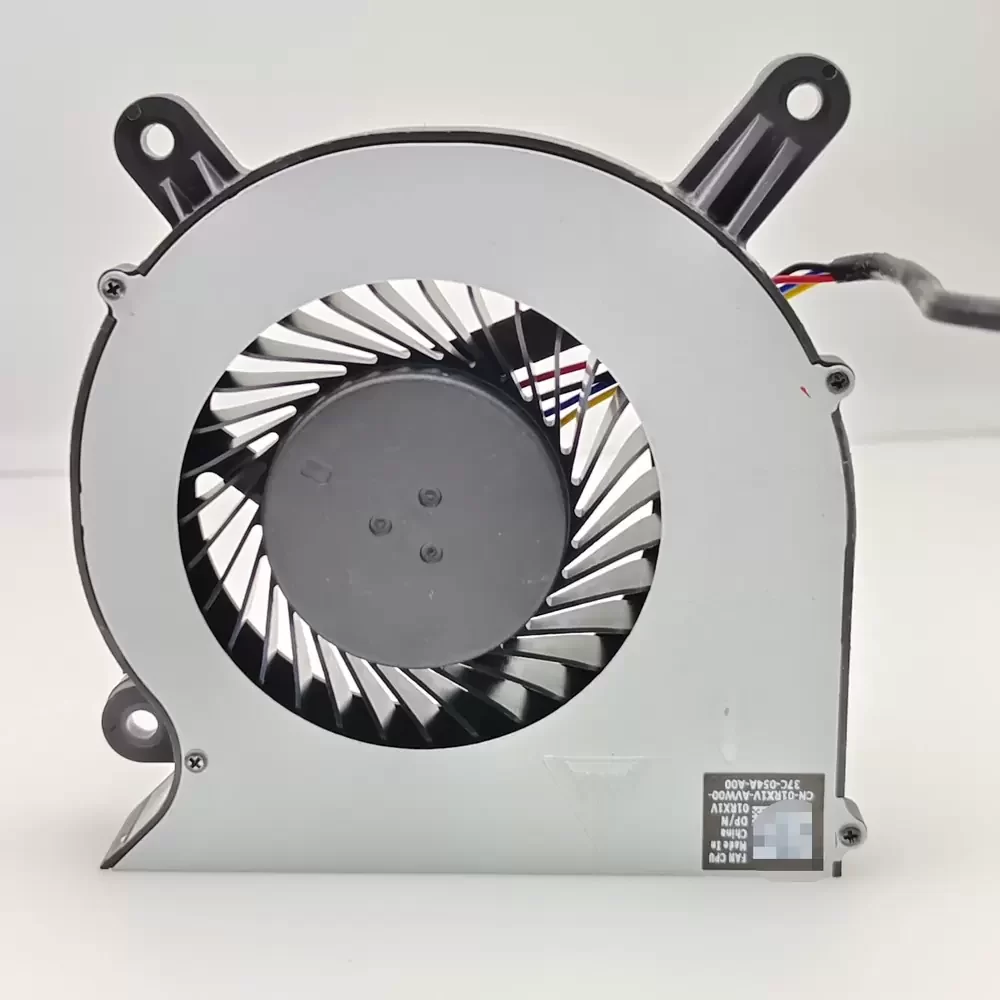

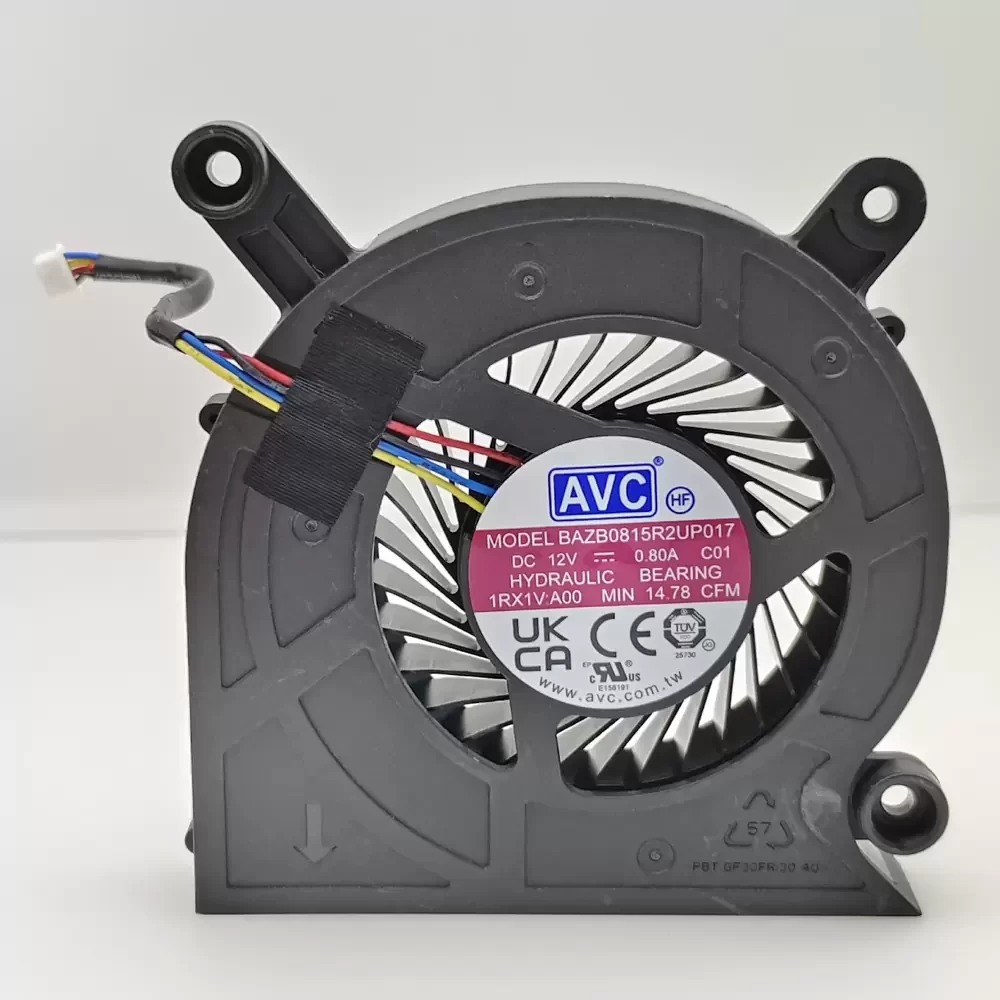

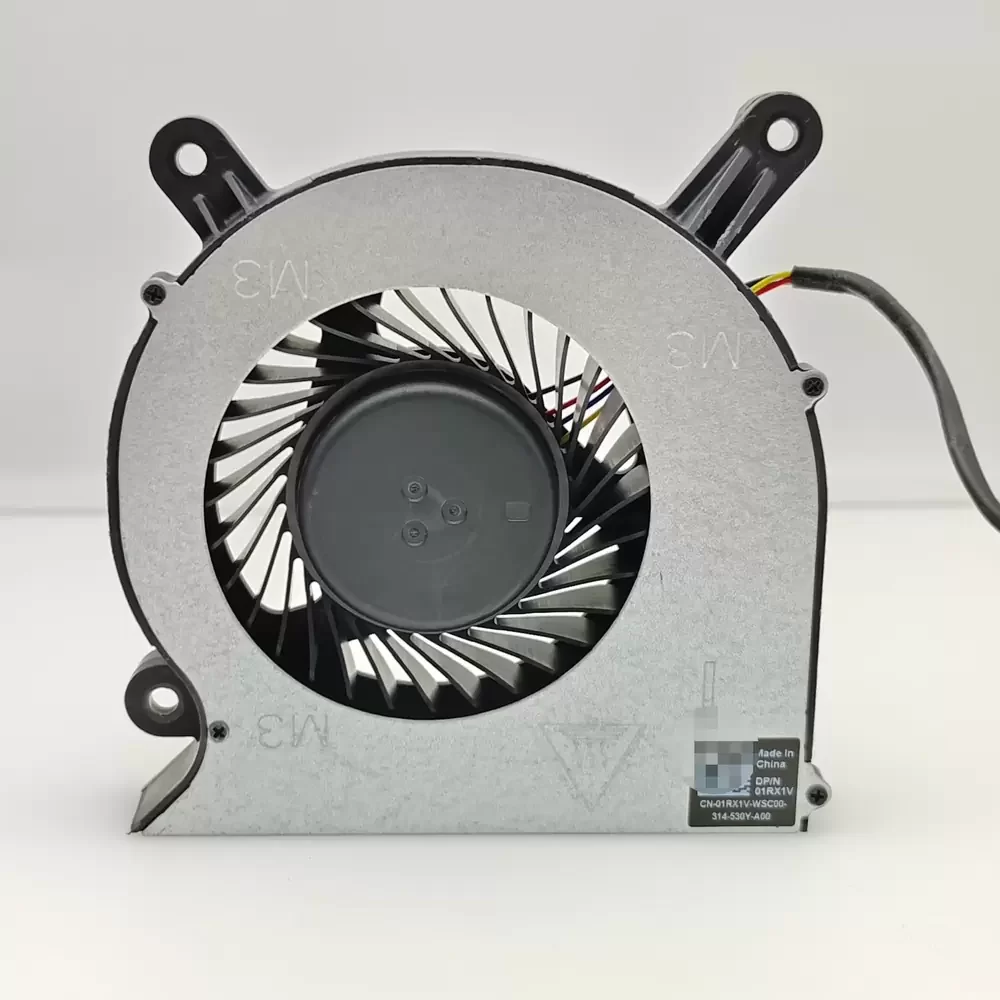

The AVC BAZB0815R2U-P012 is a 12VDC 80x80x15mm Centrifugal Blower optimized for high-density thermal management in space-constrained All-in-One (AIO) computing environments. Engineered with a high-amperage 7.80A motor, this blower is designed to overcome significant thermal impedance within compact chassis by generating concentrated airflow of 14.78CFM. The unit features a sophisticated 4-wire PWM control interface for precise RPM modulation, ensuring structural rigidity and low vibration during peak operation. Its dual ball bearing architecture is specifically selected to maintain long-term reliability and minimize friction in horizontal mounting orientations common in modern desktop hardware.
Model Number: BAZB0815R2U-P012
Brand: AVC
Product Type: Centrifugal Blower Fan
Rated Voltage: 12 VDC
Voltage Range: 7.0 – 13.2 VDC
Rated Current: 7.80 A
Power: 93.6 W
Rated Speed: 6500 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 14.78 CFM (25.11 m³/h)
Max. Static Pressure: 42.5 mmH₂O
Dimensions: 80 x 80 x 15 mm
Weight: 85 g
Life Expectancy: 70,000 hours at 40°C
Speed Control: PWM (Pulse Width Modulation)
Signal Output: Tachometer / Frequency Generator
Termination: 4-Pin / 4-Wire Connector
Housing Material: UL94V-0 Reinforced Plastic
Blade Material: UL94V-0 Reinforced Plastic
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +75 °C
Protection Features: Locked Rotor Protection, Reverse Polarity Protection
Compatible Part Numbers: 2Y42R, 1RX1V, 02Y42R, 01RX1V
BAZB0815R2U-P012 Applications
1. Dell AIO Thermal Repair: Ideal replacement fan for Dell Inspiron and OptiPlex All-in-One series (7770, 5477, 7460, 7470, 7777, 7760) where high static pressure is required to exhaust heat through restrictive fin-stack heat sinks.
2. Ultra-Thin Industrial PC Cooling: Optimized for 1U or sub-1U enclosures where the 15mm low-profile height and centrifugal discharge allow for lateral heat dissipation in high-impedance environments.
3. Medical Imaging Workstations: Provides the necessary torque and airflow to cool localized processors in compact diagnostic equipment without the footprint of standard axial fans.
