Description

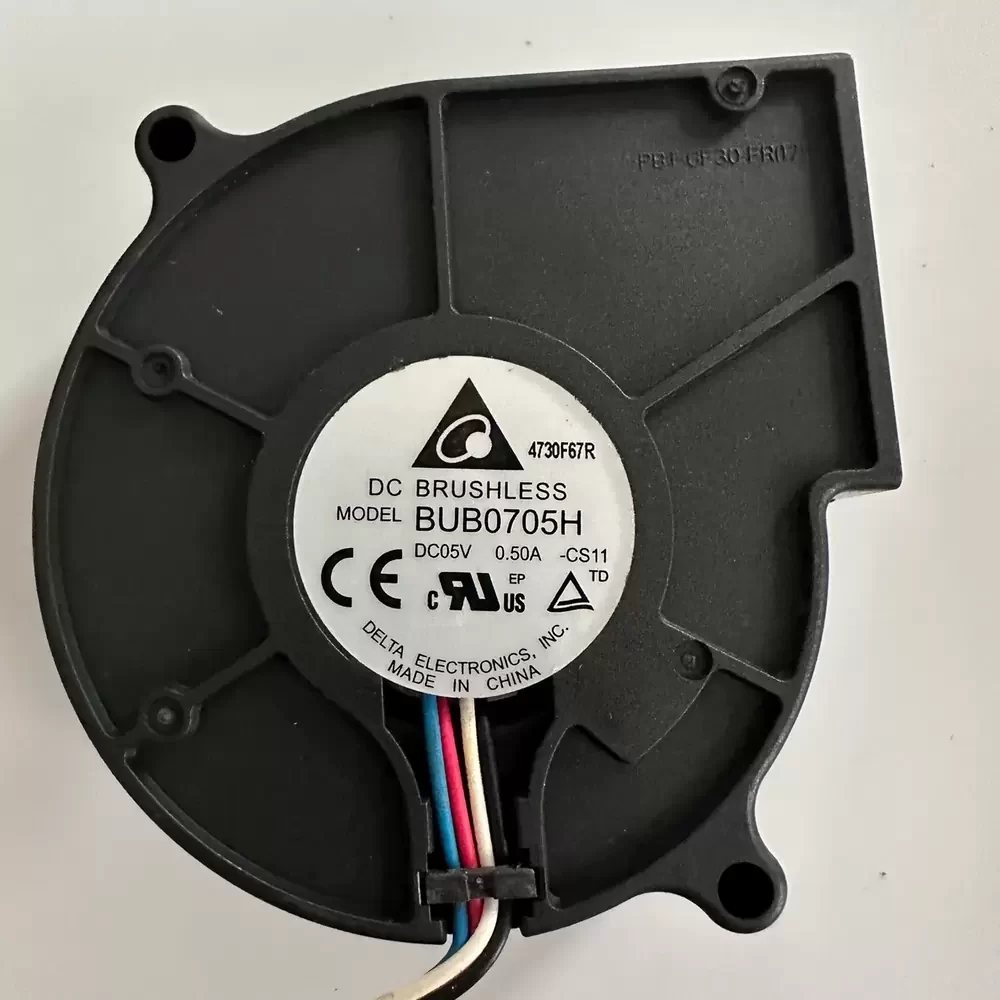

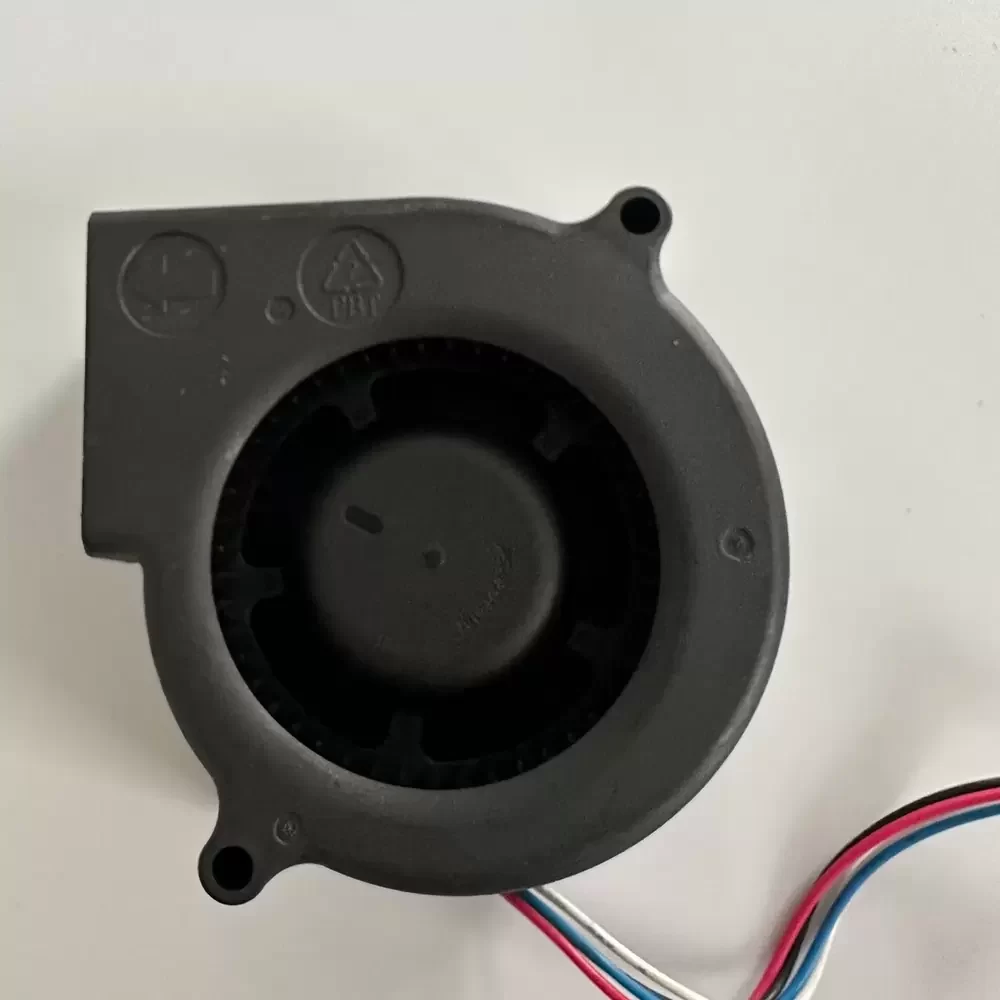

The Delta BUB0705H-CS11 is a 5VDC 75x75x30mm Blower optimized for high-impedance thermal environments where space-constrained cooling is critical. Engineered with a DC brushless motor and advanced bearing architecture, this centrifugal fan minimizes thermal impedance by delivering concentrated airflow through a 90-degree discharge. The unit operates at a rated current of 0.50A, providing the necessary torque to maintain consistent RPM under back-pressure. Its structural rigidity and precision-balanced impeller ensure low-vibration operation, making it an ideal replacement fan for compact electronics requiring active heat dissipation and precise speed control via its 4-wire PWM interface.
Model Number: BUB0705H-CS11
Brand: Delta Electronics
Product Type: Centrifugal Blower
Rated Voltage: 5 VDC
Voltage Range: 4.0 – 5.5 VDC
Rated Current: 0.50 A
Power: 2.5 W
Rated Speed: 3800 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 12.4 CFM (0.351 m³/min)
Max. Static Pressure: 15.2 mmH₂O (149.1 Pa / 0.598 inH₂O)
Dimensions: 75 x 75 x 30 mm
Weight: 85 g
Life Expectancy: 70,000 Hours at 40°C
Speed Control: PWM Signal / Tachometer Output
Termination: 4-Wire Lead Wires
Housing Material: Plastic (UL 94V-0)
Blade Material: Plastic (UL 94V-0)
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +75 °C
Protection Features: Locked Rotor Protection, Reverse Polarity Protection
Certifications: UL, TUV, CE
BUB0705H-CS11 Applications
1. Ultra-Compact Projector Engines: High static pressure overcomes the dense optical path impedance to prevent lamp overheating.
2. All-in-One (AIO) PC Cooling: The 7530 form factor provides a low-profile replacement fan solution for integrated heat pipe assemblies.
3. Medical Diagnostic Equipment: Reliable 5VDC operation for portable point-of-care devices requiring consistent airflow in restricted enclosures.
