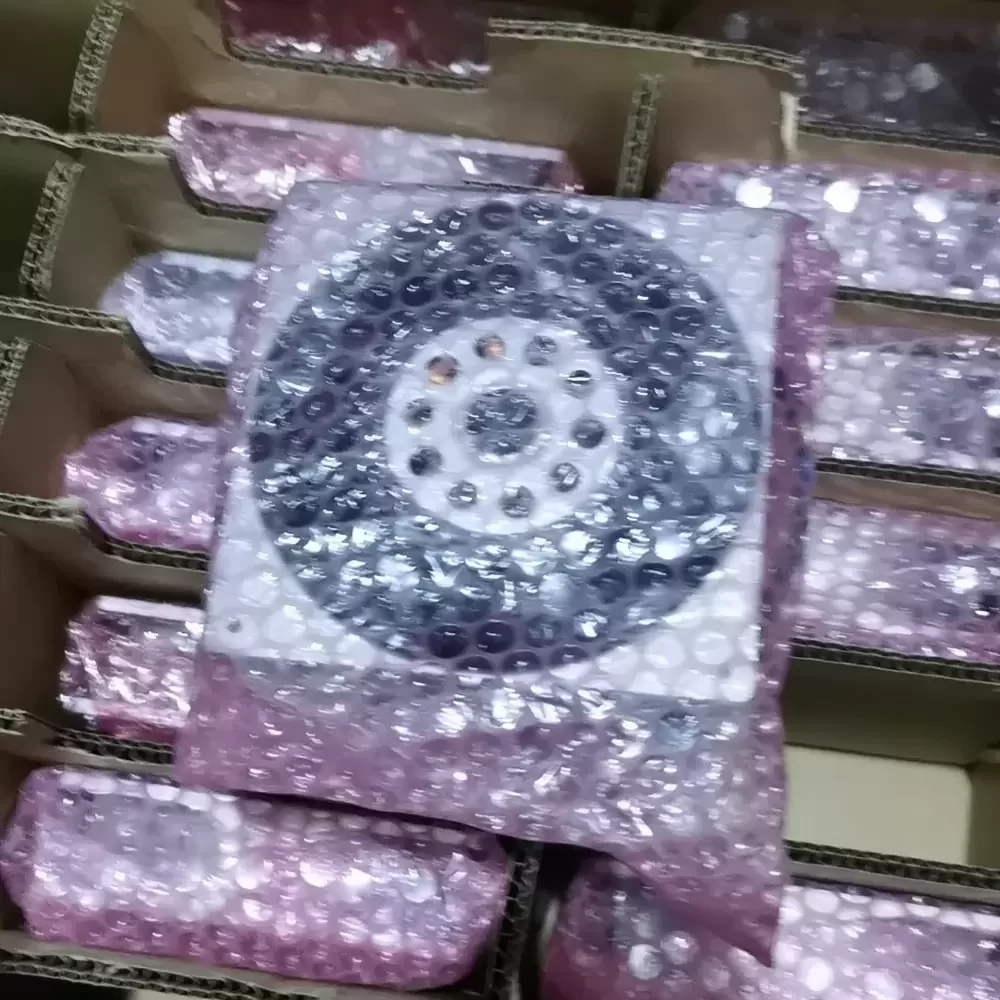

G1438X48BLZP-30 Nidec 48VDC 7.4A 140x38mm DC Axial Fan

Description

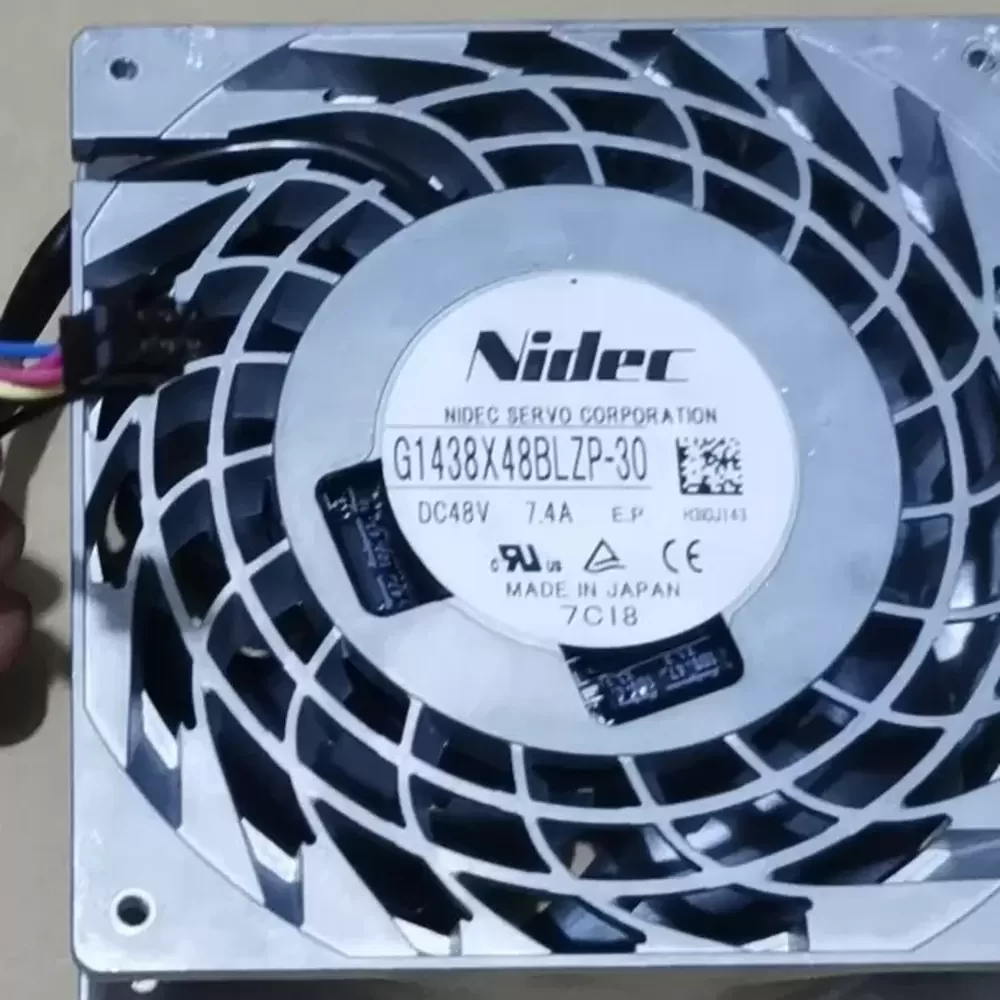

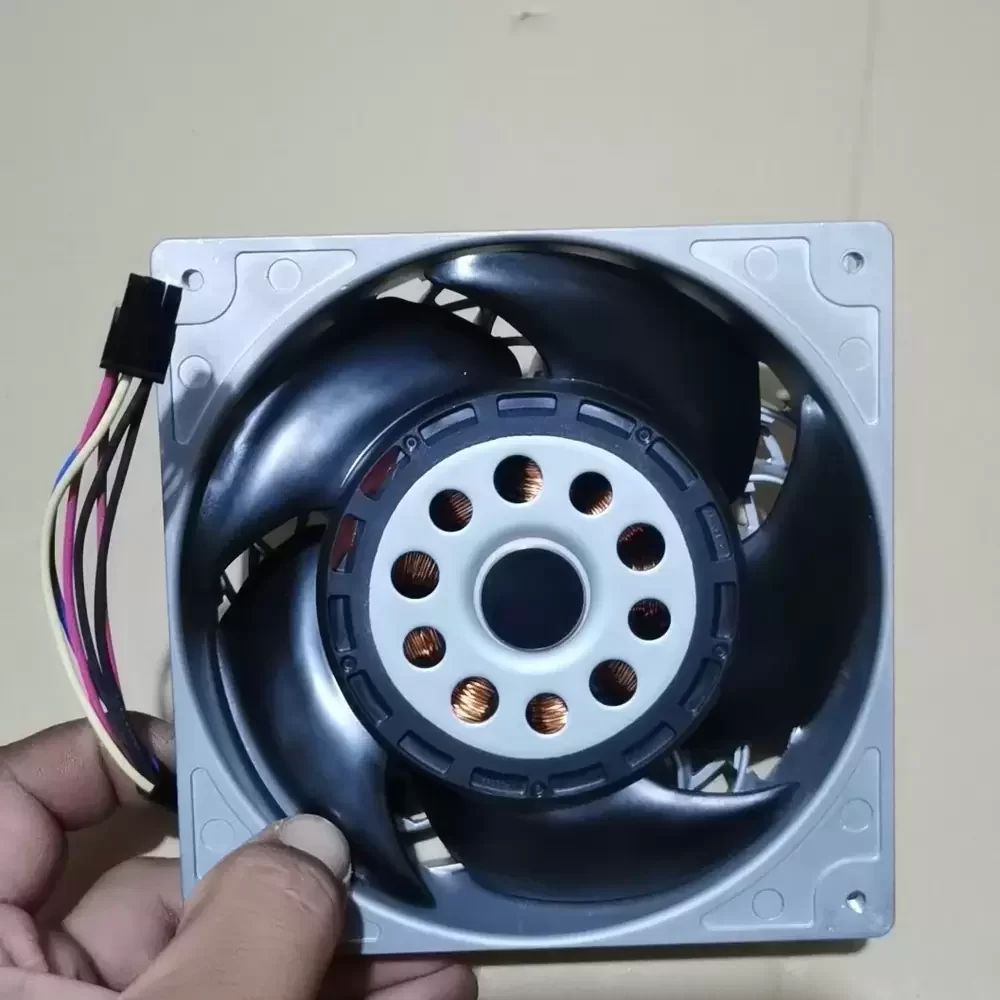

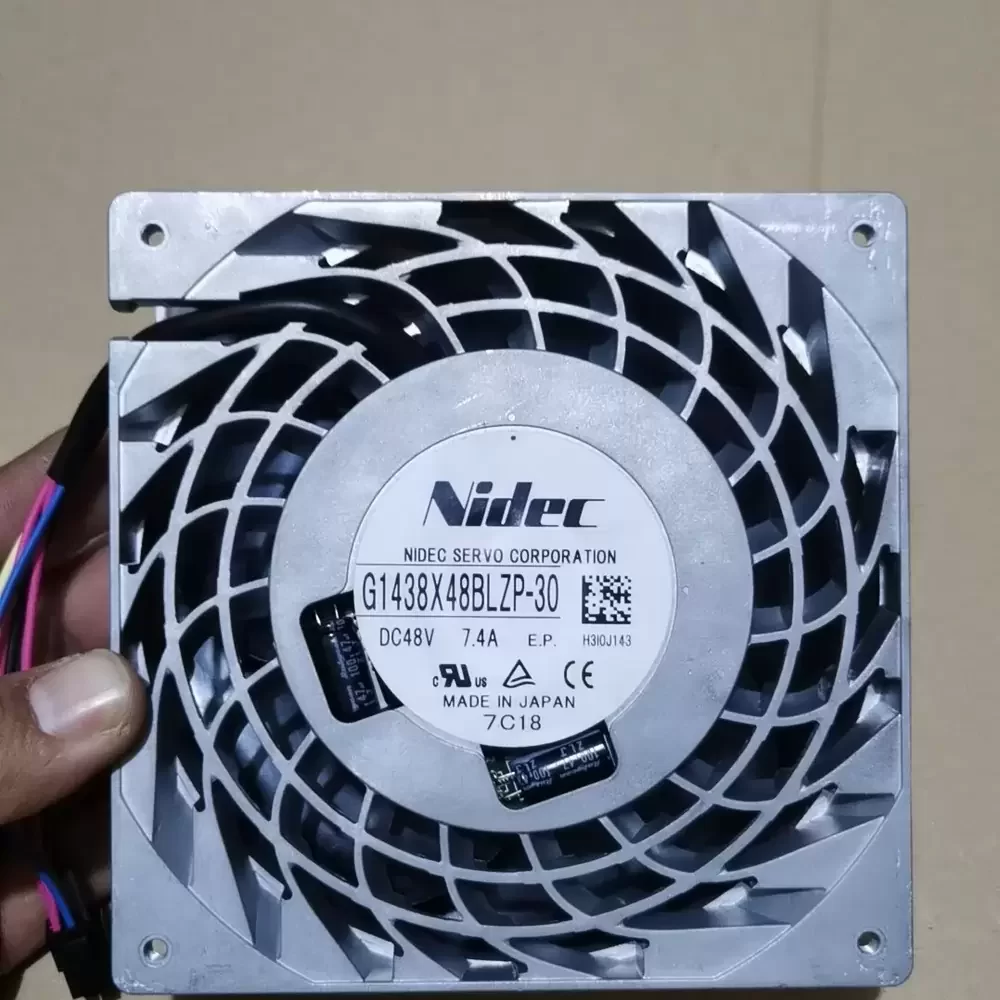

Nidec G1438X48BLZP-30 is a high-performance 140 x 140 x 38 mm axial fan operating at 48 VDC with a 7.4 A current rating. It features a robust die-cast aluminum housing and a high-strength plastic impeller supported by a precision dual ball bearing system. The unit utilizes a 4-wire interface for PWM speed control and tachometer feedback, delivering extreme airflow and static pressure through optimized blade geometry.

G1438X48BLZP-30 Specifications
Model: G1438X48BLZP-30
Brand: Nidec
Input Voltage: 48 VDC
Operating Voltage Range: 36 to 60 VDC
Rated Current: 7.4 A
Rated Power: 355.2 W

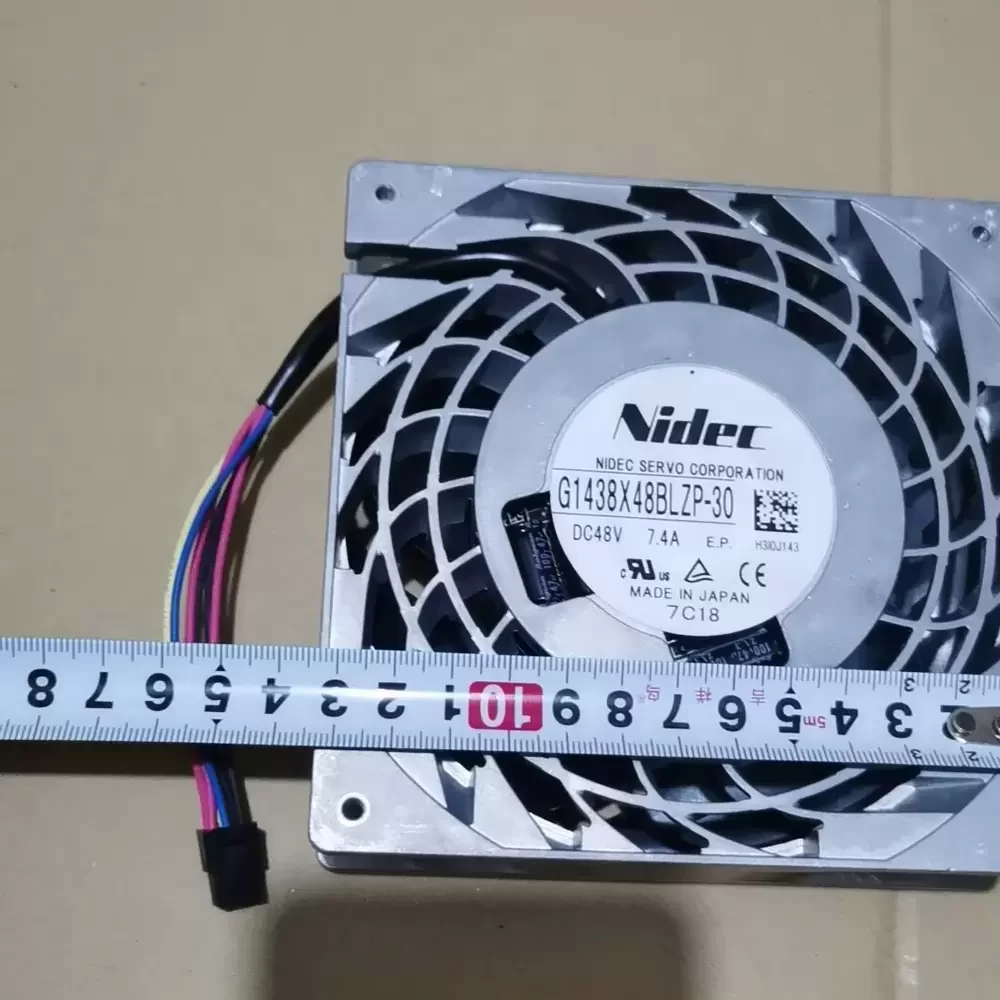

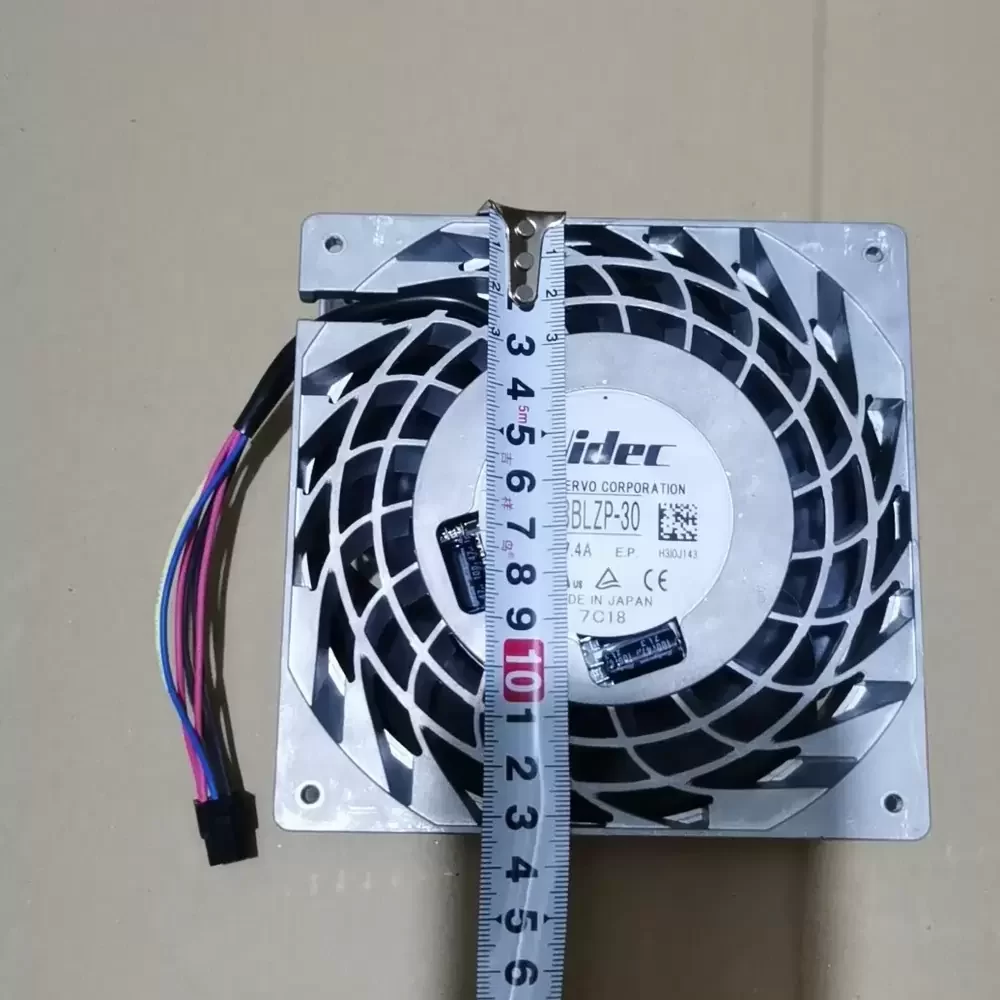

Frame Size: 140 x 140 x 38 mm
Bearing System: Dual Ball Bearing
Housing Material: Die-cast Aluminum
Impeller Material: UL 94V-0 Plastic
Termination: 4-wire Lead Wires
Control Type: PWM Speed Control
Signal Output: Tachometer / FG Signal
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +75 °C
Safety Certifications: UL, TUV, CE
Weight: 650 g

G1438X48BLZP-30 Applications
Primary applications include integration into high-capacity frequency inverters, server rack enclosures, and telecommunication base stations. Deployed within industrial power supply units and large-scale UPS systems requiring high-density thermal management.
