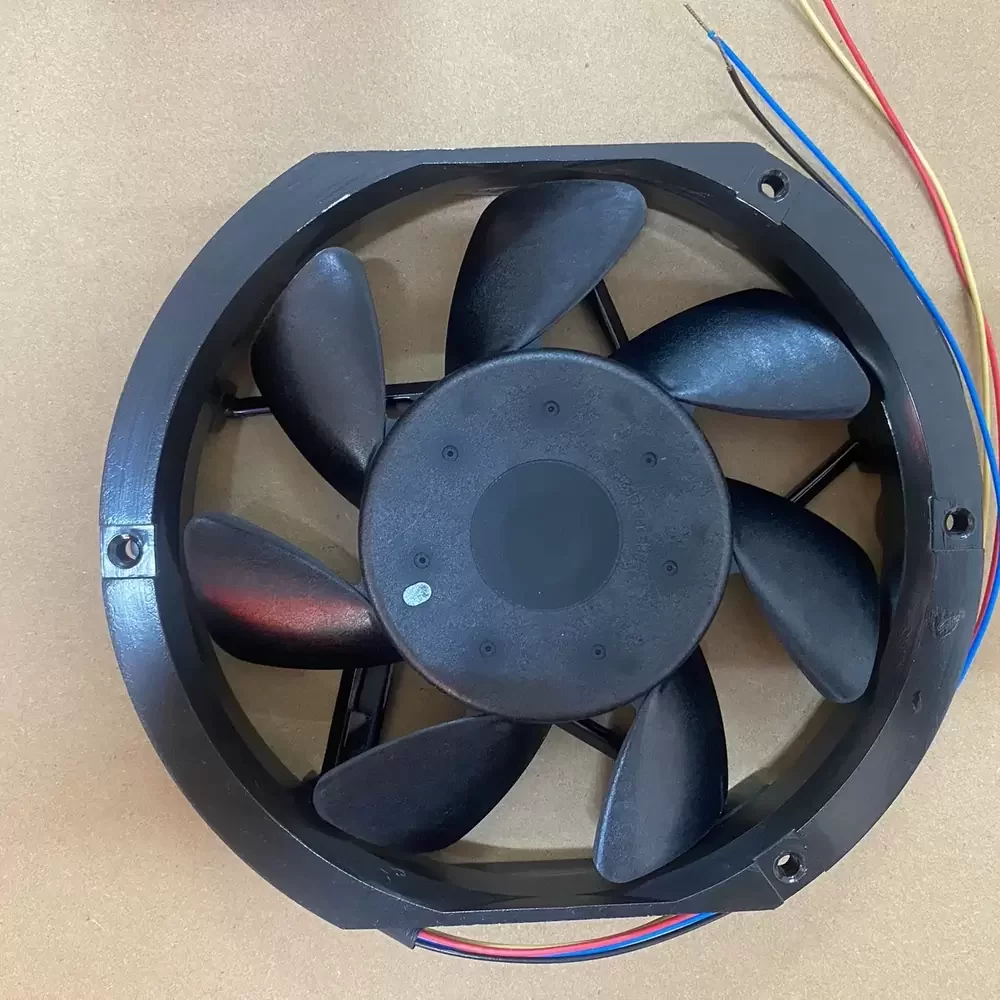

AFB1548VH-CC7U Delta 48VDC 43.2W 172x150x25.4mm Axial Fan

Description

Delta AFB1548VH-CC7U 172 x 150 x 25.4 mm 48 VDC 43.20 W 282.52 CFM axial fan utilizes a dual ball bearing system for extended operational life. The unit operates within a voltage range of 24.0 to 56.0 VDC and draws a rated current of 0.90 A. It incorporates a 4-wire termination supporting pulse width modulation (PWM) speed control and a frequency generator (tachometer) signal output. The mechanical design features a thermoplastic housing and impeller, delivering a static pressure of 20.30 mmH2O at a rotational speed of 4000 RPM. Acoustic emissions are rated at 60.5 dB-A under full load conditions.

AFB1548VH-CC7U Specifications
Model: AFB1548VH-CC7U
Brand: Delta Electronics
Category: DC Axial Fan
Dimensions: 172 x 150 x 25.4 mm
Rated Voltage: 48 VDC
Operating Voltage Range: 24.0 to 56.0 VDC
Rated Current: 0.90 A
Maximum Safety Current: 1.35 A
Rated Input Power: 43.20 W
Maximum Safety Power: 64.80 W
Rated Speed: 4000 RPM
Maximum Airflow: 282.52 CFM (8.000 m³/min)
Maximum Static Pressure: 20.30 mmH2O (0.799 inH2O)
Noise Level: 60.5 dB-A
Bearing Type: Dual Ball Bearing
Termination: 4-wire (Lead Wires)
Function: PWM Control / Frequency Generator (Tach)
Material (Frame/Impeller): Plastic (UL 94V-0)
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +75 °C
Weight: 430 g
Country of Origin: Thailand

AFB1548VH-CC7U Applications
Primary applications include integration into industrial server chassis, telecommunications base station cooling systems, and high-density power supply enclosures. Deployed within CNC machine control cabinets and automated manufacturing equipment requiring high-volume thermal management.
