Description

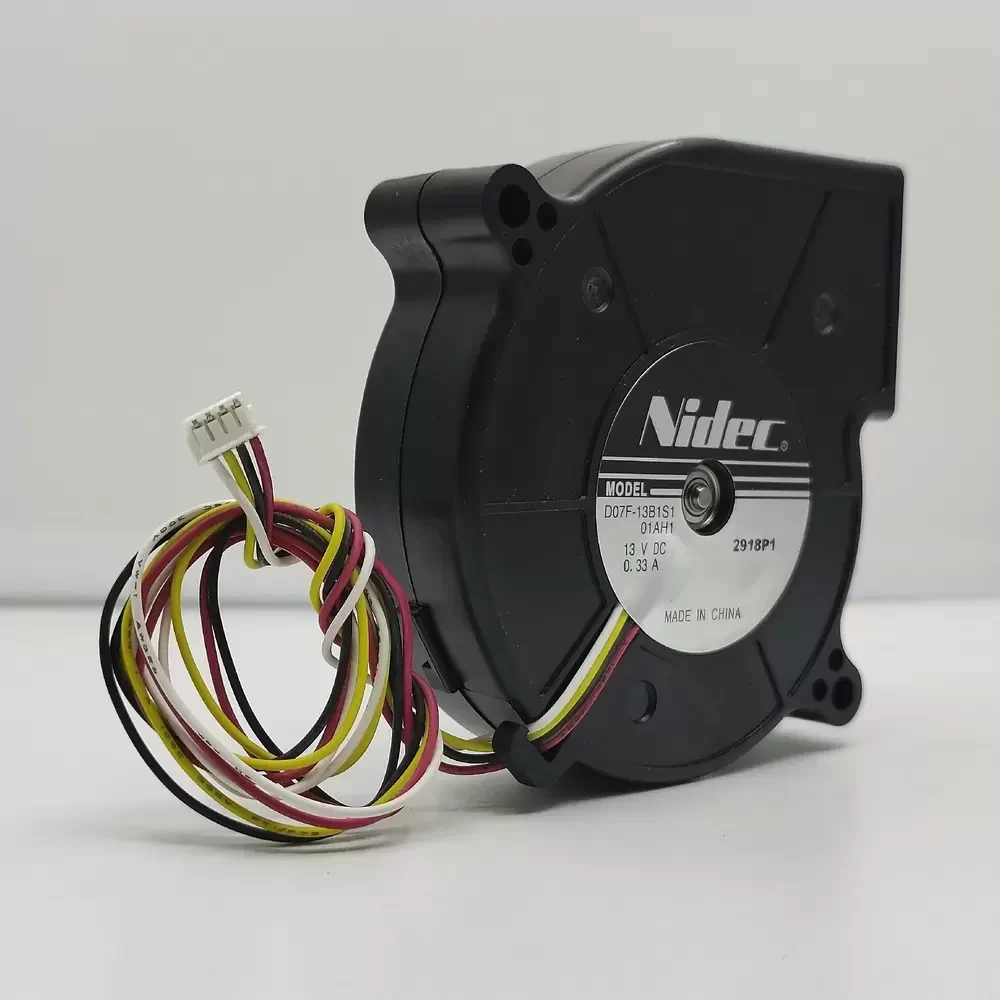

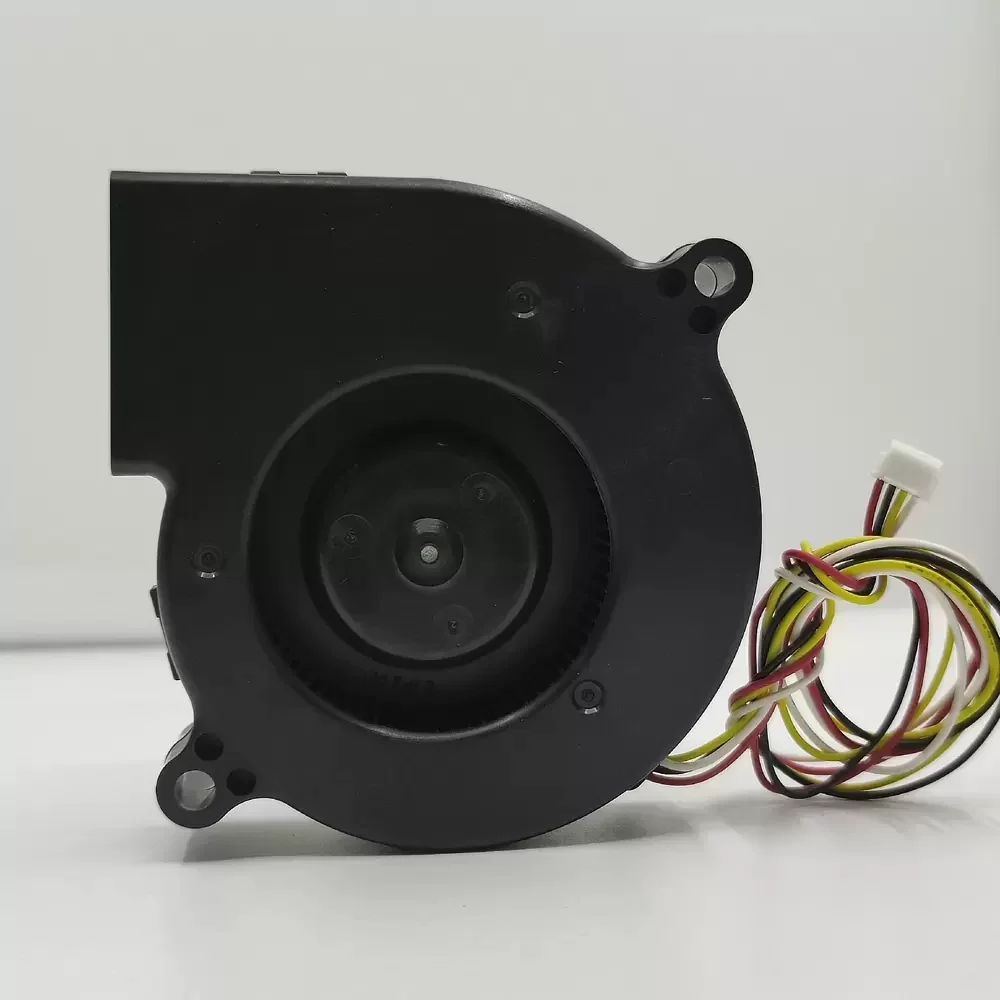

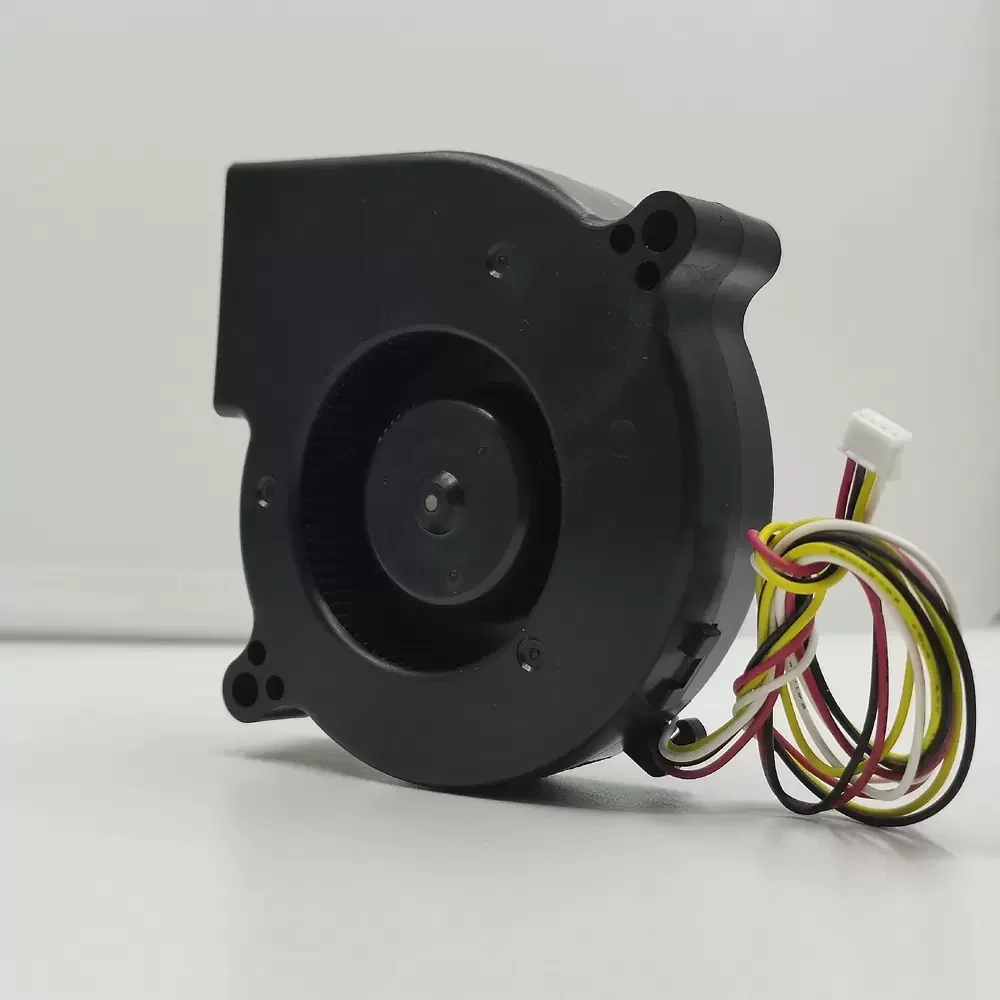

The Nidec D07F-13B1S1-01AH1 is a Centrifugal Blower Fan engineered for precision thermal management in compact electronic assemblies. Utilizing advanced DC motor technology, this unit optimizes airflow dynamics to reduce thermal impedance within high-density enclosures. The aerodynamic impeller design ensures consistent static pressure delivery, maintaining structural rigidity under continuous operation. Built for reliability, the D07F-13B1S1-01AH1 integrates robust materials to withstand thermal cycling, making it an essential component for maintaining operational stability in sensitive equipment like optical projectors and industrial instrumentation.
Model Number: D07F-13B1S1-01AH1
Brand: Nidec
Product Type: Centrifugal Blower / Turbine Fan
Rated Voltage: 13V DC
Voltage Range: 12.0 – 13.8 VDC
Rated Current: 0.33 A
Power Consumption: 4.29 W
Dimensions: 75mm x 75mm x 20mm
Bearing Type: Precision Sleeve Bearing
Max. Air Flow: Approx. 10.5 CFM
Max. Static Pressure: High Static Pressure Profile
Rated Speed: 3800 RPM (Estimated)
Noise Level: 36 dBA
Housing Material: PBT Plastic (UL94V-0)
Impeller Material: PBT Plastic (UL94V-0)
Termination: 3-Wire Lead
Connector: Standard 3-Pin Header
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Mounting Orientation: Any
Ingress Protection: IP40
Application: Projector Cooling, Spot Cooling
This centrifugal blower is specifically calibrated for demanding thermal applications such as digital projectors and multimedia equipment. The D07F-13B1S1-01AH1 excels in restricted spaces where directing airflow at a 90-degree angle is required to cool optical engines and power supply units. Additionally, the D07F-13B1S1-01AH1 is suitable for compact server chassis, telecommunications hardware, and industrial automation interfaces where concentrated static pressure is necessary to overcome system resistance.
