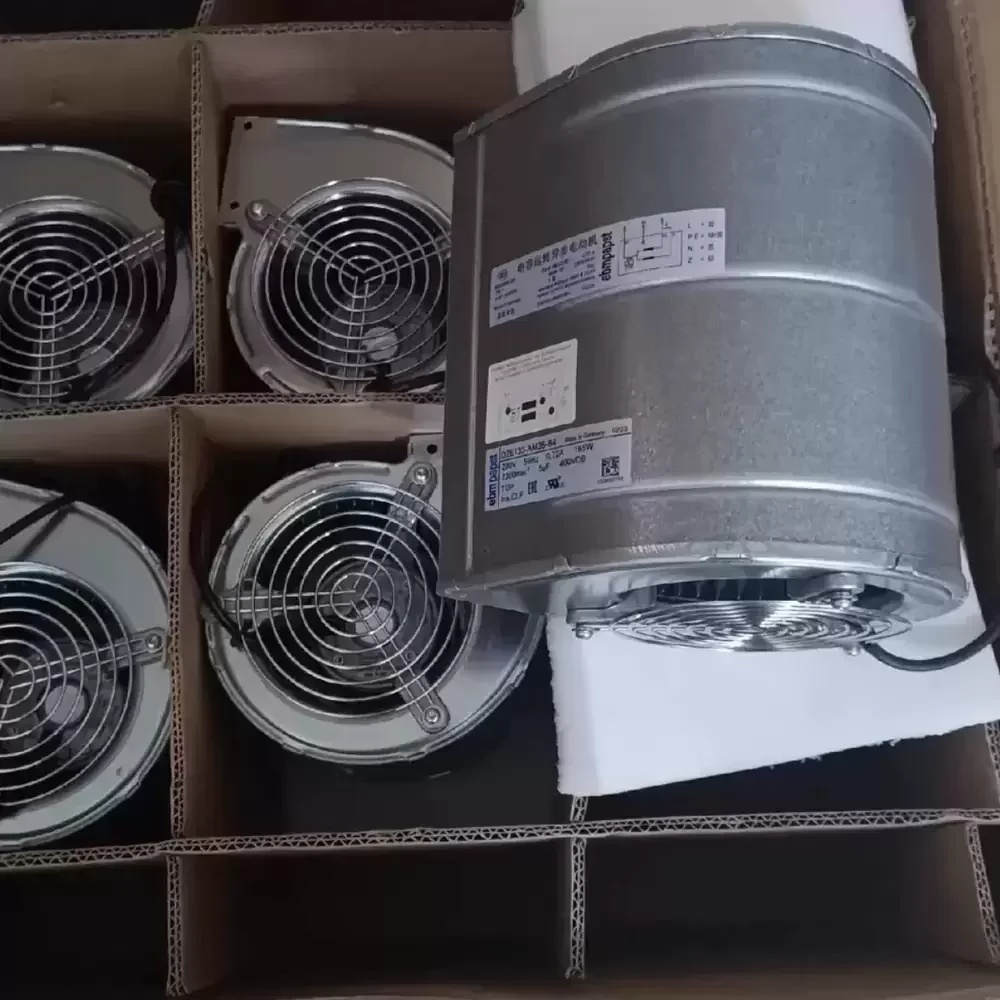

D2E133-AM35-B4 ebm-papst 230VAC 133mm Centrifugal Blower

Description

The ebm-papst D2E133-AM35-B4 is a robust Centrifugal Blower designed to deliver superior aerodynamic performance in industrial thermal management systems. Engineered with a high-efficiency AC motor, this double-inlet blower optimizes airflow throughput while maintaining exceptional structural rigidity. The unit features precision-engineered ball bearings that reduce friction and thermal impedance, ensuring long-term reliability under continuous duty cycles. Constructed from durable galvanized sheet steel, the housing and impeller are dynamically balanced to minimize acoustic resonance and vibration. This model is specifically calibrated to provide consistent cooling for power electronics, offering a stable operating environment for sensitive components.

Model Number: D2E133-AM35-B4
Brand: ebm-papst
Product Type: AC Centrifugal Blower (Double Inlet)
Rated Voltage: 230 VAC
Frequency: 50 Hz
Rated Current: 0.72 A
Power Input: 165 W
Rated Speed: 2300 RPM
Impeller Diameter: 133 mm
Bearing Type: Ball Bearing
Motor Type: M2E068-DF
Phase: Single Phase
Capacitor: 3.0 µF / 400 VDB
Insulation Class: B
Motor Protection: Thermal Overload Protector (TOP)
Housing Material: Galvanized Sheet Steel
Impeller Material: Sheet Steel, Hot-Galvanized
Direction of Rotation: Clockwise
Ingress Protection: IP44
Mounting Position: Any
Weight: 3.5 kg
Operating Temperature: -25 to +50 °C

The D2E133-AM35-B4 is widely utilized in the cooling of power electronics, specifically serving as a replacement fan for Vacon frequency inverters and variable speed drives. Its high-pressure airflow characteristics make it an essential component for ventilating industrial control cabinets, server racks, and automation enclosures where heat dissipation is critical. Furthermore, the D2E133-AM35-B4 is suitable for integration into HVAC air handling units and specialized cooling modules, ensuring that mission-critical hardware operates efficiently without thermal throttling.
