Description

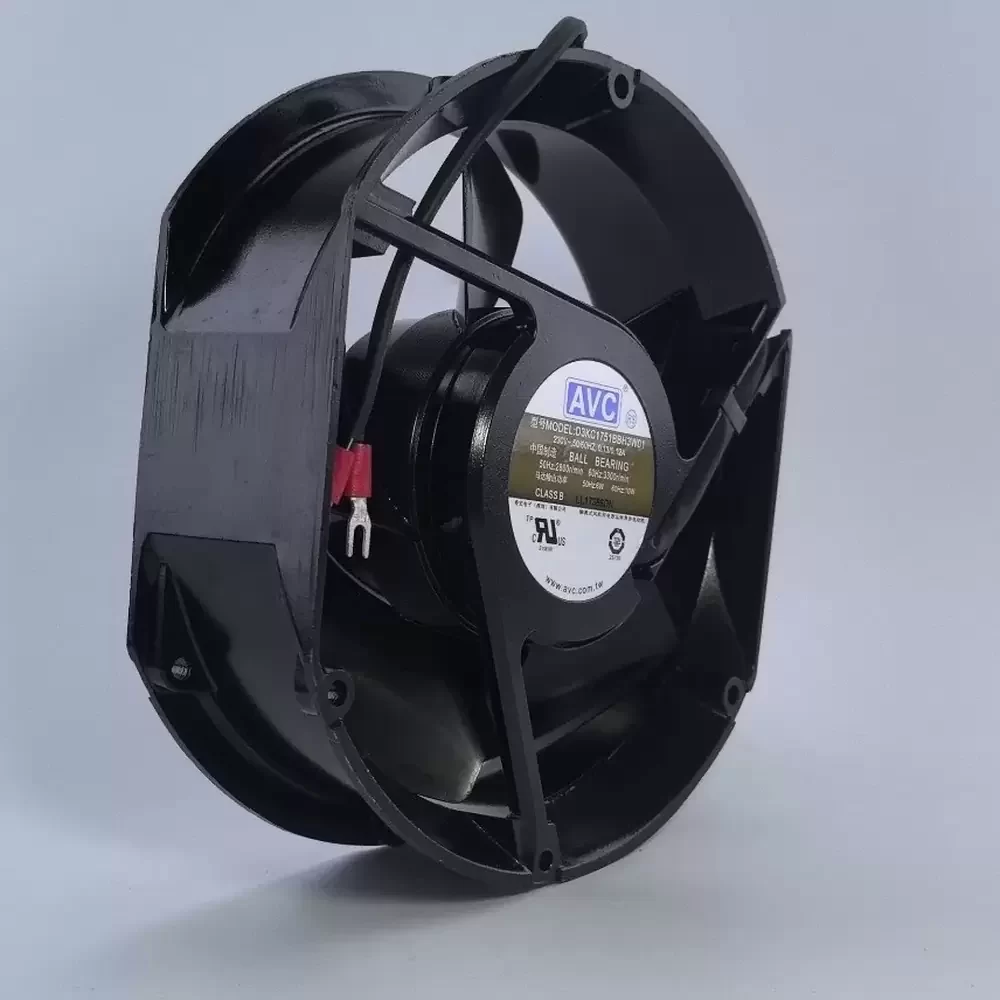

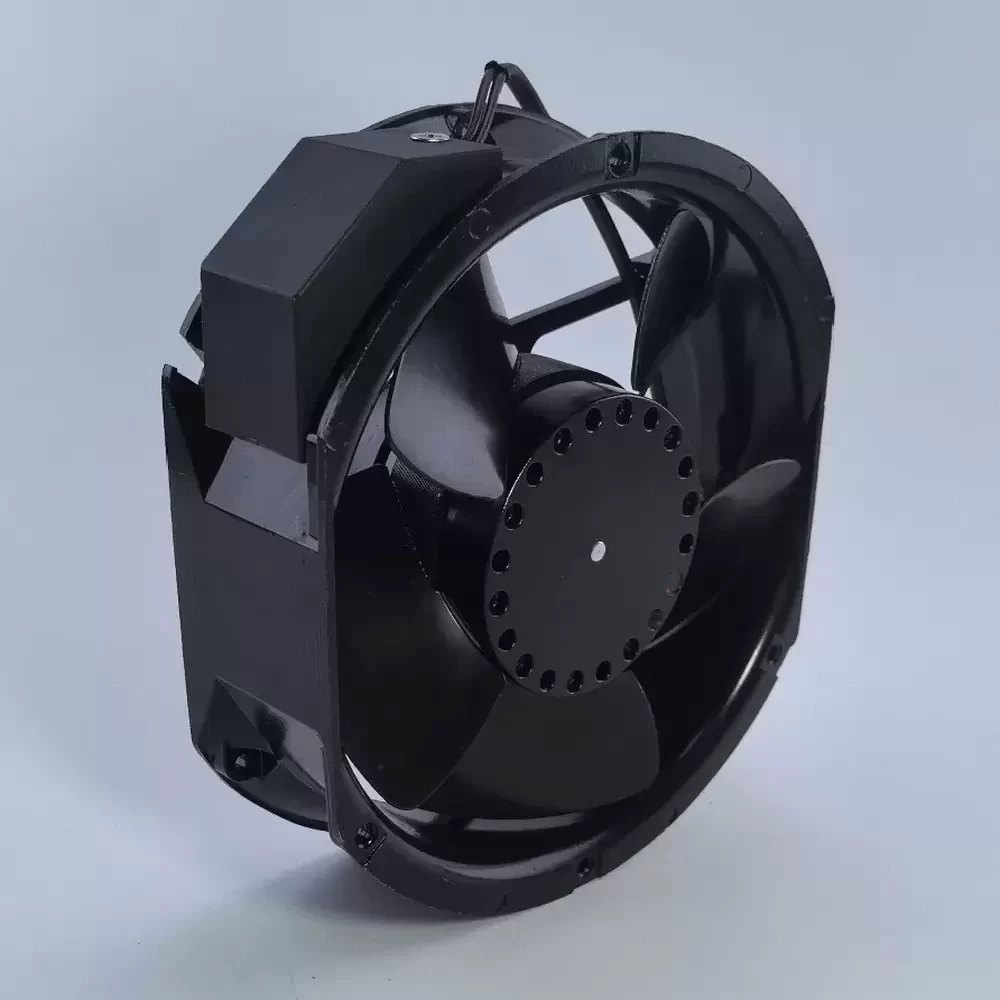

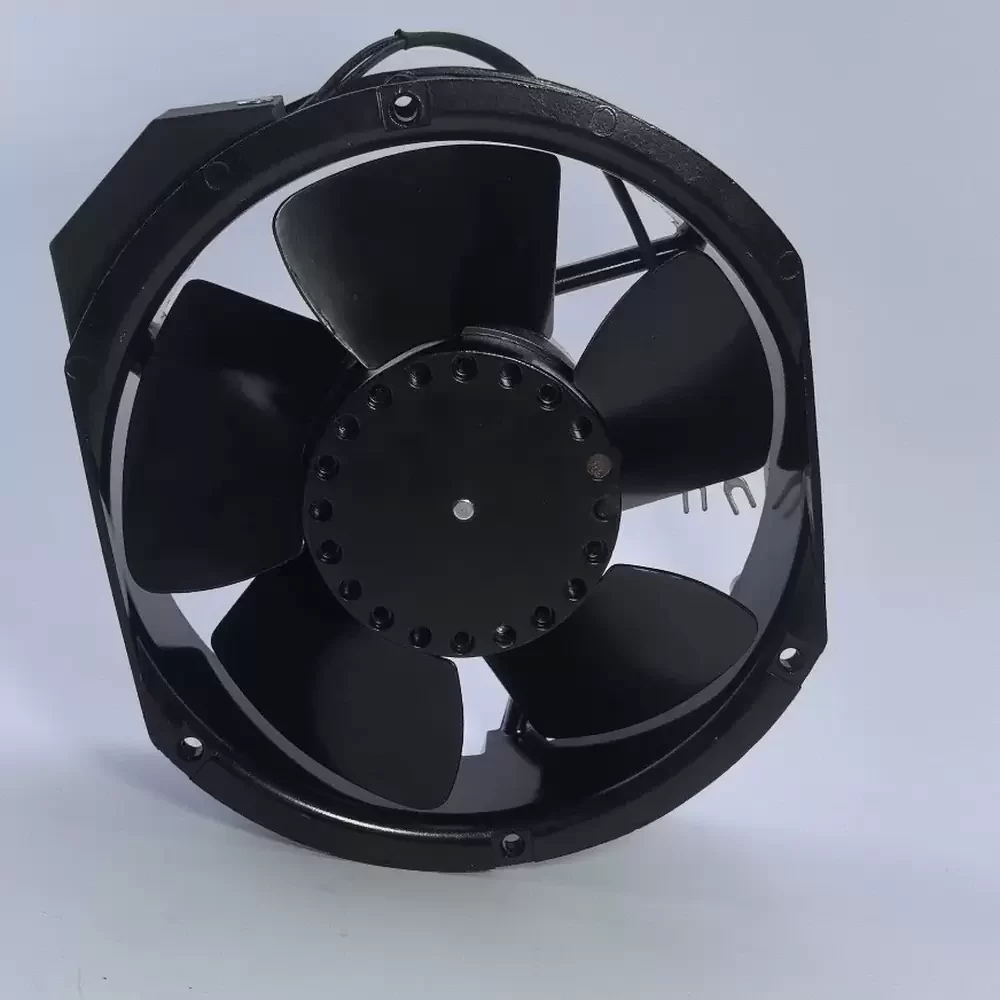

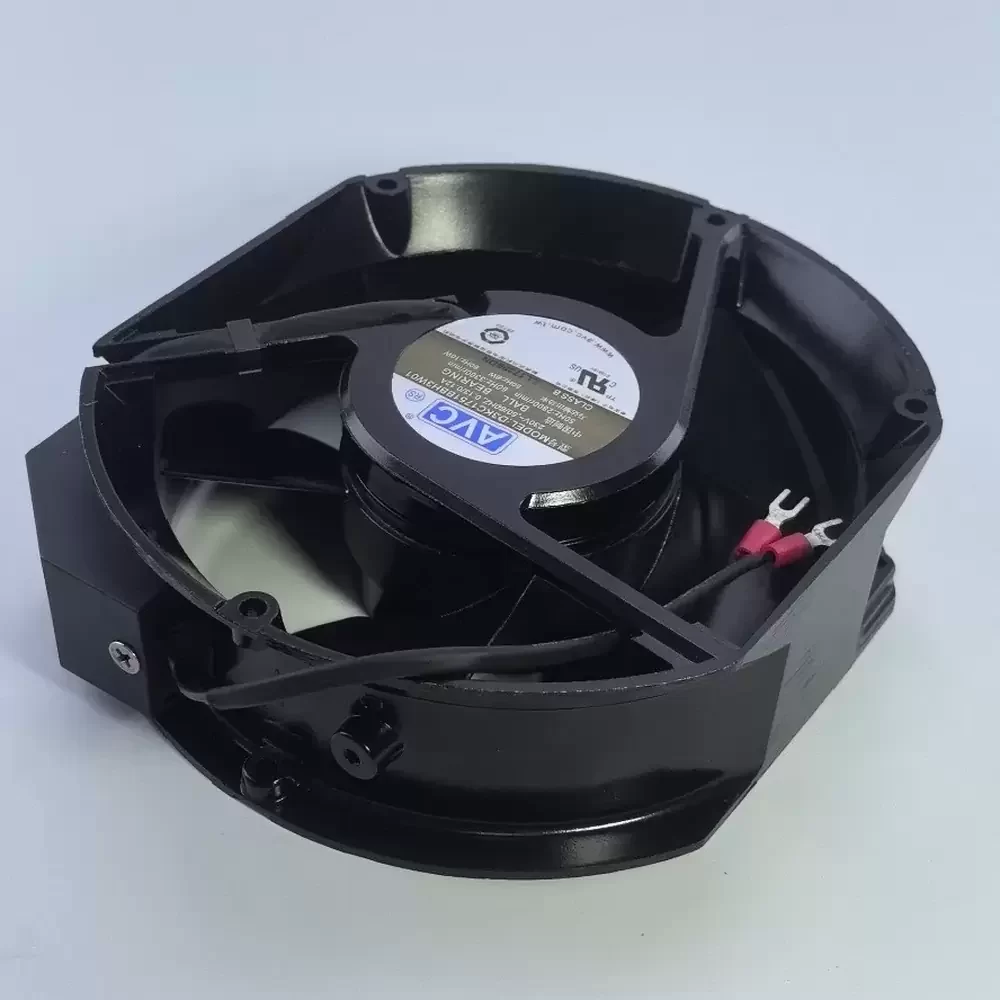

The AVC D3KC1751BBH3W01 is a robust AC axial fan engineered for high-demand industrial thermal management. Utilizing a capacitor-run induction motor architecture housed within a full metal chassis, this unit offers superior structural rigidity and thermal resilience. The aerodynamic impeller design optimizes airflow efficiency while maintaining stable static pressure capabilities. Designed for continuous operation in harsh environments, the D3KC1751BBH3W01 minimizes thermal impedance through its high-velocity air exchange mechanism, ensuring critical component longevity. Its metal construction specifically addresses requirements for high-temperature resistance and electromagnetic compatibility in complex electrical systems.
Model Number: D3KC1751BBH3W01
Brand: AVC (Asia Vital Components)
Product Type: AC Axial Fan
Rated Voltage: 230 VAC
Frequency: 50 / 60 Hz
Rated Current: 0.13 / 0.12 A
Input Power: 6 / 10 W
Rated Speed: 2800 / 3300 RPM
Bearing Type: Ball Bearing
Max. Air Flow: 210.0 CFM (356.8 m³/h)
Max. Static Pressure: 16.5 mmH₂O (161.8 Pa / 0.65 inH₂O)
Dimensions: 172 mm x 150 mm x 51 mm
Frame Shape: Elliptical / Oval
Housing Material: Die-Cast Aluminum (Full Metal)
Impeller Material: Metal
Termination: 2-Wire Lead
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Life Expectancy: 50,000 Hours at 40°C
Mounting: Flange Mount
Feature: High Temperature Resistant
The D3KC1751BBH3W01 is specifically calibrated for high-density industrial applications requiring substantial air exchange. Common deployment environments include server racks, telecommunications enclosures, and industrial automation control cabinets where heat dissipation is critical. The D3KC1751BBH3W01 excels in CNC machinery and power supply units, providing reliable cooling to prevent thermal throttling. Its robust metal construction also makes it suitable for manufacturing floor ventilation systems where durability is paramount.
