Description

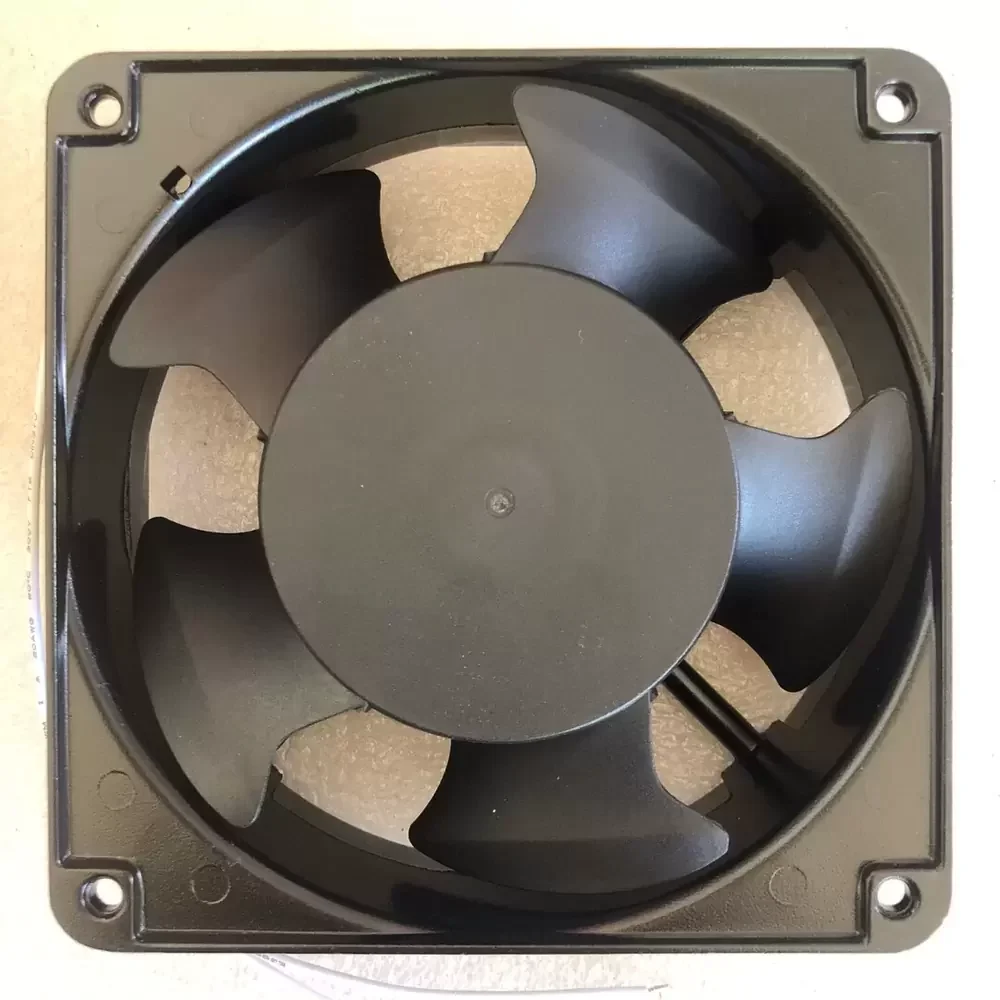

The Sunon DP200A 2123XSL is a high-reliability AC Axial Fan designed to deliver consistent thermal management in demanding industrial applications. Engineered with a robust shaded pole motor and a precision Sleeve Bearing system, this unit ensures optimal rotational stability and longevity. The fan features a die-cast aluminum alloy frame which enhances structural rigidity and aids in heat dissipation, while the thermoplastic PBT impeller is aerodynamically optimized to maximize airflow efficiency while mitigating turbulence. This model is specifically calibrated to reduce thermal impedance in high-density electronic enclosures, operating efficiently across a standard 220-240VAC input range.
Model Number: DP200A 2123XSL
Brand: Sunon
Product Type: AC Axial Fan
Rated Voltage: 220-240 VAC
Frequency: 50/60 Hz
Rated Current: 0.14 A
Input Power: 22 W
Rated Speed: 2700 / 3100 RPM
Bearing Type: Sleeve Bearing
Max. Air Flow: 95 / 115 CFM (161 / 195 m³/h)
Max. Static Pressure: 0.33 / 0.38 inH₂O (8.38 / 9.65 mmH₂O)
Dimensions: 120x120x38mm
Weight: 550 g
Noise Level: 44 / 49 dBA
Frame Material: Die-Cast Aluminum Alloy
Blade Material: Thermoplastic PBT (UL94V-0)
Termination: Lead Wires
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Motor Protection: Impedance Protected
Insulation Resistance: > 500M Ohm
Dielectric Strength: 1500 VAC for 1 Minute
Life Expectancy: 25,000 Hours at 25°C
Mounting Orientation: Any
Ingress Protection: IP20
The DP200A 2123XSL is widely integrated into industrial automation systems and power distribution units where continuous cooling is mandatory. Typical applications include ventilation for electrical control cabinets, server rack cooling solutions, and heat extraction for welding machines and CNC equipment. The DP200A 2123XSL is also frequently deployed in telecommunications infrastructure and medical devices, providing the necessary airflow to prevent component overheating and ensure system reliability.
