Description

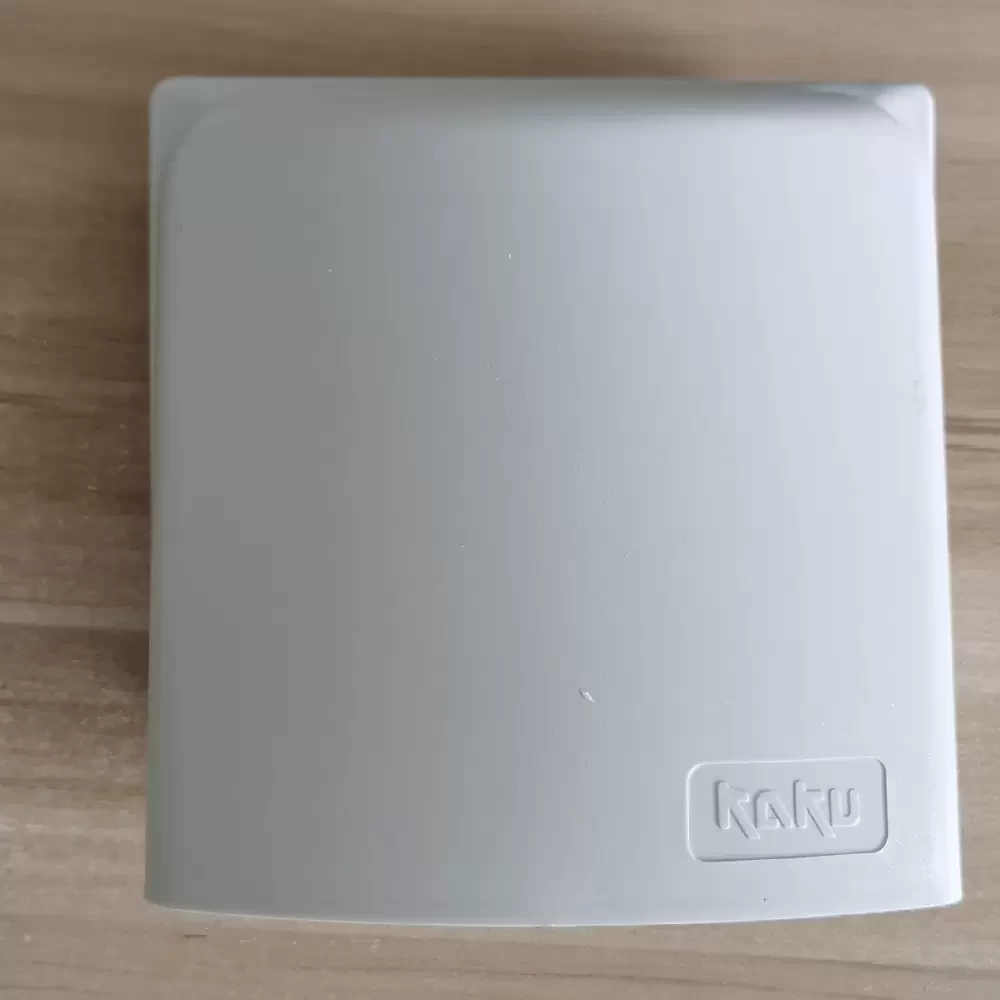

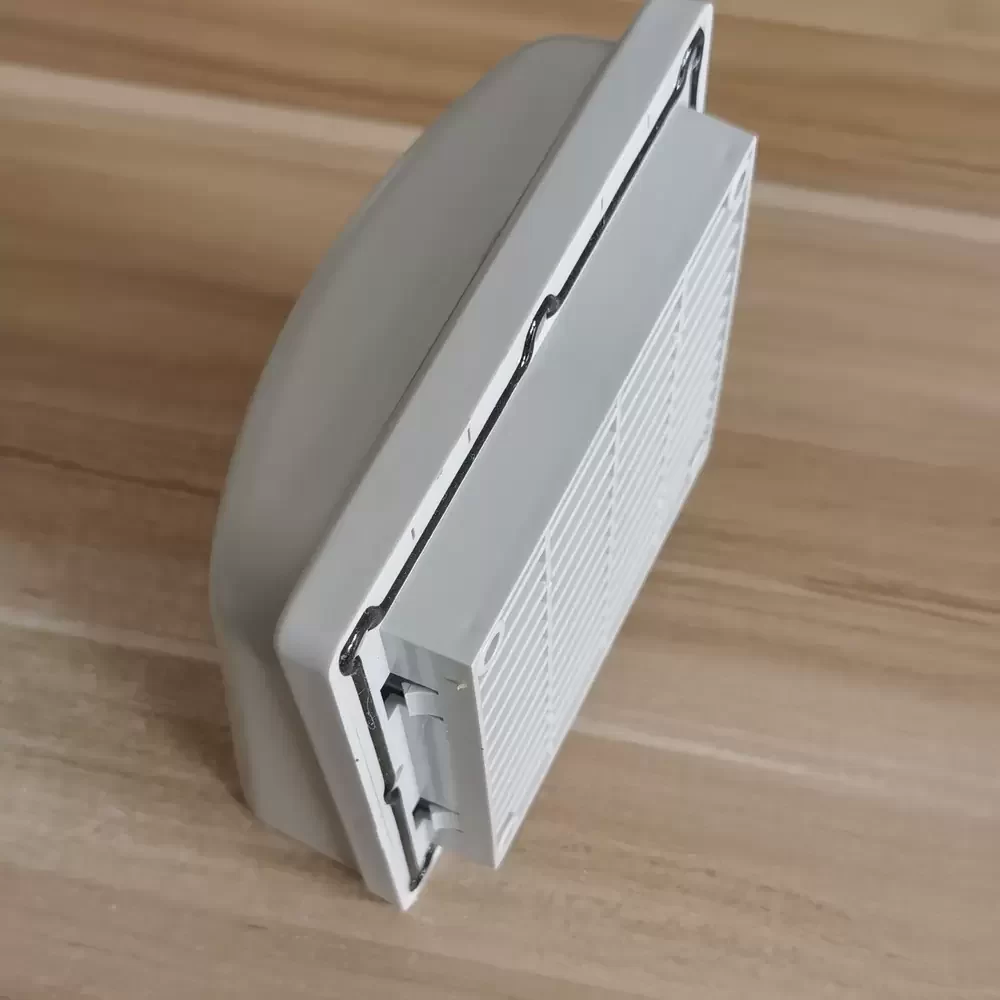

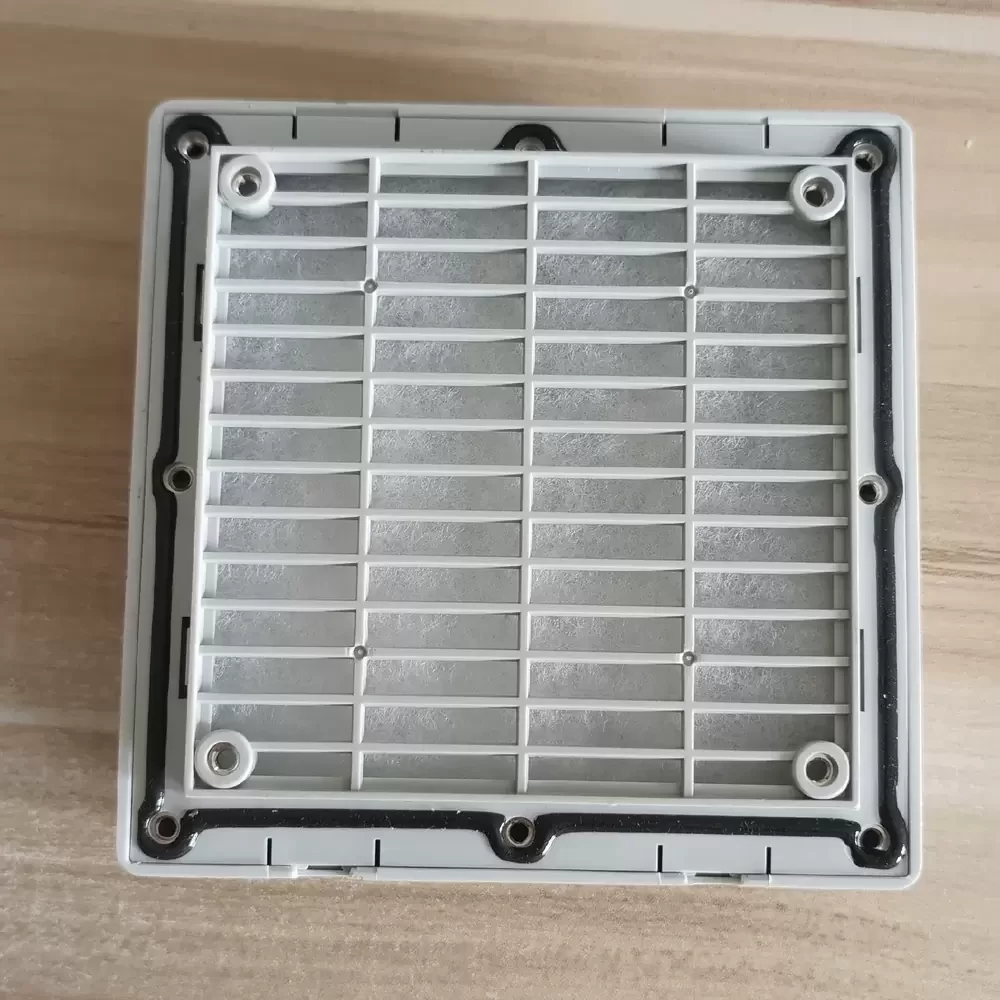

The KAKU KA-9803B is a specialized ventilation accessory designed for industrial thermal management systems, specifically engineered to house 120mm axial fans. Constructed from high-impact ABS resin with UL94V-0 flammability rating, this louvered filter assembly ensures optimal airflow while providing robust ingress protection against dust and moisture. The unit features a streamlined aerodynamic grille design that minimizes static pressure resistance, maintaining system thermal impedance at efficient levels. Its modular construction facilitates rapid maintenance and filter replacement, ensuring structural rigidity and long-term reliability in harsh enclosure environments.
Model Number: KA-9803B
Brand: KAKU
Product Type: Fan Filter Assembly
Rated Voltage: N/A (Passive Accessory)
Voltage Range: N/A
Rated Current: N/A
Power: N/A
Rated Speed: N/A
Bearing Type: N/A
Max. Air Flow: Dependent on Fan (Optimized for 120mm)
Max. Static Pressure: Dependent on Fan
Dimensions: 148.5 x 148.5 x 29 mm
Weight: 235 g
Life Expectancy: Durable ABS Construction
Fits Fan Size: 120 x 120 mm
Cutout Dimensions: 122 x 122 mm
Material: ABS Resin (UL94V-0)
Color: RAL 7035 Light Grey
Ingress Protection: IP44 (Standard) / IP54 (With Fine Filter)
Filter Media: Non-woven Synthetic Fiber
Filtration Efficiency: 70 Percent
Dust Removal Rate: 80 Percent
Mounting Type: Snap-in / Screw Mount
Operating Temperature: -10 to 55 Degrees Celsius
Storage Temperature: -20 to 70 Degrees Celsius
Flammability Rating: UL94V-0
Certifications: CE, RoHS, ISO9001
The KA-9803B is extensively utilized in electrical control cabinets and server rack enclosures where dust mitigation is critical for component longevity. By integrating the KA-9803B into automation panels and CNC machinery housings, operators ensure clean air intake for sensitive electronics while blocking particulate matter. This filtration solution is also ideal for power distribution units and telecommunications infrastructure, preventing particulate accumulation that leads to overheating and hardware failure.
