Description

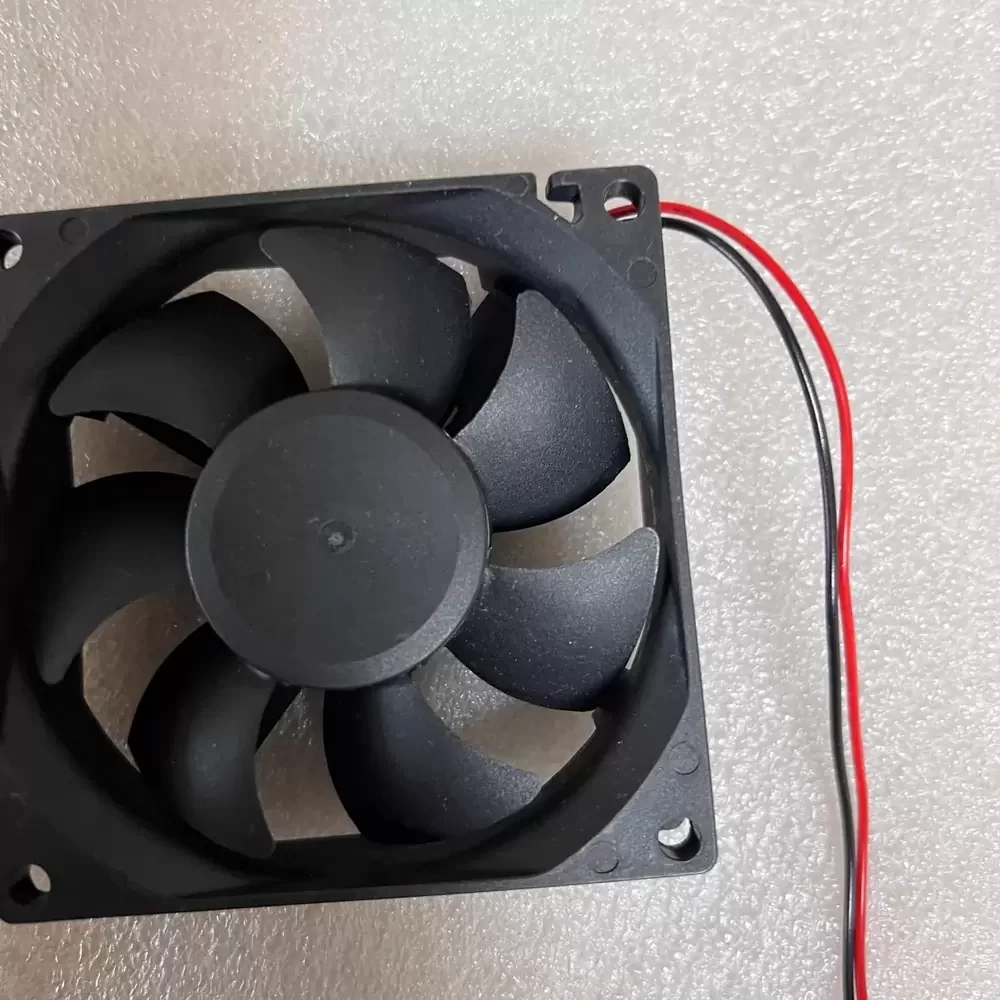

AVC DS08025B12H-P171 is an 80 x 80 x 25 mm axial cooling fan operating at 12 VDC with a 0.30 A current rating and 3.6 W power consumption. The unit features a dual ball bearing system housed within a PBT thermoplastic frame and impeller, both rated UL 94V-0 for flame retardancy. It utilizes a brushless DC motor design with a 2-wire lead wire interface for power connection. The internal mechanism is engineered for high-speed rotation, delivering significant static pressure and airflow through a seven-blade aerodynamic configuration.
DS08025B12H-P171 Specifications
Model: DS08025B12H-P171
Brand: AVC (Asia Vital Components)
Dimensions: 80 x 80 x 25 mm
Rated Voltage: 12 VDC
Operating Voltage Range: 7.0 to 13.8 VDC
Rated Current: 0.30 A
Input Power: 3.6 W
Rated Speed: 4500 RPM
Maximum Airflow: 52.3 CFM
Maximum Static Pressure: 0.28 in-H2O
Noise Level: 42.0 dBA
Bearing Type: Dual Ball Bearing
Frame Material: Thermoplastic PBT (UL 94V-0)
Impeller Material: Thermoplastic PBT (UL 94V-0)
Termination: 2-Wire Lead (Red/Black)
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +75 °C
Weight: 86 g
Life Expectancy: 70,000 hours at 40 °C
DS08025B12H-P171 Applications
Primary applications include integration into industrial automation control cabinets, server chassis thermal management systems, and frequency inverter cooling modules. Deployed within CNC machine tool electronics enclosures and telecommunications power supply units to maintain optimal operating temperatures.
