Description

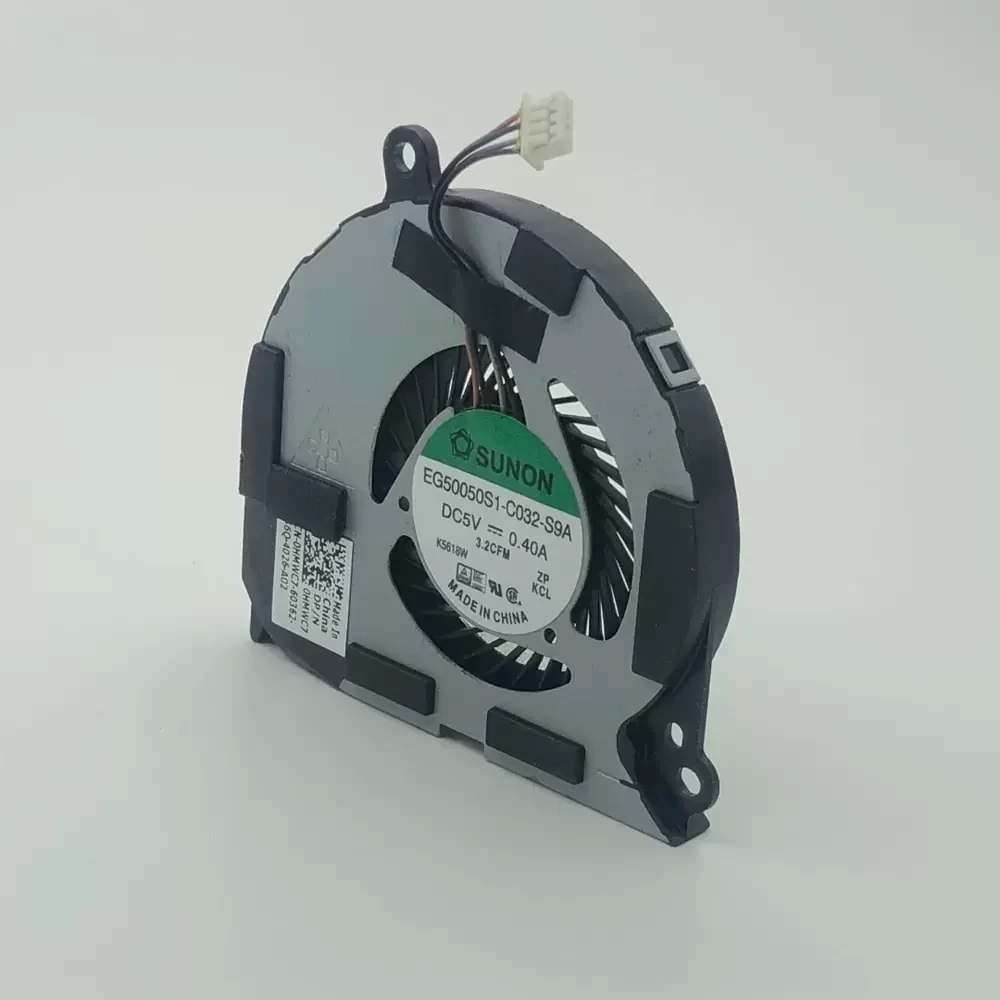

The Sunon EG50050S1-C032-S9A is a precision-engineered DC centrifugal blower designed for high-density thermal management in compact electronic assemblies. Utilizing Sunon’s proprietary MagLev bearing technology, this unit eliminates physical contact between the rotor and stator, significantly reducing friction and acoustic noise while enhancing structural rigidity and lifespan. The 5VDC motor integrates a 4-wire PWM control interface, allowing for dynamic speed modulation based on real-time thermal impedance. Optimized for restricted airflow environments, its aerodynamic impeller design delivers consistent static pressure, making it an ideal solution for ultra-thin computing architectures requiring reliable heat dissipation.
Model Number: EG50050S1-C032-S9A
Brand: Sunon
Product Type: DC Centrifugal Blower
Rated Voltage: 5VDC
Voltage Range: 4.5 – 5.5 VDC
Rated Current: 0.40 A
Power Consumption: 2.0 W
Rated Speed: Variable (PWM Controlled)
Bearing Type: MagLev (Magnetic Levitation)
Max. Air Flow: 3.2 CFM
Dimensions: Custom Laptop Blower Form Factor
Termination: 4-Wire Lead
Connector: 4-Pin Proprietary Header
Speed Control: PWM (Pulse Width Modulation)
Signal Output: Tachometer (FG)
Material: PBT Plastic (UL94V-0)
Application: Dell Latitude E7440 / E7450
Operating Temperature: -10°C to +70°C
Mounting: 3-Point Screw Mount
This centrifugal blower is primarily utilized in mobile computing platforms, specifically serving as the OEM thermal solution for Dell Latitude E7440 and E7450 ultrabooks. The EG50050S1-C032-S9A ensures critical component cooling within the tight chassis constraints of modern laptops, effectively managing CPU and GPU temperatures. Beyond laptop repair, the EG50050S1-C032-S9A is suitable for custom DIY electronics, compact projectors, and portable instrumentation where low-profile, high-reliability active cooling is required to maintain operational stability.
