Description

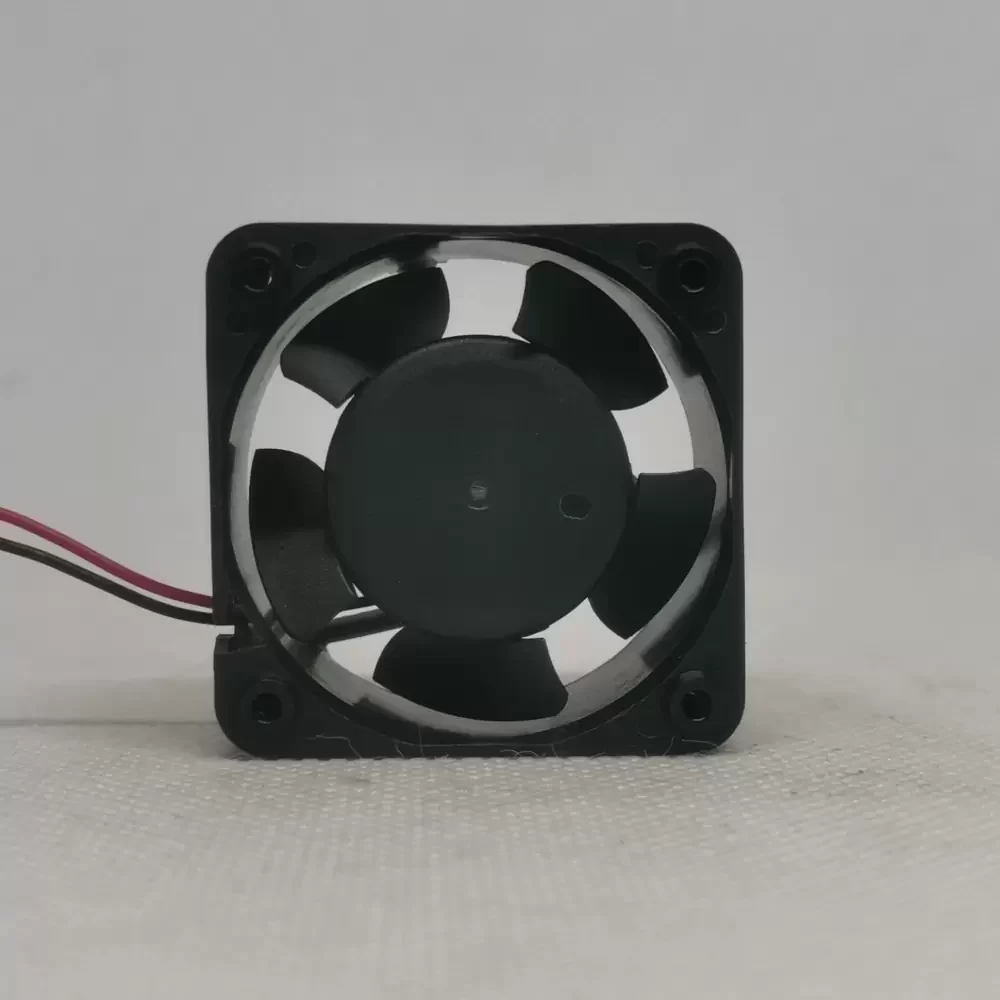

The Y.S.TECH FD124020LL-N is a DC axial fan engineered for precision thermal management in compact industrial enclosures. Utilizing a brushless DC motor and the proprietary Sintetico bearing architecture, this unit minimizes thermal impedance while maintaining high structural rigidity. Its aerodynamic impeller design is optimized for a balance between static pressure and acoustic efficiency, ensuring reliable operation in continuous-duty cycles. The 40x40x20mm frame provides a robust solution for localized cooling requirements where space is at a premium and long-term reliability is critical for system longevity.

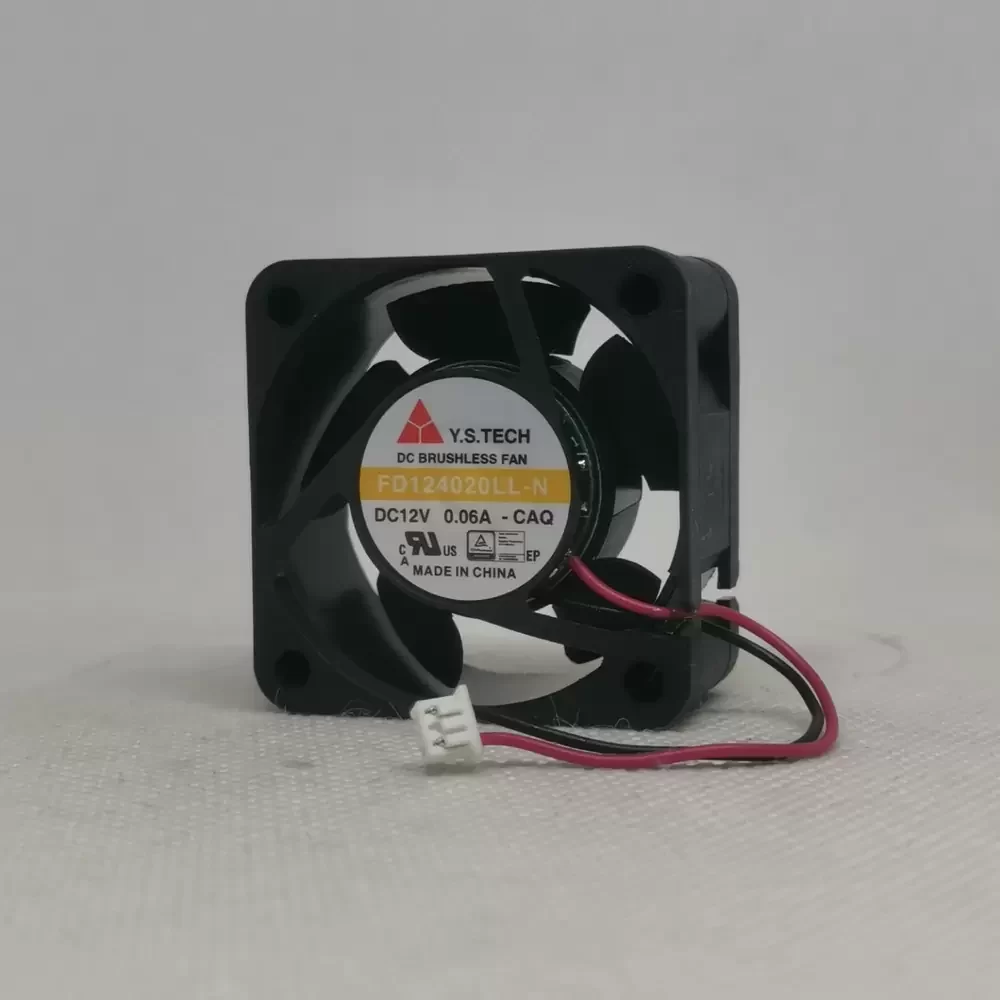

Model Number: FD124020LL-N
Brand: Y.S.TECH
Product Type: Axial Fan
Rated Voltage: 12VDC
Voltage Range: 10.2 – 13.8 VDC
Rated Current: 0.06A
Power: 0.72W
Rated Speed: 5000 RPM
Bearing Type: Sintetico Bearing
Max. Air Flow: 5.5 CFM (9.3 m³/h / 0.15 m³/min)
Max. Static Pressure: 3.5 mmH₂O (34.3 Pa / 0.14 inH₂O)
Dimensions: 40x40x20mm
Weight: 25g
Life Expectancy: 50,000 Hours
Noise Level: 21.0 dBA
Housing Material: Plastic (UL94V-0)
Blade Material: Plastic (UL94V-0)
Termination: 2 Lead Wires
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Protection: Locked Rotor Protection
Certifications: UL, TUV, CE
The FD124020LL-N is primarily utilized in power supply units, small-form-factor servers, and network switches where quiet operation is paramount. Its compact 40mm profile makes the FD124020LL-N an ideal choice for medical diagnostic equipment, industrial control panels, and telecommunications hardware requiring consistent airflow for sensitive electronic components.
